Southbend (Middleby) PCE75S/TI Platinum Convection Ovens
Description

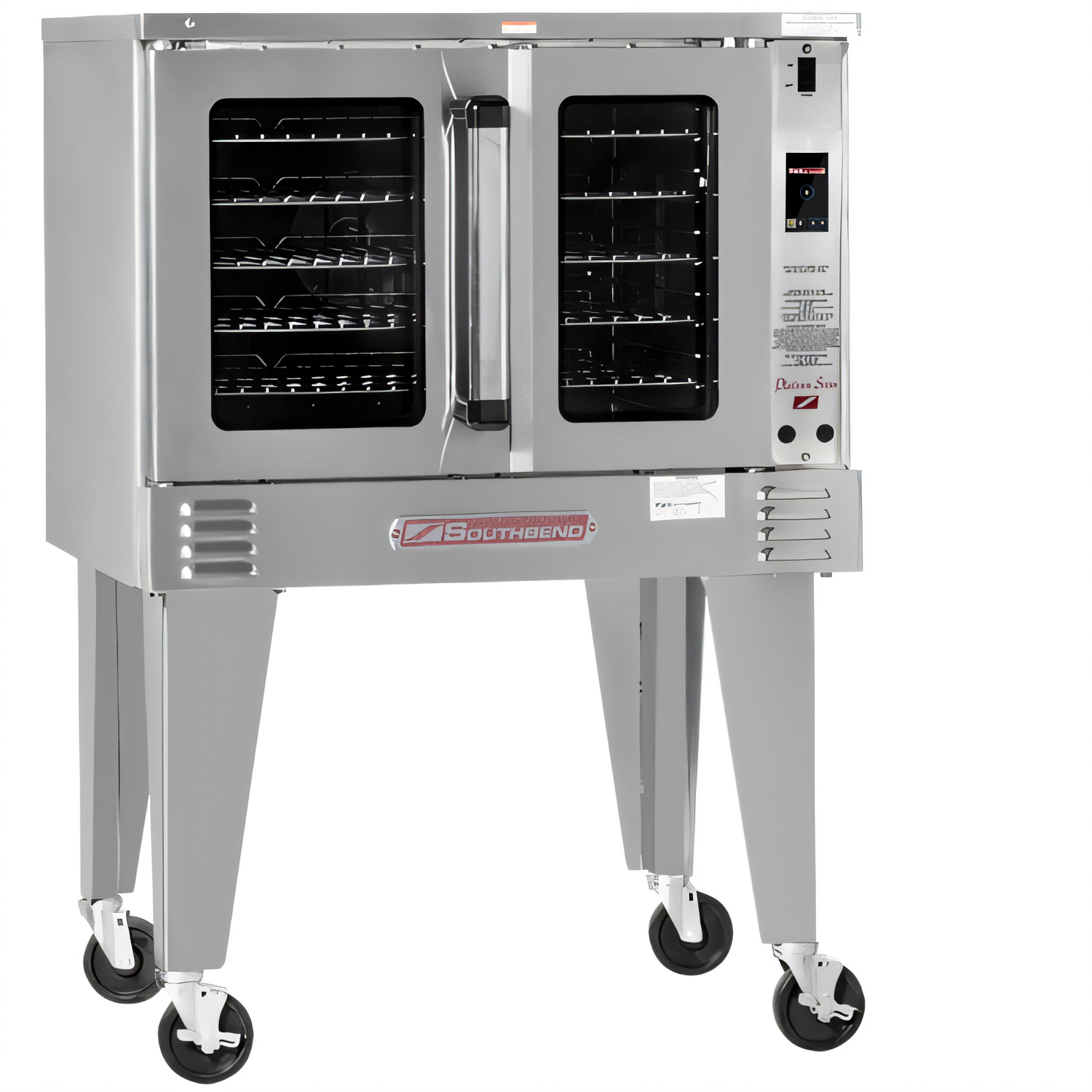

Southbend Platinum Series Single-Deck Convection Oven – 7.5 kW
Model PCE75B/T - Touchscreen • Independent Doors • Standard DepthBake, roast and re-therm faster while cutting energy costs with Southbend’s ENERGY STAR® Platinum Series electric convection oven. The 7.5 kW PCE75B/T couples a high-efficiency heat system with an intuitive touchscreen that puts manual, recipe and rack-timing modes at your fingertips—ideal for bakeries, restaurants and institutional kitchens that need consistent results shift after shift.
Key features & benefits

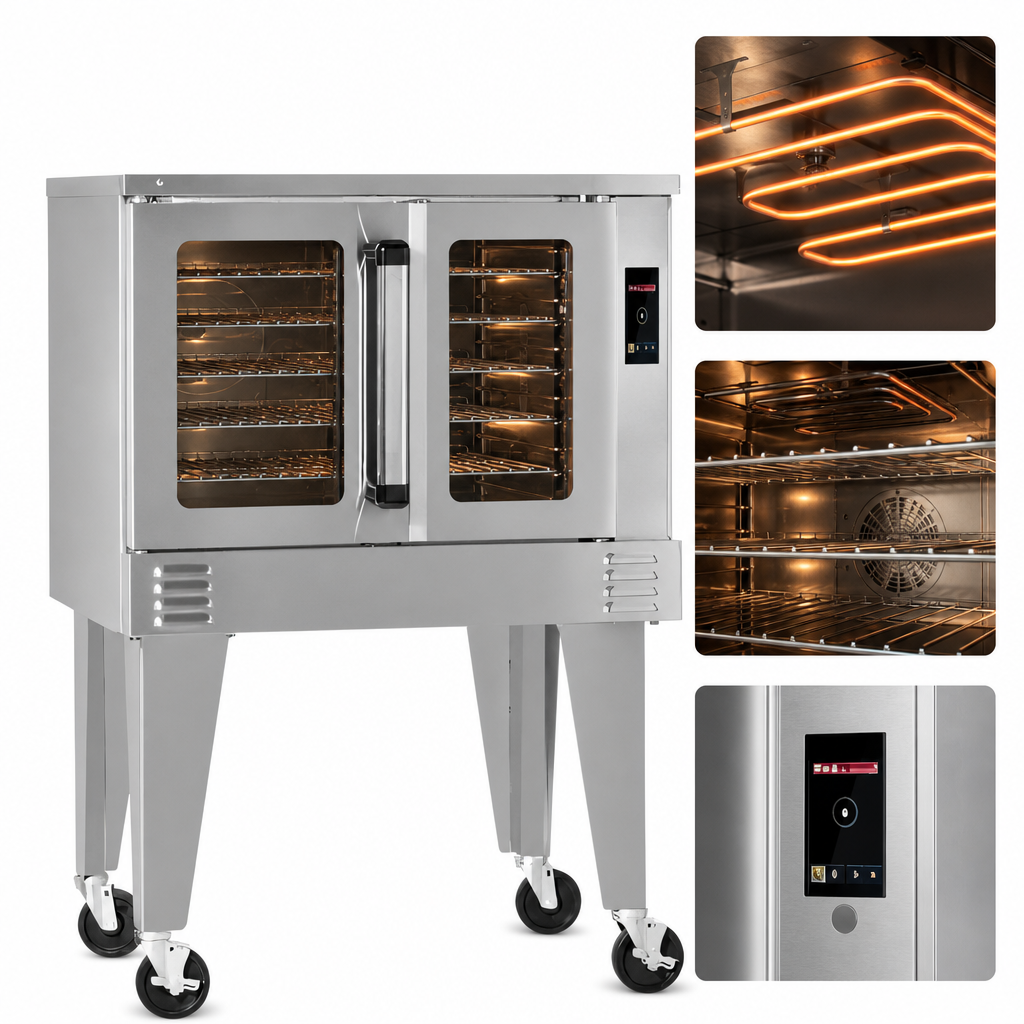

- 7.5 kW high-efficiency heating elements deliver rapid temperature recovery.

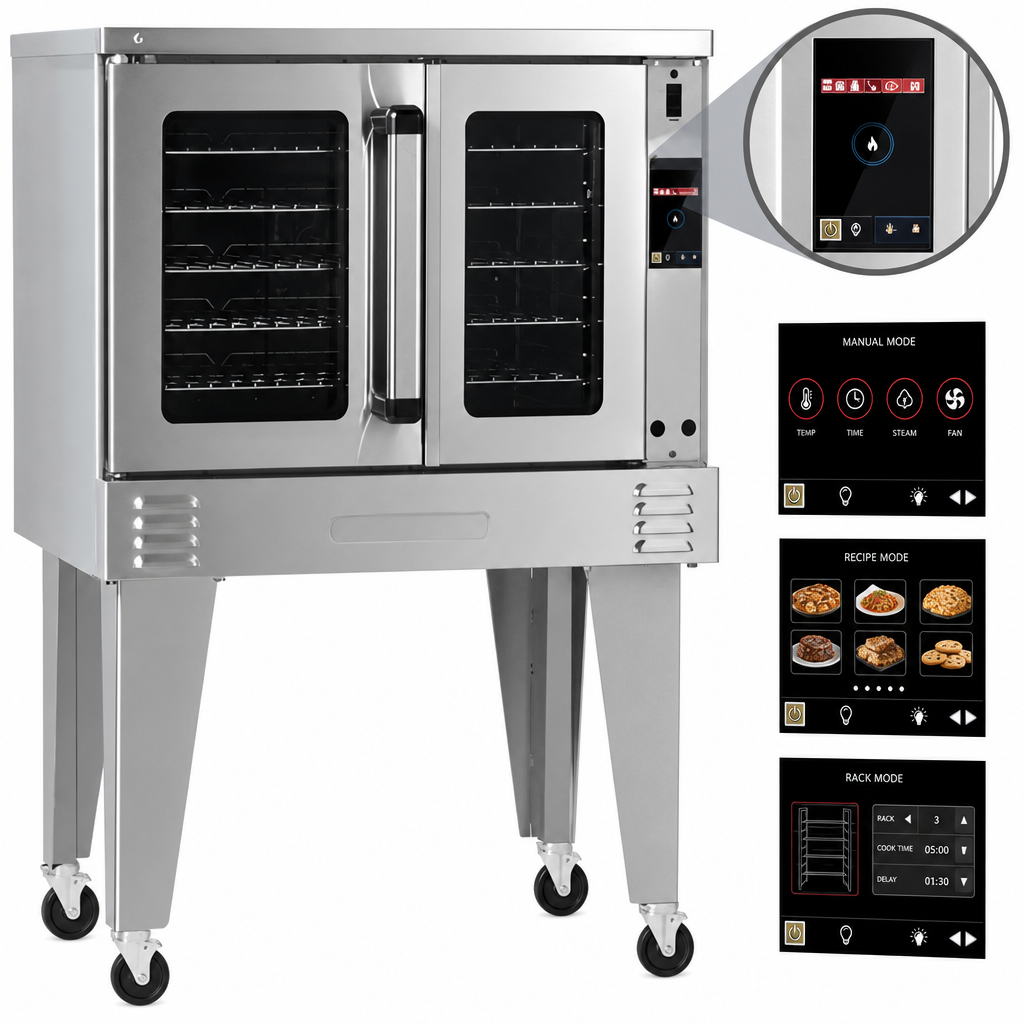

- Full-color touchscreen controls: manual, programmable recipe & multi-rack modes, plus 140 °F–200 °F “Hold.”
- Independent, dual-pane glass doors open separately to reduce heat loss and save energy.
- Patented “plug-in / plug-out” control panel slides out 17″ for quick front-service access.
- 11-position rack guides with 5 chrome-plated racks handle full-size sheet pans.
- Two-speed ½ hp fan motor and fan-cycle timer ensure even browning across every rack.
- Coved, fastener-free porcelain enamel interior wipes clean in seconds.
- Stainless steel front, sides & top stand up to the toughest commercial kitchens.
- Stay-cool, heavy-duty door handle and dual door seals for operator comfort & efficiency.
- Forced cool-down mode accelerates between-batch change-overs.
- Optional ventless catalytic system lets you “take your bake anywhere” where local codes permit.
At-a-glance specifications
| Manufacturer | Southbend, a Middleby Brand |
|---|---|
| Series / Model | Platinum Series / PCE75B/T |
| Capacity | Single deck – 5 racks included, 11 positions |
| Heat output | 7.5 kW electric |
| Temperature range | 150 °F – 550 °F • Hold: 140 °F – 200 °F |
| Controls | Touchscreen, recipe storage, rack timing, fan pulsing |
| Door style | Independent, dual-pane glass, 180° opening |
| Interior (W × D × H) | 29″ × 29″ × 20″ (737 × 737 × 508 mm) |
| Exterior (W × D × H) | 43.5″ × 36.5″ × 55″ on legs (1105 × 927 × 1397 mm) |
| Fan motor | ½ hp, 2-speed (1,710 / 1,120 RPM) |
| Interior lighting | 2 × 40 W recessed, high-temp lamps |
| Electrical (7.5 kW) |
240 V/60 Hz 1-φ 31.3 A | 3-φ 18.1 A/leg 208 V/60 Hz 1-φ 36.1 A | 3-φ 20.9 A/leg (208, 240, 380, 415, 480 V single or three-phase field selectable) |
| Certifications | CSA, NSF, ENERGY STAR® |
| Warranty | 1 year parts & labor (commercial use) |
What’s included
- (1) Platinum Series single-deck convection oven with 26″ stainless legs
- (5) Full-size wire racks
- User & installation manual
- Factory 1-year parts & labor warranty
Factory options (call to customize)
- UL-certified ventless catalytic hood system
- 4″ or 6″ heavy-duty casters
- Marine-edge top or rear flue diverter
- Stainless steel bottom, dirt tray or solid doors
- 2″ air-insulated side panels for island applications
Need help with voltage selection, lead-time or add-on accessories? Contact our food-service experts and we’ll configure the perfect oven for your kitchen.
