Southbend (Middleby) PCE75S/TD-V Platinum Convection Ovens
Description

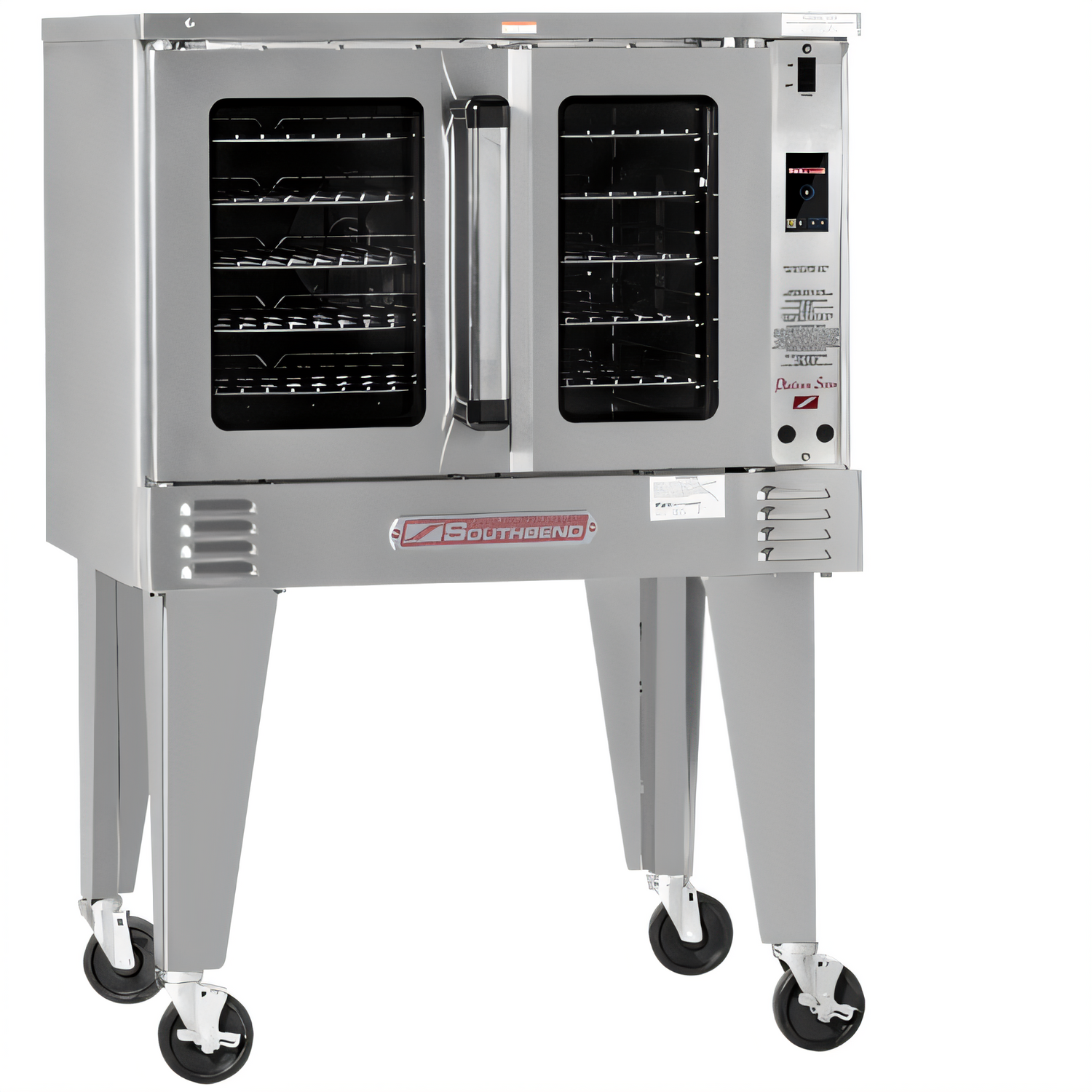

Southbend Platinum Series Ventless Convection Oven – Model PCE75B/T
7.5 kW • Electric • Single Deck • Touchscreen Controls • ENERGY STAR® & CSA/NSF CertifiedBake, roast and retherm anywhere on the line—no dedicated hood required. Southbend’s ventless internal catalyst captures grease-laden vapors, while a powerful two-speed fan delivers even, repeatable results every time. The Platinum PCE75B/T couples a rugged stainless-steel body with intuitive touchscreen technology, making it the ultimate plug-and-play solution for high-volume, high-efficiency cooking.
Why You’ll Love It
- Ventless Catalyst System – UL-certified design eliminates the need for a Type II hood* for flexible placement.

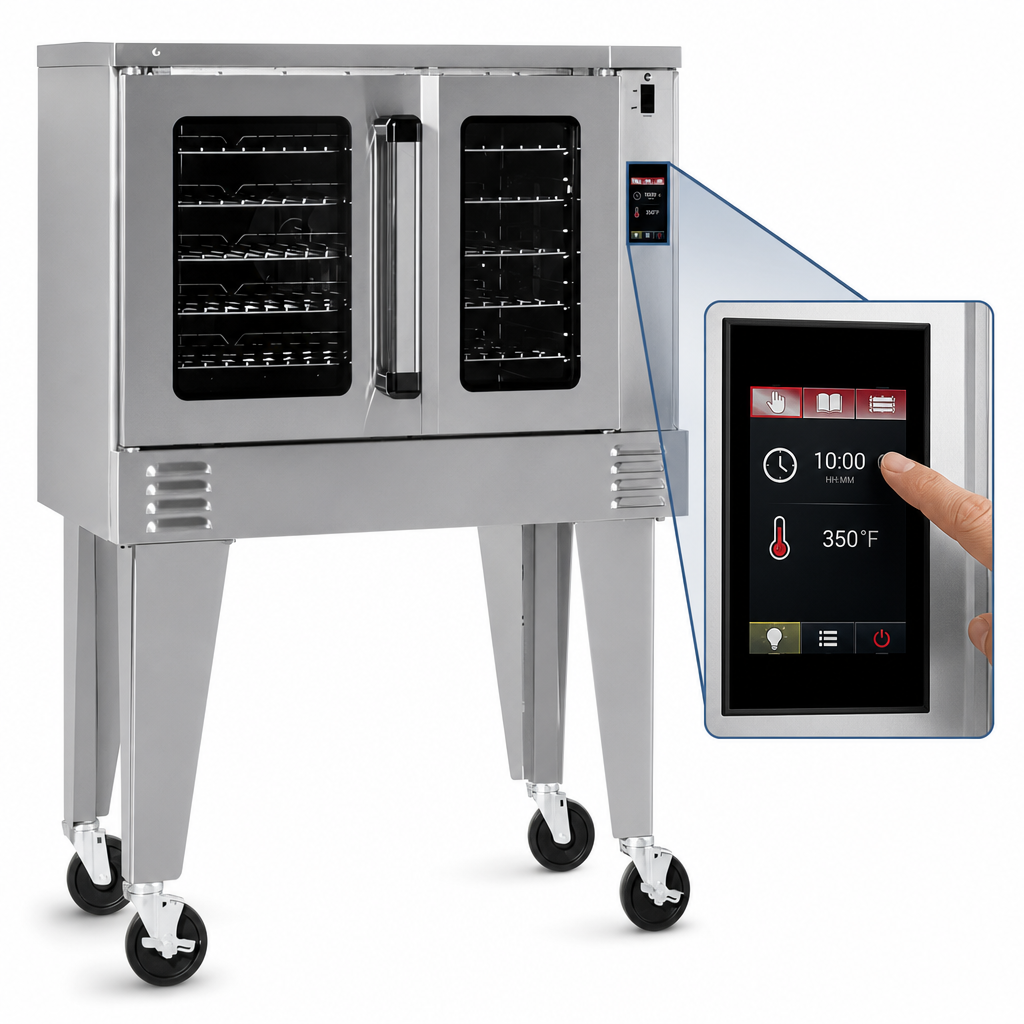

- Intuitive Touch Controls – Store multi-step recipes, run rack timers, or switch to manual mode in seconds.

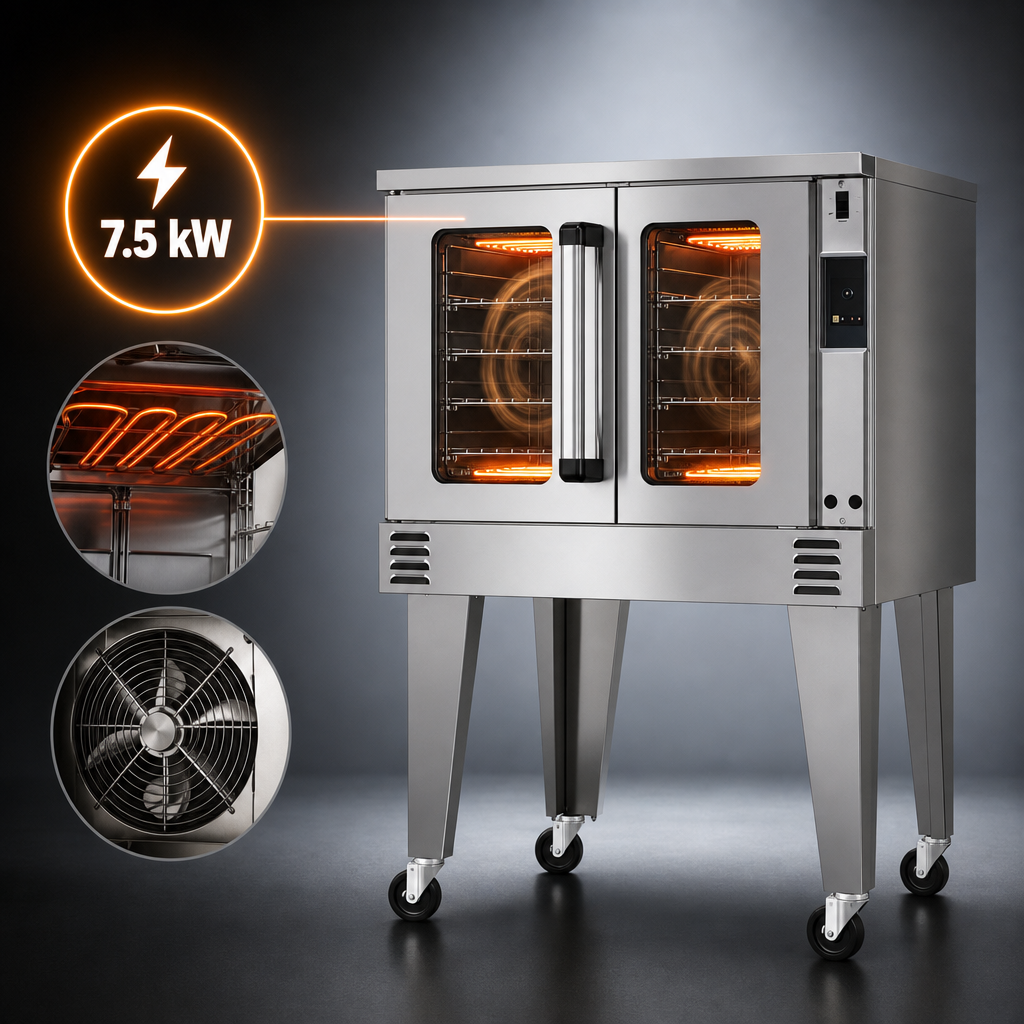

- High-Efficiency 7.5 kW Heater – Rapid recovery with ENERGY STAR® performance to reduce utility costs.
- Dependent 2-Piece Glass Doors – Full 180° opening with dual seals to keep heat in and energy bills down.
- Service-Friendly Design – Patented “plug-in, plug-out” control panel slides out 17" for full-view access.
- Durable Construction – Stainless-steel front, sides & top; coved porcelain-enameled interior for easy wipe-down.
- Capacity & Versatility – 11 rack positions and 5 standard oven racks handle full-size sheet pans front-to-back.
- Forced Cool-Down Mode – Quickly drops cavity temperature between batches to keep production moving.
- Bright Interior Lighting – Two 40 W recessed lamps make it easy to monitor doneness without opening the door.
Precision Performance
- Temperature range: 150 °F–550 °F with 140 °F–200 °F “Hold” setting.
- Programmable fan pulse for delicate items.
- 1/2 hp, 2-speed fan motor (1710/1120 RPM) for optimal air flow.
- Automatic fan shut-off when doors open for operator safety & energy savings.
Specifications
| Cooking Capacity | 5 full-size sheet pans (included) on 11 rack positions |
|---|---|
| Overall Dimensions (W × D × H) | 29" × 43.5" × 55" (with optional casters) |
| Interior Cavity (W × D × H) | 29" × 29" × 20" |
| Clearances (Combustible) | Front & right 0" • Rear & left 2" |
| Heating Elements | 7.5 kW sheathed element pack (rear-mounted) |
| Electrical (select at ordering) |
208 V / 240 V / 380 V / 415 V / 480 V Single or 3-phase, 50/60 Hz Max amps @240 V 3-phase: 18.1 A |
| Certifications | CSA, NSF, ENERGY STAR® |
| Net / Shipping Weight | ≈ 510 lb / 680 lb crated |
| Warranty | 1-year parts & labor (see Southbend limited warranty) |
What’s Included
- (5) nickel-plated oven racks
- 26" stainless steel legs
- Ventless catalyst module (factory-installed)
- User & installation manual
Popular Factory Options
- 4" or 6" locking casters
- Independent doors
- Marine edge top
- Stainless rear jacket or solid doors
*Southbend recommends installation under a canopy hood when cooking high-fat proteins or sugar-laden products that may exceed catalyst capacity.
