Southbend (Middleby) PCE75S/TD Platinum Convection Ovens
Description

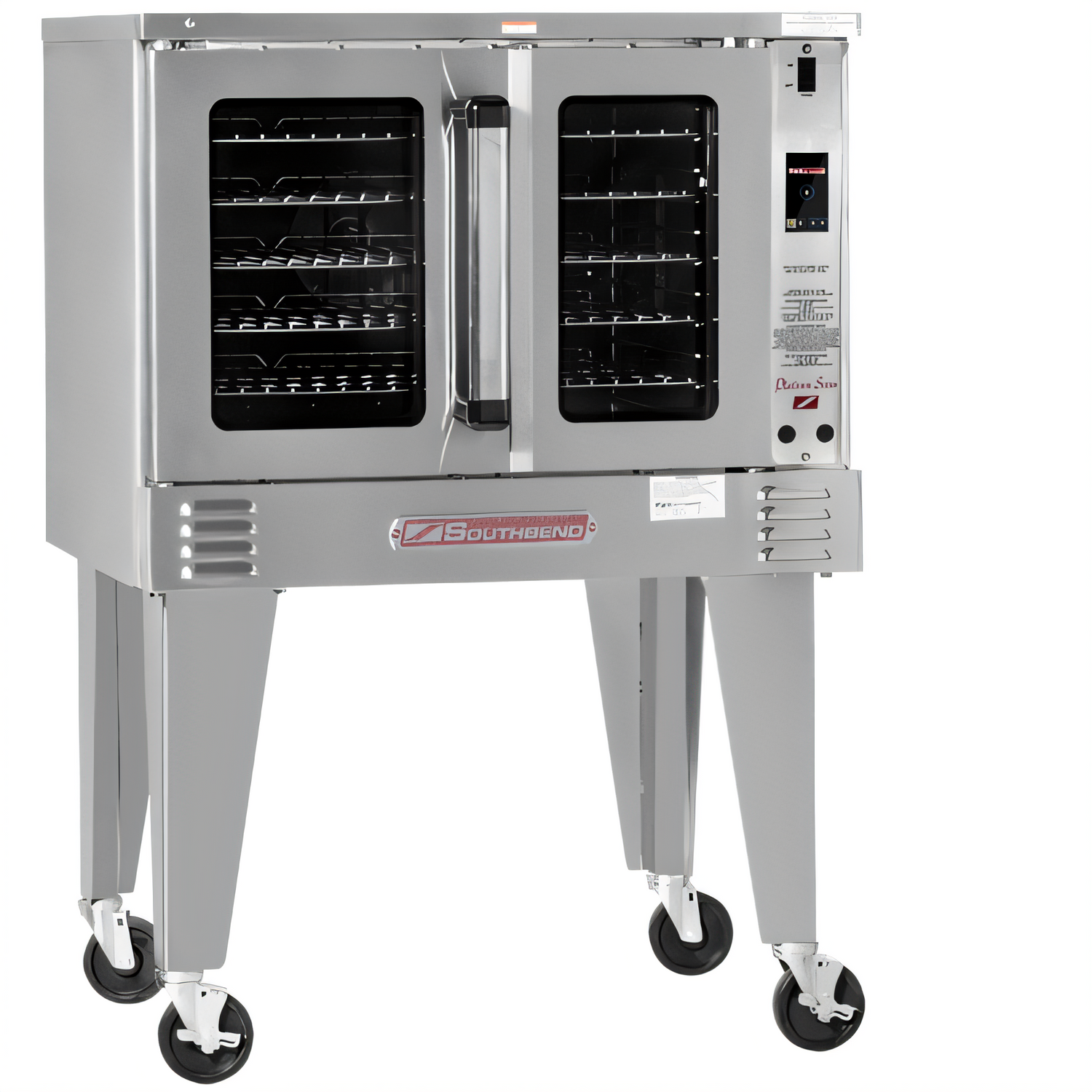

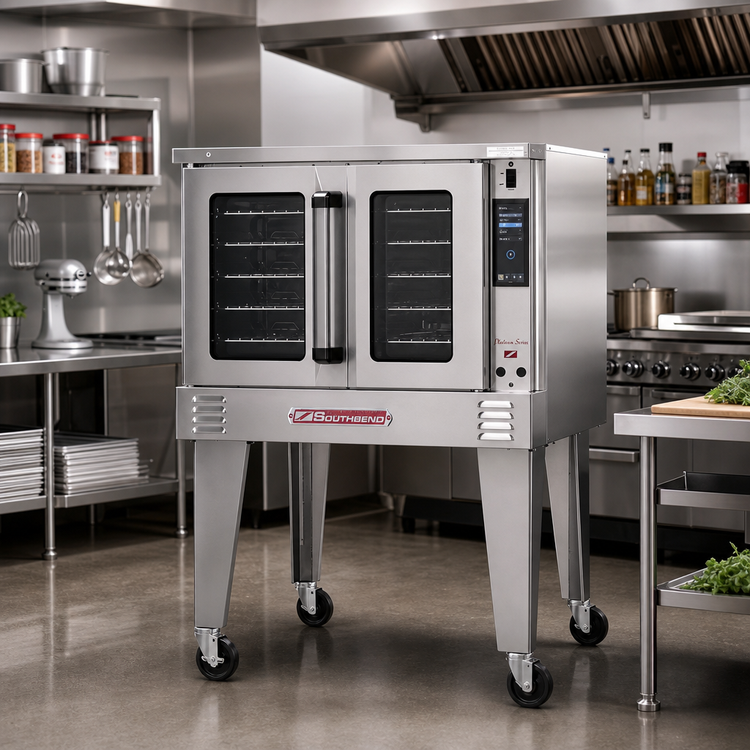

Southbend Platinum Series PCE75B/T Single-Deck Electric Convection Oven
7.5 kW | Touchscreen controls | Standard depth | ENERGY STAR®, CSA & NSF listedBake, roast, or reheat with unrivaled consistency. The Platinum PCE75B/T delivers heavy-duty performance in a compact single-deck footprint, pairing Southbend’s legendary build quality with an intuitive touchscreen that keeps even the busiest kitchen on schedule.
Why You’ll Love It

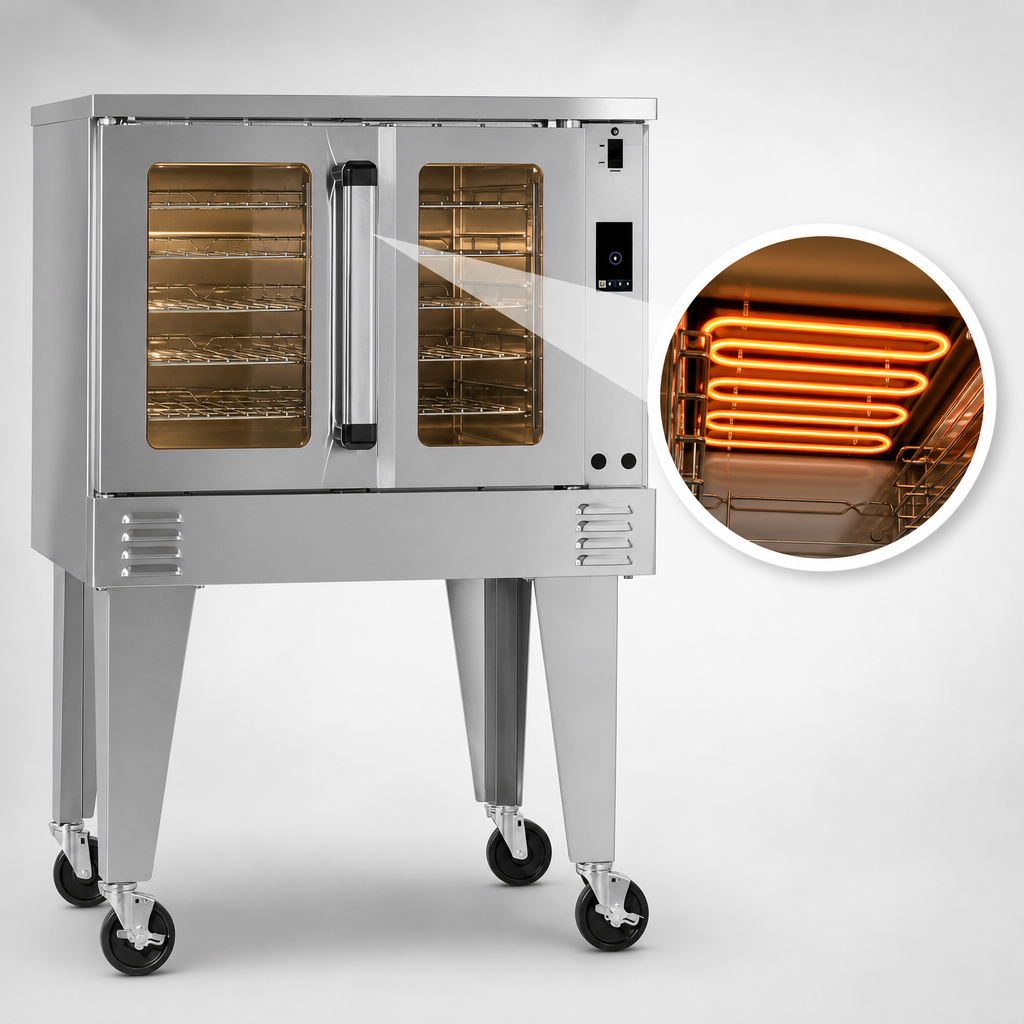

- High-efficiency 7.5 kW heating system reaches set temps fast and maintains them with less energy.

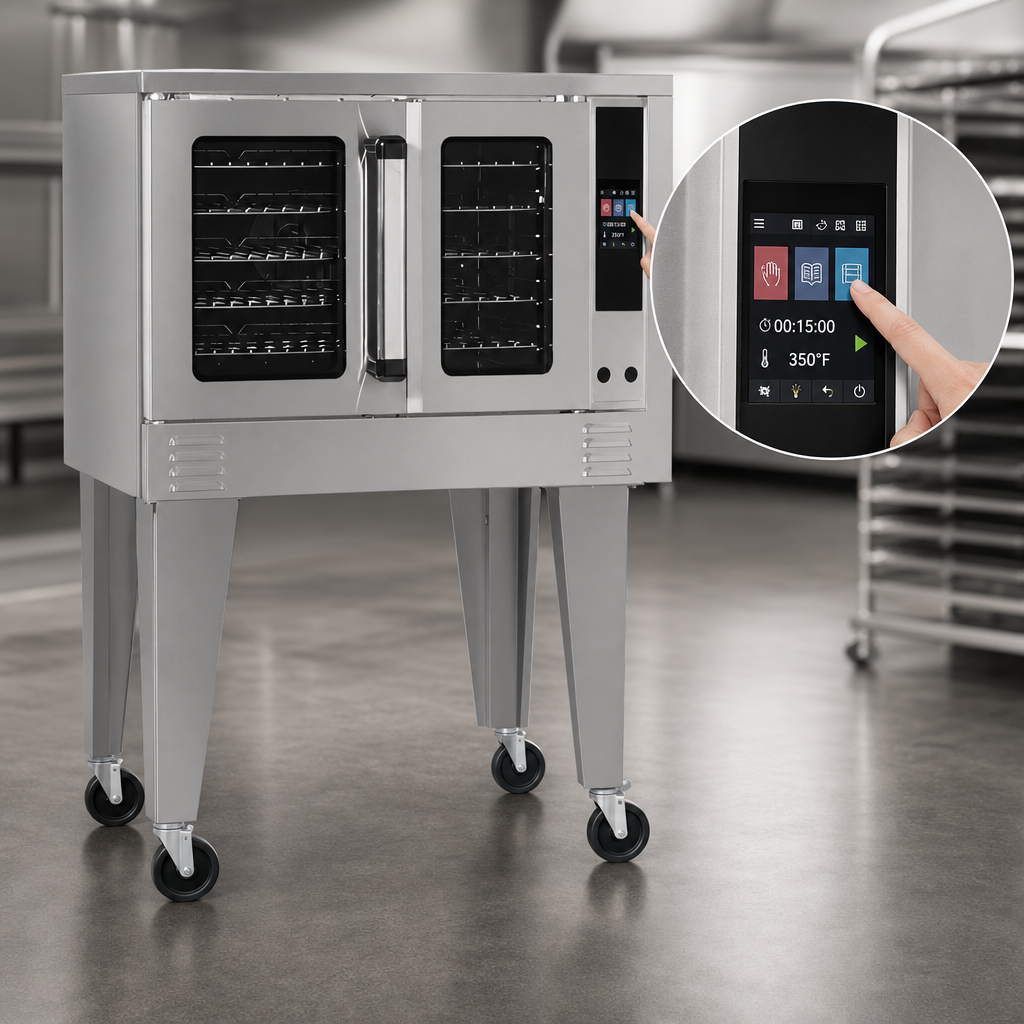

- Full-color touchscreen offers manual, recipe, and rack modes plus fan pulsing for delicate bakes.
- Patented “plug-in / plug-out” control panel slides out 17" for front-access servicing—no downtime.
- Dependent dual-pane doors open 180°; low-E glass windows lock in heat while maximizing visibility.
- 11-position rack guides & 5 plated racks accommodate everything from cookies to roasts.
- 2-speed ½ hp fan motor “scrubs” hot air across product for even color on every pan.
- Forced cool-down mode speeds change-overs and end-of-day shutdowns.
- Optional ventless catalyst lets you install almost anywhere—no hood required (check local code).
Construction Highlights
- Stainless steel front, sides, top, and 26" triangular legs (casters optional).
- Coved, fastener-free porcelain enamel interior cleans up in seconds.
- Stay-cool, heavy-duty door handle and dual gasket seal.
- Two recessed 40 W oven lights for a clear view without opening doors.
At-a-Glance Specs
| Model | PCE75B/T (Touchscreen) |
|---|---|
| Decks | 1 (single) |
| Heating Elements | 7.5 kW total, electric |
| Temperature Range | 150 °F – 550 °F + 140 °F – 200 °F holding |
| Fan Motor | ½ hp, 2-speed (1710/1120 RPM) |
| Interior Capacity | 29" W × 29" D × 20" H (5 full-size pans on 11 positions) |
| Exterior Dimensions* | 43.5" W × 36.5" D × 55" H (with optional casters) |
| Electrical (select at order) | 208, 240, 380, 415, or 480 VAC / 1- or 3-phase Draw: 15.7 – 36.1 A (see spec sheet for details) |
| Certifications | ENERGY STAR®, CSA, NSF |
| Warranty | 1-year parts & labor (commercial use) |
*Shipping crate: 57.5" W × 45.5" D × 45" H · 680 lb
Popular Options (factory-installed)
- UL-certified ventless catalytic system
- 4" or 6" locking casters
- Marine-edge top or stainless rear jacket
- Independent doors or solid stainless doors
Intended for commercial use only. Always verify electrical requirements and local code compliance before ordering.
