Southbend (Middleby) PCE75S/SI-V Platinum Convection Ovens
Description

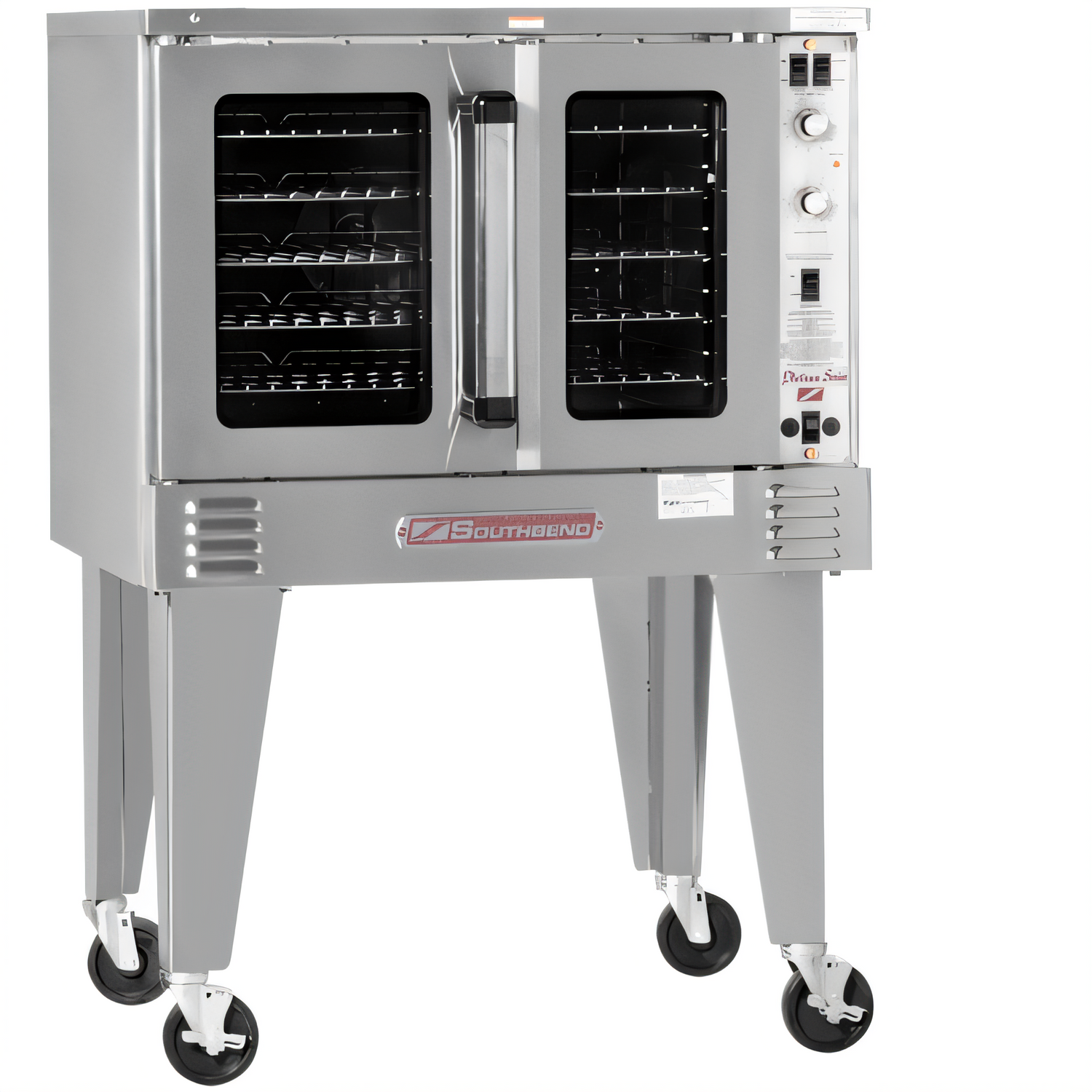

Southbend Platinum Series Ventless Electric Convection Oven – Model PCE75B/S
Single-deck | 7.5 kW | Independent Doors | ENERGY STAR®Go wherever the job takes you. The Platinum Series PCE75B/S delivers full-size convection performance in a ventless, 7.5 kW package that fits under standard hoods—or eliminates the need for one entirely.* With independent dual-pane glass doors, rock-solid stainless construction and Southbend’s legendary “plug-in, plug-out” control panel, this oven is built to bake, roast and reheat with unmatched efficiency and uptime.
Key Features & Benefits
- Ventless internal catalytic system (UL certified) – no external ducting required*
- High-efficiency 7.5 kW rear heating elements for rapid preheat & even baking

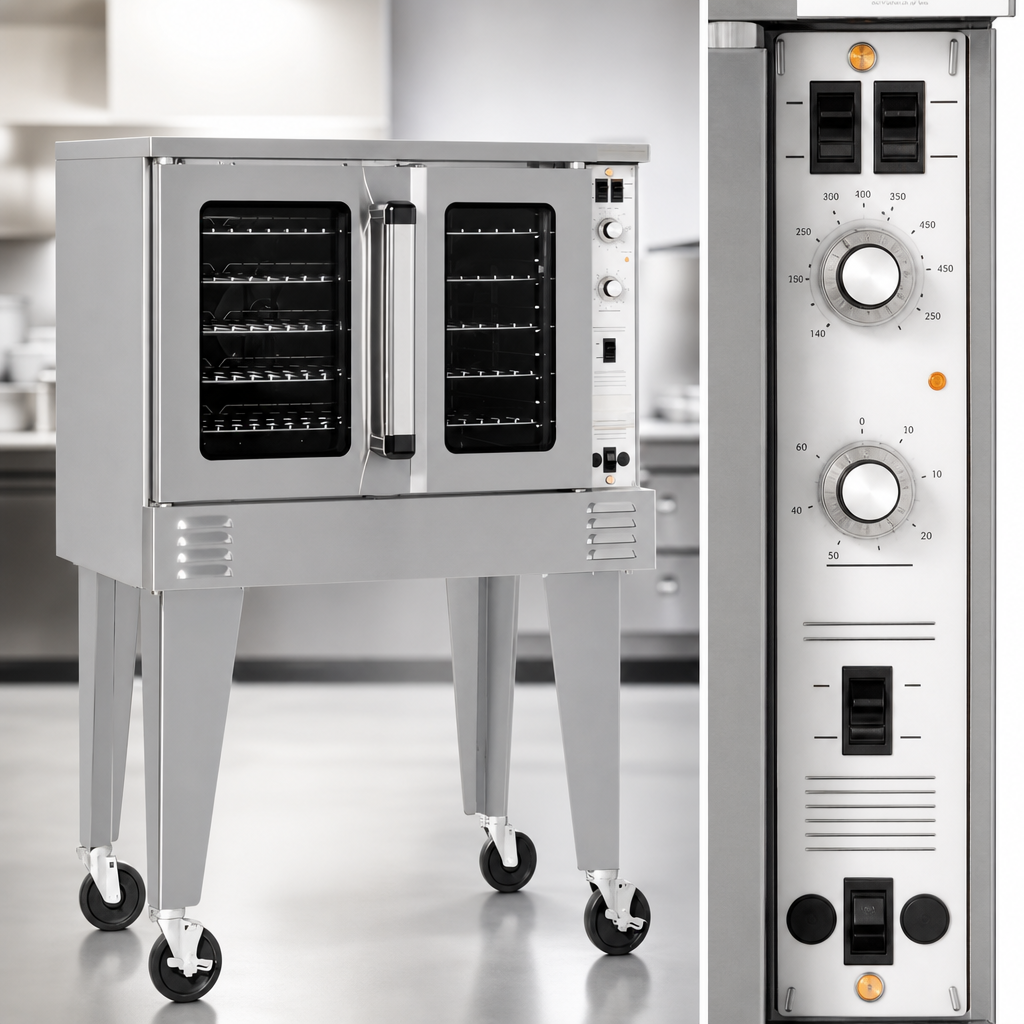

- Standard solid-state controls: 140 °F – 500 °F thermostat & 60-minute mechanical timer
- Independent, stay-cool glass doors open a full 180° for safe, ergonomic loading
- 11-position rack guides with 5 nickel-plated racks included (fits full-size sheet pans)
- Two-speed ½ HP fan plus forced cool-down mode protects product & components
- Coved, fastener-free porcelain enamel interior wipes clean in seconds
- Slide-out “plug-in, plug-out” control panel for tool-free service access
- ENERGY STAR®, CSA & NSF listed for efficiency, safety and sanitation
- One-year limited parts & labor warranty backed by Southbend’s nationwide service network
Technical Specifications
| Model | PCE75B/S (Platinum Series, Single Deck) |
|---|---|
| Capacity | Five 18" × 26" full-size sheet pans in a single load |
| Exterior Dimensions | 43.5" W × 36.5" D × 55" H (on 26" legs) |
| Cavity Dimensions | 29" W × 29" D × 20" H |
| Cooking Controls | Solid-state thermostat (140 °F – 500 °F) | 60-min mechanical timer |

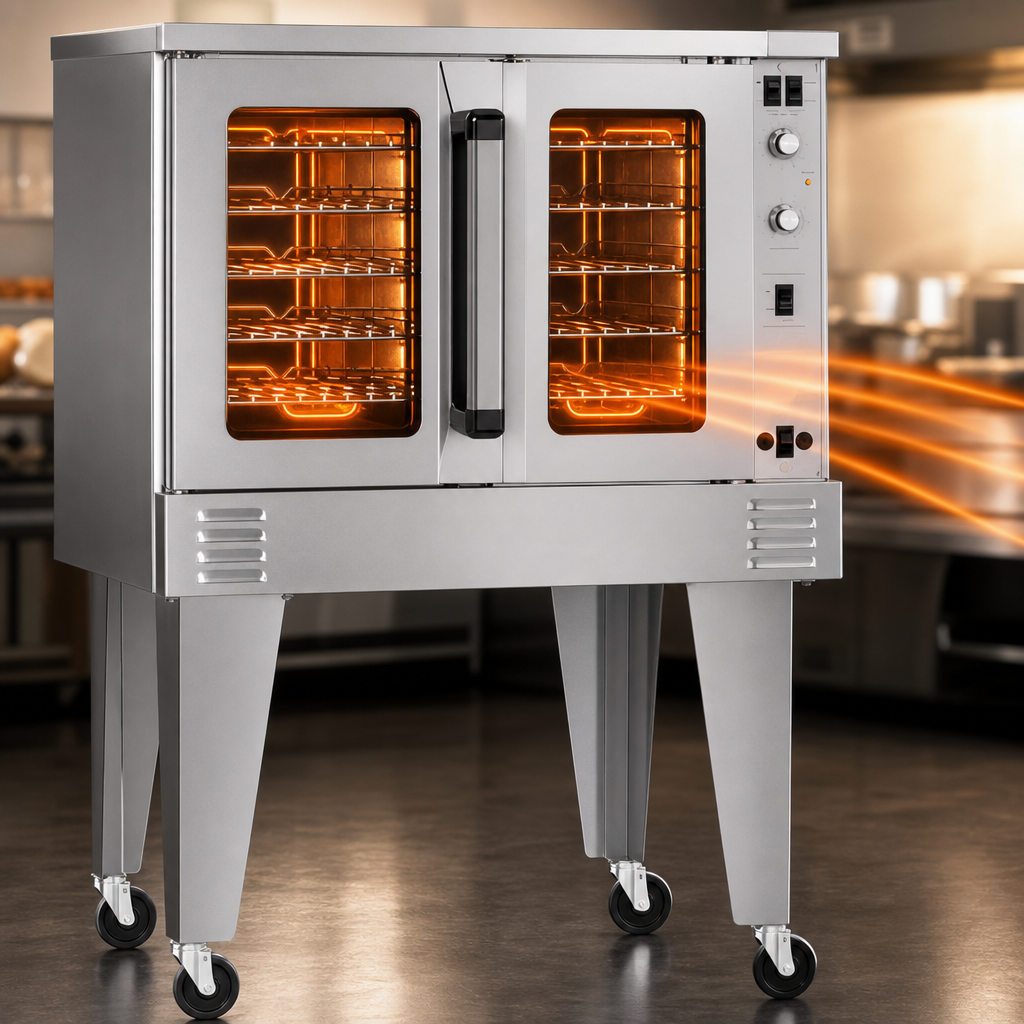

| Heating Elements | 7.5 kW, rear-mounted sheathed elements |
| Electrical (select when ordering) |
• 208 V / 60 Hz / 1-ph – 36.1 A • 240 V / 60 Hz / 1-ph – 31.3 A • 208 V / 60 Hz / 3-ph – 20.9 A/line • 240 V / 60 Hz / 3-ph – 18.1 A/line Add 4.3 A for control circuit. Other voltages available. |
| Fan Motor | ½ HP, two-speed (1710/1120 RPM) |
| Certifications | ENERGY STAR®, CSA, NSF, UL Ventless |
| Warranty | 1 year parts & labor (commercial use) |
Perfect For
- Cafés & bakeries needing hoodless installation
- Restaurants adding satellite baking or roasting stations
- Ghost kitchens, concessions and mobile operations
- Schools, healthcare and institutions seeking ENERGY STAR® savings
Ventless Installation: The integrated catalytic converter is UL-certified for emission control; always confirm local code compliance before final placement. Oven is intended for commercial use only.
