Southbend (Middleby) PCE75S/SI Platinum Convection Ovens
Description
Southbend Platinum Series Single Convection Oven
Electric • 7.5 kW • Independent Glass Doors • ENERGY STAR® CertifiedBuilt for high-volume bakeries, restaurants and institutional kitchens, the Southbend Platinum PCE75B/S Single-Deck Convection Oven delivers unmatched performance in a compact, service-friendly design. With a high-efficiency 7.5 kW heat package, rugged stainless construction and ENERGY STAR® credentials, it keeps productivity up and operating costs down.
Key Features

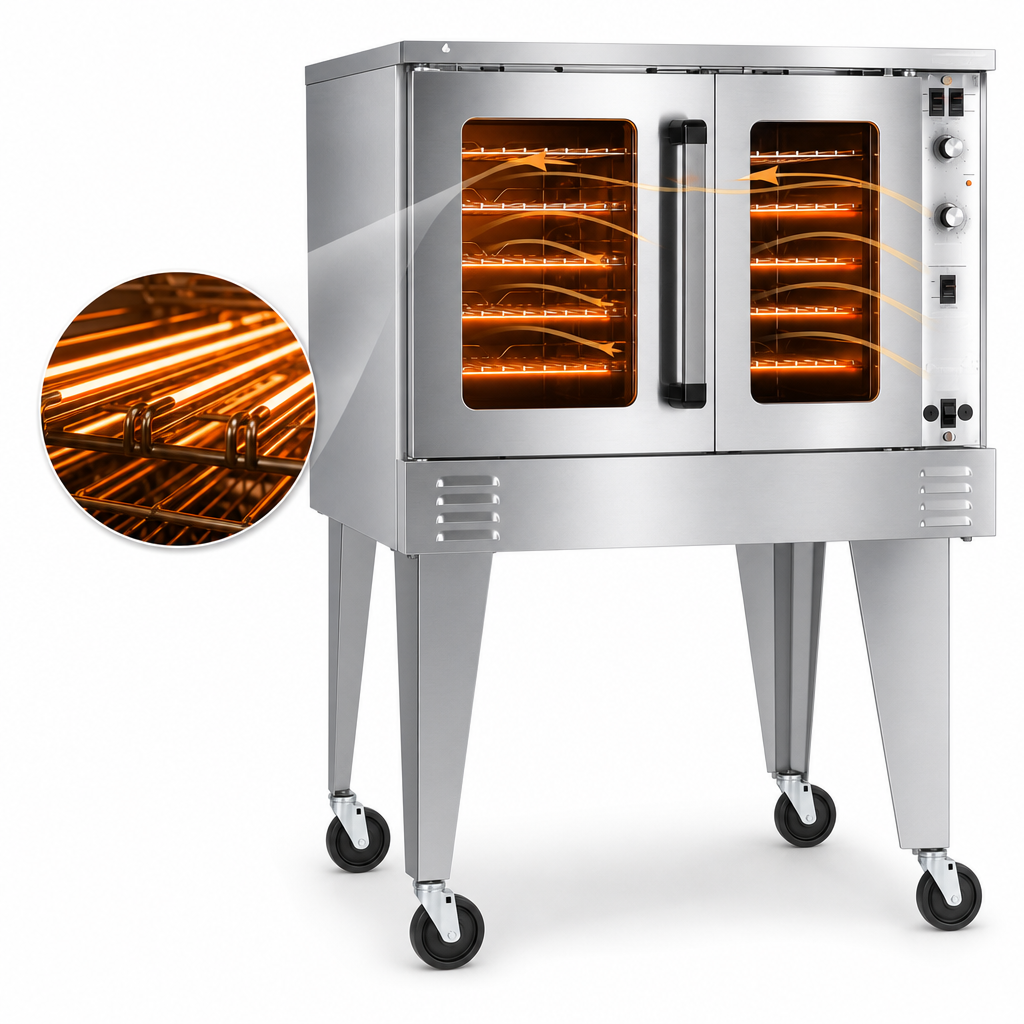

- 7.5 kW high-efficiency rear-mounted heating elements (electric)

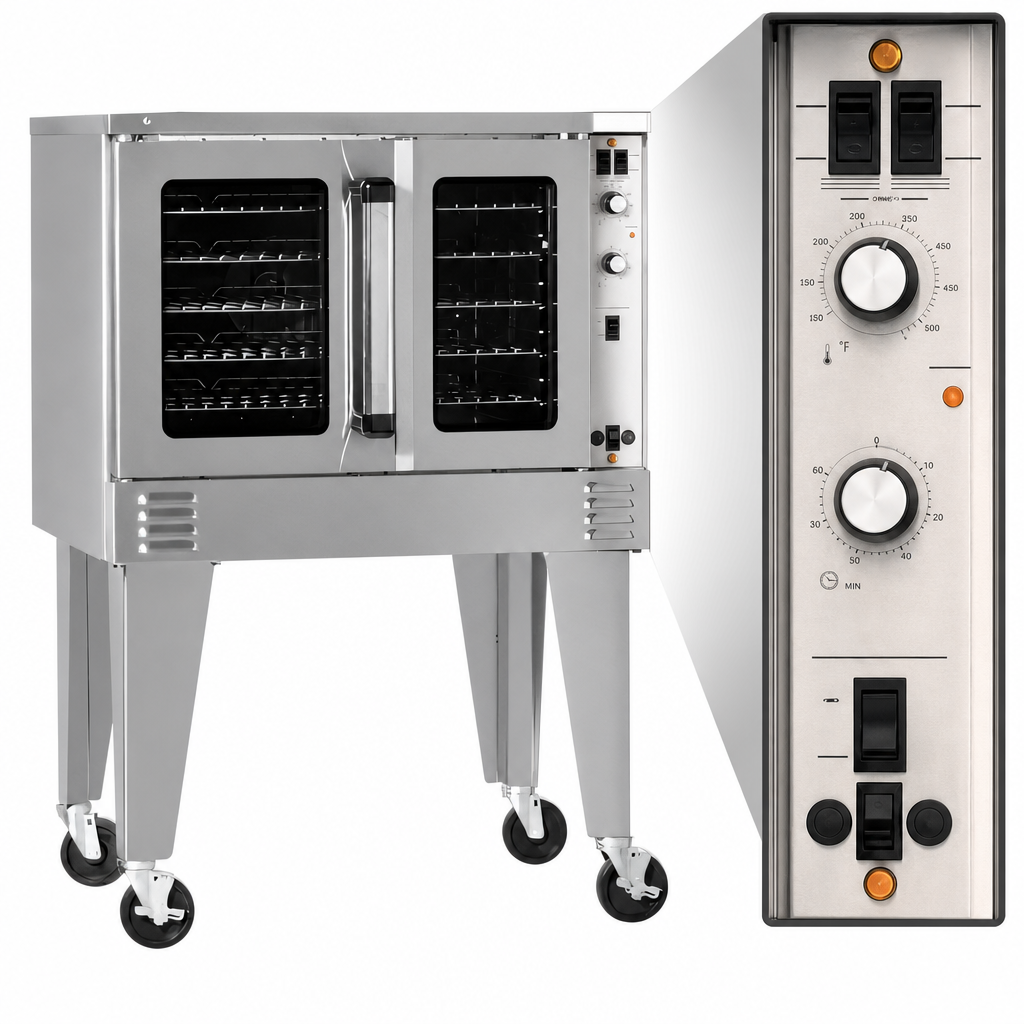

- Standard solid-state controls: 140 – 500 °F thermostat & 60-minute mechanical timer
- Independent, double-pane glass doors open a full 180° for easy loading
- Two-speed ½ hp fan motor for even air circulation & fast cool-down mode
- 11-position rack guides with 5 plated racks included
- Coved, fastener-free porcelain enamel interior for quick cleaning
- “Plug-in / plug-out” slide-out control panel simplifies service access
- Stay-cool, heavy-duty door handle & dual door-seal system
- Bright interior lighting for clear product visibility
- Ventless catalytic filter kit available for hood-challenged locations
- CSA, NSF and ENERGY STAR® approvals for safety & efficiency
Specifications
| Model | Platinum PCE75B/S – Independent Doors |
|---|---|
| Heat Input | 7.5 kW electric |
| Control Type | Standard solid-state (mechanical timer) |
| Exterior (W × D × H) | 43.5″ × 36.5″ × 55″ (with 26″ legs) |
| Oven Interior | 29″ W × 29″ D × 20″ H |
| Rack Positions / Racks Supplied | 11 / 5 |
| Fan Motor | ½ hp, 2-speed (1,710 / 1,120 RPM) |
| Electrical |
208, 240, 380/220, 415/240 or 480 VAC Single or 3-phase (specify on order) |
| Shipping Weight | Approx. 680 lb / 309 kg |
| Clearances (Combustible) | Front & right 0″, back & left 2″ |
| Warranty | 1-year parts & labor (commercial use) |
Why Choose Southbend Platinum?
- Since 1898, Southbend has engineered heavy-duty equipment trusted in the toughest kitchens.
- ENERGY STAR® certification lowers utility bills and can qualify for local rebates.
- Service-minded design—slide-out controls and “plug-out” components reduce downtime.
Need a ventless solution, touchscreen controls or casters? Ask our team about factory options built to match your workflow.
