Southbend (Middleby) PCE75S/SD-V Platinum Convection Ovens
Description
Southbend Platinum Series Ventless Electric Convection Oven
Single Deck • 7.5 kW • Standard ControlsTake your bake anywhere—no hood required. The ENERGY STAR® qualified Southbend Platinum Series single-deck convection oven delivers full-size performance in a compact, ventless footprint that’s perfect for bakeries, cafés and institutional kitchens.
Key Features
- Ventless internal catalyst design (UL certified) lets you install without a dedicated hood*

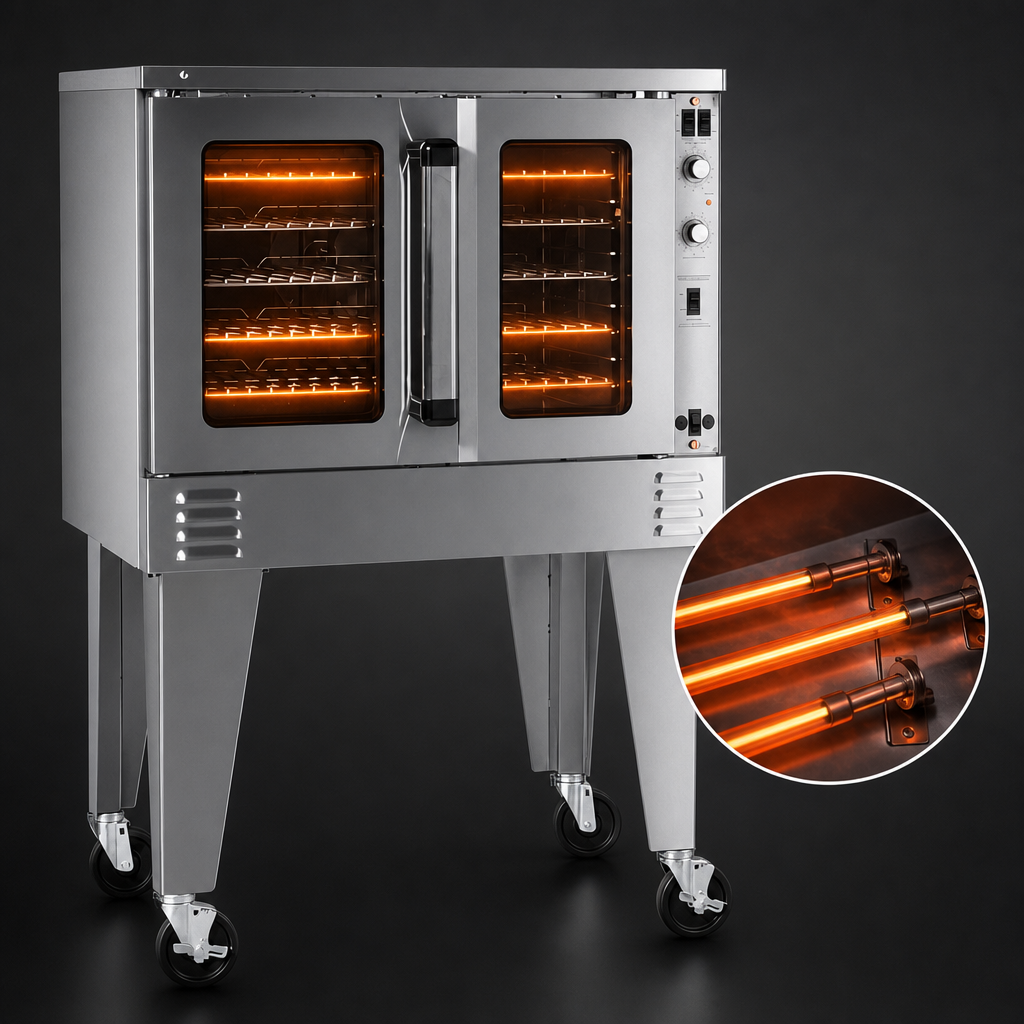

- High-efficiency 7.5 kW rear-mounted heating elements for rapid recovery

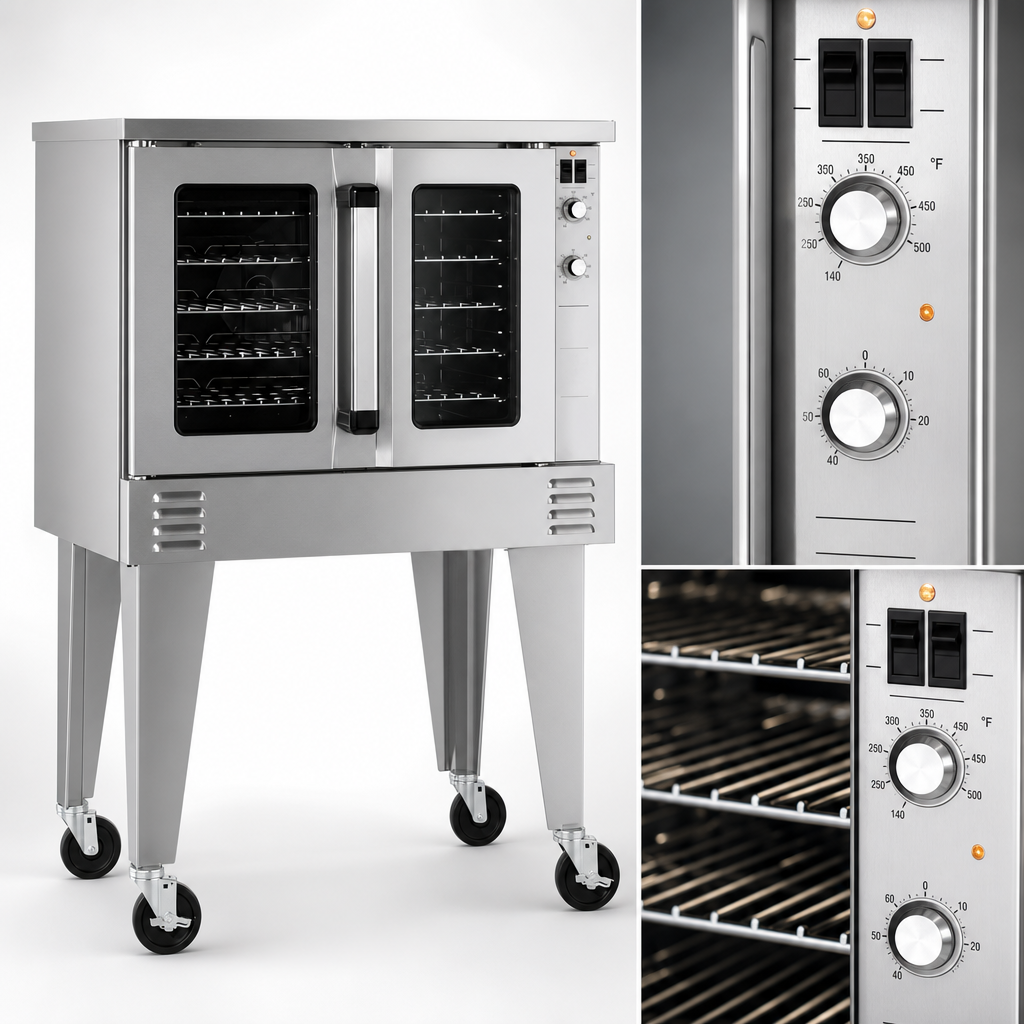

- Standard solid-state controls: 140 °F–500 °F thermostat & 60-minute timer
- Patented “plug-in / plug-out” slide-out control panel for easy service access
- Dependent two-piece low-emission glass doors open a full 180°
- Stay-cool, heavy-duty door handle & dual door-seal system reduce heat loss
- Coved, fastener-free porcelain interior cleans in seconds
- Two-speed ½ HP fan motor (1710/1120 RPM) for uniform browning
- 11 rack positions & (5) plated racks included
- Forced cool-down mode protects product and staff between batches
- Stainless steel front, sides and top built for demanding commercial use
- Interior halogen lights for quick visual checks
- Certifications: ENERGY STAR®, CSA, NSF
At-a-Glance Specs
| Model | Platinum PCE75B/S-V (Ventless) |
|---|---|
| Decks | 1 (single) |
| Heat Source | Electric, 7.5 kW |
| Controls | Solid-state thermostat | 60-min mechanical timer |
| Temperature Range | 140 °F – 500 °F (60 °C – 260 °C) |
| Capacity | (5) full-size sheet pans on 11 positions |
| Interior (W × D × H) | 29 in × 29 in × 20 in (737 × 737 × 508 mm) |
| Exterior (W × D × H) | 43.5 in × 36.5 in × 55 in* (1105 × 927 × 1397 mm) |
| Motor | ½ HP, 2-speed |
| Electrical | 208 / 240 / 480 V, 50/60 Hz, 1 Ø or 3 Ø | 31.3 – 36.1 A @ 240 V (1 Ø) |
| Shipping Weight | ≈ 680 lb (309 kg) |
| Warranty | 1-year parts & labor |
*Height shown on 26 in stainless legs; optional 4 in or 6 in casters available.
Perfect For
- Artisan breads, cookies & pastries
- Roasting proteins & vegetables
- Re-therming pre-cooked entrées
- Satellite kitchens, kiosks & remodels where ductwork isn’t an option
Upgrade your kitchen with the reliability chefs have trusted since 1898. Add the Southbend Platinum Series Convection Oven to your cart today and start baking smarter.
