Southbend (Middleby) PCE75S/SD Platinum Convection Ovens
Description

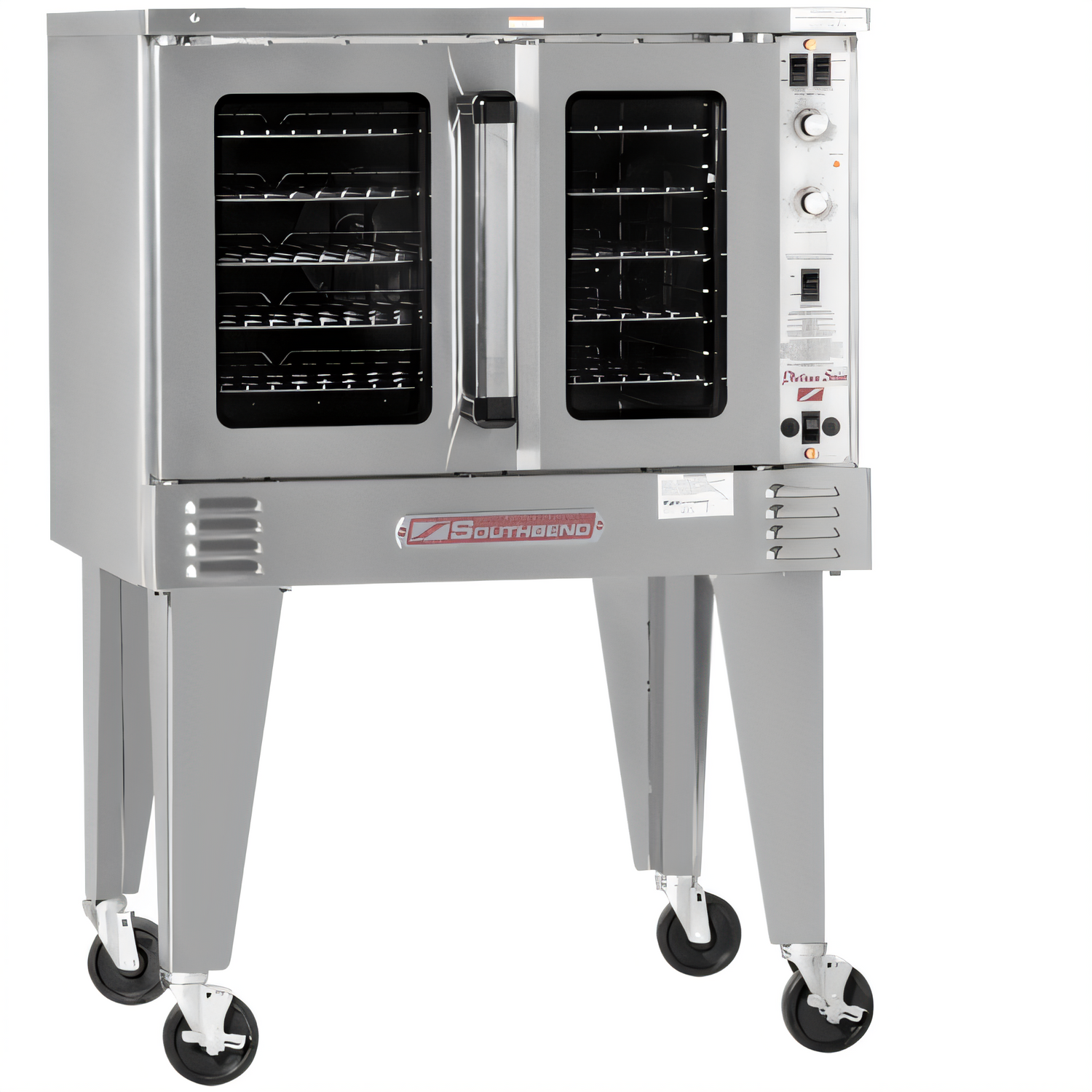

Southbend Platinum Series™ Single-Deck Electric Convection Oven – 7.5 kW
Model PCE75B/S | Quick-Ship Middleby Essentials Item | ENERGY STAR®, CSA, NSFBake, roast or reheat with absolute consistency. The Platinum Series puts Southbend’s rugged construction and even-heat airflow into a compact footprint that arrives fast and installs even faster.
Why Kitchens Choose Platinum
- 7.5 kW high-efficiency elements reach temp quickly and recover fast between batches.

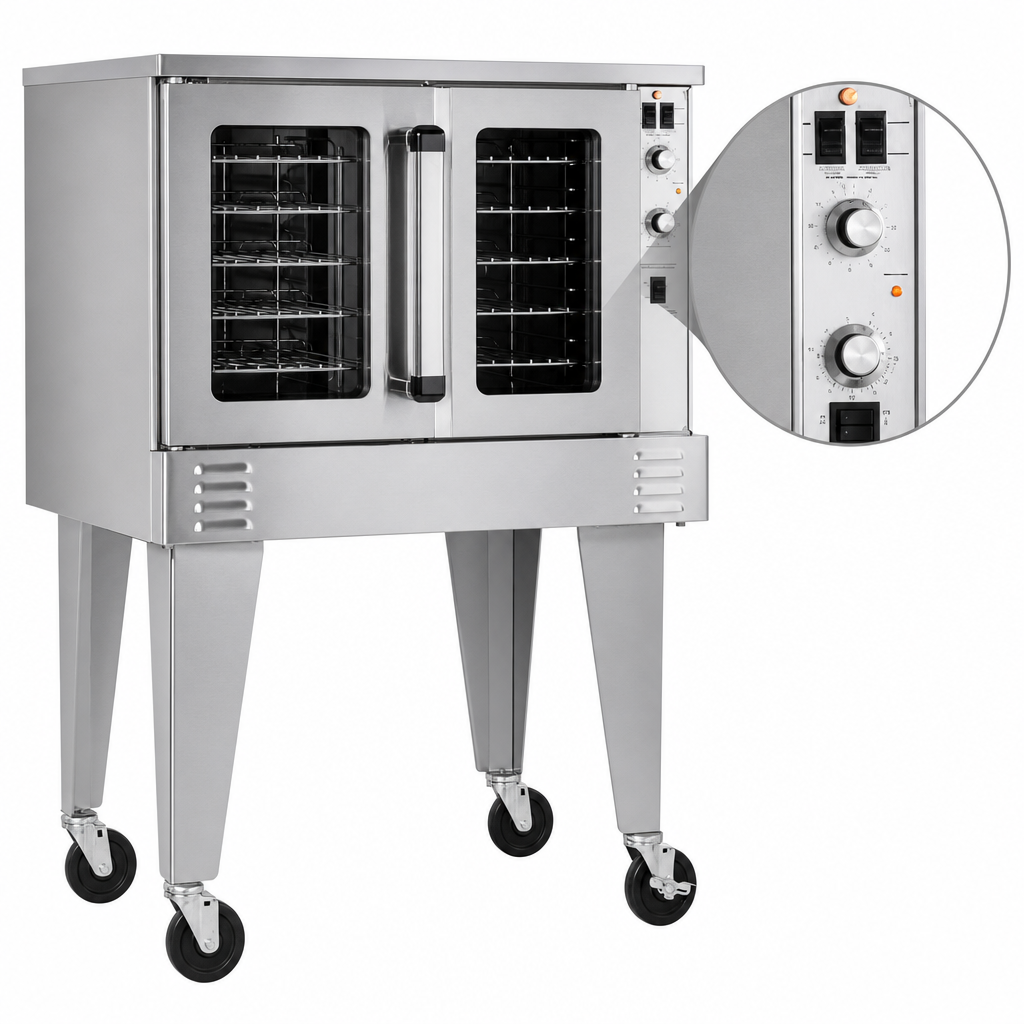

- SC Standard Controls: 140 °F–500 °F solid-state thermostat plus 60-minute mechanical timer.
- Patented slide-out “plug-in, plug-out” control panel for front-service access.
- Two-speed ½ HP fan motor and dual door seals ensure perfectly even browning.
- 11 rack positions and 5 chrome-plated racks fit full-size sheet pans.

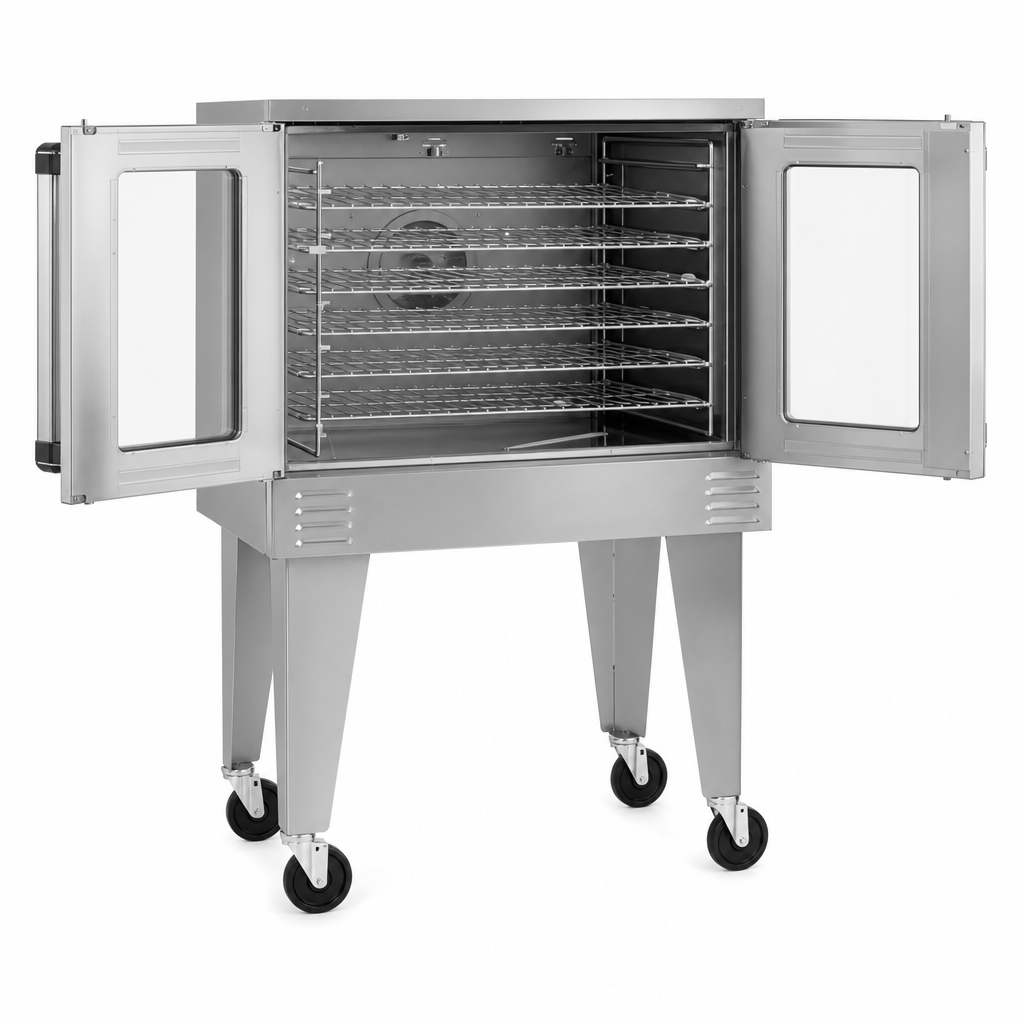

- Dependent low-E glass doors open a full 180° for safe, ergonomic loading.
- Seamless porcelain-enamel cavity wipes clean—no exposed fasteners.
- Forced cool-down mode and high-temp interior lights keep your team in control.
- ENERGY STAR® qualified for lower utility costs and rebate eligibility.
At-a-Glance Specs
| Heat Source | Electric – 7.5 kW elements (rear-mounted) |
|---|---|
| Controls | SC Solid-State (140 °F–500 °F) & 60-min timer |
| Fan Motor | ½ HP, 2-speed (1,710 / 1,120 RPM) |
| Interior Capacity | 29 in W × 29 in D × 20 in H (736 × 736 × 508 mm) |
| Rack Positions | 11 (5 racks included) |
| Exterior Dimensions* | 43.5 in W × 36.5 in D × 55 in H (with casters) |
| Electrical Options | 208, 220/240, 380, 415 or 480 VAC • 1- or 3-phase • 50/60 Hz |
| Amps @ 240 V | 31.3 A (1-phase) • 18.1 A/line (3-phase) |
| Certifications | ENERGY STAR®, CSA, NSF |
| Ship Weight | ≈ 680 lb (308 kg) crated |
*Height on standard 26″ legs is 51″. Casters add 4″.
Factory Options & Upgrades
- Ventless catalytic hood (UL certified)
- TC Touchscreen controls with recipe & rack modes
- 4″ or 6″ locking swivel casters
- Independent or solid stainless steel doors
- Marine-edge top, rear jacket, dirt tray, export crating & more
Warranty & Support
- 1-year limited parts & labor warranty
- Nationwide network of Southbend Authorized Service Agencies
- Lifetime online resources at southbendnc.com/service-and-parts
Ready to level-up your kitchen’s throughput? Add the Platinum Series to your cart or contact us for instant financing and volume pricing.
