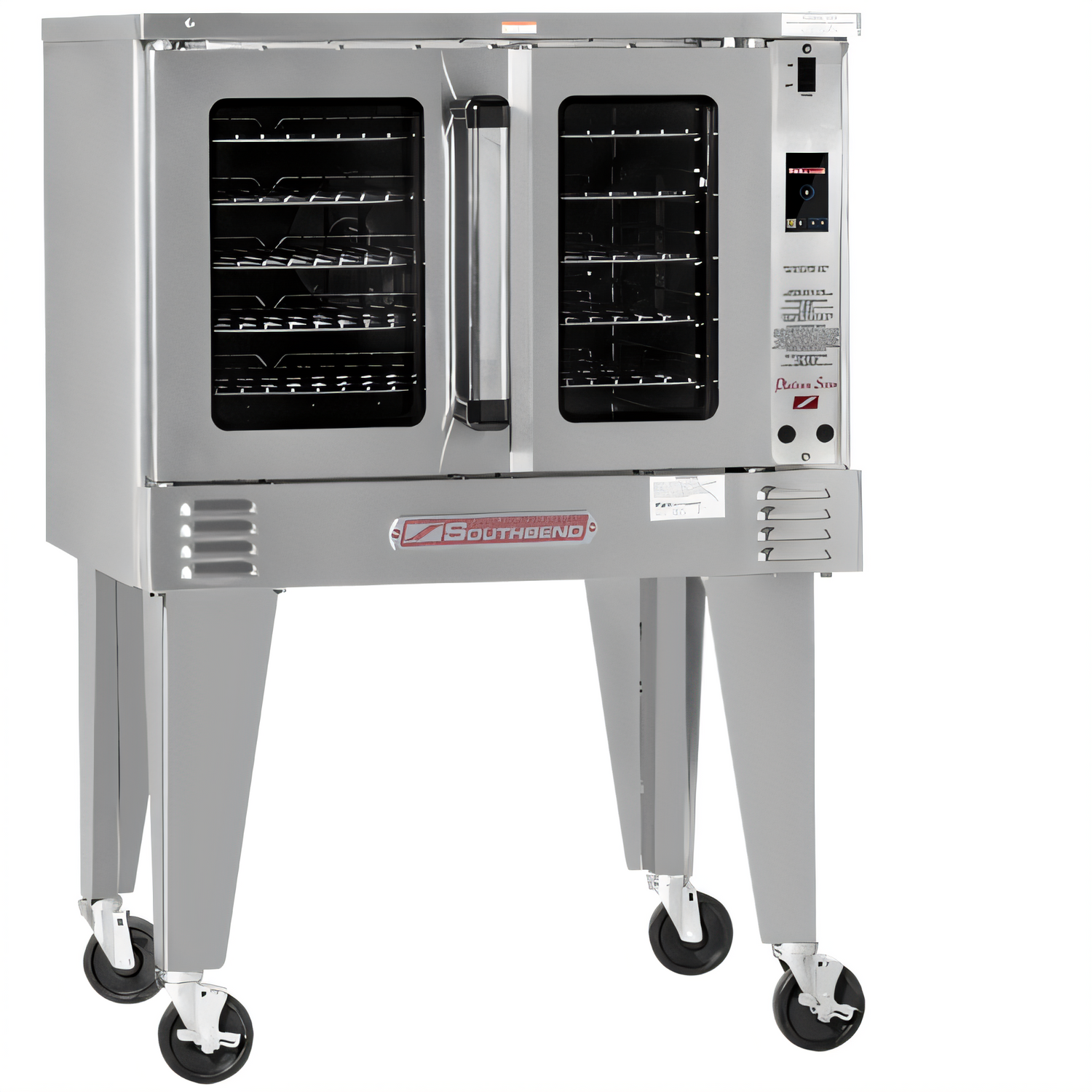

Southbend (Middleby) PCE75B/TI-V Platinum Convection Ovens
Description
Southbend Platinum Series Ventless Electric Convection Oven – Bakery Depth, 7.5 kW
Model PCE75B/T with Independent Doors & Touchscreen ControlsTake your bake anywhere! The Platinum PCE75B/T pairs Southbend’s new ventless internal catalyst with bakery-depth capacity, delivering full-size convection performance where a traditional hood simply won’t fit.
Key Advantages
- Ventless catalyst system (UL certified) – no Type I hood required*
- 7.5 kW high-efficiency heating elements; 150 °F-550 °F bake + 140 °F-200 °F hold
- Full-color touchscreen with manual, recipe & rack modes and fan pulse timer

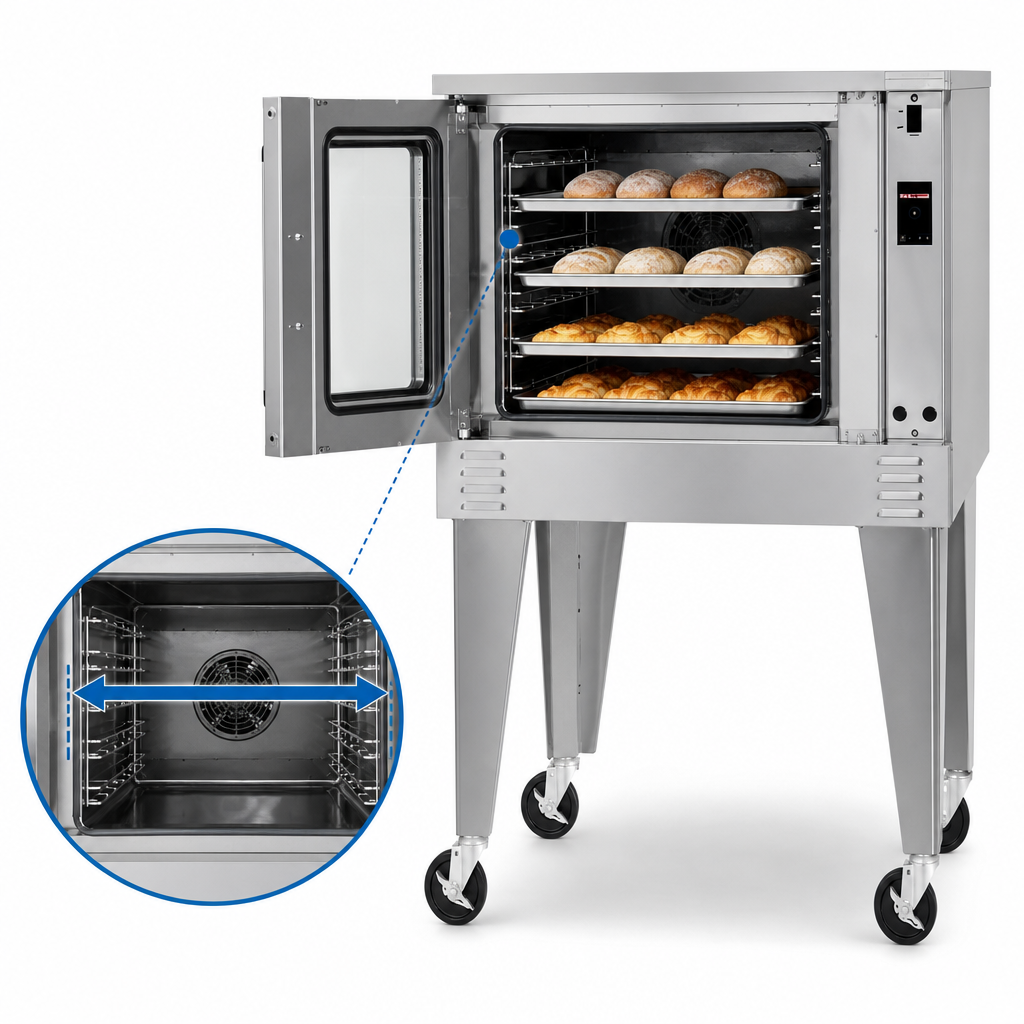

- Bakery-depth cavity fits 5 full-size sheet pans front-to-back
- Independent two-piece glass doors swing 180° for safe, easy loading
- 11-position rack guides with 5 plated racks included
- Two-speed ½ HP fan (1,710 / 1,120 RPM) for delicate or high-volume baking
- Patented “plug-in, plug-out” slide-out control panel for fast service access
- Stainless exterior & coved porcelain-enameled interior for effortless cleanup
- Stay-cool door handle & dual seal system minimize heat loss and energy use
Smart Touch Control
Build and store multi-step recipes, launch batch cook programs and assign individual rack timers—all from an intuitive 7" interface. An automatic cool-down mode speeds turnovers between bakes for maximum throughput.
Designed to Move
Standing just 55" on the included stainless legs (optional 4" or 6" casters), the PCE75B/T rolls easily through standard doorways—ideal for kiosks, ghost kitchens or satellite locations that need flexible, hood-free baking power.
Technical Specs
| Model | PCE75B/T-V (ventless, independent doors) |
|---|---|
| Energy / Power | Electric, 7.5 kW |
| Voltage Options* | 208, 220/240, 380, 415, 480 VAC – single or 3-phase |
| Amps @ 240 V | 31.3 A (1-ph) / 18.1 A (3-ph) |
| Oven Capacity | 5 full-size sheet pans; 11 rack positions |
| Interior (W × D × H) | 29" × 29" × 20" (737 × 737 × 508 mm) |
| Exterior (W × D × H) | 36.5" × 43.5" × 55" (927 × 1105 × 1397 mm) with legs |
| Fan Motor | ½ HP, two-speed 1,710 / 1,120 RPM |
| Shipping Weight | ≈ 680 lb (313 kg) |
| Combustible Clearances | 0" front & right, 2" back & left |
| Warranty | 1-year parts & labor (commercial use) |
What’s in the Box
- (1) Platinum Series single-deck convection oven
- (5) Plated oven racks & (11) removable guides
- (2) Interior oven lights (installed)
- (4) 26" stainless steel triangular legs
- Installation & operation manual
A qualified electrician must verify voltage, phase and amperage prior to installation. Always consult local codes regarding ventless equipment and fire-suppression requirements.
*Confirm acceptance of ventless equipment with your local authority having jurisdiction (AHJ) before purchase.
