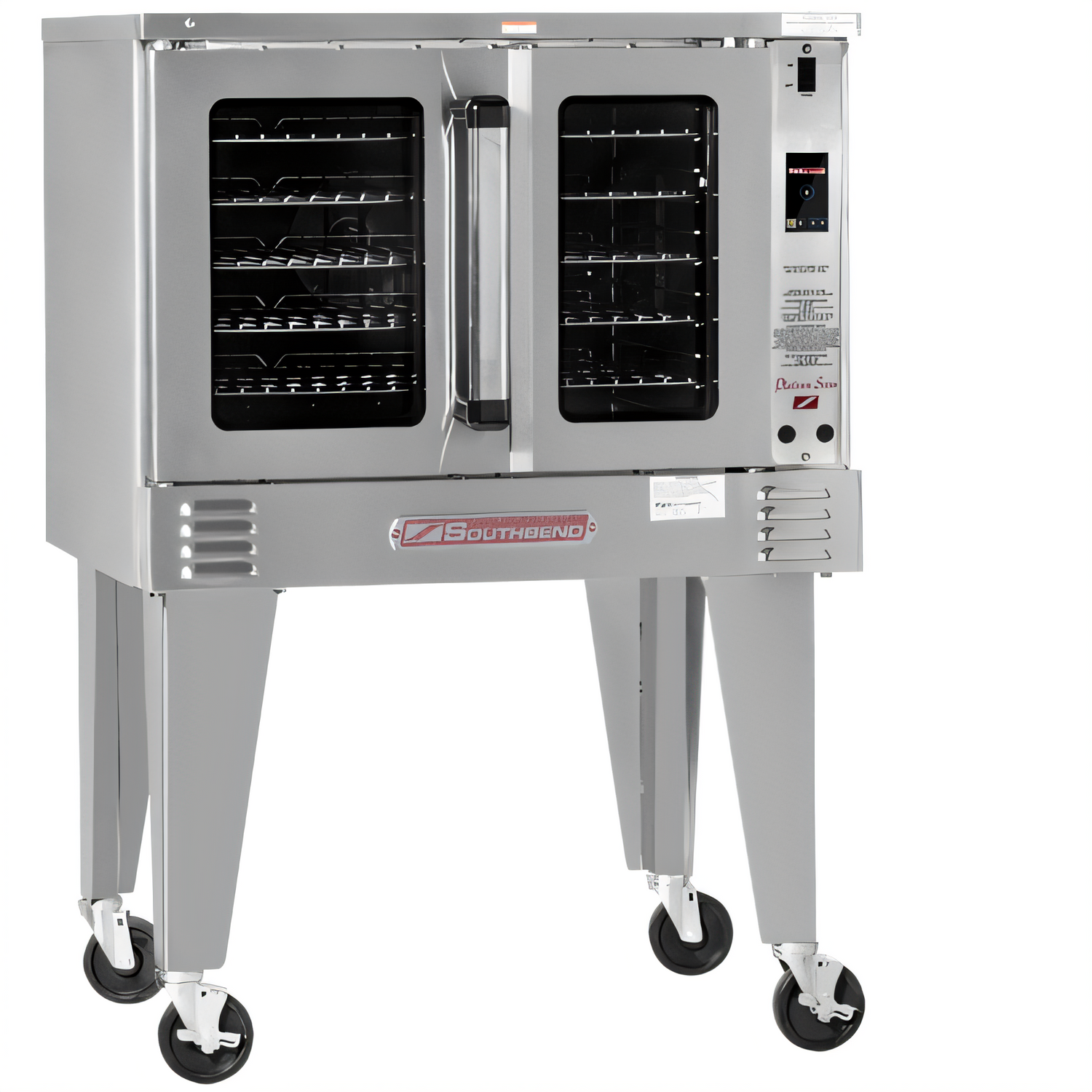

Southbend (Middleby) PCE75B/TI Platinum Convection Ovens
Description
Platinum Series Single-Deck Convection Oven – 7.5 kW
Bakery-Depth • Touchscreen Controls • Independent Glass DoorsBuilt for busy bakeries, cafés and institutional kitchens, the Southbend Platinum PCE75B/T-ID puts consistent, high-volume baking within easy reach. 7.5 kW of electric power, a two-speed fan, and intuitive touchscreen controls combine to deliver perfect, repeatable results—rack after rack.
Performance & Design Highlights
- 7.5 kW high-efficiency rear-mounted heating elements

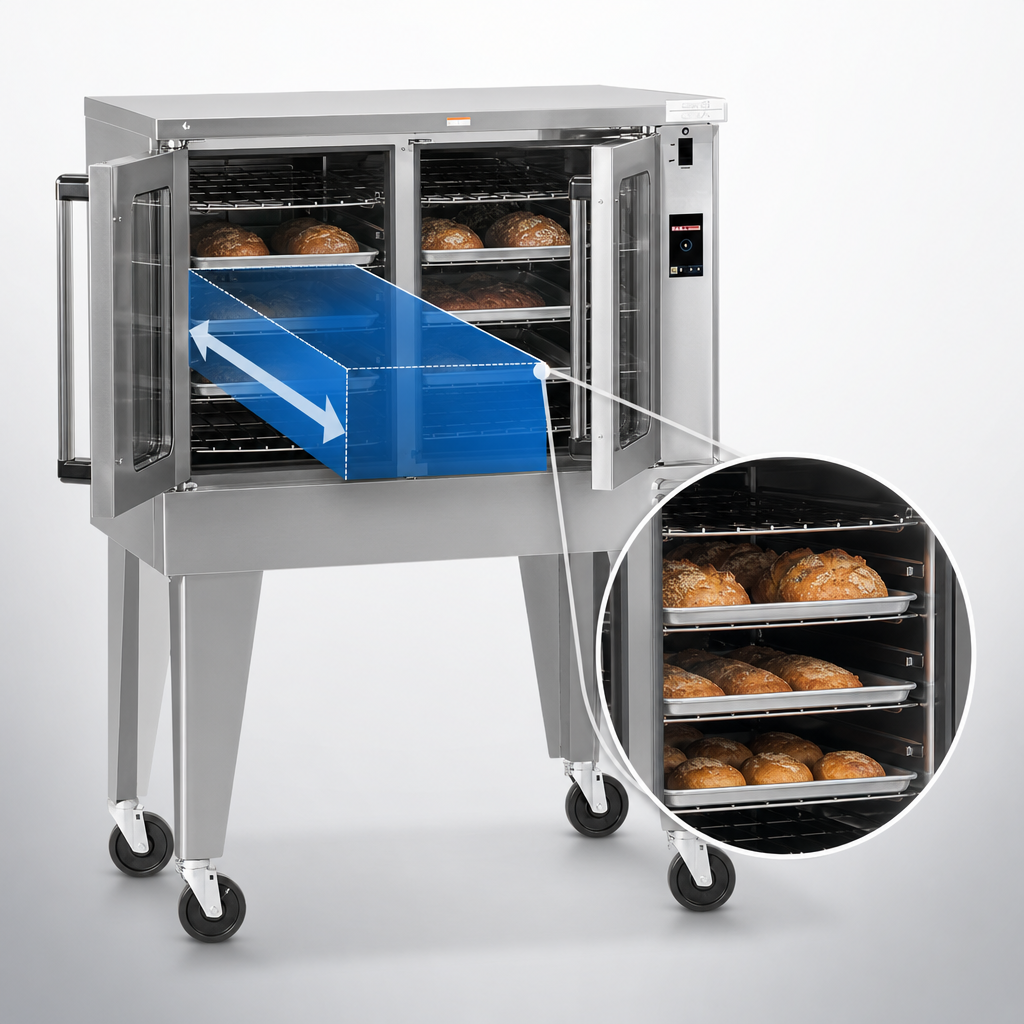

- Bakery-depth 29 in (737 mm) cavity fits full-size sheet pans sideways for superior airflow

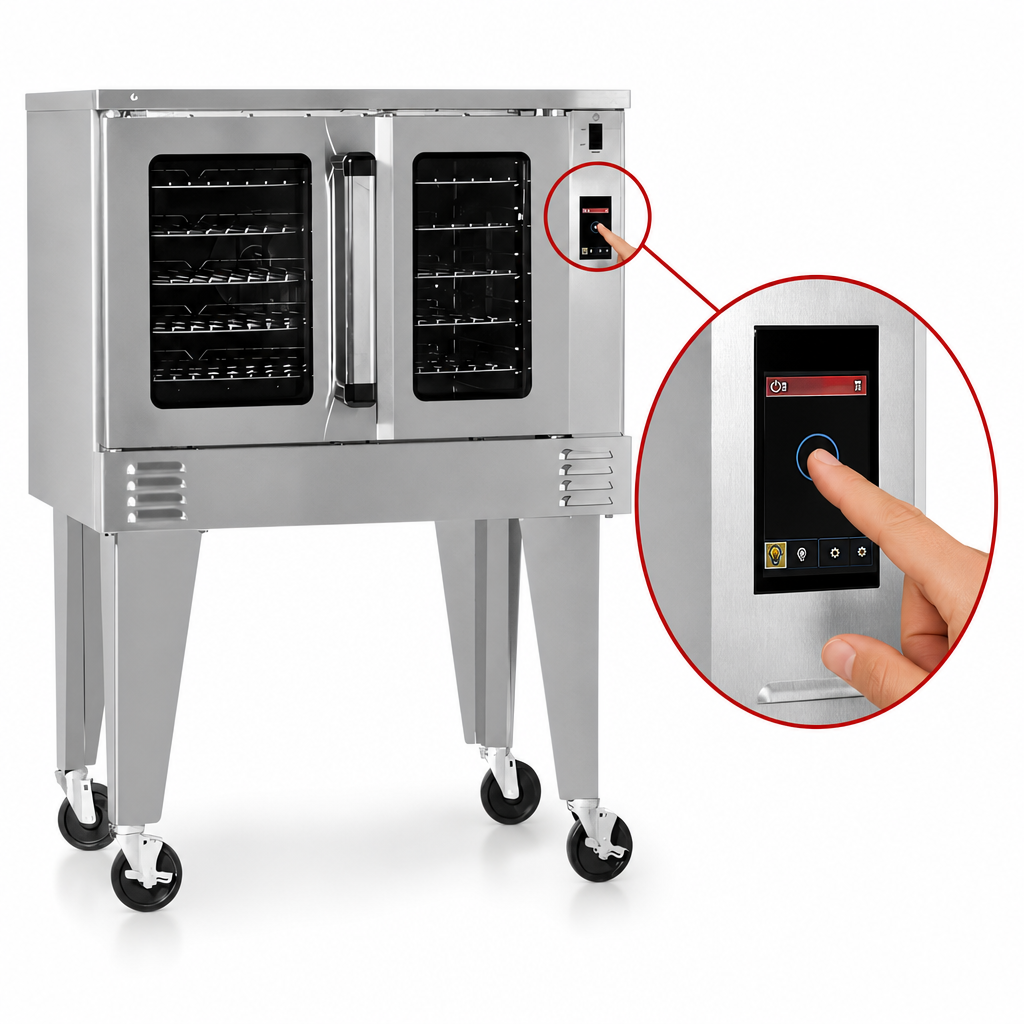

- TC Touchscreen: 150 – 550 °F bake + 140 – 200 °F hold, recipe storage & independent rack timers
- Independent, double-pane glass doors swing a full 180° to minimize heat loss and speed loading
- Patented “plug-in, plug-out” slide-out control panel for front-access serviceability
- 11 rack positions / 5 heavy-duty wire racks included
- Two-speed ½ HP fan (1,710 / 1,120 RPM) with forced cool-down mode
- Fastener-free coved porcelain interior for effortless wipe-down cleaning
- Stainless steel front, sides, top & rear jacket with stay-cool door handles
- Interior halogen lighting for easy product monitoring
Popular Factory Options
- Ventless catalytic hood (UL-certified) – bake anywhere without a Type I hood*
- 4 in or 6 in locking casters
- Stainless steel solid doors, marine-edge top or dirt tray
- Export voltage / crating
*Always verify local code requirements before ordering ventless equipment.
Technical Specifications
| Model | PCE75B/T-ID (Independent Doors) |
|---|---|
| Power | Electric, 7.5 kW total load |
| Voltage Options* | 208, 240, 380, 415 or 480 VAC, single or 3-phase |
| Temperature Range | 150 – 550 °F bake / 140 – 200 °F hold |
| Exterior Dimensions | 43.5 in W × 36.5 in D × 55 in H (1105 × 927 × 1397 mm) |
| Interior Dimensions | 29 in W × 29 in D × 20 in H (737 × 737 × 508 mm) |
| Racks / Positions | 5 racks included / 11 positions on 1.625 in centers |
| Fan Motor | ½ HP, two-speed, 1,710 / 1,120 RPM |
| Net Weight | ≈ 680 lb (309 kg) |
| Clearance | Combustibles: front & right 0 in, rear & left 2 in |
| Warranty | 1-year parts & labor, on-site service by Southbend Authorized Agency |
*Add 4.3 A for control circuit. Specify voltage & phase at time of order.
