Southbend (Middleby) PCE75B/SI-V Platinum Convection Ovens
Description
Southbend Platinum Series Ventless Convection Oven
Model PCE75B/S — Bakery-Depth • 7.5 kW • Electric • Independent Doors • Standard ControlsTake your bake anywhere! Southbend’s UL-certified catalytic system lets this full-size, bakery-depth oven operate without a Type I hood*, saving space and installation costs while delivering the even, reliable results pros expect from the Platinum Series.
Key Advantages

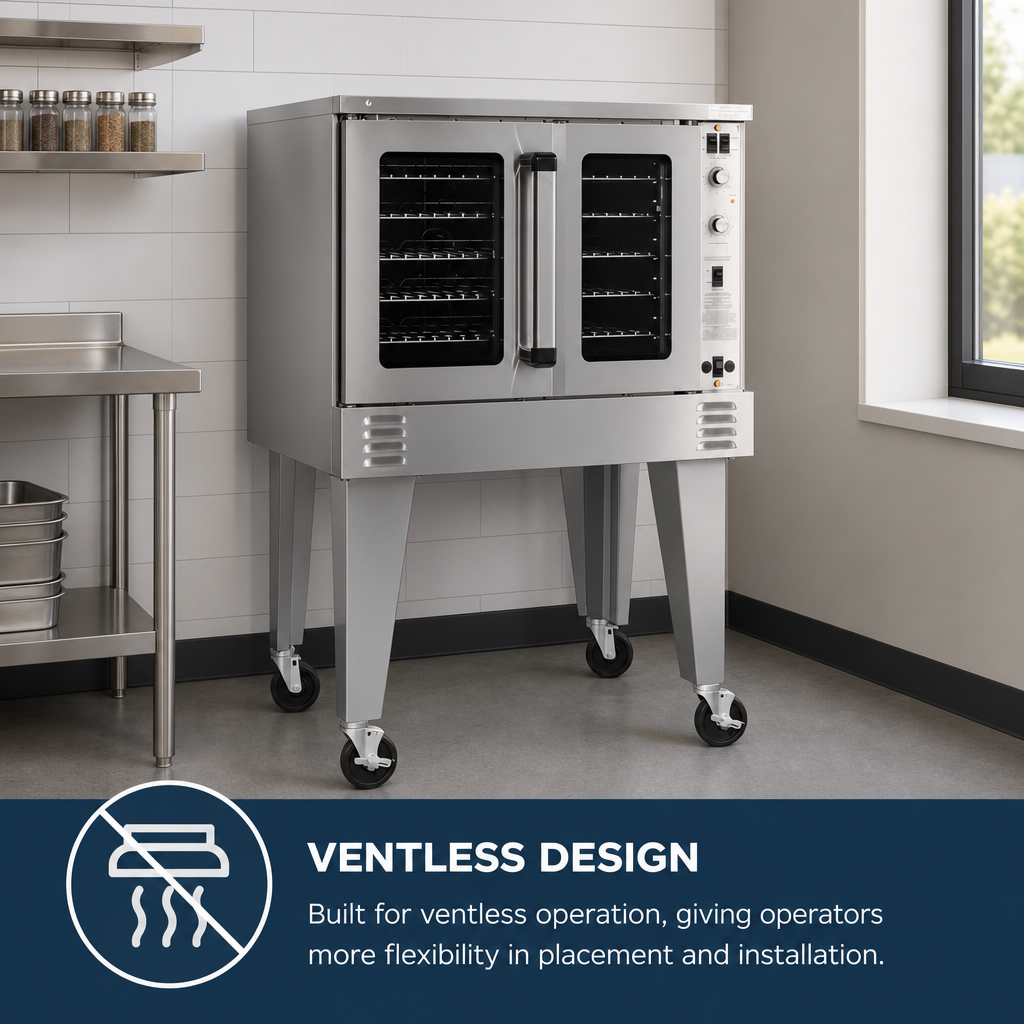

- Ventless internal catalyst removes grease vapors—perfect for sites without traditional ventilation.
- 7.5 kW high-efficiency heating elements heat fast and recover quickly between loads.
- Bakery-depth (29") cavity fits full-size sheet pans front-to-back for maximum capacity.

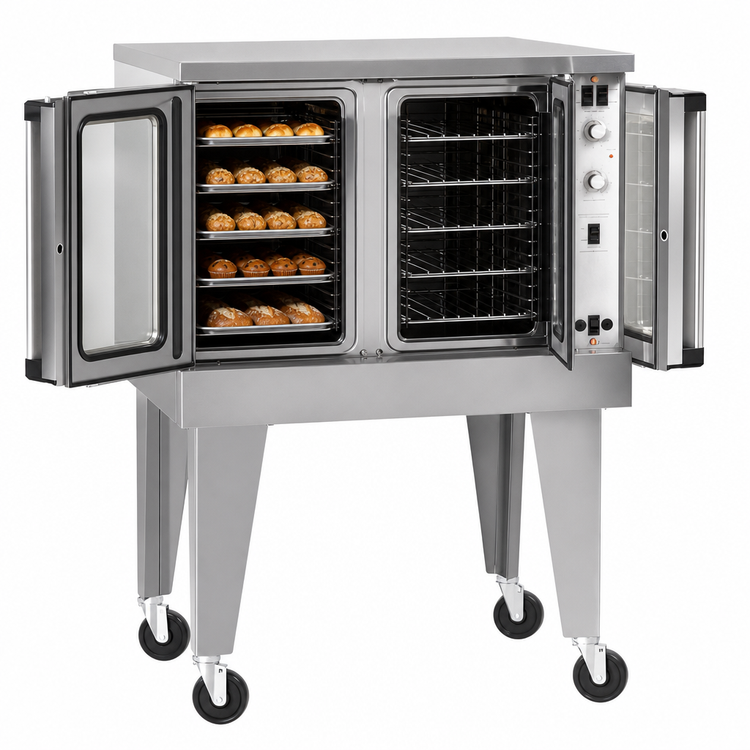

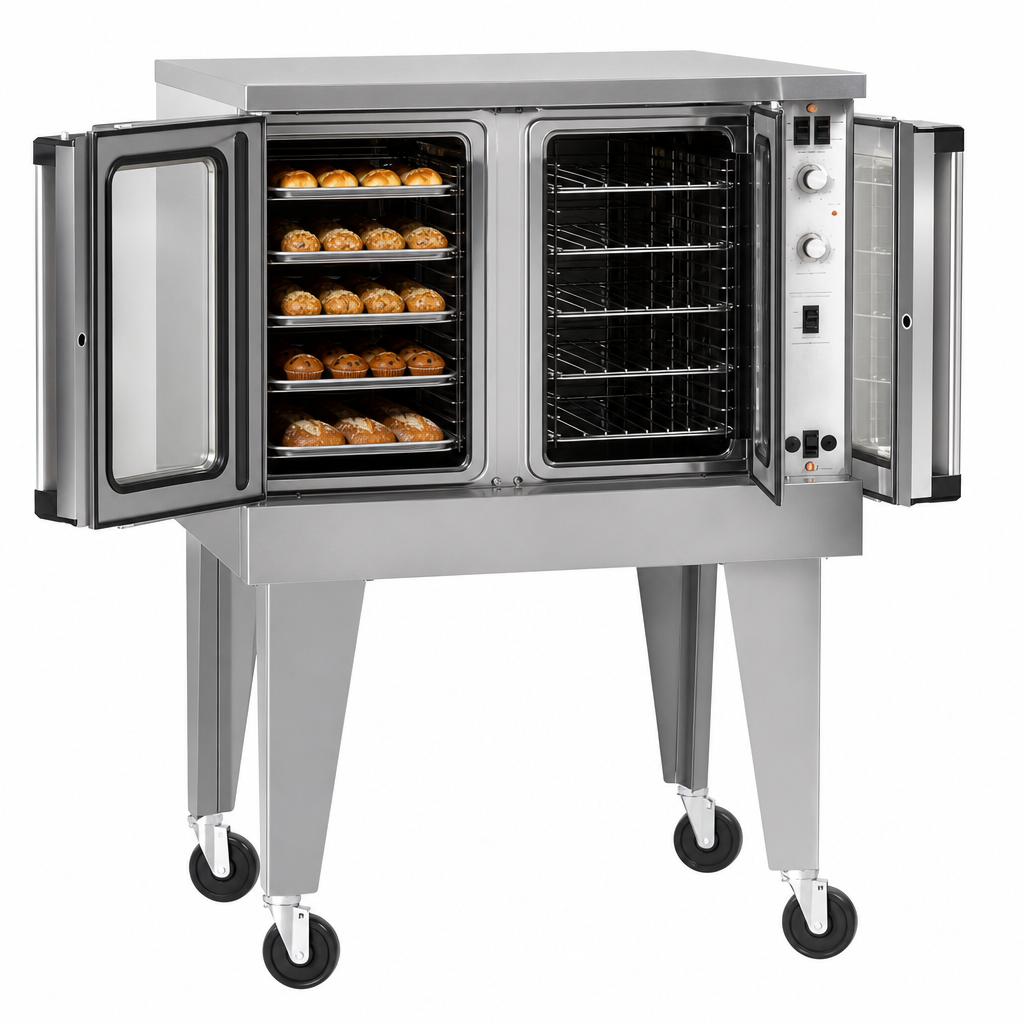

- Independent, double-pane glass doors open a full 180° for unobstructed loading & minimal heat loss.
- Solid-state Standard Controls: 140–500 °F thermostat plus 60-minute mechanical timer with audible alert.
- Two-speed ½ hp blower motor “scrubs” heat through the cavity for outstanding color & rise.
- 11 rack positions on 1 5⁄8" centers; 5 nickel-plated racks included.
- Coved, fastener-free porcelain interior wipes clean in seconds.
- Slide-out, plug-in/plug-out control module for full front-access servicing.
- Durable stainless steel front, sides, top & rear jacket built for heavy commercial use.
- Forced cool-down mode speeds change-overs and shutdown.
- Recessed halogen lights keep product visible without opening the doors.
Technical Specifications
| Capacity | (5) full-size sheet pans on included racks / 11 total rack positions |
|---|---|
| Heat Source | Electric, 7.5 kW |
| Controls | 140–500 °F thermostat, 60-min timer, on/off & two-speed fan selector |
| Ventilation | Internal catalytic converter – ventless operation* |
| Exterior Dimensions (W × D × H) | 43.5" × 36.5" × 55" (on 26" legs) |
| Interior Dimensions (W × D × H) | 29" × 29" × 20" |
| Shipping Weight | ≈ 680 lb / 308 kg |
| Electrical (Single-Phase) | 208 V / 36.1 A | 240 V / 31.3 A | 480 V / 15.7 A |
| Electrical (3-Phase) | 208 V / 20.9 A per line | 240 V / 18.1 A per line | 480 V / 9.1 A per line |
| Warranty | 1-year parts & labor (commercial use) |
*Ventless certification eliminates the need for a hood in many jurisdictions; always verify local codes.
Perfect For
- Bakeries, cafés & coffee shops
- C-stores & grab-and-go programs
- Ghost & satellite kitchens lacking ductwork
- Hotels, schools & corporate dining
Need touchscreen controls, 4" or 6" casters, marine-edge top or stainless doors? Contact us for factory-installed options to customize your Southbend Platinum oven.
