Southbend (Middleby)  |  Platinum  |  SKU: PCE75B/SI

Southbend (Middleby) PCE75B/SI Platinum Convection Ovens

$5,906.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
Convection Ovens Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

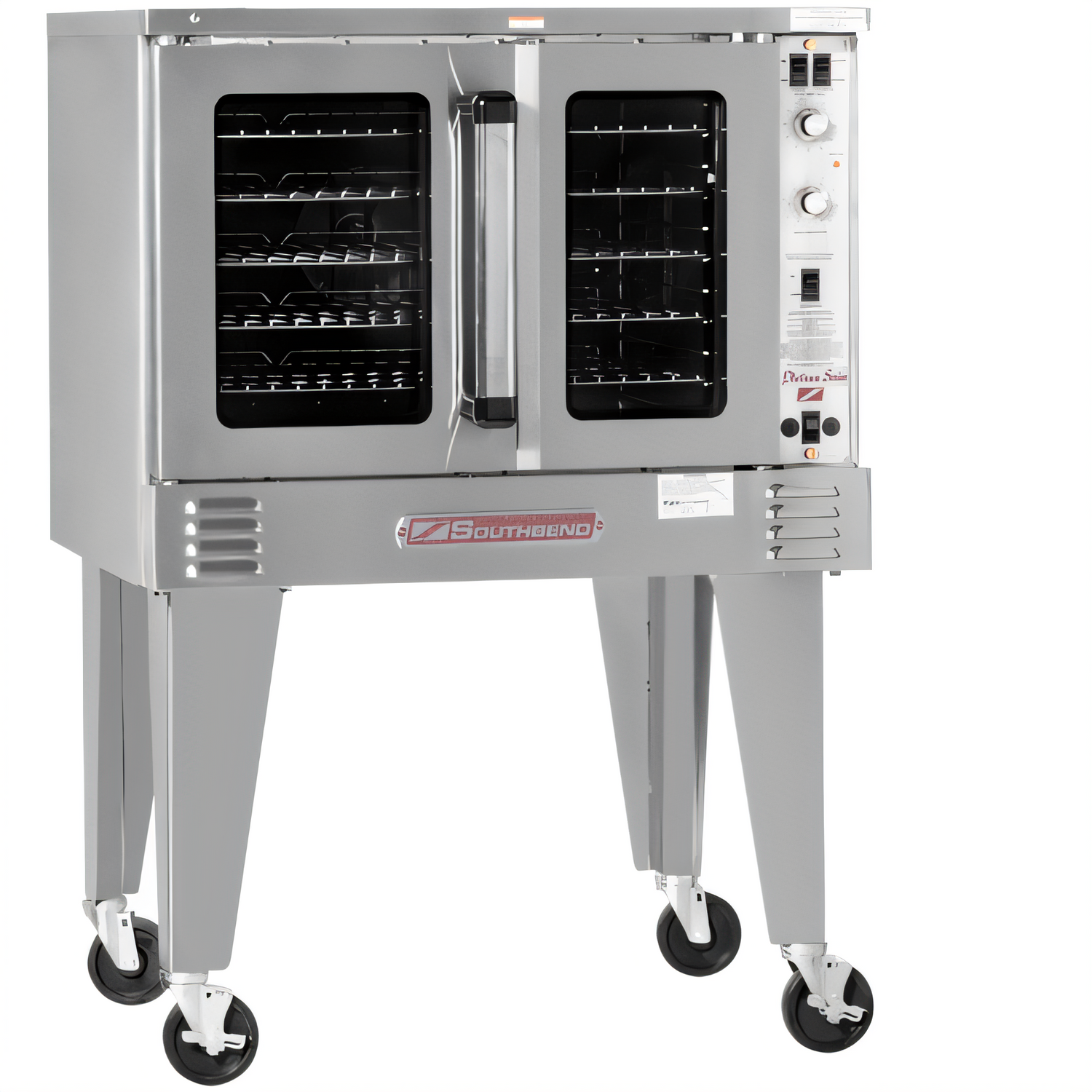

Southbend Platinum PCE75B/S Convection Oven

Single Deck • Bakery-Depth • Electric 7.5 kW • Independent Glass Doors

Deliver flawless bakes, roasts and re-therms in a footprint that fits almost any line. The Platinum Series PCE75B/S couples Southbend’s legendary build quality with a service-friendly design—so you get rock-solid results shift after shift.

Key Features

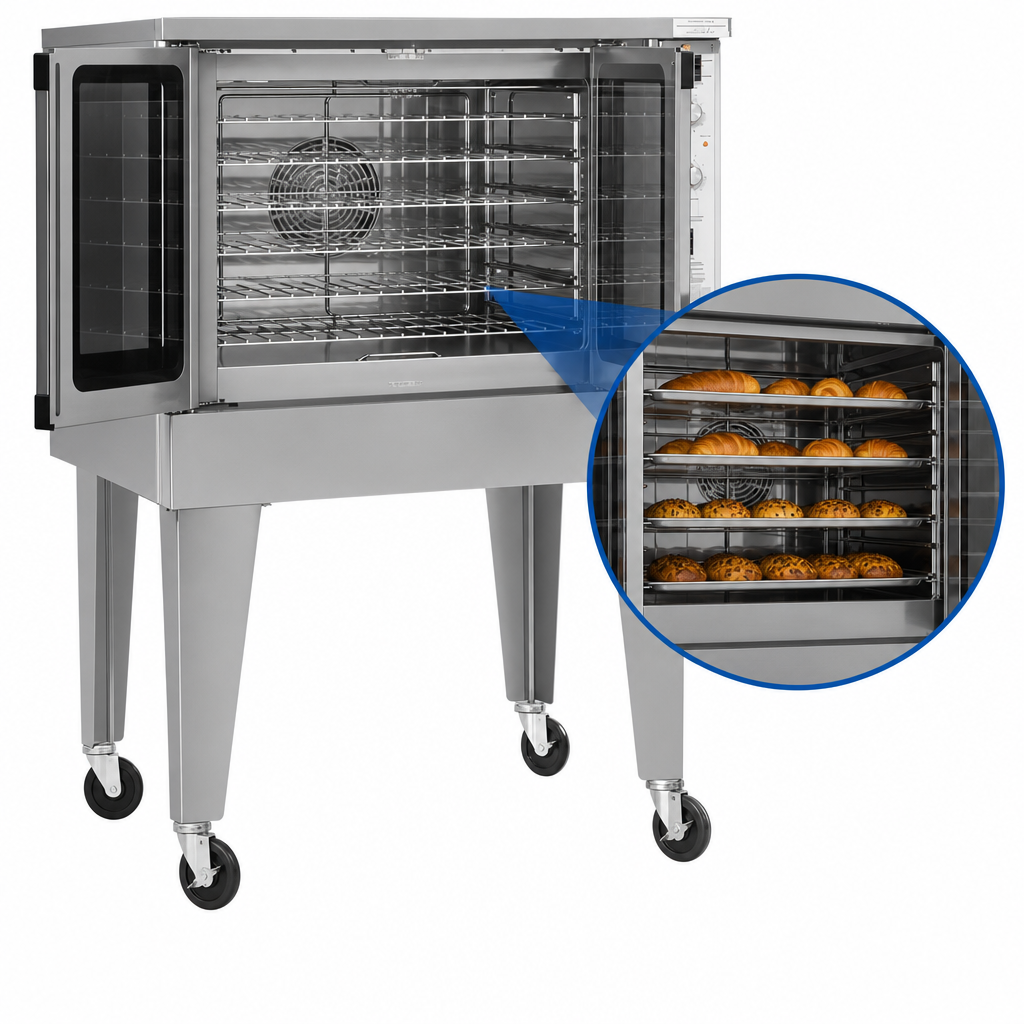

  • Bakery-depth cavity fits full-size sheet pans in either direction for flexible loading.
  • High-efficiency 7.5 kW rear-mounted elements speed preheat and recovery.
  • Standard solid-state controls: 140 °F–500 °F thermostat & 60-minute mechanical timer.

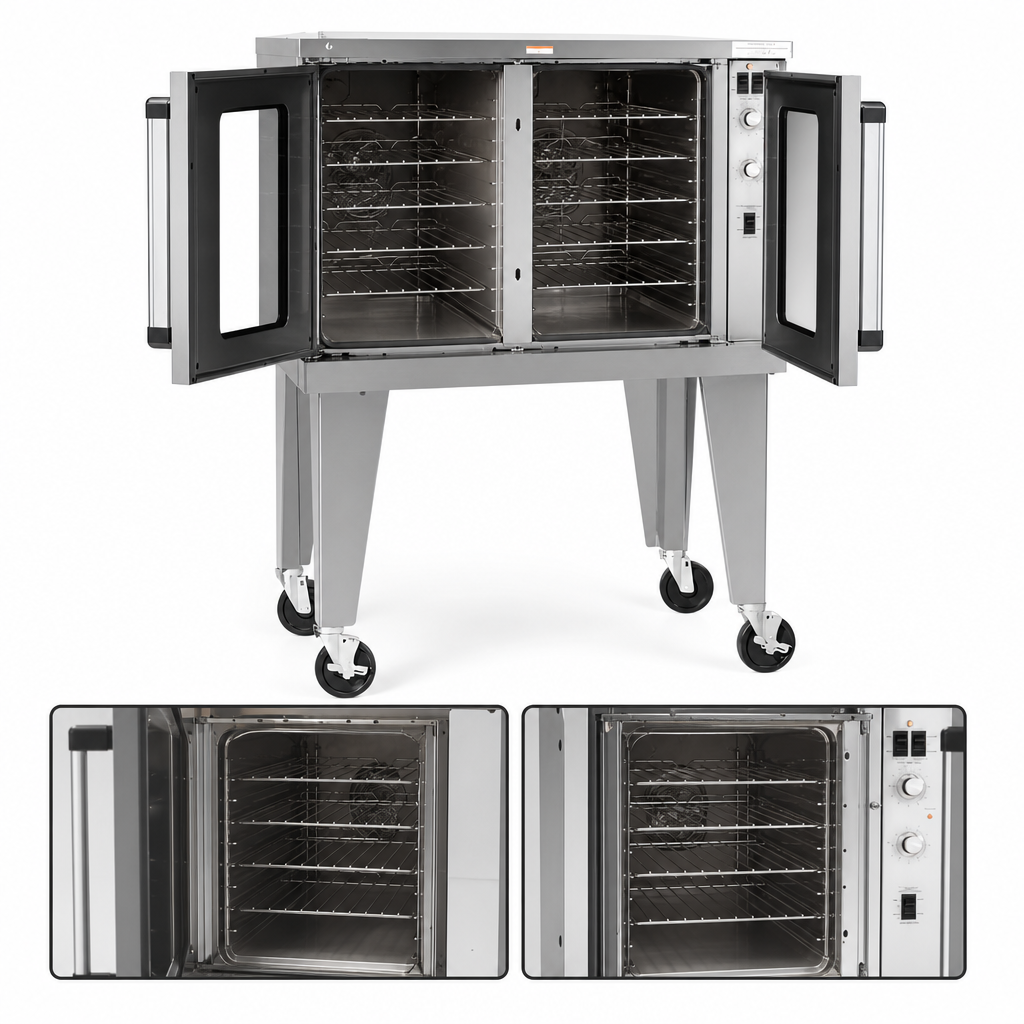

  • Independent two-piece Low-E glass doors open a full 180° for effortless access and product visibility.
  • 11 rack positions on 1 ⅝" centers; 5 plated racks included.
  • Two-speed ½ hp fan “scrubs” heat across every rack for even color and rise.
  • Coved, fastener-free porcelain enamel interior wipes clean in seconds.
  • Patented “plug-in / plug-out” slide-out control panel simplifies service.
  • Forced cool-down mode turns the cavity around quickly between batches.
  • Durable stainless steel front, sides, top and 26" triangular legs (casters optional).
  • Bright recessed oven lights keep product visible without opening the doors.

Specifications

Model PCE75B/S (Platinum Series)
Oven Capacity 5 full-size (18" × 26") sheet pans • 11 rack levels
Heating Elements 7.5 kW, electric
Temperature Range 140 °F – 500 °F
Controls Solid-state thermostat & 60-min timer
Fan Motor ½ hp, 2-speed (1710 / 1120 RPM)
Interior (W × D × H) 29" × 29" × 20" (737 × 737 × 508 mm)
Exterior (W × D × H) 43.5" × 36.5" × 55" (1105 × 927 × 1397 mm) on legs
Shipping Weight ≈ 680 lb (313 kg)
Electrical (select at order) 208 V / 1 ph – 36 A
240 V / 1 ph – 31 A
208 V / 3 ph – 21 A / line
240 V / 3 ph – 18 A / line
380, 415, 480 V single or three phase also available
Clearances Front & right: 0" • Back & left: 2"
Warranty 1-year parts & labor (commercial use)

Popular Factory Options

  • 4" or 6" locking casters
  • UL-listed ventless catalyst system
  • Marine-edge top
  • Stainless steel solid doors, bottom, dirt tray or rear jacket
  • 2" stainless steel air-insulation panel
  • Export crating

Need help choosing voltage, phase or accessories? Our equipment specialists will configure the oven to match your kitchen’s power and workflow.

Important: This appliance is intended for commercial use only and must be installed in accordance with all local codes. A vent hood is not required when the optional ventless catalyst system is purchased.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Height

55.0in

Width

38.0in

Depth

43.5in

Shipping Weight

680.0lbs

Specifications

Platinum Single Convection Oven, Electric 7.5kW, Bakery Depth, Standard Controls, Independent Doors
