Southbend (Middleby) PCE75B/SD-V Platinum Convection Ovens
Description

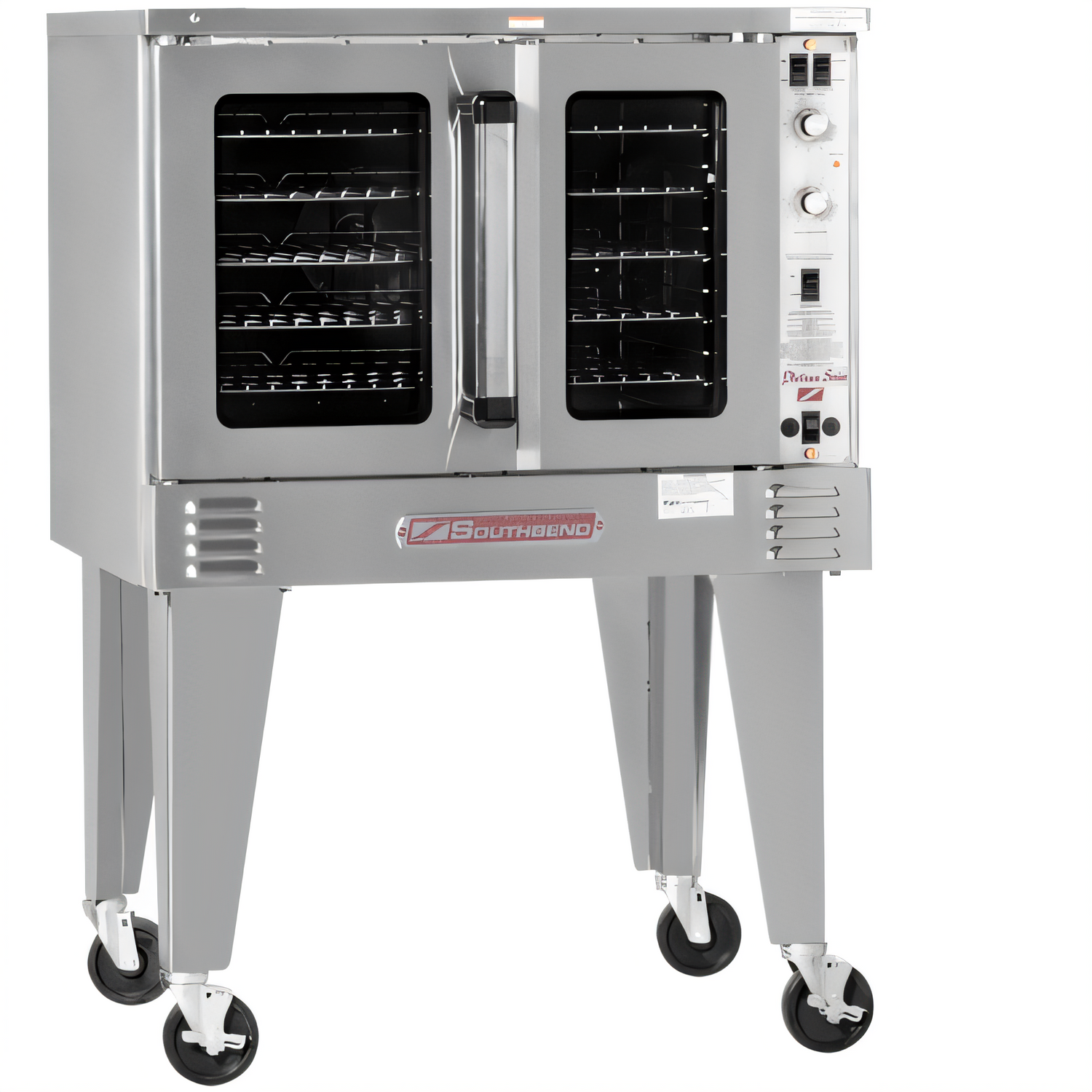

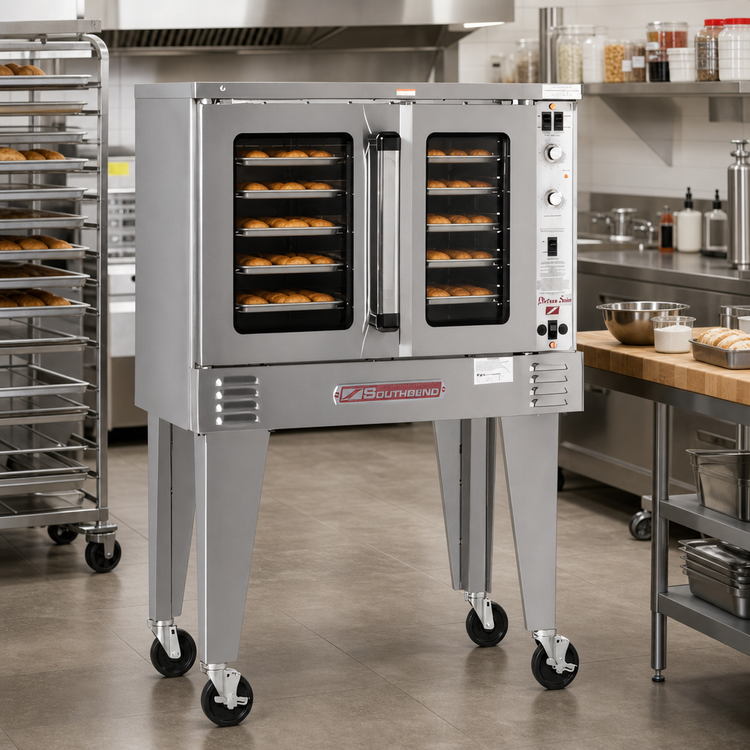

Platinum Series Ventless Single-Deck Electric Convection Oven – 7.5 kW
Southbend Model PCE75B/S-V | Bakery-Depth • Standard Controls • Dependent Glass DoorsTake your bake anywhere! The Southbend Platinum Series 7.5 kW ventless convection oven delivers full-size bakery performance without the need for a traditional Type-I hood. Its internal catalyst filtration, high-efficiency elements and rugged stainless-steel cabinet make it the perfect plug-and-play solution for restaurants, cafés, retail bakeries and ghost-kitchens that need reliable, even baking in a compact footprint.
Stand-out features
- Ventless catalyst system (UL-certified) – install where hoods are impossible or cost-prohibitive.
- 7.5 kW rear-mounted heating array paired with a ½ HP two-speed blower for fast, even heat circulation.

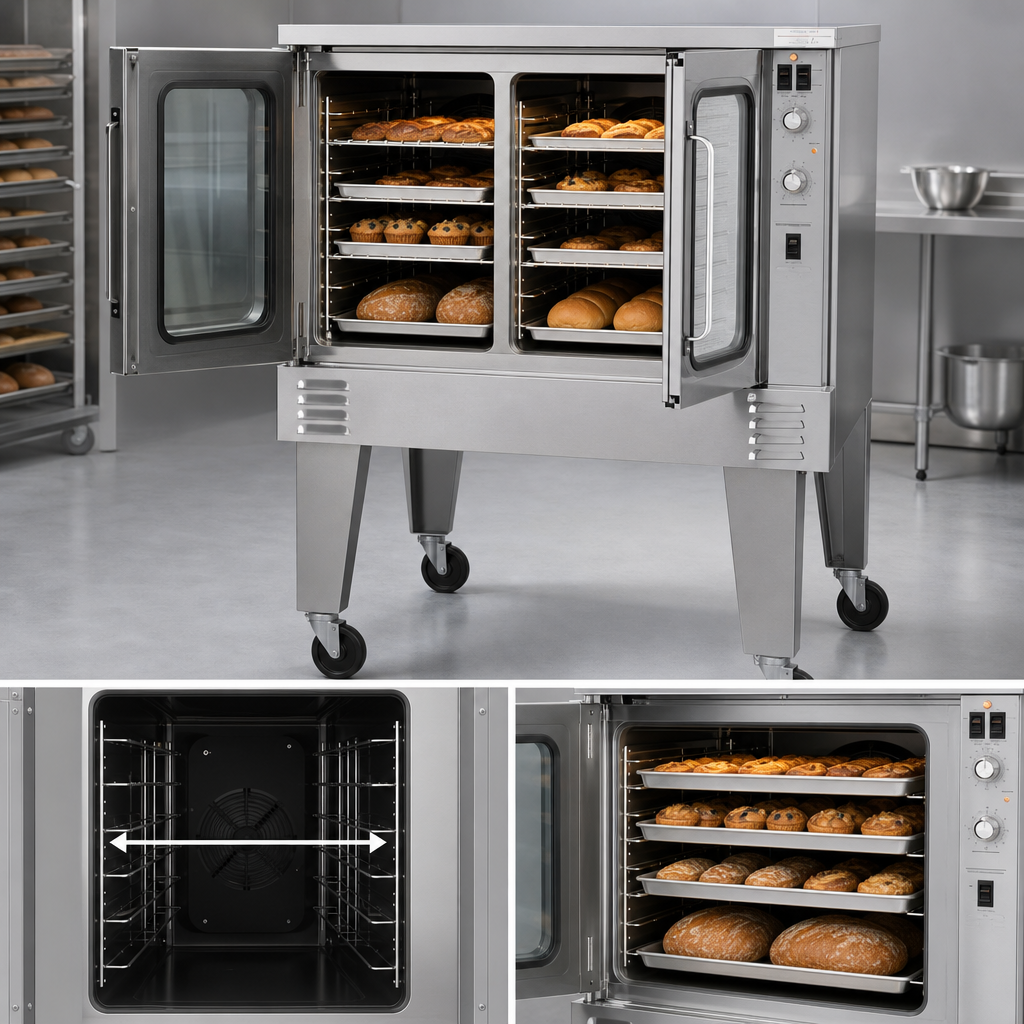

- Bakery-depth cavity fits (5) full-size sheet pans front-to-back; 11-position removable rack guides included.
- SC solid-state controls: 140 °F – 500 °F thermostat & 60-minute timer with continuous cook.
- Patented “plug-in / plug-out” slide-out control panel extends 17 in for effortless field service.
- Dependent, low-E two-piece glass doors swing a full 180° and feature a dual-seal system to lock in heat.
- Durable construction – stainless steel front, sides, top & rear jacket; coved porcelain enamel interior for easy wipe-down.
- Forced cool-down mode protects product turn-arounds and speeds close-of-day cleaning.
- Bright twin 40 W interior lamps and stay-cool heavy-duty door handle enhance visibility & safety.
- 1-year limited parts & labor warranty backed by Southbend’s nationwide authorized service network.

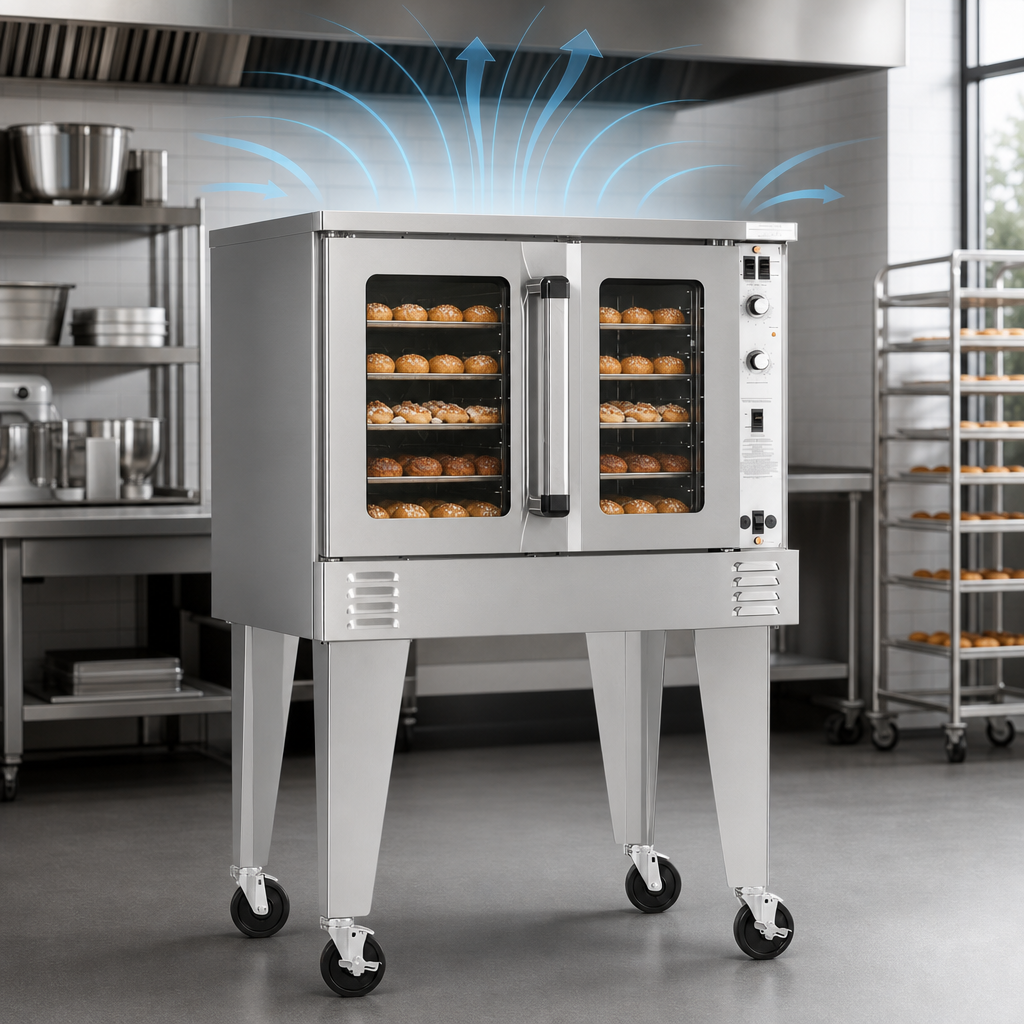

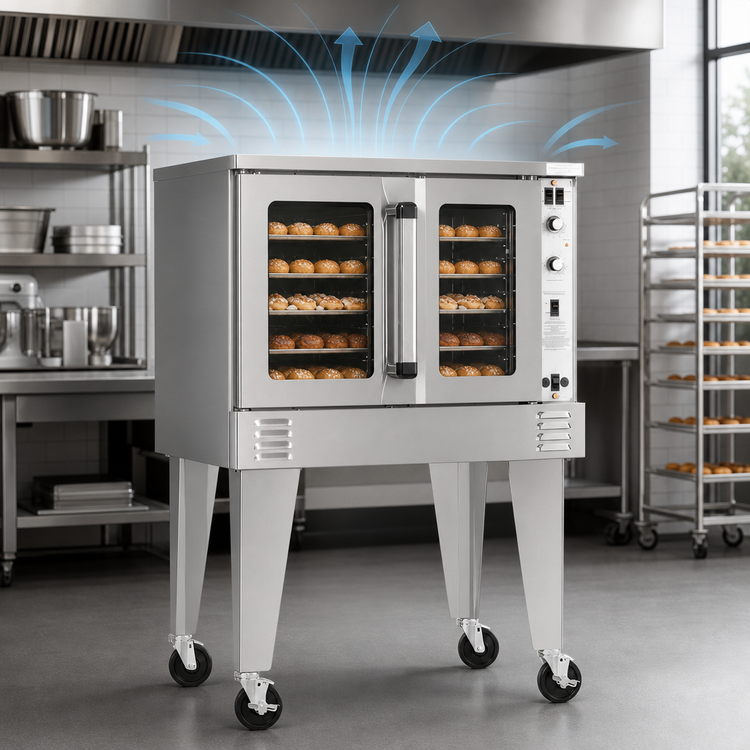

Why choose ventless?
- Eliminates costly hood & duct installation.
- Makes secondary baking lines possible in front-of-house, concessions, kiosks and mobile applications.
- Built-in catalyst filters grease laden vapors to meet NFPA-96 emissions limits (check local codes).
Technical specifications
| Series / Model | Platinum Series, PCE75B/S-V |
|---|---|
| Capacity | 5 full-size (18 × 26 in) pans on 11 positions |
| Heat Output | 7.5 kW electric heating elements |
| Temperature Range | 140 °F – 500 °F (60 °C – 260 °C) |
| Controls | Solid-state thermostat + 60-min mechanical timer |
| Fan Motor | ½ HP, 2-speed (1710 / 1120 RPM) |
| Interior Dimensions (W × D × H) | 29 in × 29 in × 20 in (737 × 737 × 508 mm) |
| Overall Dimensions (W × D × H) | 29 in × 36.5 in × 55 in* (737 × 927 × 1397 mm) *Height with standard 26 in legs; add 2 – 3 in for optional casters. |
| Electrical |
7.5 kW, 208-480 V, 50/60 Hz Single or 3-phase (specify on order) 208 V 1ɸ = 36.1 A | 208 V 3ɸ = 20.9 A/line |
| Ventilation | Ventless internal catalyst – no Type-I hood required* |
| Clearances | 0 in front & right; 2 in left & rear (from combustibles) |
| Shipping Weight | ≈ 680 lb (313 kg) |
| Warranty | 1-year parts & labor, on-site service |
Included with your oven
- (5) Nickel-plated wire racks
- (1) Ventless catalyst cartridge (factory-installed)
- 26 in stainless steel triangular legs
- Factory wiring to your specified voltage & phase
- Owner’s & service manuals
*Ventless clearance and hood exemptions vary by jurisdiction. Always verify local code compliance before installation.
