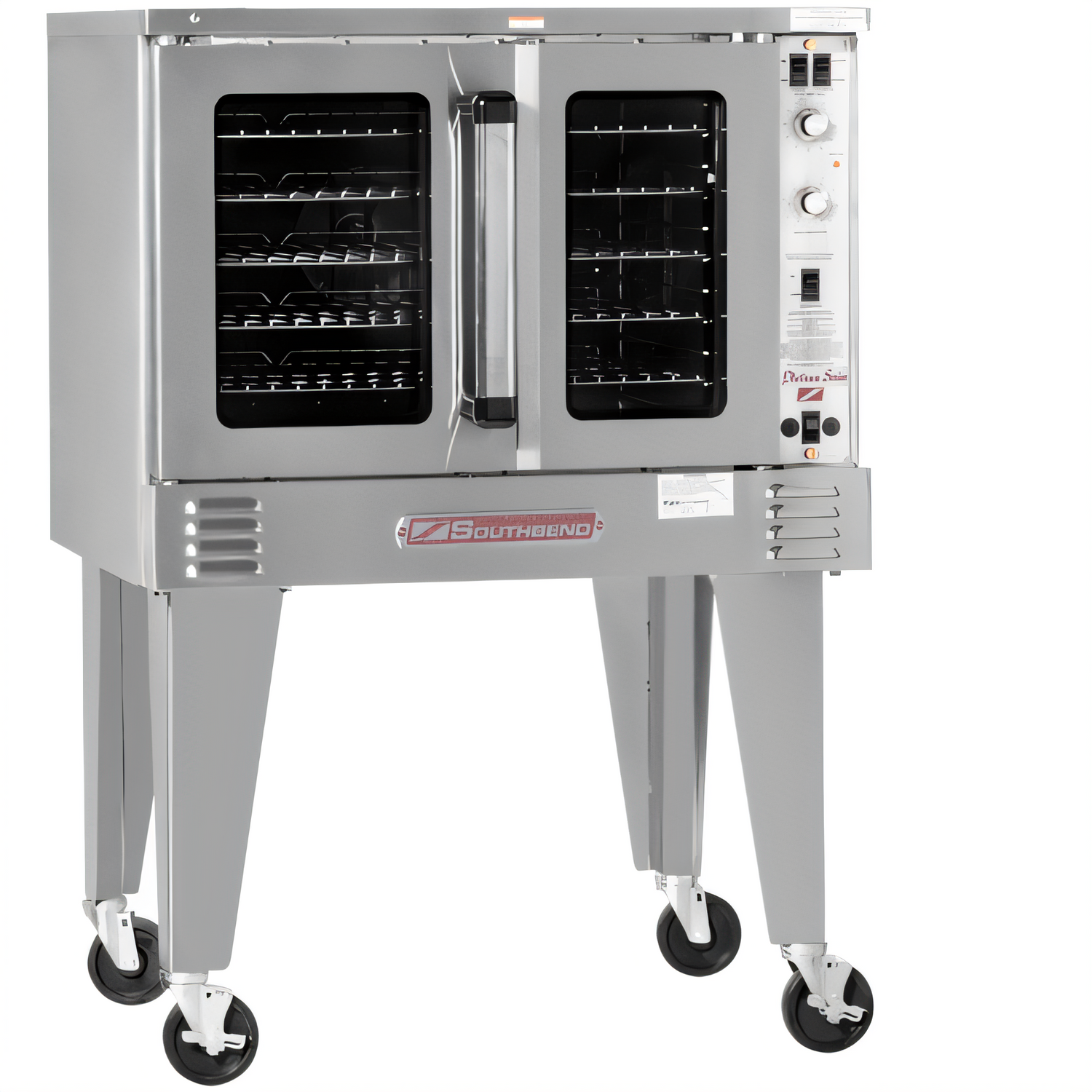

Southbend (Middleby) PCE75B/SD Platinum Convection Ovens
Description
Platinum Series Bakery-Depth Convection Oven
Model PCE75B/S – Electric • 7.5 kW • Standard Controls • Single DeckGive every batch the finish it deserves with Southbend’s Platinum Series bakery-depth oven. The 7.5 kW electric heat system, two-speed fan and 11-position rack rail create perfectly even bakes, while the patented slide-out control panel keeps service simple and downtime minimal.
Why You’ll Love It
- Bakery-depth cavity (29 in) fits full-size or extra-wide sheet pans front-to-back.

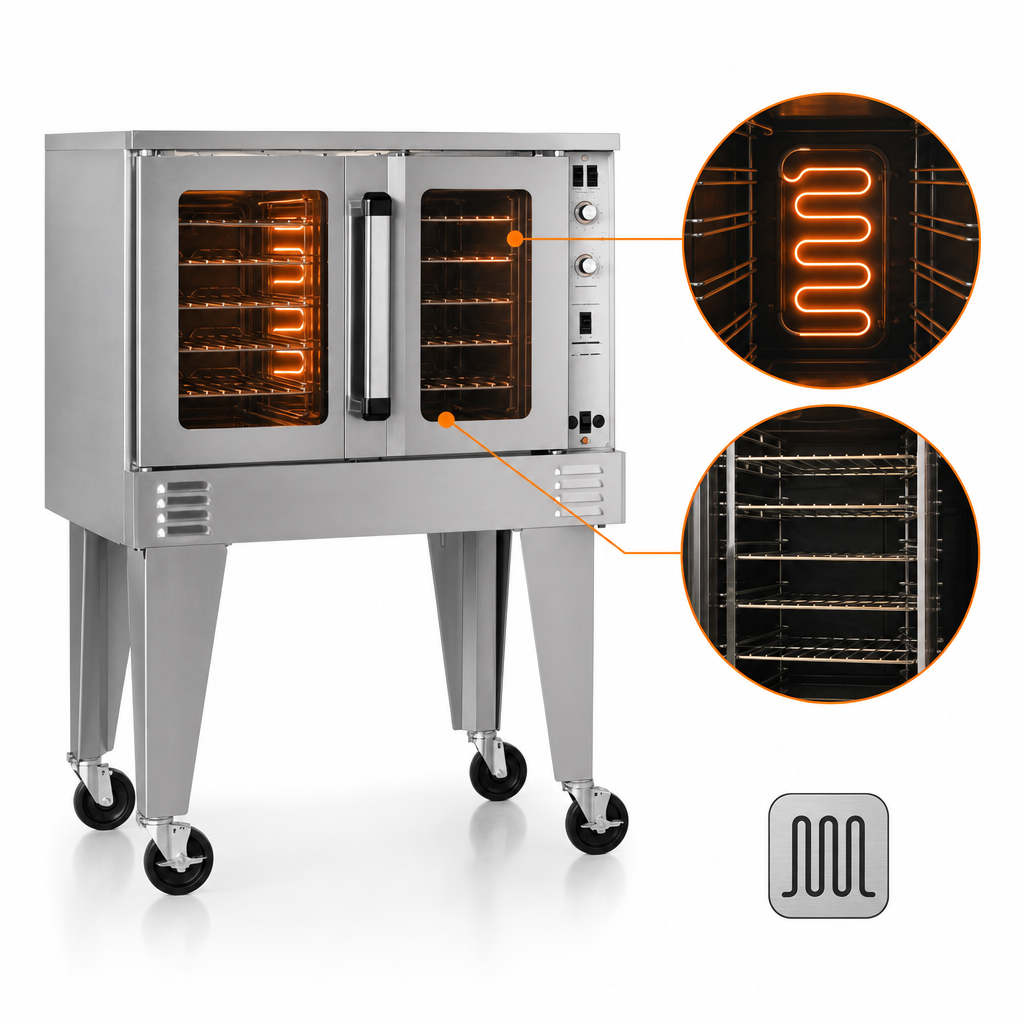

- High-efficiency 7.5 kW rear-mounted heating elements for rapid pre-heat & recovery.

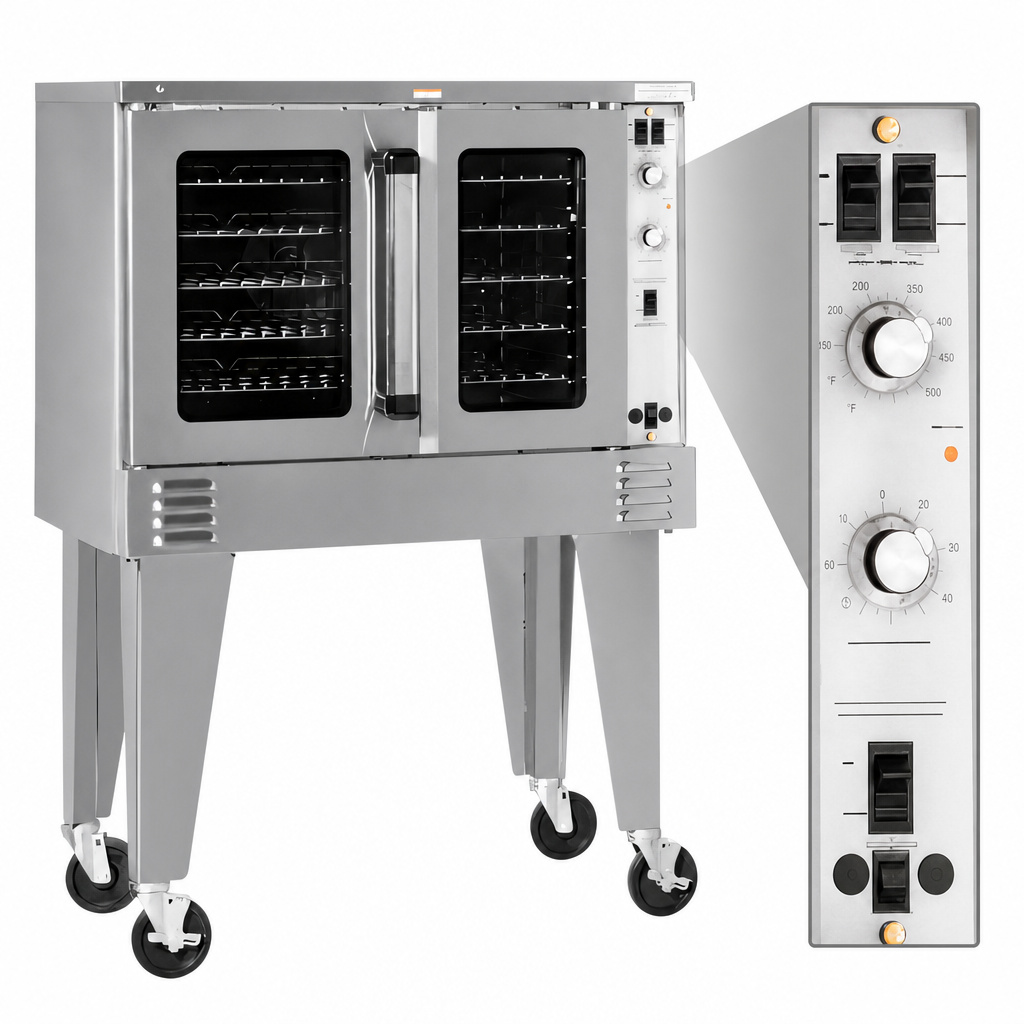

- Standard (SC) controls: 140 °F – 500 °F solid-state thermostat + 60-minute mechanical timer.
- Two-speed, ½ hp fan motor with forced cool-down mode protects product & components.
- Dependent 2-piece low-E glass doors open a full 180° for unobstructed loading.
- Heat-keeping dual door seals & stay-cool tubular handle reduce energy loss and injuries.
- Coved, fastener-free porcelain enamel interior wipes clean in seconds.
- Five chrome-plated racks standard; 11 rack positions on 1⅝ in centers.
- Patented “plug-in/plug-out” slide-out control panel – service access in under 30 seconds.
- Bright twin interior lamps for at-a-glance product checks.
Popular Factory Options & Accessories
- Ventless internal catalyst (UL-certified) – bake anywhere without a hood*
- 4 in or 6 in locking casters
- Stainless steel rear jacket, marine-edge top or dirt tray
- Independent doors, stainless steel solid doors or export crating
*Always confirm local code compliance before ordering ventless option.
Technical Specifications
| Heat Type / Rating | Electric, 7.5 kW total |
|---|---|
| Voltage & Phase* | 208, 220/240, 380, 415 or 480 VAC • 1 φ or 3 φ |
| Amps (240 V / 3 φ) | 18.1 A per line (add 4.3 A for controls) |
| Temperature Range | 140 °F – 500 °F |
| Interior (W × D × H) | 29 in × 29 in × 20 in (737 × 737 × 508 mm) |
| Rack Positions / Supplied | 11 guides / 5 racks |
| Overall Dimensions (W × D × H) | 36.5 in × 43.5 in × 55 in† |
| Shipping Weight | ≈ 680 lb (313 kg) – 68.1 ft³ crated |
| Motor | ½ hp, 2-speed (1,710 / 1,120 RPM) |
| Warranty | 1-year parts & labor, nationwide service network |
*Specify voltage & phase when ordering.
†55 in height on standard 26 in legs; 55 in shown with optional casters.
From cafés to commissaries, the Southbend Platinum Series delivers the consistency, capacity and serviceability serious kitchens demand. Add it to your lineup and start turning out perfectly even batches—every bake, every time.
