Southbend (Middleby) PCE22S/TI-V Platinum Convection Ovens
Description

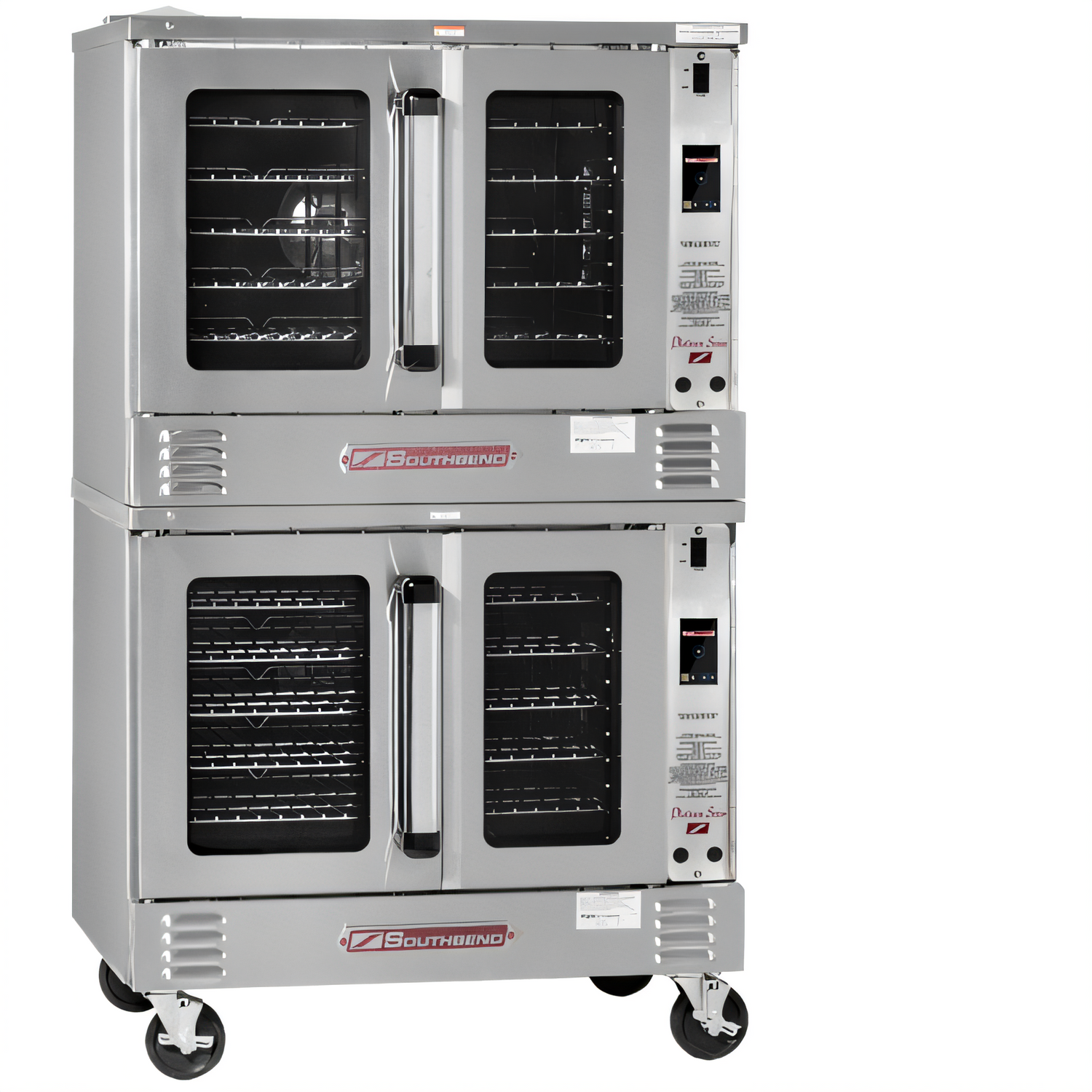

Southbend Platinum Series Ventless Double Convection Oven
Model PCE22S/T | Touchscreen Controls · 11 kW/Deck · Independent DoorsBring full-size baking power anywhere—even where a hood isn’t possible. The Southbend Platinum ventless double convection oven pairs a UL-certified catalytic system with high-efficiency electric heat and an intuitive touchscreen, giving chefs maximum flexibility without sacrificing performance.
Performance & Convenience
- Ventless internal catalyst removes grease, smoke & odors—no Type I hood required*
- 11 kW sheath elements in each deck for rapid recovery and even heat

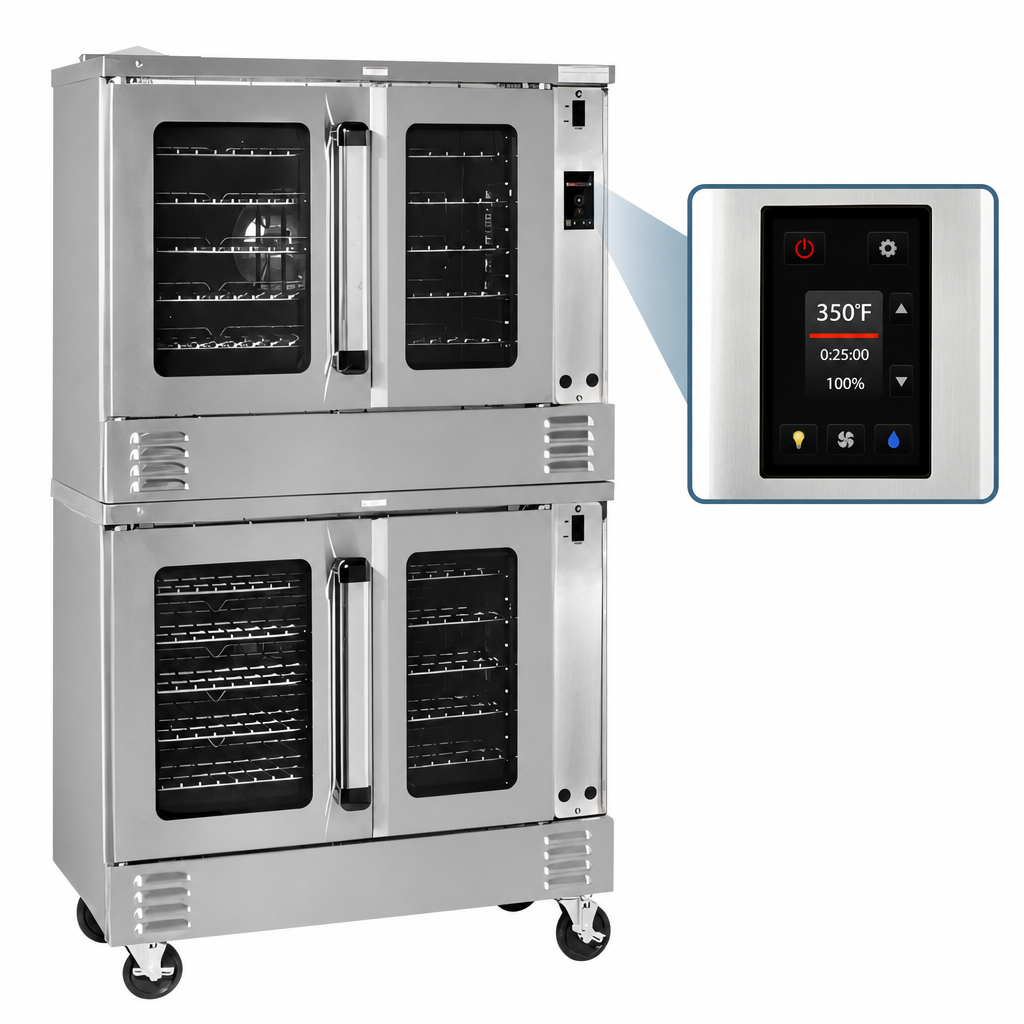

- Full-color touchscreen with Manual, Recipe & Rack modes plus 140 – 200 °F “Hold” function
- Independent, low-emission glass doors swing 180° for easy loading while limiting heat loss
- Patented plug-in / plug-out slide-out control panel for fast front-access service
- ½ hp two-speed fan motor with pulse control ensures uniform bake on every rack
- Coved, fastener-free porcelain enamel interiors wipe clean in seconds
- 11-position removable rack guides & 5 plated racks per cavity
- Dual door-seal system, forced cool-down mode & stay-cool handles for operator safety
- All-stainless exterior (front, sides, top & rear jacket) built for demanding kitchens
Technical Specifications
| Configuration | Double deck, electric, standard depth |
|---|---|
| Control system | TC Touchscreen – 150 °F – 550 °F bake range |
| Heat output | 11 kW per deck (22 kW total) |
| Fan motor | ½ hp, 2-speed (1710 / 1120 RPM) |
| Exterior dimensions (W × D × H) | 40.6 × 37.3 × 64.8 in (1032 × 946 × 1646 mm) |
| Interior cavity (per deck) | 29 × 21.5 × 20 in (737 × 546 × 508 mm) |
| Rack positions / supplied | 11 positions / 5 racks per deck |
| Electrical options |
208, 240, 380, 415 or 480 V; 1- or 3-phase Max amps (per deck, 11 kW): 52.9 A @ 208 V 1 φ · 30.6 A/line @ 208 V 3 φ |
| Clearances (combustible) | Front 0″, Right 0″, Back & Left 2″ |
| Shipping weight | ≈ 1,040 lb (472 kg) |
| Warranty | 1-year parts & labor |
Perfect For
- Satellite baking stations in hotels & resorts
- Convenience stores, ghost kitchens & kiosks without hood infrastructure
- School, healthcare & corporate cafeterias needing odor-controlled cooking
- Any operation upgrading from gas or legacy electric ovens for higher efficiency
Factory Options & Accessories
- 4″ or 6″ locking casters
- Stainless steel solid doors or exterior bottom
- Marine-edge top or rear stainless jacket
- Export crating & 2″ air-insulation panel
Need something custom? Contact us for pricing and lead times.
*Always confirm local code approval for ventless equipment.
