Southbend (Middleby) PCE22S/TI Platinum Convection Ovens
Description

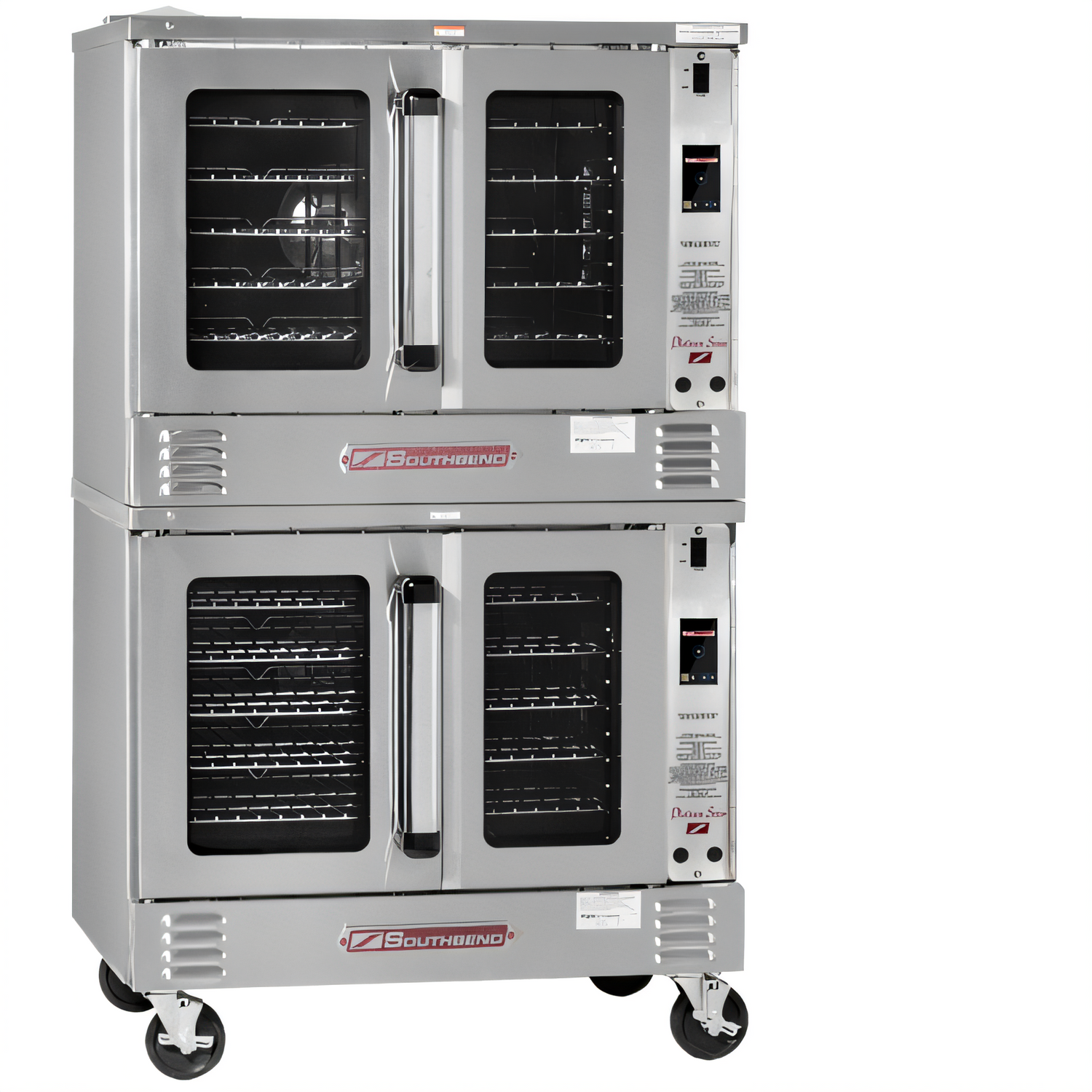

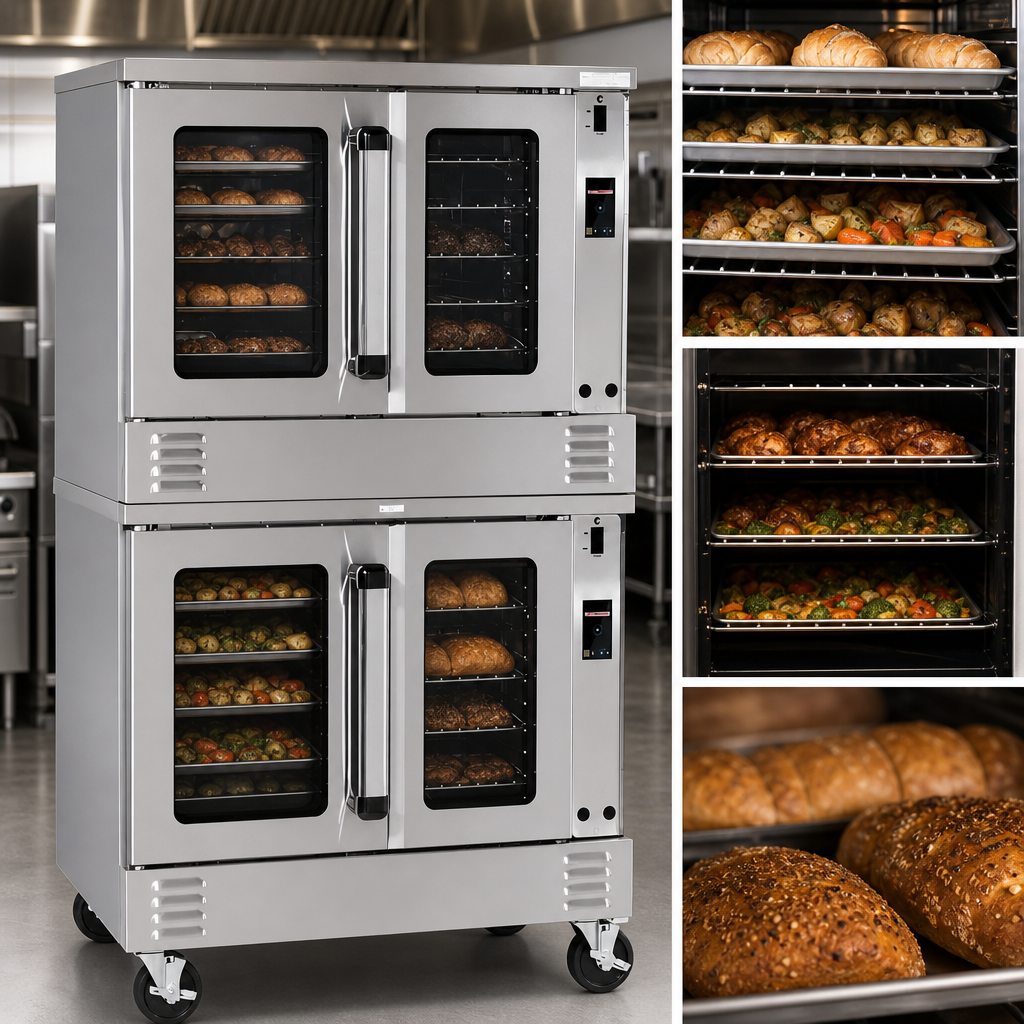

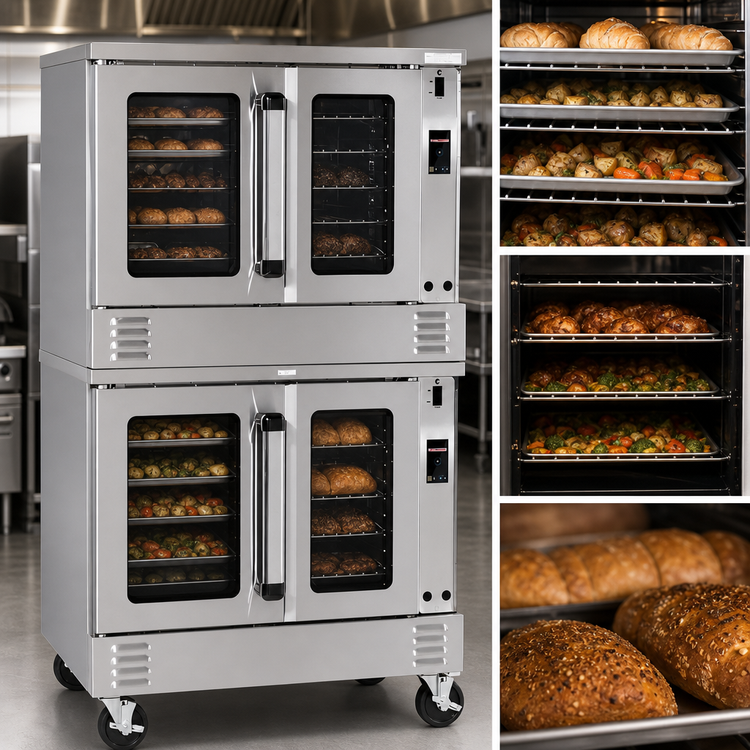

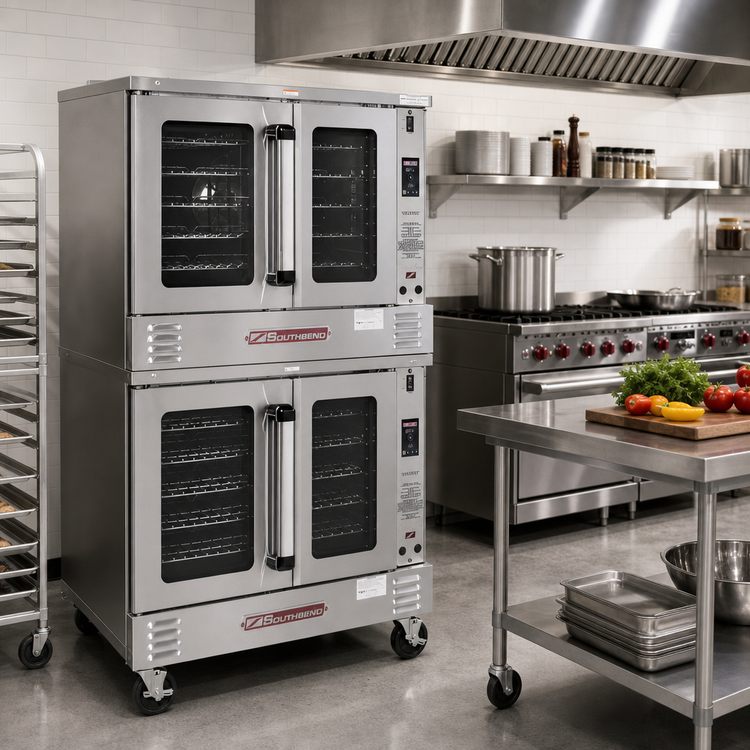

Platinum Series Double Convection Oven
Model PCE22S/T — 11 kW per deck • Electric • Touchscreen • Independent DoorsSouthbend’s Platinum Series PCE22S/T gives busy commercial kitchens the speed, consistency and durability they demand, with the ease-of-use today’s crews love. Two 11 kW decks, a rugged stainless-steel cabinet, and brilliant touchscreen controls deliver perfect, repeatable results shift after shift.
Key Performance Features
- 22 kW total output – 11 kW high-efficiency heating element in each deck.

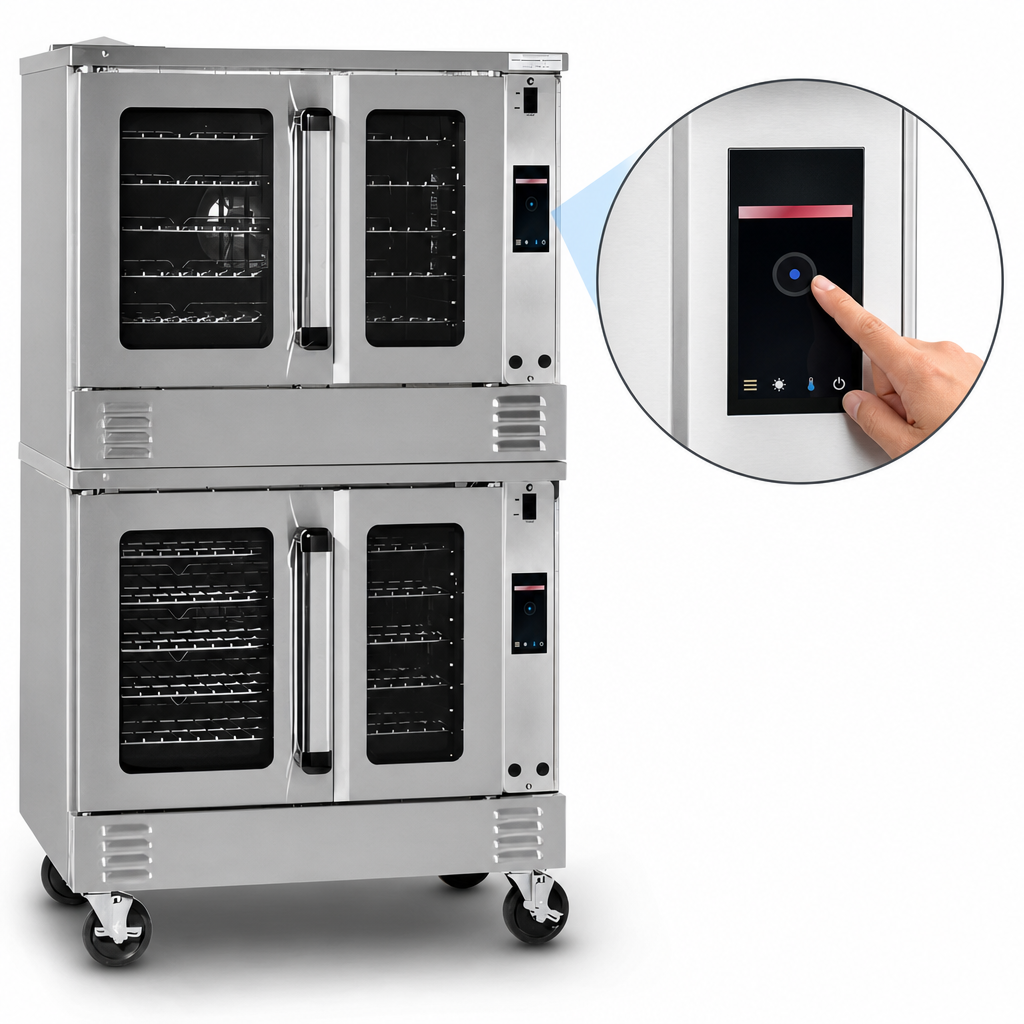

- Intuitive 7" touchscreen offers manual, recipe & rack modes (create multiple timers for individual shelves).
- Patented “plug-in / plug-out” control panel slides out a full 17" for fast front-service access.
- Independent, low-emission glass doors swing a full 180° for clear access and effortless loading.
- 11-position rack guides and 5 heavy-duty chrome racks included.
- 1/2 HP, 2-speed fan motor (1,710 / 1,120 RPM) with fan-pulse mode for delicate baking.
- Coved, fastener-free porcelain enamel interior cleans in seconds.
- Forced cool-down mode protects product & staff between batches.
- Factory 6" stainless legs standard — optional 4" or 6" casters available.
- UL-certified ventless catalyst package available when a hood isn’t.
Built for the Long Haul
- All-stainless front, sides, top and rear jacket resist corrosion in tough kitchens.
- Dual door-seal system and high-efficiency windows keep heat where it belongs.
- Stay-cool tubular handles and recessed 40 W oven lights improve safety and visibility.
- Reset-type high-limit safeguards against over-temperature conditions.
Technical Specifications
| Model | PCE22S/T (Double deck) |
|---|---|
| Heat Input | 11 kW per deck (22 kW total) |
| Temperature Range | 150 °F – 550 °F + 140 °F – 200 °F “Hold” |
| Exterior (w × d × h) | ≈ 40.6" × 37.3" × 64.8" (1032 × 947 × 1646 mm) |
| Interior (each deck) | 29" W × 21.5" D × 20" H (737 × 546 × 508 mm) |
| Rack Positions / Supplied | 11 positions / 5 racks |
| Fan Motor | ½ HP, 2-speed |
| Doors | Independent, double-pane glass – 180° opening |
| Clearances (combustibles) | Front & right 0" • Left & rear 2" |
| Shipping Weight | 1,040 lb (472 kg) |
Electrical Data — 11 kW Elements
| Voltage (50/60 Hz) | Phase | Amps / Line |
|---|---|---|
| 208 V | 1-ph | 52.9 A |
| 208 V | 3-ph | X 30.6 A • Y 30.6 A • Z 30.6 A |
| 240 V | 1-ph | 45.9 A |
| 240 V | 3-ph | X 26.5 A • Y 26.5 A • Z 26.5 A |
| 380 / 220 V | 3-ph | X 16.8 A • Y 16.8 A • Z 16.8 A |
| 480 V | 3-ph | X 13.3 A • Y 13.3 A • Z 13.3 A |
| Add 4.3 A for control circuit (single phase). | ||
Popular Factory Options
- Ventless catalyst system (UL-certified)
- Marine-edge top
- 4" or 6" locking casters
- Stainless steel solid doors or rear jacket
- 2" air-gap insulation panel
- Export crating
Ships with Southbend’s 1-year parts & labor warranty. Register the unit and review full terms at southbendnc.com/service.
