Southbend (Middleby) PCE22S/TD-V Platinum Convection Ovens
Description

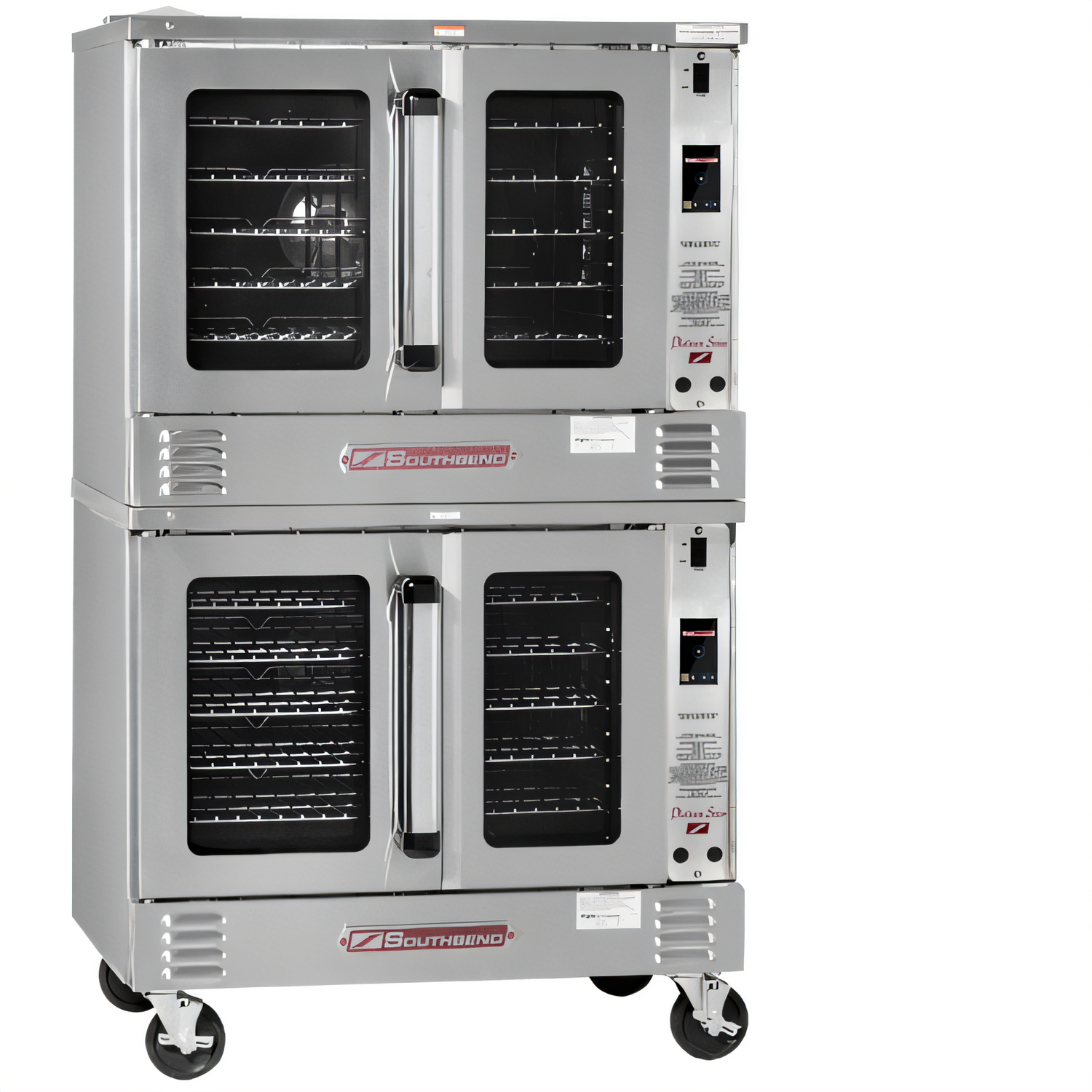

Platinum Series Ventless Double Convection Oven – Electric, 11 kW/Deck
Southbend Model PCE15S/T • Touchscreen Controls • Standard Depth • Dependent DoorsBake, roast, reheat and hold anywhere—no ventilation hood required.* Southbend’s Platinum Series ventless double-deck convection oven couples high-efficiency 11 kW elements with a catalytic converter to scrub grease-laden vapors, giving you full-blown production capacity in locations that were previously off-limits.
Why You’ll Love It
- Ventless internal catalyst design (UL-certified) eliminates the need for duct work*

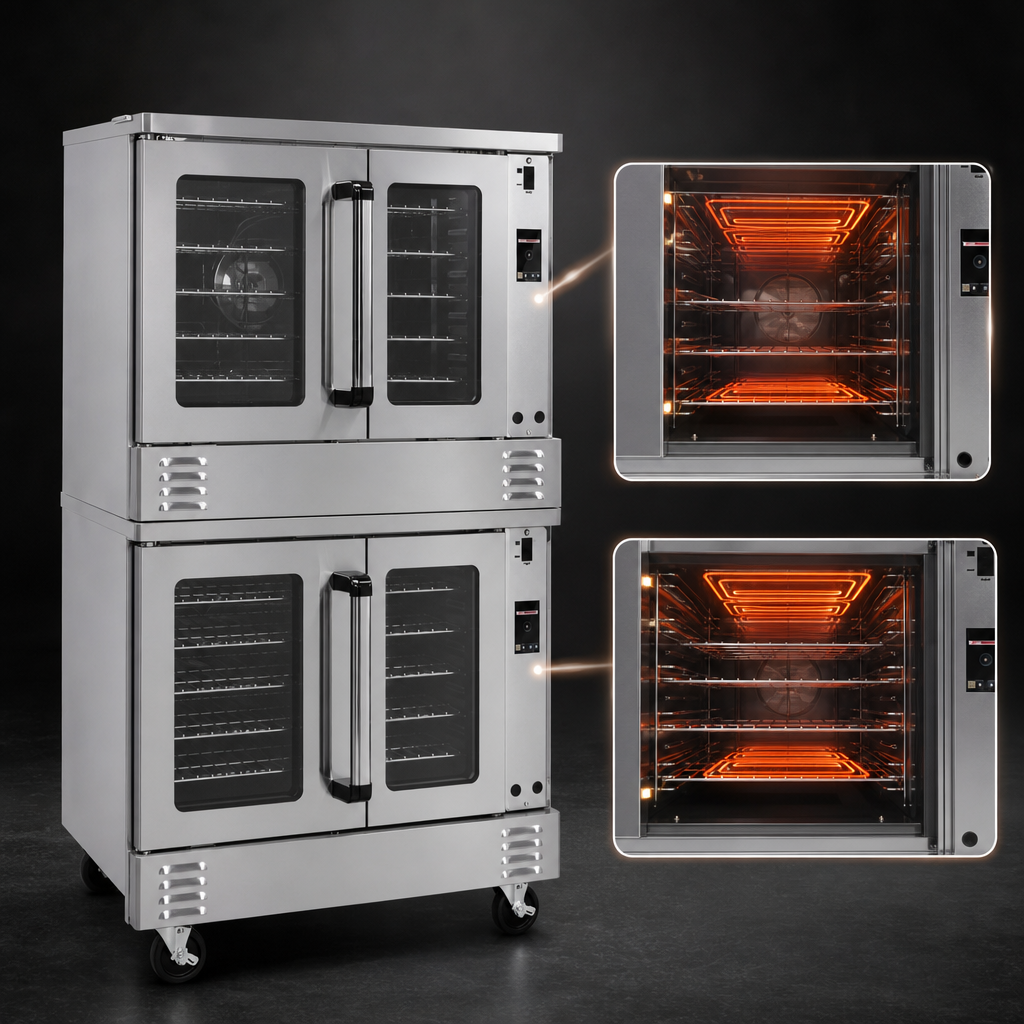

- Powerful 11 kW heating elements in each deck reach 150 °F – 550 °F fast and recover quickly
- Full-color touchscreen with Manual, Recipe & Rack modes – store, edit and launch menu items in seconds
- Patented “plug-in/plug-out” slide-out control panel for hassle-free service access
- Dependent, low-emission glass doors open a full 180° and feature dual seals for maximum heat retention
- Two-speed ½ hp fan and coved porcelain interior deliver even bake results on every rack
- 11 rack positions & 5 heavy-duty wire racks per deck handle everything from sheet pans to hotel pans
- Forced cool-down mode speeds turn-around between batches
- Stainless-steel front, sides, top & rear jacket built for demanding commercial kitchens
Touchscreen Control Highlights
- Temperature range: 150 °F – 550 °F with a separate 140 °F – 200 °F “Hold” thermostat
- High-visibility display shows both time and temperature simultaneously
- Fan pulse option for delicate bakes
- Unlimited, icon-driven recipe storage with USB download/upload capability
- Rack mode lets you assign independent timers to each shelf for mixed-menu cooking
Technical Specifications
| Decks | 2 (standard depth) |
|---|---|
| Heat Source | Electric, 11 kW per deck (22 kW total) |
| Exterior Dimensions | Approx. 40.6" W × 37.3" D × 64.8" H |
| Oven Interior (per deck) | 29" W × 21.5" D × 20" H |
| Rack Positions / Racks Supplied | 11 / 5 per deck |
| Fan Motor | ½ hp, 2-speed (1 710 / 1 120 RPM) |
| Electrical Connections* |
208 V 1Φ 52.9 A | 208 V 3Φ 30.6 A/line 240 V 1Φ 45.9 A | 240 V 3Φ 26.5 A/line 480 V 3Φ 13.3 A/line (50/60 Hz – single or three phase must be specified) |
| Clearances | Front/Right 0" • Back/Left 2" |
| Shipping Weight | Approx. 1 040 lb (472 kg) |
| Warranty | 1-year parts & labor |
Popular Options (extra cost)
- 4" or 6" heavy-duty locking casters
- Independent doors
- Marine-edge top
- Stainless-steel solid doors or dirt tray
- Export voltage packages
* ALWAYS confirm local code compliance before installing any ventless appliance. See Southbend limited warranty for full details.
