Southbend (Middleby) PCE22S/TD Platinum Convection Ovens
Description

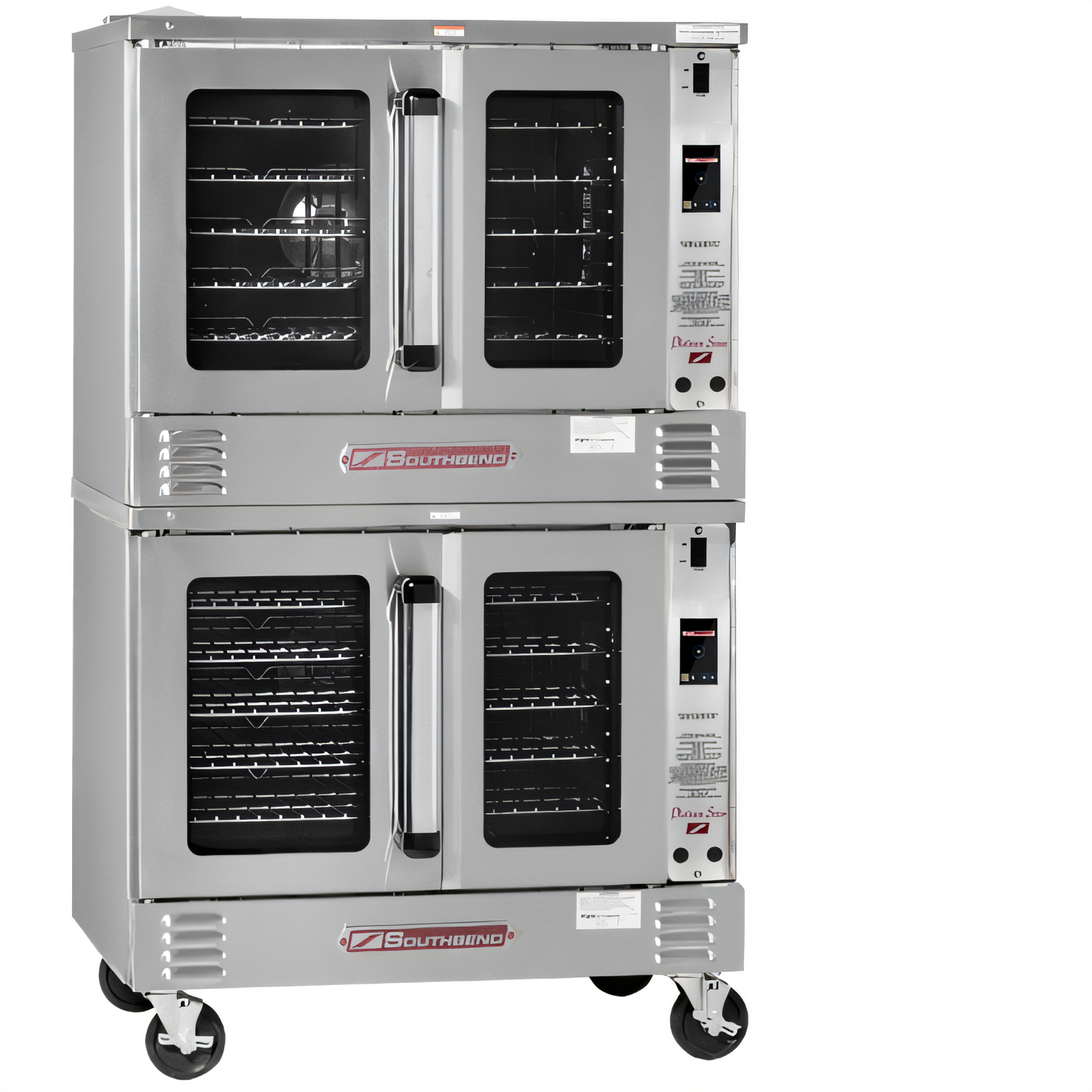

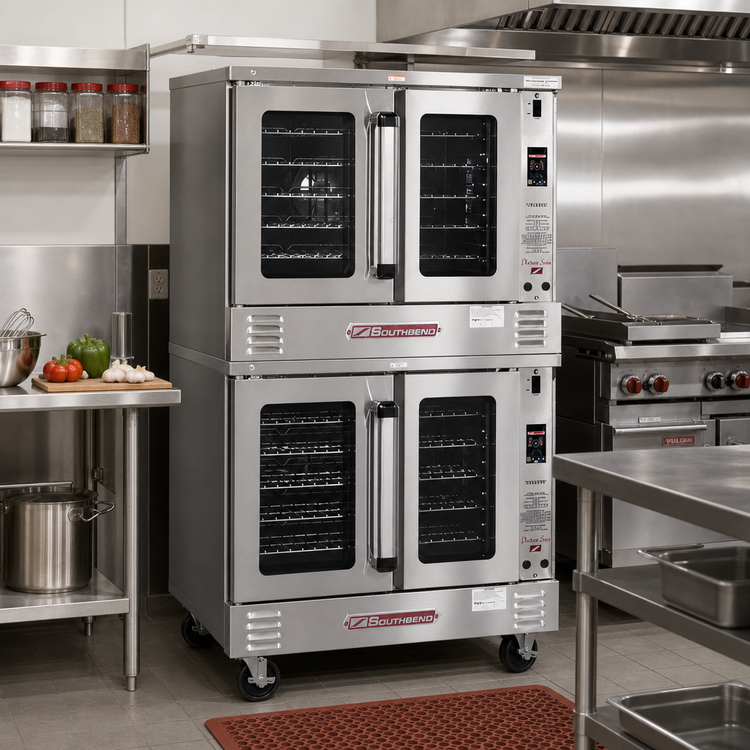

Southbend Platinum Series Double Electric Convection Oven – 11 kW/Deck
Standard Depth • Touchscreen Controls • Dependent DoorsPush more product out of the same footprint with Southbend’s hardest-working oven. Two full-size, standard-depth cavities, each powered by a high-efficiency 11 kW heat pack, give you the speed, consistency, and capacity busy kitchens demand—now with a smart touchscreen that stores your recipes and runs multiple rack timers at once.
Key Performance Features

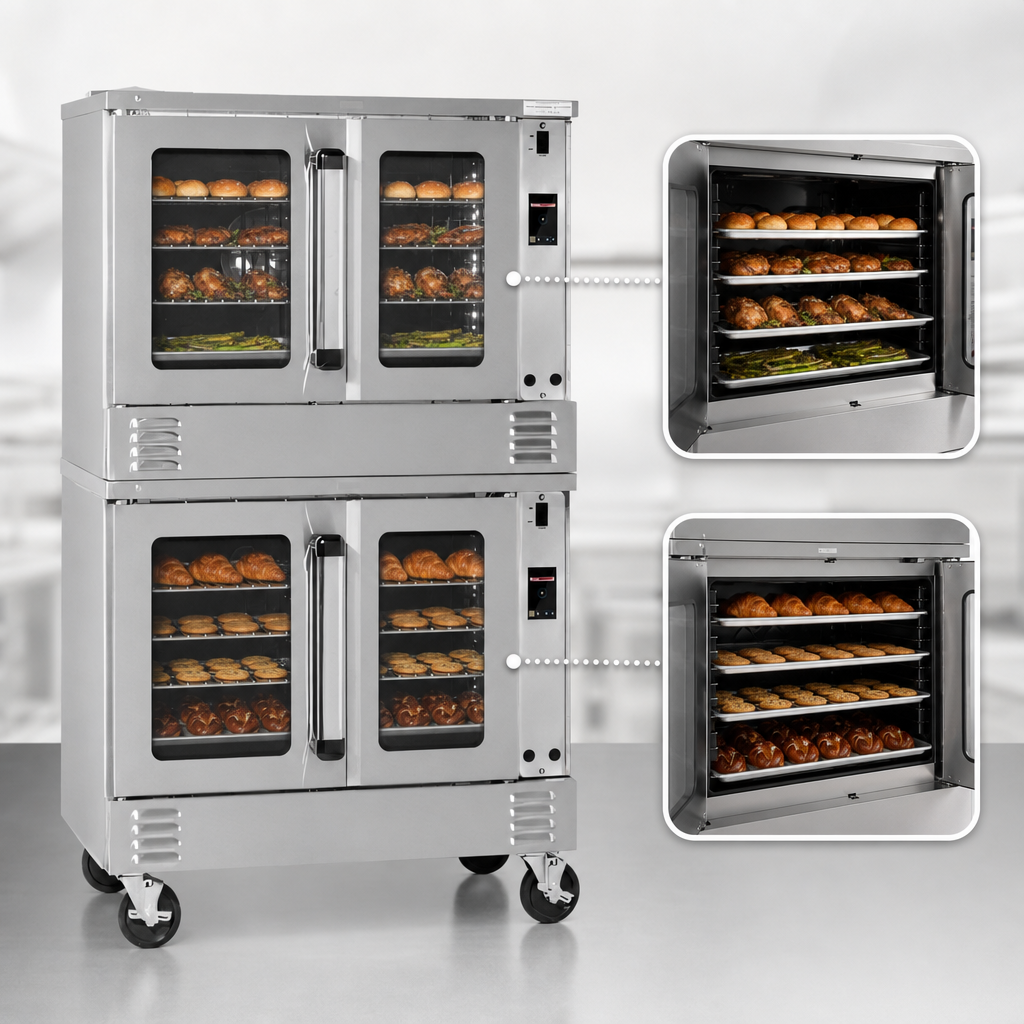

- Double-deck design stands just 64.8 in. high—no lost panspace.
- 11 kW incoloy heating elements per deck for rapid heat-up and recovery.
- Touchscreen offers manual, recipe, and rack modes with digital time & temp display.
- Patented “plug-in, plug-out” slide-out control panel simplifies service.
- Dependent low-E glass doors open a full 180° and seal tight with a dual gasket system.
- ½ HP, two-speed fan (1710/1120 RPM) scrubs hot air evenly across every rack.
- Porcelain-enameled, coved interior—fastener-free for quick wipe-downs.
- 11 rack positions & 5 heavy-duty plated racks included per deck.
- Forced cool-down fan mode protects staff and extends component life.
- Optional UL-certified ventless catalytic system lets you install where hoods aren’t available.

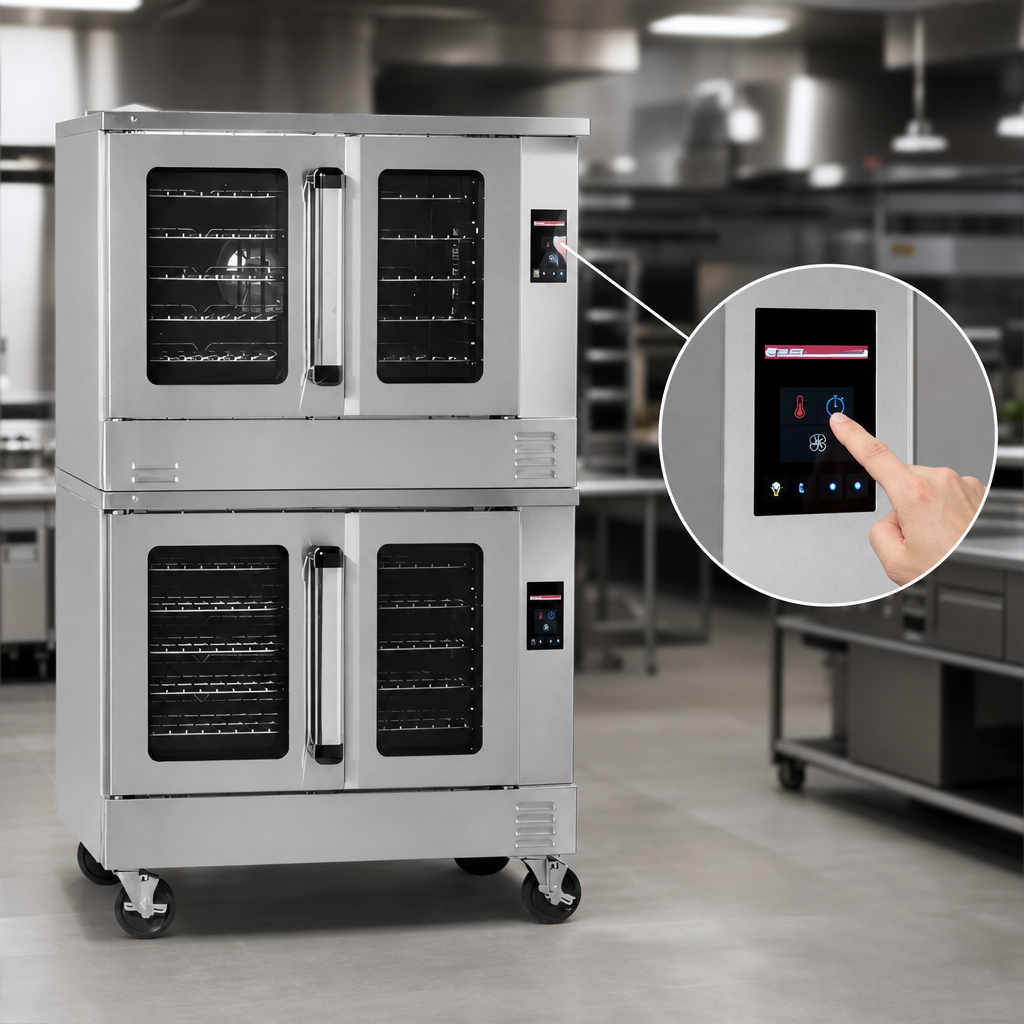

Smart Touchscreen Highlights
- 150 °F–550 °F bake range | 140 °F–200 °F holding mode
- Create, name, and store recipes for one-touch recall
- Fan pulse timer for delicate bakery products
- Rack mode runs individual timers on each shelf—perfect for mixed loads
Built-for-Life Construction
- All-stainless front, sides, top, and rear jacket
- Stay-cool tubular door handles
- 6 in. stainless legs standard; 4 in./6 in. locking casters optional
- High-limit thermostat & dual door seals for added safety
Popular Options & Accessories (extra cost)
- Ventless internal catalyst package
- 4 in. or 6 in. casters
- Stainless solid doors, marine-edge top, rear jacket, dirt tray
- 2 in. air-insulation panel (stainless only)
- Export crating & custom voltages (208, 240, 380, 415, 480 V; 1- or 3-phase)
Specifications
| Model | Platinum PCE22S/T (Double Deck, Touchscreen) |
|---|---|
| Capacity | 5 racks per deck | 11 rack positions |
| Exterior (W × D × H) | 40.6 in. × 37.25 in. × 64.8 in. |
| Interior (W × D × H) | 29 in. × 21.5 in. × 20 in. (each deck) |
| Total Heat Output | 22 kW (11 kW per deck) |
| Fan Motor | ½ HP, 2-speed |
| Door Style | Dependent, dual-pane glass, 180° opening |
| Shipping Weight | Approx. 1,040 lb / 472 kg |
| Warranty | 1-year parts & labor (commercial use) |
Electrical Requirements (per deck – 11 kW)
| Voltage | Phase | Amps/Line |
|---|---|---|
| 208 V | 1-phase | 52.9 A |
| 208 V | 3-phase | 30.6 A |
| 240 V | 1-phase | 45.9 A |
| 240 V | 3-phase | 26.5 A |
| 480 V | 3-phase | 13.3 A |
Add 4.3 A for control circuitry. Specify voltage & phase when ordering.
Warranty
Covered by Southbend’s 1-year limited parts & labor warranty. Full details available at southbendnc.com.
