Southbend (Middleby) PCE22S/SI-V Platinum Convection Ovens
Description

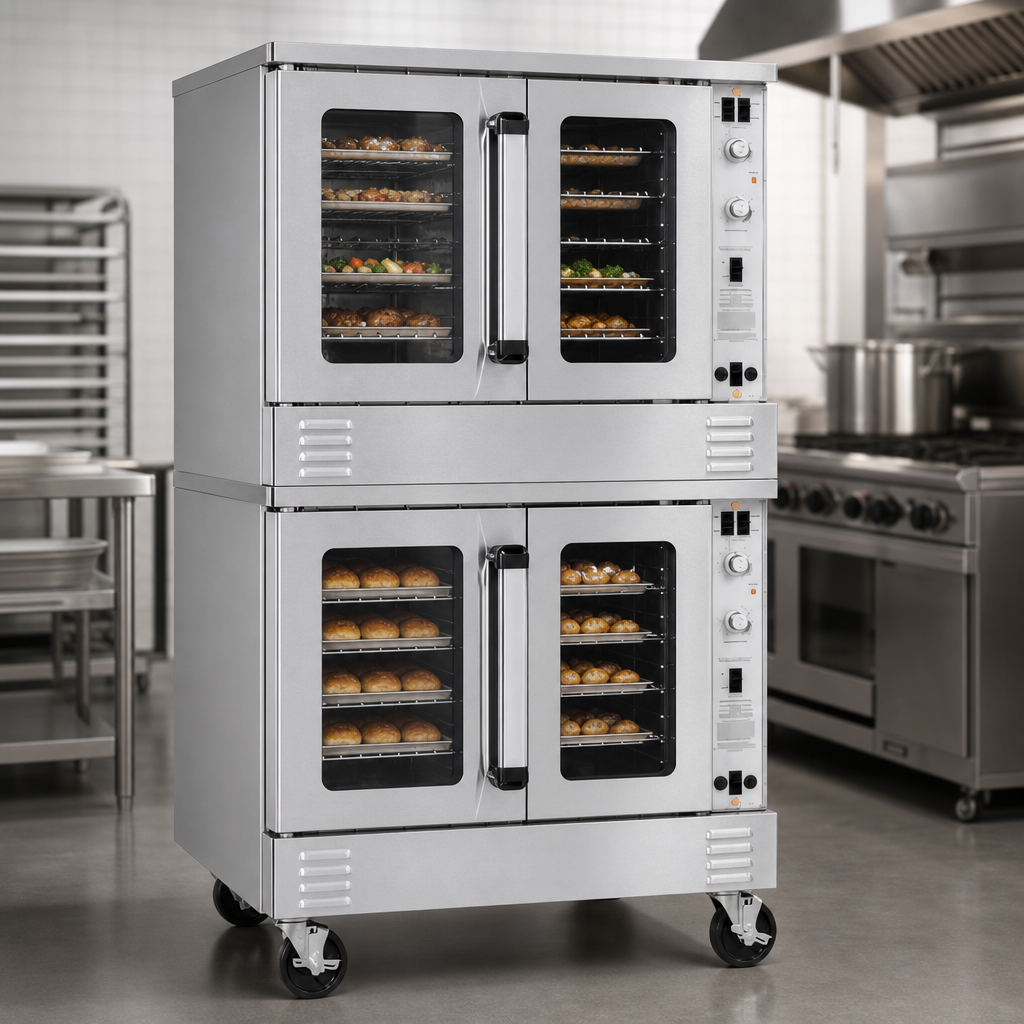

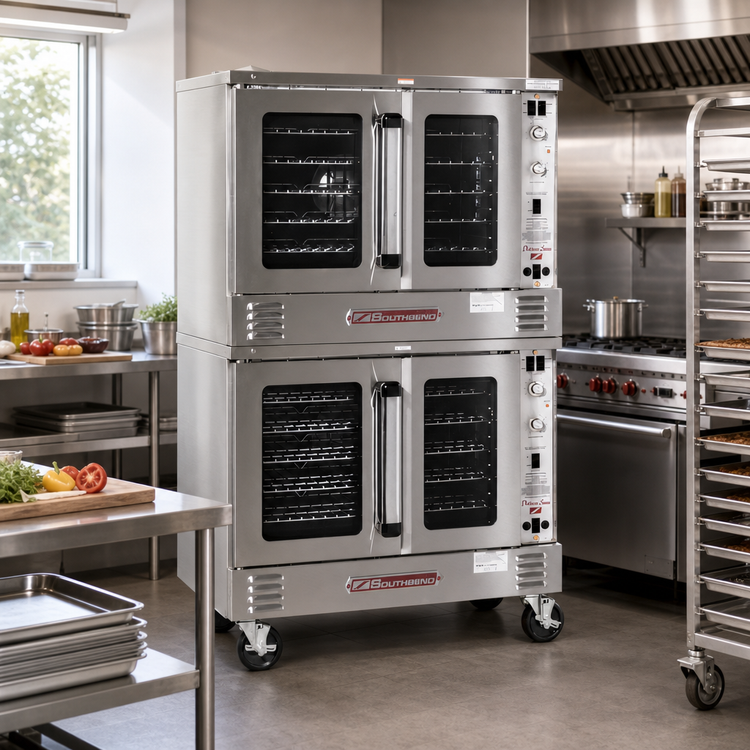

Platinum Series Double Electric Convection Oven – Ventless, Standard Depth, Independent Doors
Southbend Model PCE15S/S-V • 11 kW per deck • Standard (SC) ControlsBring full-size, bakery-quality production to any kitchen—no traditional hood required. Southbend’s ventless Platinum Series double convection oven delivers 22 kW of total cooking power, rock-solid stainless construction, and service-friendly design, all in a single footprint that fits under a standard 7 ft ceiling.
Top Reasons Operators Choose This Oven
- Ventless internal catalytic converter (UL certified) eliminates the need for a Type-I hood*.

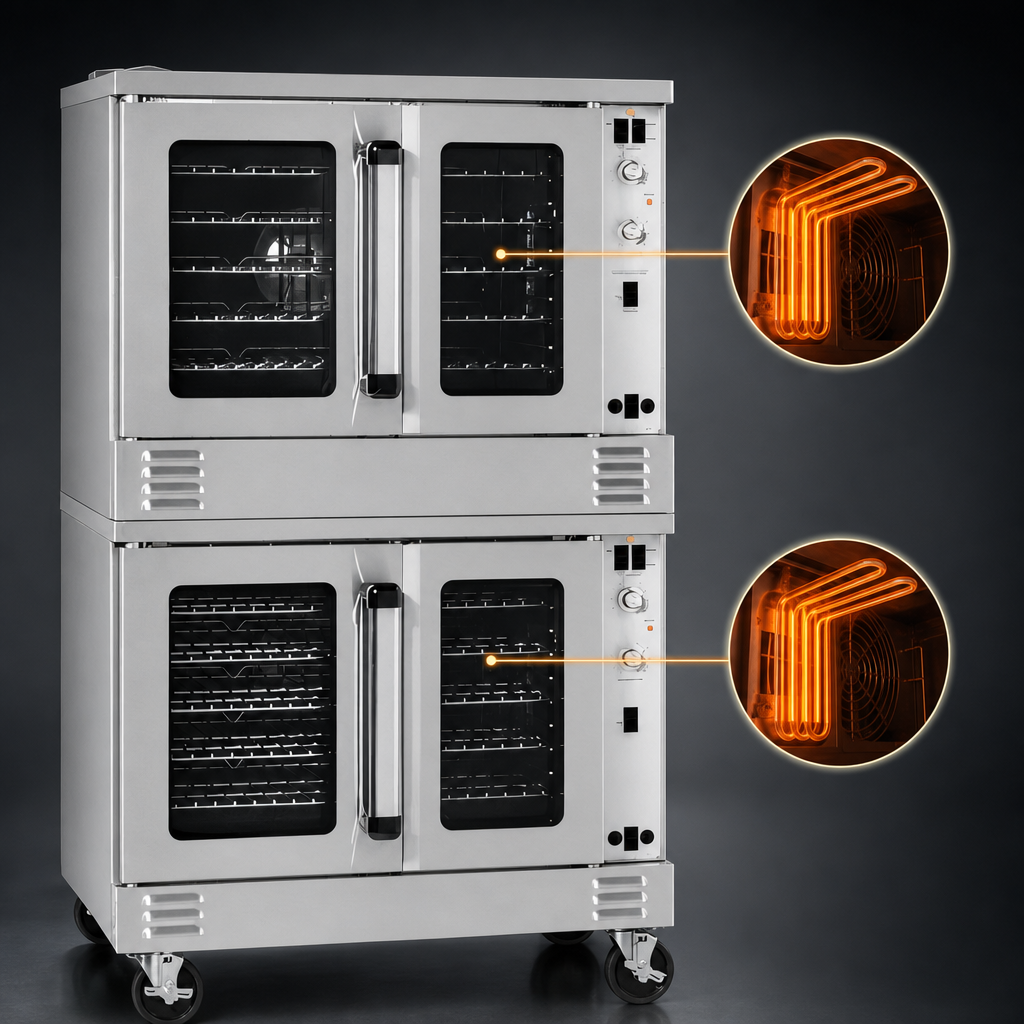

- 11 kW high-efficiency heating elements in each deck for fast recovery and even bake.
- SC solid-state controls:
- 140 °F – 500 °F thermostat
- 60-minute mechanical timer with audible alarm
- Forced cool-down fan mode for rapid turnarounds
- Independent double-pane glass doors—open one cavity without losing heat in the other.
- Two-speed ½ HP fan motor circulates heat for uniform results on every rack.
- 11 rack positions & 5 heavy-duty chrome racks per deck (fits standard 18 × 26 in sheet pans).
- Patented plug-in/plug-out slide-out control panel for easy, front-side service access.
- Stainless steel front, sides, top & rear jacket with coved, porcelain-enameled interior.
- Stay-cool door handles, dual door-seal system, and recessed halogen lights.
- One-year parts & labor warranty backed by Southbend’s nationwide service network.
Specifications
| Cavity configuration | Double deck, standard depth |
|---|---|
| Heating elements | 11 kW per deck (22 kW total) |
| Control type | SC – solid-state thermostat & 60-min timer |
| Temperature range | 140 °F – 500 °F (60 °C – 260 °C) |
| Interior dimensions (W × D × H) | 29 × 21.5 × 20 in (737 × 546 × 508 mm) |
| Rack positions / supplied racks | 11 / 5 per deck |
| Overall dimensions (W × D × H) | 39.25 × 37.25 × 64.8 in (997 × 946 × 1645 mm) |
| Clearance from combustibles | Front & right: 0 in | Back & left: 2 in |
| Electrical connection | 208 V / 240 V / 380 V / 415 V / 480 V, 50/60 Hz, 1- or 3-phase |
| Net weight | Approx. 1,040 lb (472 kg) |
| Warranty | 1 year parts & labor |
Amp Draw – 11 kW Decks
| Voltage | 1-Phase | 3-Phase (per line) |
|---|---|---|
| 208 V 60 Hz | 52.9 A | 30.6 A |
| 240 V 60 Hz | 45.9 A | 26.5 A |
| 380 V 50 Hz | 29 A | 16.8 A |
| 415 V 50 Hz | 25.9 A | 15.4 A |
| 480 V 60 Hz | 23 A | 13.3 A |
*Always confirm local code requirements. While this model is UL-listed for ventless operation, certain jurisdictions may still require mechanical ventilation.
