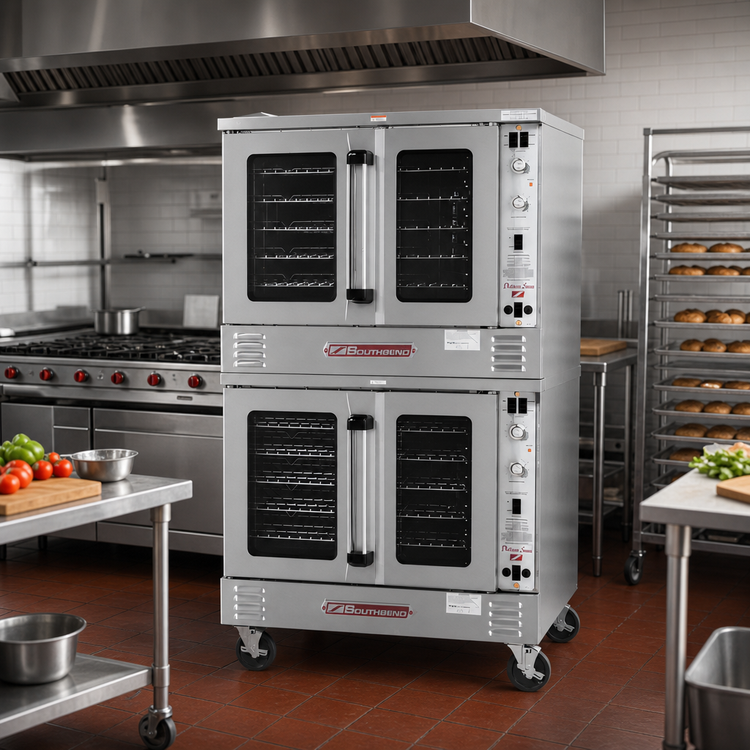

Southbend (Middleby) PCE22S/SI Platinum Convection Ovens
Description

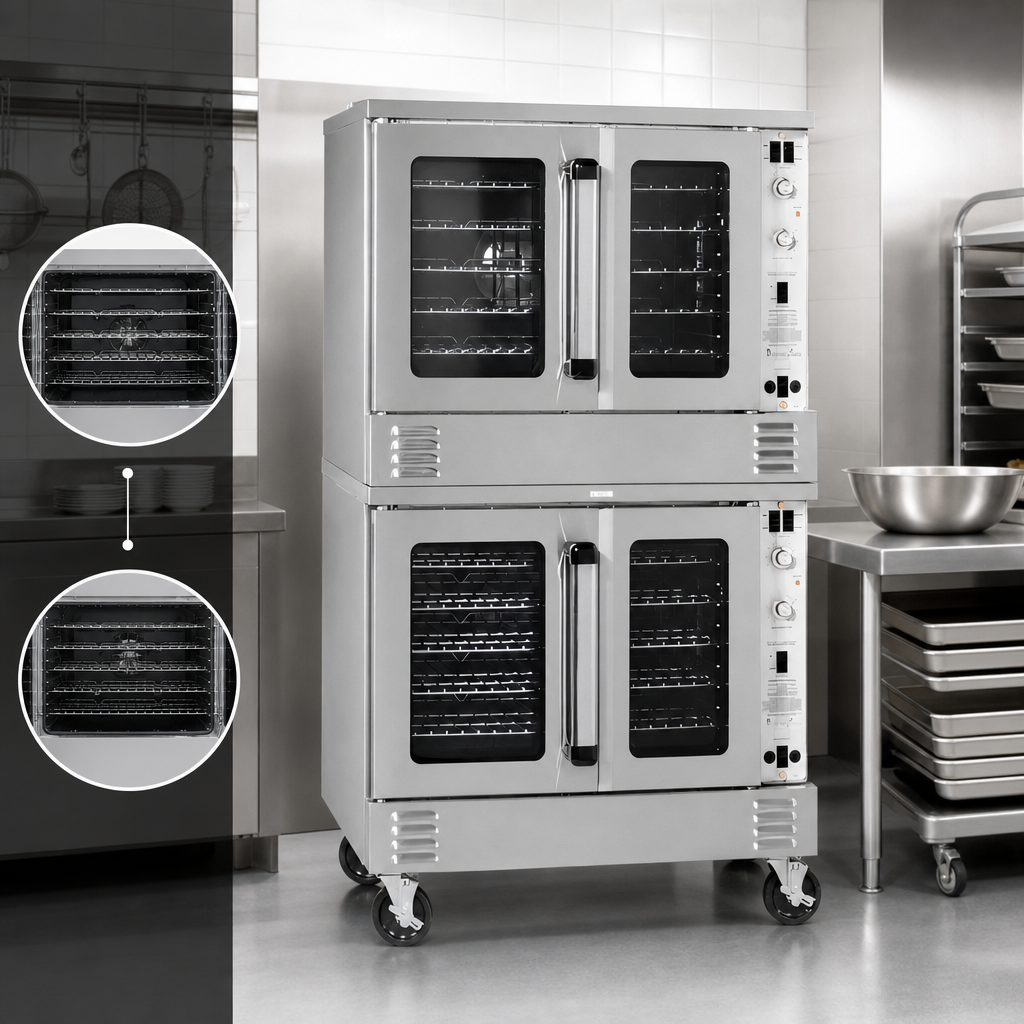

Southbend Platinum Series Double Convection Oven – Electric, 11 kW/Deck
Model PCE22S/S • Standard Depth • Standard Controls • Independent DoorsBuilt for continuous, high-volume service, the Southbend Platinum PCE22S/S delivers two full-size convection ovens in one rugged footprint. Independent glass doors, rapid 11 kW heating elements, and rock-solid solid-state controls give chefs the precision, speed, and visibility they need to turn out perfectly baked, roasted, or finished product—batch after batch.
Key Features & Benefits

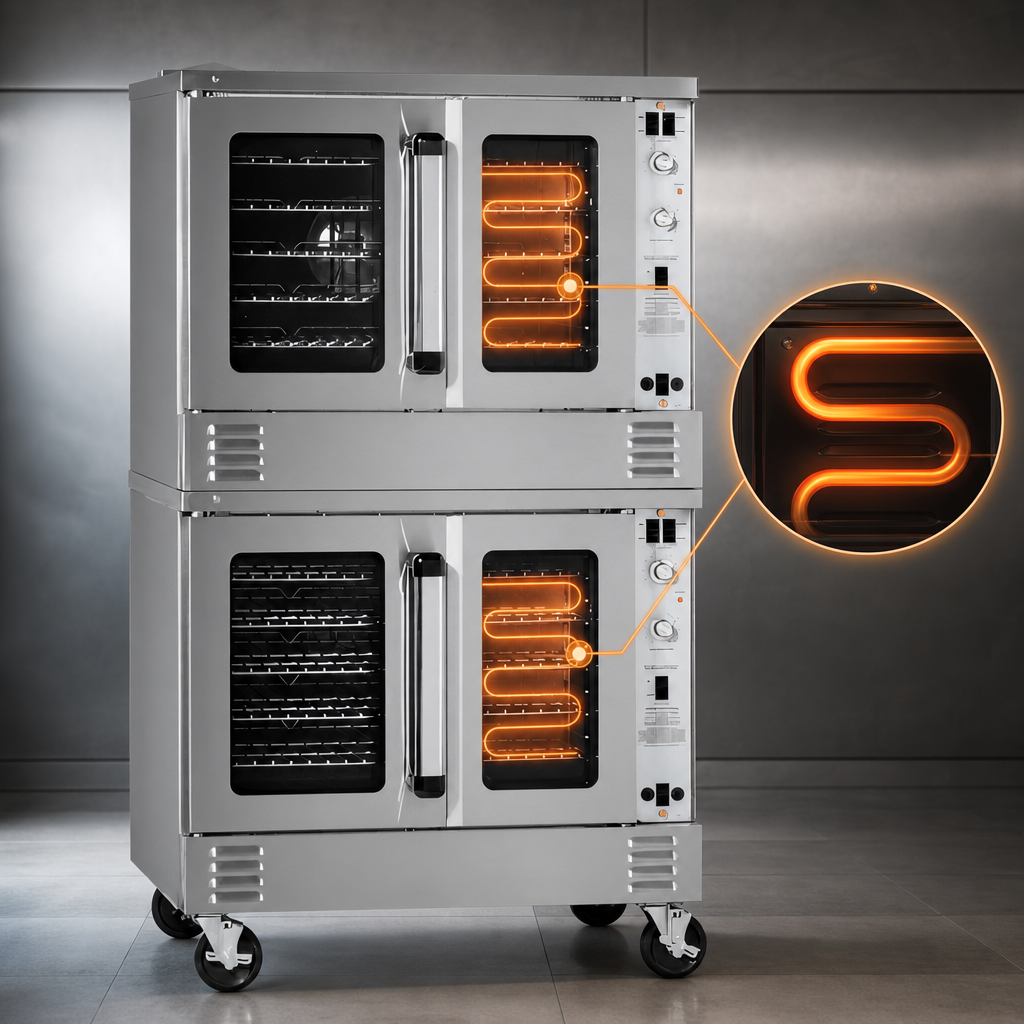

- 22 kW total output – 11 kW high-efficiency sheath elements per deck for fast recovery.
- Standard controls: 140 °F – 500 °F thermostat with 60-minute timer for consistent results.
- Independent, full-swing glass doors open 180 ° for clear access to each cavity.
- Energy-saving low-emissivity windows keep heat in while letting staff monitor product.
- 11-position rack guides and (5) nickel-plated racks per deck handle everything from cookies to roasts.
- 1/2 HP, 2-speed fan motor distributes heat evenly for flawless browning.
- Patented “plug-in, plug-out” slide-out control panel simplifies service and maintenance.
- Coved, fastener-free porcelain interior wipes clean in seconds.
- Forced cool-down mode and stay-cool door handles enhance kitchen safety.
- All-stainless front, sides, top, and rear jacket stand up to the toughest commercial kitchens.
Specifications
| Series / Model | Platinum Series – PCE22S/S (Double Deck) |
|---|---|
| Oven Capacity | (5) full-size sheet pans per deck on 11 rack positions |
| Heat Source | Electric – 11 kW tubular elements per deck (22 kW total) |
| Controls | Solid-state thermostat 140 °F–500 °F & 60-minute mechanical timer |
| Fan Motor | 1/2 HP, 2-speed (1710 / 1120 RPM) |
| Exterior Dimensions | 40.6″ W × 37.25″ D × 64.8″ H (1032 × 946 × 1646 mm) |
| Oven Interior (each) | 29″ W × 21.5″ D × 20″ H (737 × 546 × 508 mm) |
| Electrical | 208, 240, 380, 415, or 480 VAC • 1 ph or 3 ph – see amp draw chart |
| Shipping Weight | Approx. 1,040 lb (472 kg) |
| Construction | Stainless steel exterior, porcelain-enameled interior, 6″ stainless legs |
| Warranty | 1-year parts & labor (commercial use) |
Amperage ranges from 23 A – 53 A per deck depending on voltage and phase. Verify electrical requirements before ordering.
Popular Options (sold separately)
- Ventless catalytic system for hood-free installation
- Digital touchscreen controls with recipe & rack management
- 4″ or 6″ locking casters
- Marine-edge top or down-draft flue diverter
- Solid stainless doors, 2″ insulation panels, or export crating
Have questions about voltage, phase, or accessories? Reach out to our equipment specialists—we’ll configure the perfect Southbend Platinum oven for your operation.
