Southbend (Middleby) PCE22S/SD-V Platinum Convection Ovens
Description

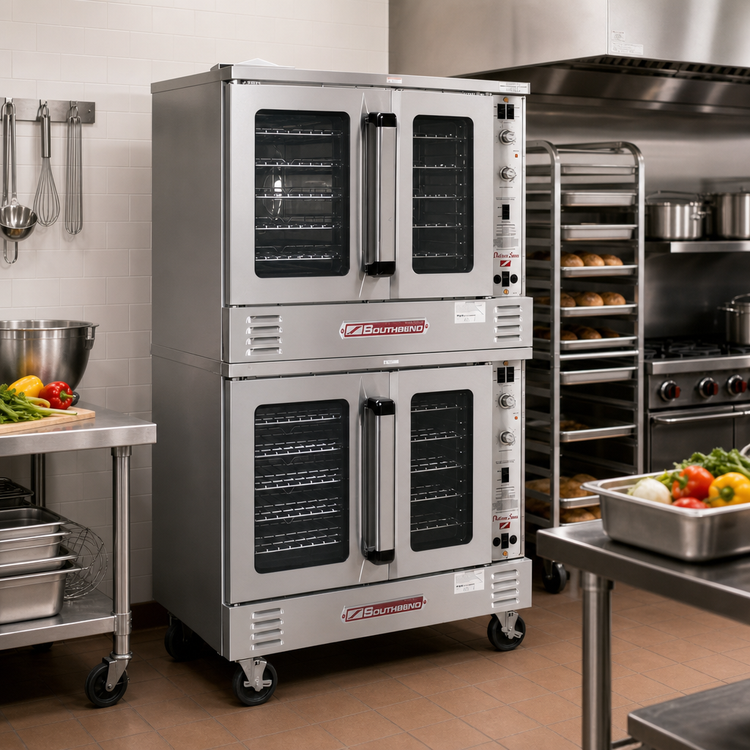

Southbend Platinum Series Double Electric Convection Oven – Ventless, 11 kW/Deck
Model PCE22S/S • Standard Controls • Standard Depth • Dependent Glass DoorsTake your bake anywhere—no dedicated hood required! Southbend’s Platinum ventless double-deck convection oven pairs two powerful 11 kW decks with an internal catalytic system that scrubs grease-laden vapors before they leave the cabinet, giving you true installation flexibility without sacrificing throughput or consistency.
Why you’ll love it

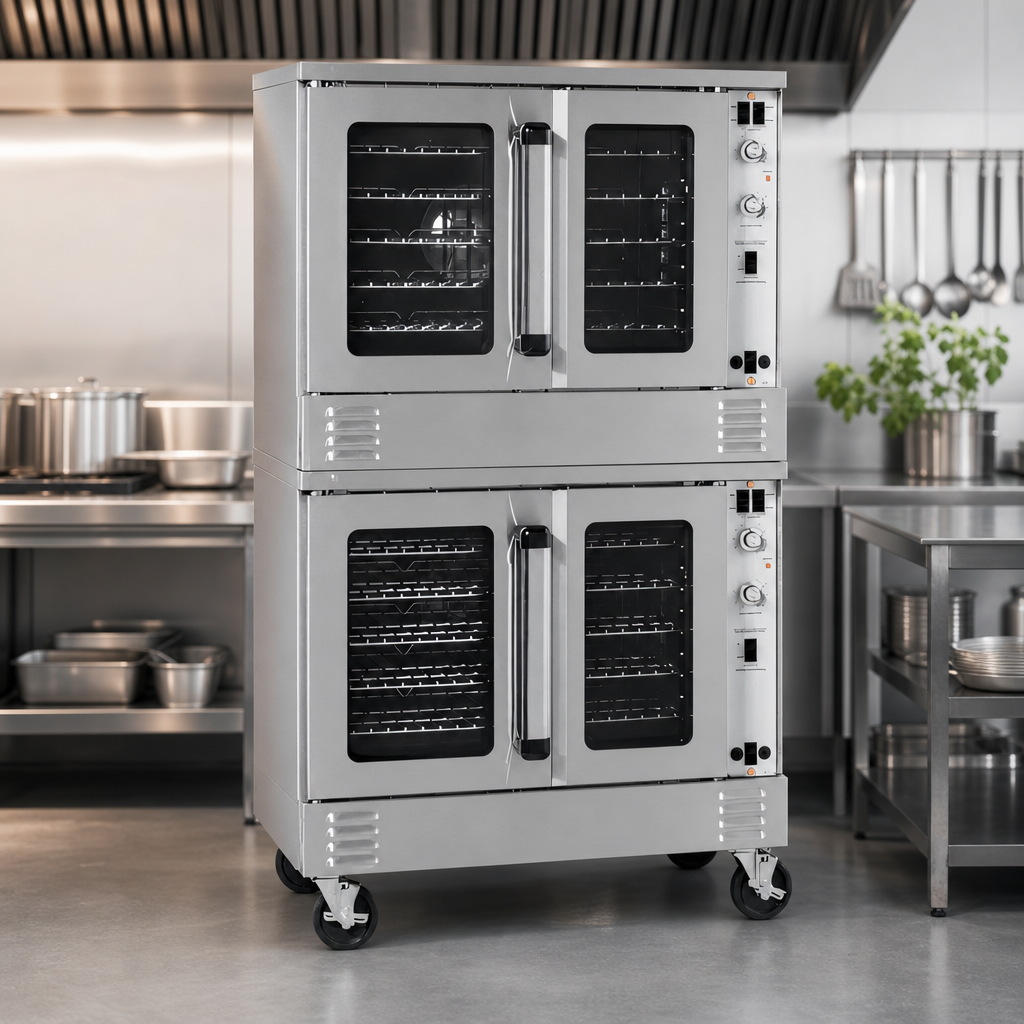

- Ventless catalyst design (UL certified) eliminates the need for a traditional exhaust hood in most jurisdictions.
- 11 kW high-efficiency heating elements per deck deliver rapid preheat and lightning-fast recovery.
- SC Standard controls: solid-state thermostat (140 °F–500 °F) plus 60-minute mechanical timer—simple, durable, staff-friendly.
- Patented “plug-in, plug-out” slide-out control panel for full-view servicing without removing the oven from its bay.
- Dependent low-emission glass doors open a full 180° and feature dual seals to lock in heat; stay-cool handle protects operators.
- ½ hp two-speed fan (1 710/1 120 RPM) forces uniform airflow for even color across every pan.
- Coved, fastener-free porcelain enamel interior wipes clean in seconds.

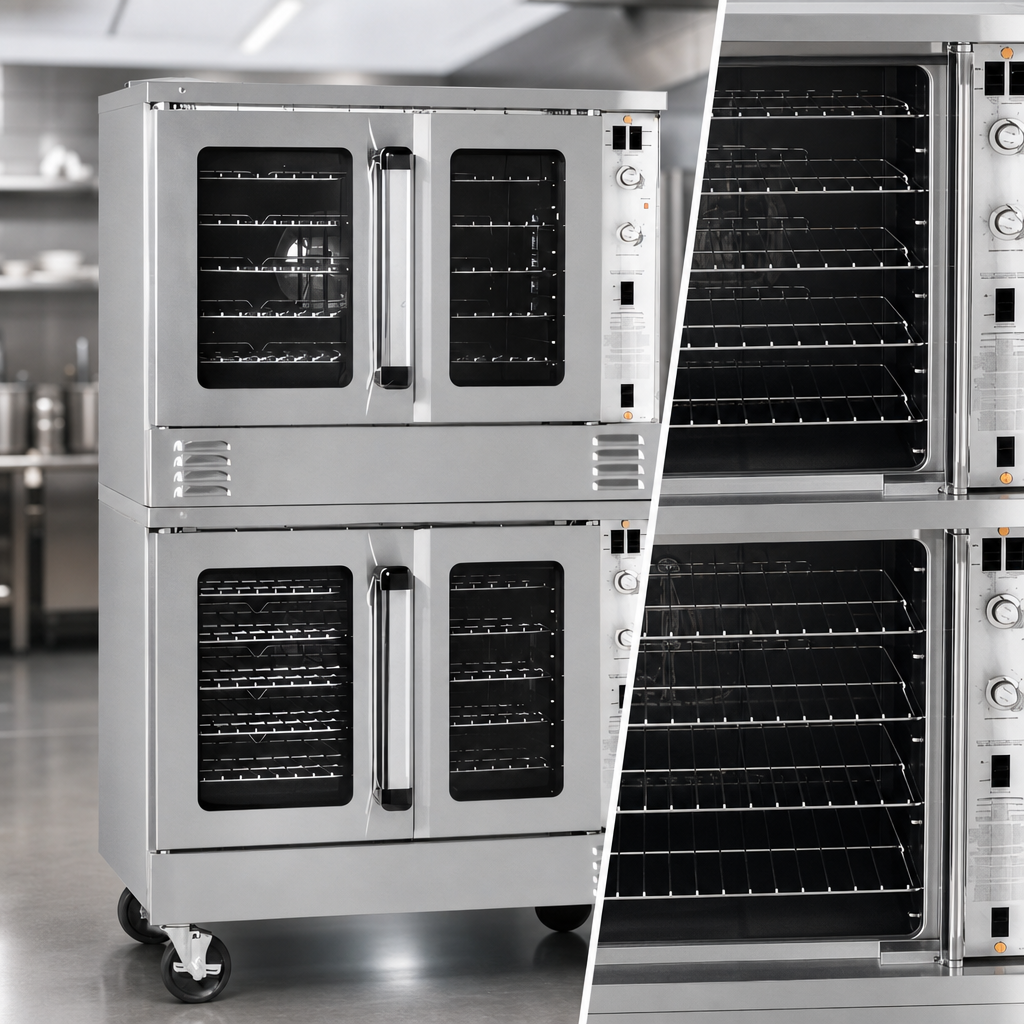

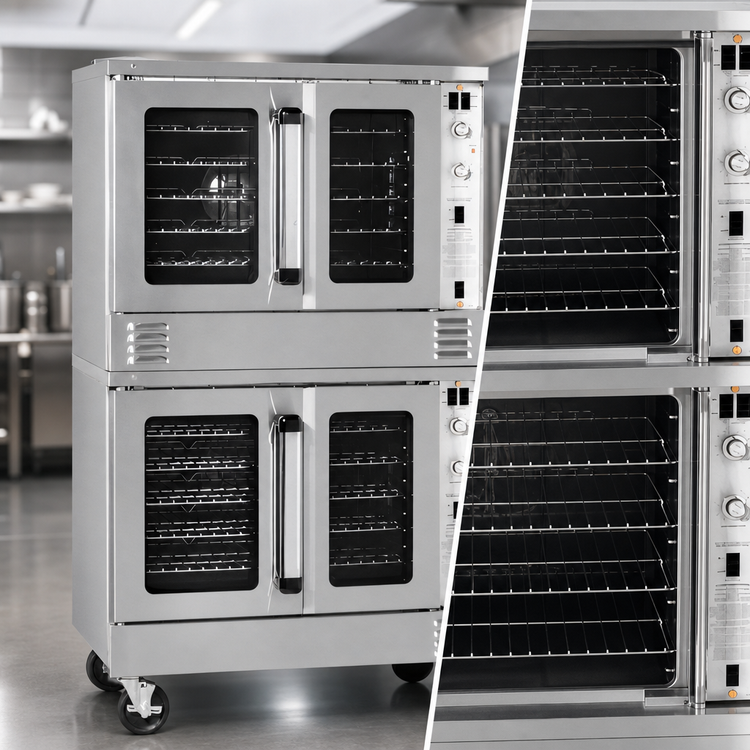

- 11 rack positions and five plated racks per cavity (10 total) handle high-volume, mixed-menu production.
- Forced cool-down mode speeds turn-arounds between loads.
- All-stainless exterior front, sides and top stands up to years of commercial abuse.
At-a-glance specs
| Oven type | Double-deck electric convection, ventless |
|---|---|
| Series / model | Platinum Series – PCE22S/S |
| Heat output | 11 kW per deck (22 kW total) |
| Controls | SC Standard (140 °F–500 °F thermostat, 60-min timer) |
| Fan motor | ½ hp, 2-speed (1 710 / 1 120 RPM) |
| Interior (each cavity) | 29 in W × 21.5 in D × 20 in H | 737 × 546 × 508 mm |
| Rack capacity | 11 positions, 5 racks included per cavity |
| Exterior dimensions | 37.25 in W × 39.25 in D × 64.8 in H | 946 × 997 × 1 646 mm |
| Clearances | Front & right 0 in, left & rear 2 in (from combustibles) |
| Electrical | 208, 240, 380, 415 or 480 VAC • single or 3-phase (add 4.3 A for controls) |
| Amp draw @ 240 V, 3-phase | 26.5 A per line |
| Net weight | Approx. 1 040 lb / 472 kg |
| Warranty | 1-year limited parts & labor |
Specs are for one complete double-deck oven. Always confirm exact voltage and phase requirements from the nameplate or factory before ordering.
What’s in the box
- (10) plated oven racks
- 6-in adjustable stainless steel legs
- Interior halogen lighting (2 bulbs per cavity)
- Owner’s manual & warranty registration card
Popular factory options (additional cost)
- 4 in or 6 in heavy-duty casters
- Stainless steel solid doors
- Marine-edge top
- Down-draft diverter for direct flue
- Export crating
Ready to elevate your bake program? Add the Southbend Platinum ventless double convection oven to your cart today or ask our team about flexible Middleby equipment financing.
