Southbend (Middleby) PCE22S/SD Platinum Convection Ovens
Description

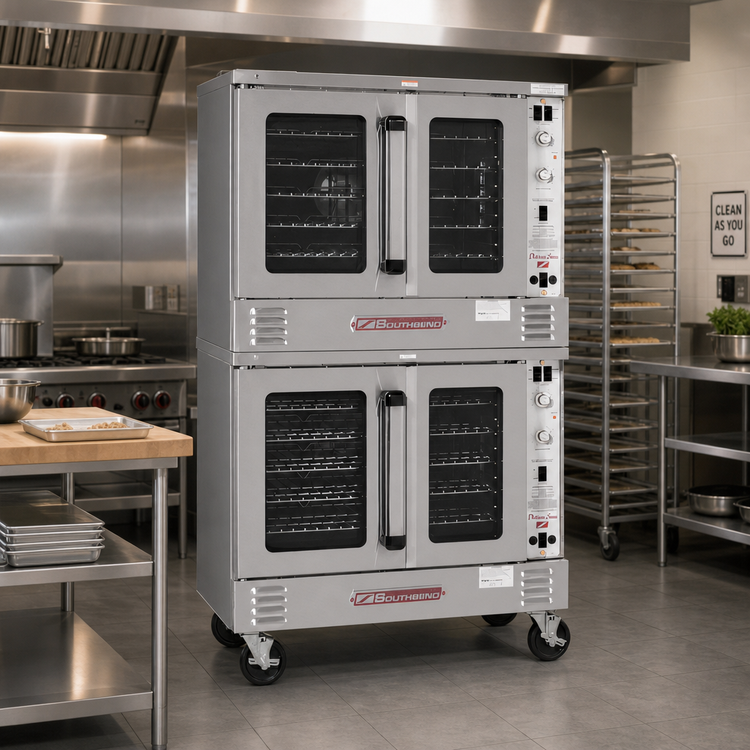

Southbend Platinum Series Double Electric Convection Oven – 11 kW / Deck
(Quick-Ship • Standard Depth • Standard Controls • Dependent Doors)Bake, roast, and retherm with rock-solid consistency. The Platinum Series double-deck convection oven pairs two powerful 11 kW heat banks with Southbend’s legendary build quality, giving high-volume kitchens the speed they need and the reliability they demand.
Highlights

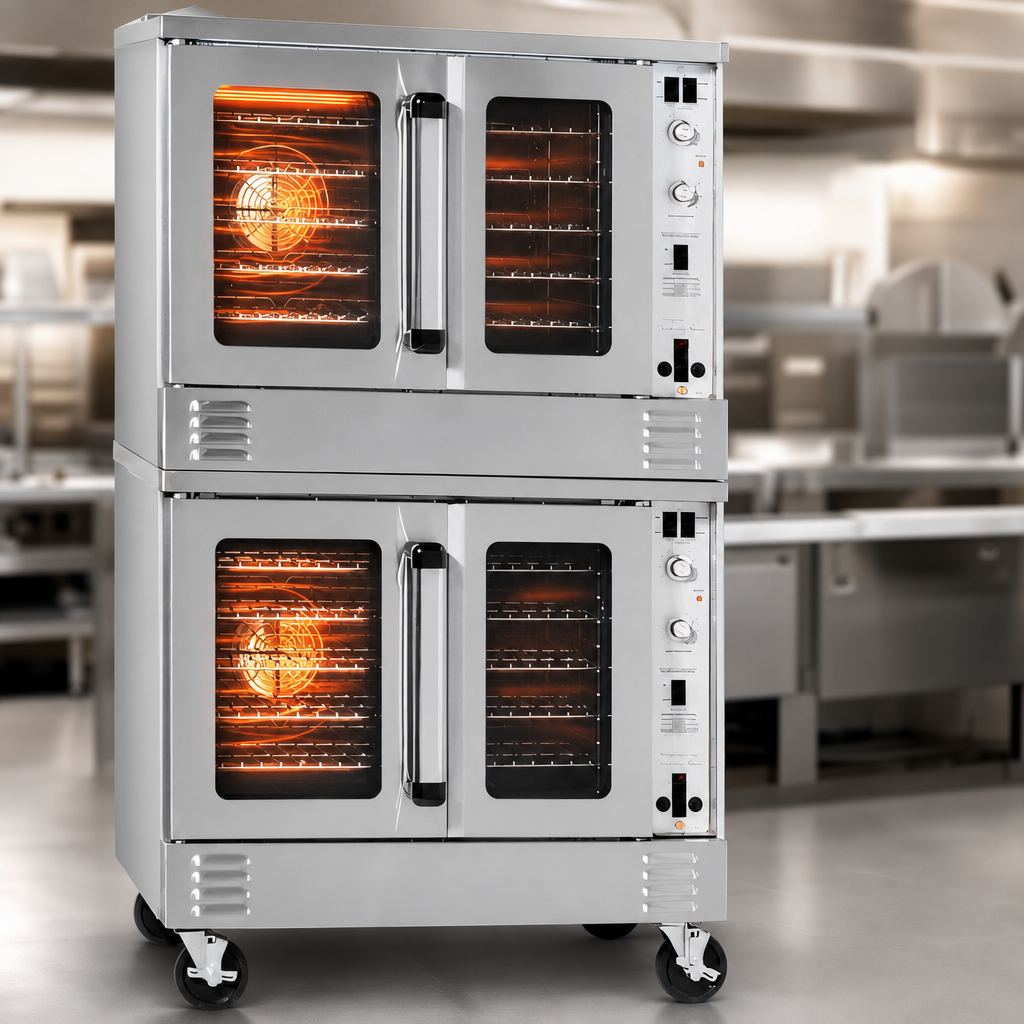

- High-efficiency 11 kW electric heating elements (per deck) for rapid recovery.

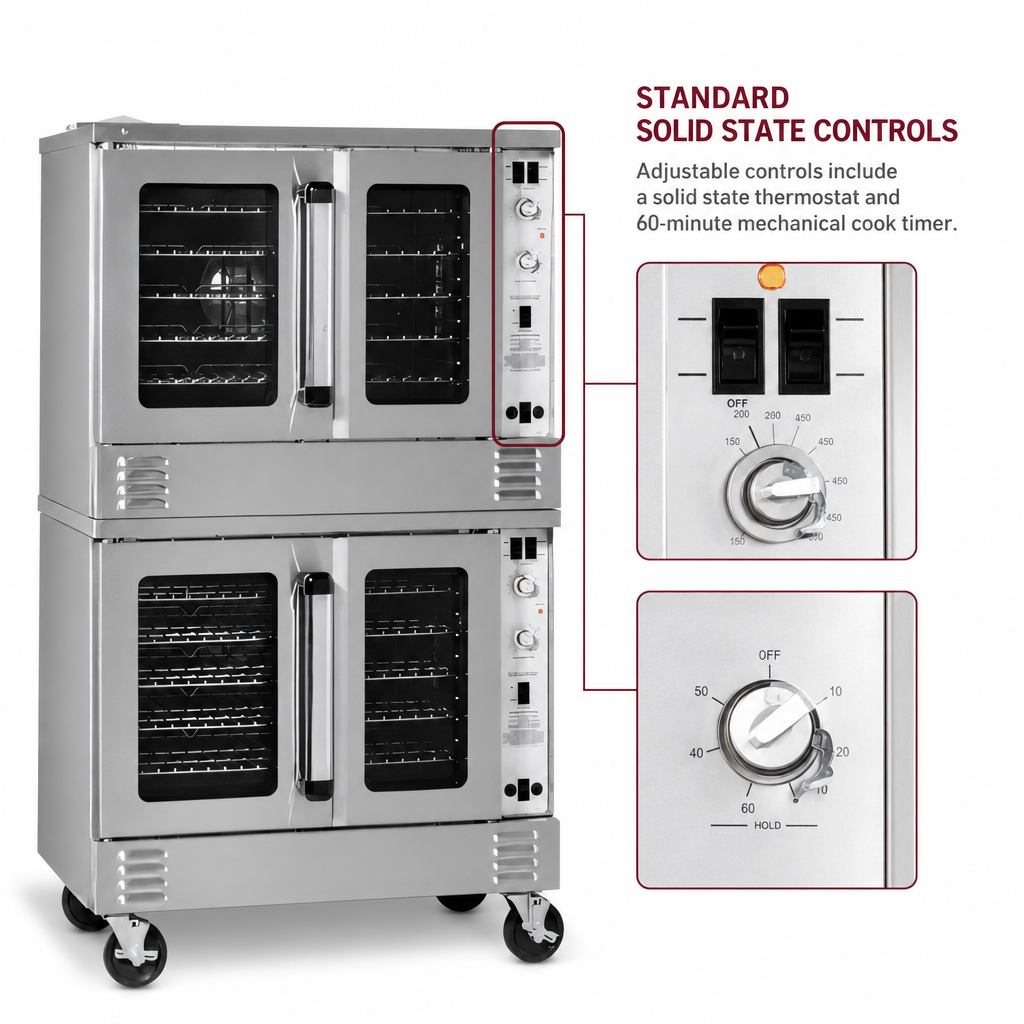

- Standard solid-state controls: 140 °F–500 °F thermostat with 60-minute mechanical timer.
- 64.8 in. tall double-deck design doubles production without increasing your footprint.
- Dependent, full-view low-E glass doors open 180° and feature a dual-seal heat-keeping system.
- Patented slide-out “plug-in / plug-out” control panel allows 17 in. full-view servicing.
- ½ hp two-speed fan motor plus forced cool-down mode protects components between cycles.
- Coved, fastener-free porcelain enamel interior cleans up in seconds.
- 11-position rack guides and 5 plated racks included.
- Bright interior lighting for easy product monitoring.
- All-stainless front, sides, and top; 6 in. stainless legs standard.
- Made in the USA and covered by a 1-year parts & labor warranty.
Popular Factory Options
- UL-certified ventless internal catalyst (no hood required).
- 4 in. or 6 in. locking casters for easy mobility.
- Independent doors, solid doors, marine-edge top, rear stainless jacket, and more.
Specifications
| Series / Model | Platinum PCES Double (11 kW) |
|---|---|
| Decks | 2 |
| Rack Positions | 11 per deck |
| Racks Supplied | 5 plated wire racks |
| Interior (WxDxH) | 29 in × 21.5 in × 20 in (per deck) |
| Overall (WxDxH) | 37.25 in × 39.25 in × 64.8 in |
| Shipping Weight | Approx. 1,040 lb |
| Heating Elements | 11 kW per deck (22 kW total) |
| Fan Motor | ½ hp, two-speed (1,710 / 1,120 RPM) |
| Electrical | 208, 220/240, 380, 415, or 480 VAC – 1 ɸ or 3 ɸ (specify on order) |
| Controls | Solid-state thermostat • 60-min timer • Manual fan pulse |
| Temperature Range | 140 °F – 500 °F |
| Warranty | 1-year limited parts & labor |
Clearances: 0 in. front & right, 2 in. back & left. Install under a vented hood unless equipped with the optional ventless catalyst. Intended for commercial use only.
