Southbend (Middleby)  |  Platinum  |  SKU: PCE22B/TI-V

Southbend (Middleby) PCE22B/TI-V Platinum Convection Ovens

$20,179.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
Convection Ovens Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

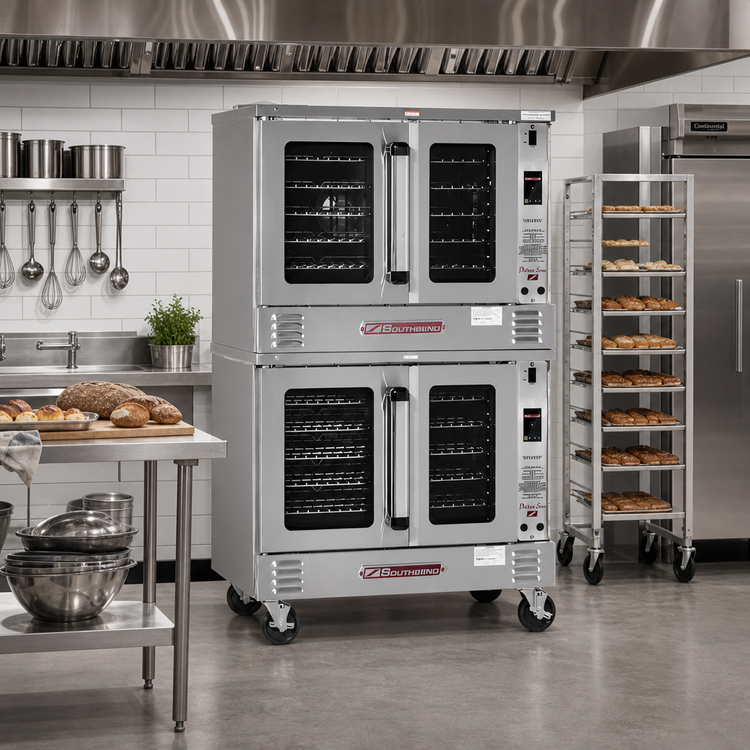

Southbend Platinum Double Convection Oven – Ventless, Bakery Depth

Model PCE22S/T-V | 11 kW per deck • Touchscreen Controls • Independent Doors

Bake, roast or hold anywhere—no hood required.* Southbend’s Platinum Series ventless double convection oven pairs a full-size, bakery-depth cavity with high-efficiency electric heat and an intuitive 7" touch screen, giving you top-tier performance in the tightest kitchens.

Highlights

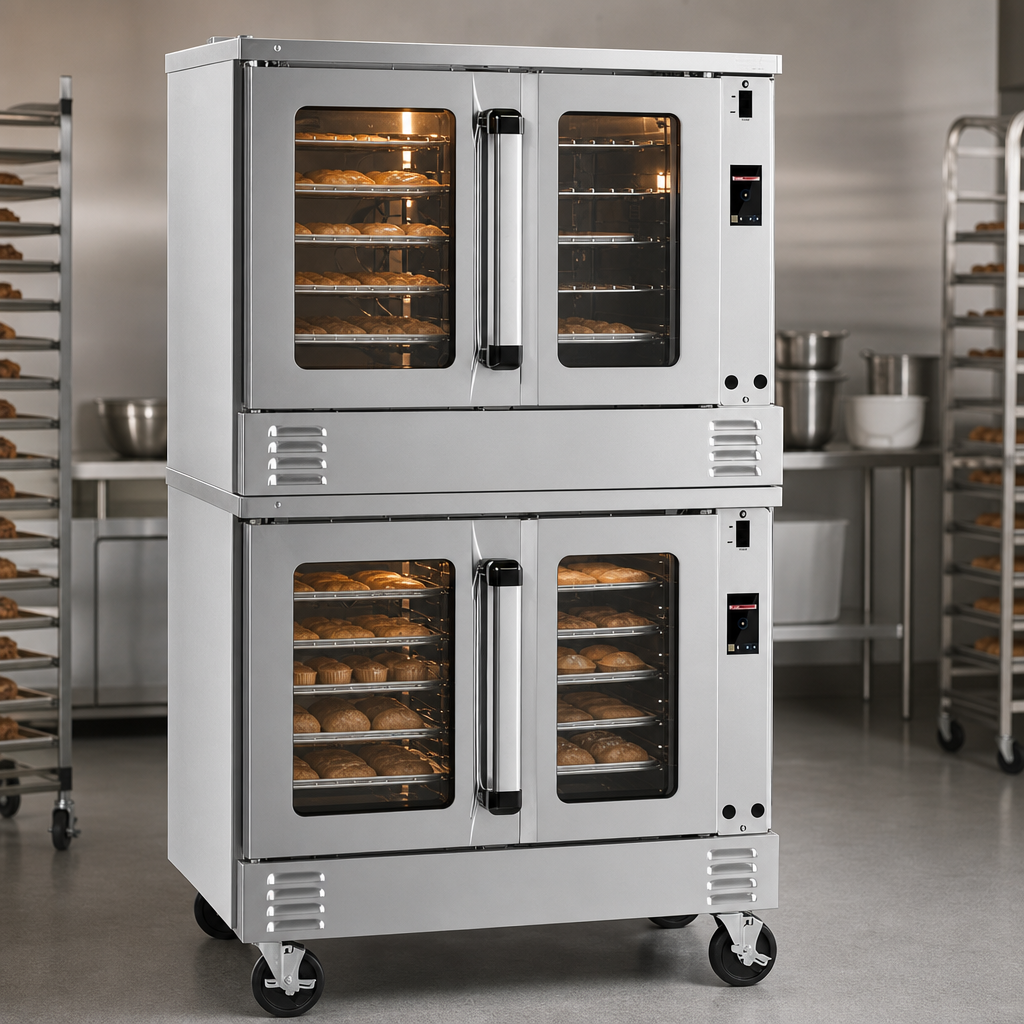

  • Bakery-depth interior fits 18" × 26" sheet pans front-to-back for maximum capacity.
  • 11 kW heating elements in each deck (22 kW total) for rapid preheat and fast recovery.
  • UL-certified ventless catalytic system scrubs grease-laden vapors—ideal for non-traditional locations.
    (Always verify local codes.)

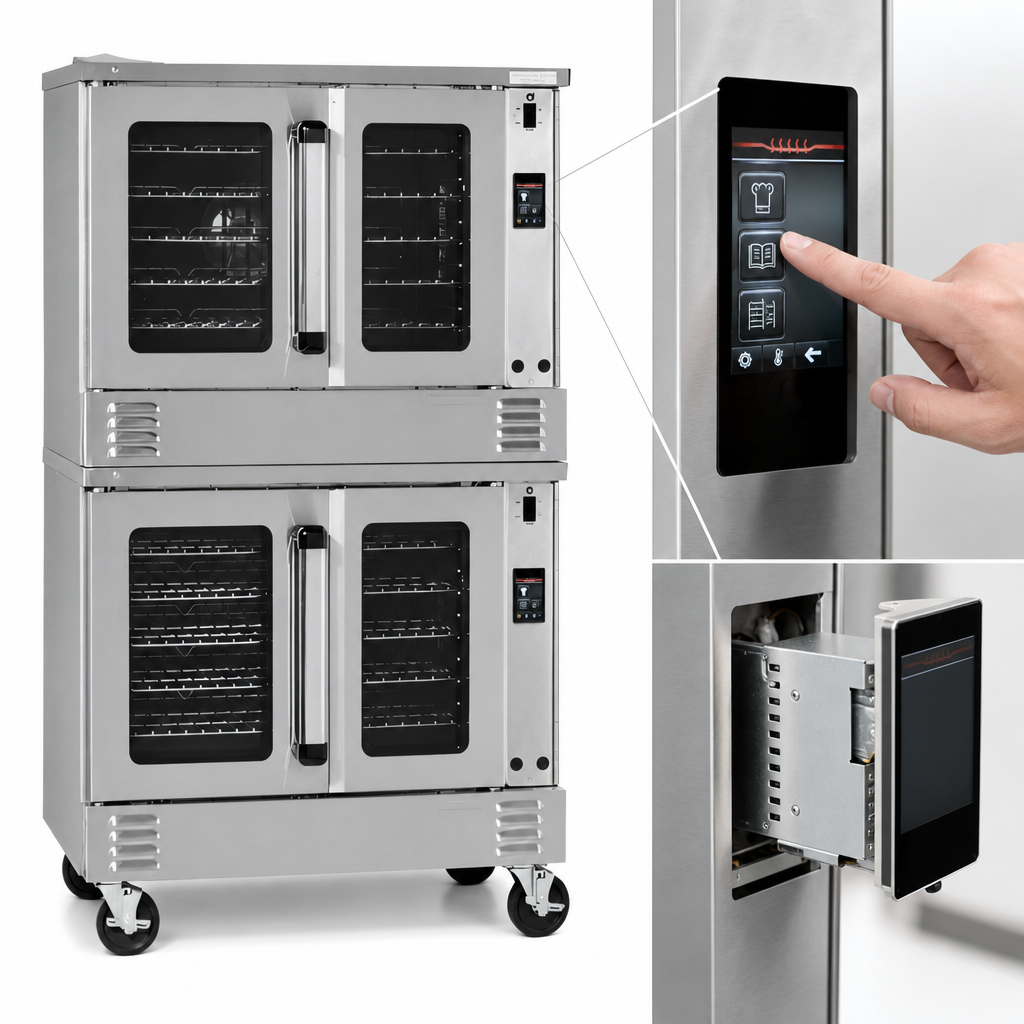

  • Touchscreen control with Manual, Recipe & Rack modes, 150 °F-550 °F bake plus 140 °F-200 °F hold, and pulsed-fan option for delicate items.
  • Independent low-E glass doors reduce heat loss—open only the side you need.
  • 11-position rack guides & 5 chrome racks per deck; forced cool-down fan mode for quick turn-arounds.
  • ½ hp two-speed fan (1710/1120 RPM) delivers uniform “scrub” airflow and even browning.
  • Stainless steel exterior and coved, porcelain-enameled interior for fast, tool-free clean-up.
  • Slide-out “plug-in/plug-out” control panel simplifies service access.
  • 1-year parts & labor warranty backed by Southbend’s nationwide service network.
Specifications
Configuration Double deck, electric, ventless
Series / Model Platinum Series PCE22S/T-V
Heating Elements 11 kW per deck (22 kW total)
Controls 7" color touch screen; 99 recipe storage; fan pulse; automatic cool down
Interior (per deck) 29" W × 26" D × 20" H | fits (5) full-size pans
Exterior ≈ 38" W × 40.6" D × 64.8" H
Fan Motor ½ hp, 2-speed
Shipping Weight ≈ 1,040 lb (472 kg)
Clearances Front & right 0" • Back & left 2"
Warranty 1-year parts & labor (see warranty statement)
Electrical – Amp Draw (11 kW Elements, per deck)
Voltage 1-Phase 3-Phase X 3-Phase Y 3-Phase Z
208 V / 60 Hz 52.9 A 30.6 A 30.6 A 30.6 A
240 V / 60 Hz 45.9 A 26.5 A 26.5 A 26.5 A
380 V / 50 Hz 29 A 16.8 A 16.8 A 16.8 A
415 V / 50 Hz – 15.4 A 15.4 A 15.4 A
480 V / 60 Hz 23 A 13.3 A 13.3 A 13.3 A
What’s Included
  • (10) chrome-plated racks (5 per deck)
  • 6" stainless steel legs
  • Interior halogen lights (2 per cavity)
  • Ventless catalytic filter assembly
  • User & installation manuals

Need casters, marine-edge top or export voltages? Contact us for factory-installed options.

Important: This appliance is intended for commercial use only.
*Ventless installation is subject to local fire & health codes—always confirm requirements with your authority having jurisdiction.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Height

64.0in

Width

38.0in

Depth

43.5in

Shipping Weight

1180.0lbs

Specifications

Platinum Double Convection Oven, Electric 11kW each, Bakery Depth, Touch Controls, Independent Doors, Ventless
