Southbend (Middleby)  |  Platinum  |  SKU: PCE22B/TD-V

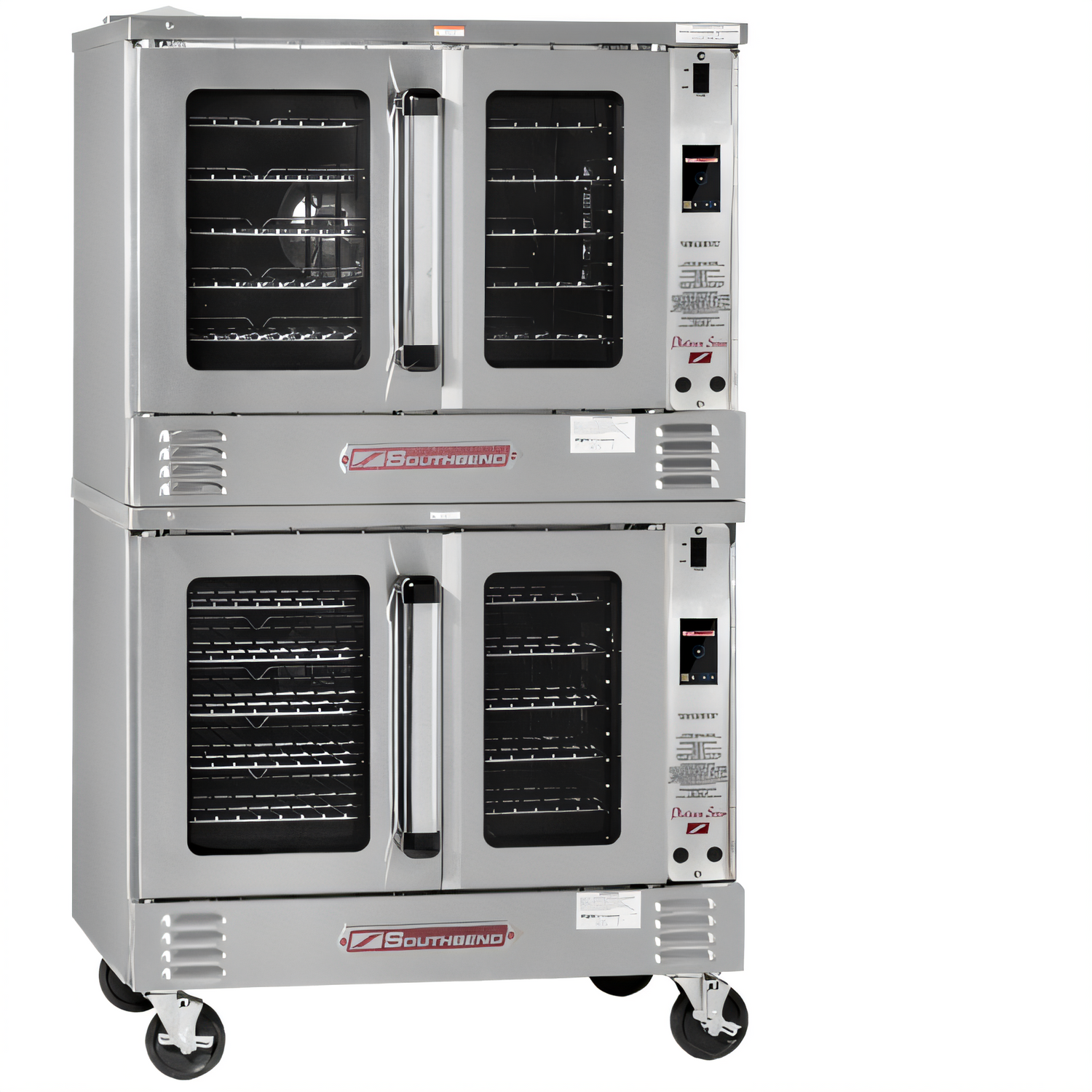

Southbend (Middleby) PCE22B/TD-V Platinum Convection Ovens

$20,179.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Convection Ovens Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

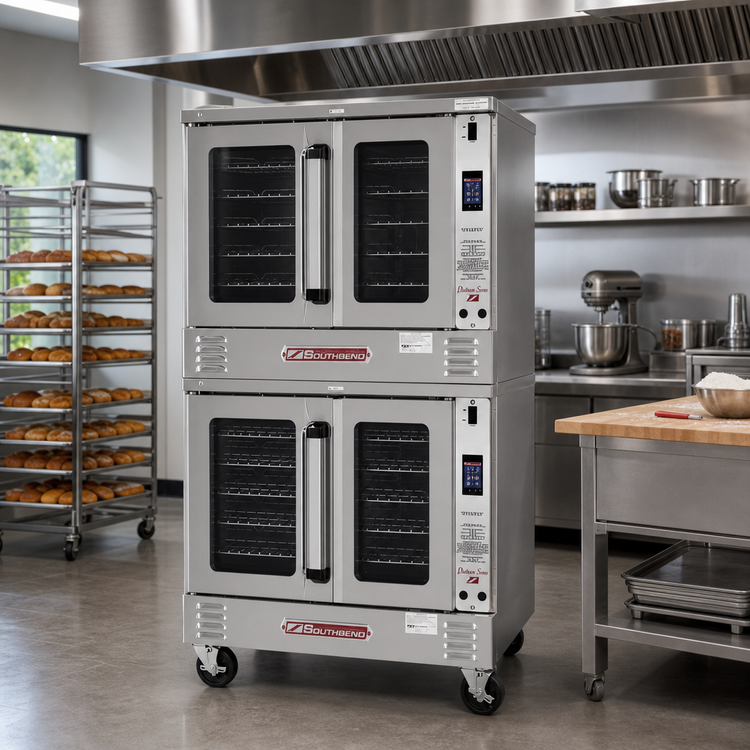

Southbend Platinum Series PCE22S/T Double Convection Oven

Bakery-Depth • Ventless Catalyst • 11 kW Decks • Touchscreen Controls

Take your bake anywhere—no hood required. The Southbend Platinum PCE22S/T combines a UL-listed ventless catalyst, bakery-depth cavities and an intuitive touchscreen to give busy kitchens full-size performance without the cost and space of a traditional ventilation system.

Key Advantages

  • Ventless internal catalyst removes grease & smoke—install almost anywhere*
  • Powerful 11 kW heating elements per deck (22 kW total) for fast recovery

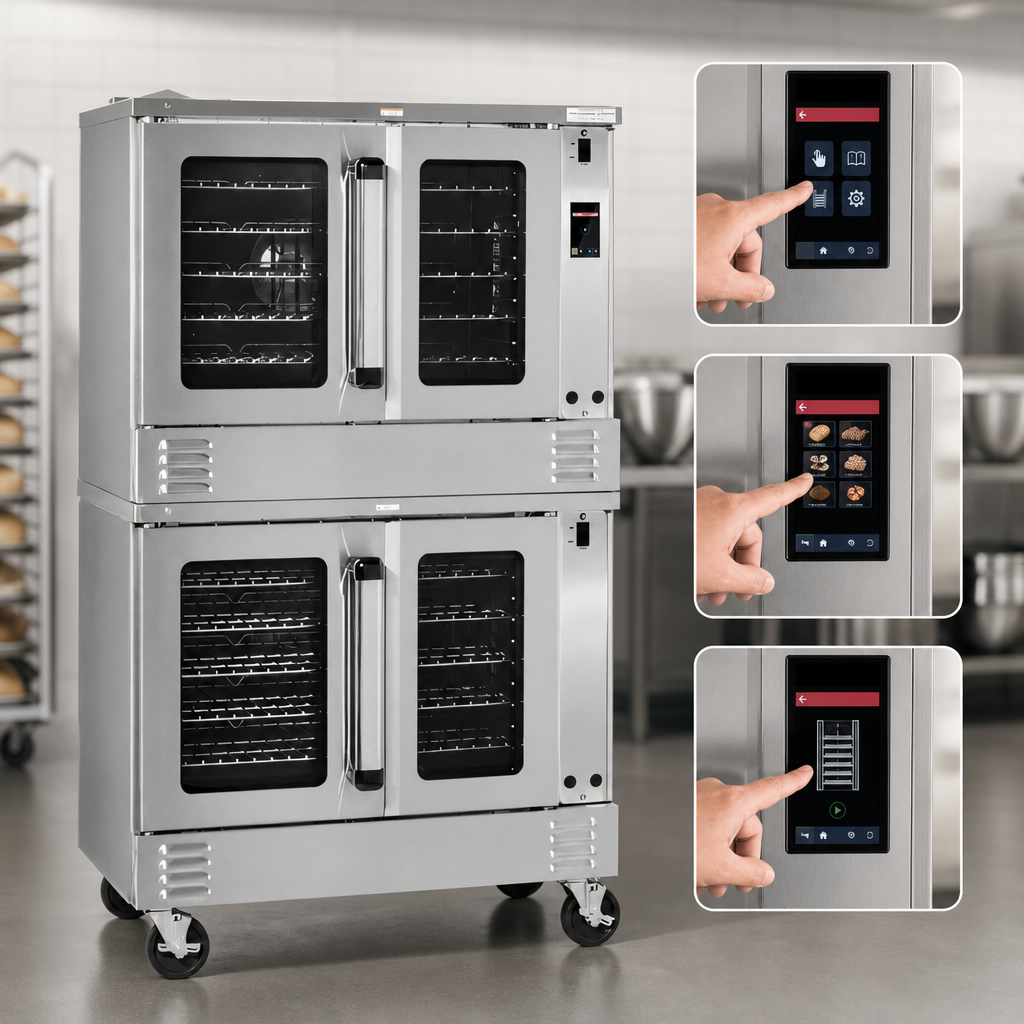

  • Smart Touchscreen:
    • 150 – 550 °F cook range + 140 – 200 °F hold
    • Manual, Recipe & Rack (multi-timer) modes
    • Fan pulse option for delicate baking

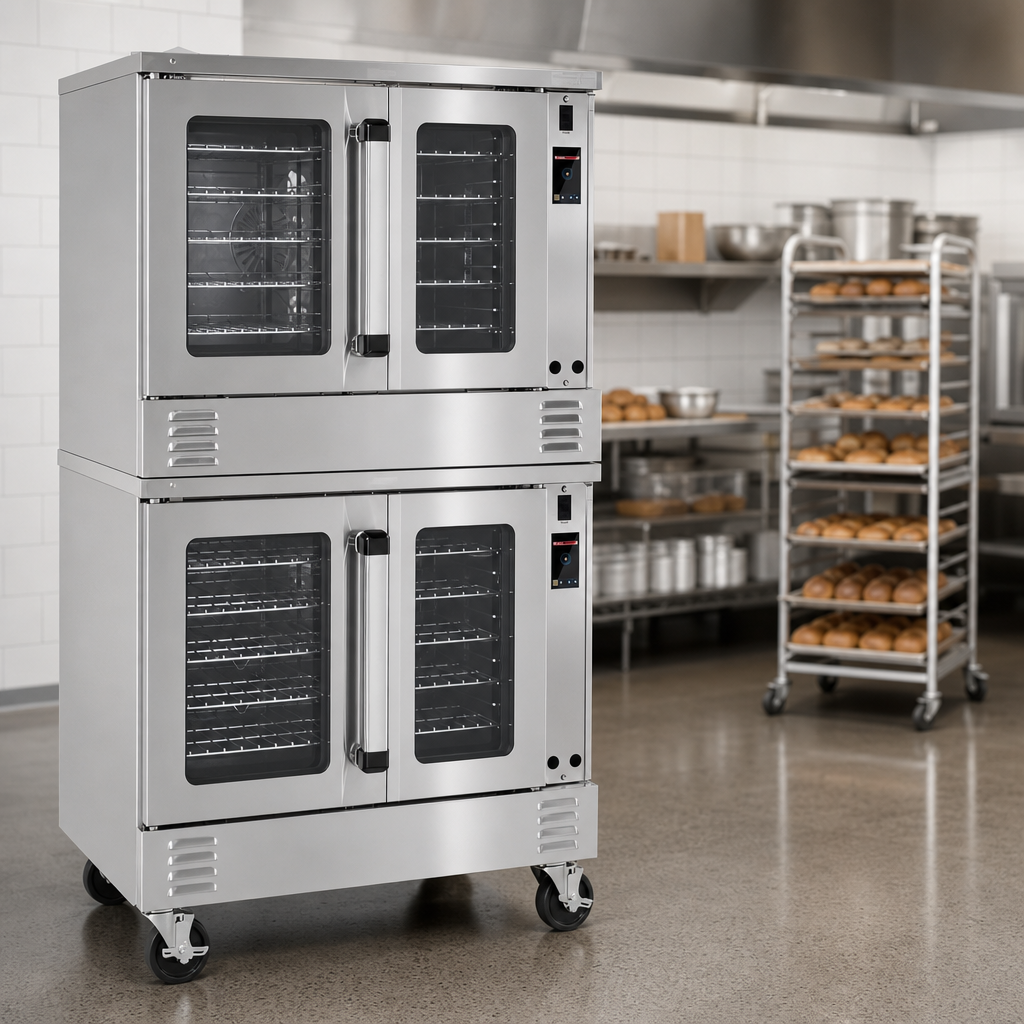

  • Bakery-depth interior accepts full-size 18 × 26 in sheet pans front-to-back
  • 11 rack positions & 5 heavy-duty racks supplied per deck
  • Two-speed ½ hp fan motor with forced cool-down mode
  • Plug-in / slide-out control panel for quick field service
  • Stainless-steel front, sides, top & rear jacket
  • Dependent, low-emission glass doors with full 180° opening and dual seals
  • Coved, fastener-free porcelain enamel interior for easy wipe-down
  • Interior lights and stay-cool door handles for operator comfort
  • 1-year limited parts & labor warranty

At-a-Glance Specs

Model PCE22S/T (Double Deck, Bakery-Depth)
Control Type Full-color capacitive Touchscreen
Heat Input 11 kW per deck / 22 kW total
Cook Temperature 150 – 550 °F  (65 – 288 °C)
Pan Capacity (10) 18 × 26 in sheet pans – 5 per deck
Interior (per deck) 29 W × 21.5 D × 20 H in (737 × 546 × 508 mm)
Exterior (w/ 6 in legs) 37.25 W × 30.25 D × 64.8 H in (946 × 768 × 1645 mm)
Fan Motor ½ hp, 2-speed (1710 / 1120 RPM)
Electrical 208, 240, 380, 415 or 480 V  |  1- or 3-phase (see amp chart)
Shipping Weight ≈ 1,040 lb (472 kg)
Warranty 1-year parts & labor

Popular Factory Options

  • 4 in or 6 in locking casters
  • Independent doors (instead of dependent)
  • Marine-edge top
  • Stainless steel solid doors or bottom
  • Export crating
Installation Note: The ventless catalyst is UL-certified; however, local codes prevail. Verify requirements with your authority having jurisdiction. Unit is intended for commercial use only—0 in clearance front/right, 2 in left/rear.

*Hood not required for the ventless configuration in most jurisdictions. Always check local regulations.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, UL

Height

64.8in

Width

38.0in

Depth

45.0in

Shipping Weight

1189.0lbs

Base

legs

Control Type

touch screen controls

Deck Qty

2 decks

Size

deep/bakery size

Exterior Finish

stainless steel front & sides

Type

standard

Interior Finish

porcelain interior

kW (per deck)

11.0 - 15.99 kW

Capacity per Compartment

5 pan capacity, per compartment

Specifications

Platinum Double Convection Oven, Electric 11kW each, Bakery Depth, Touch Controls, Dependent Doors, Ventless
