Southbend (Middleby) PCE22B/SI-V Platinum Convection Ovens
Description

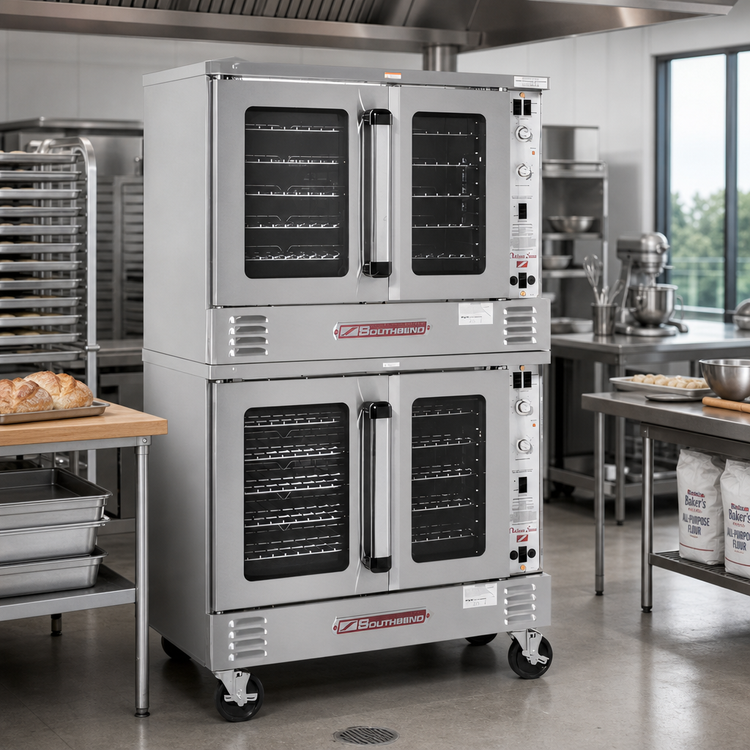

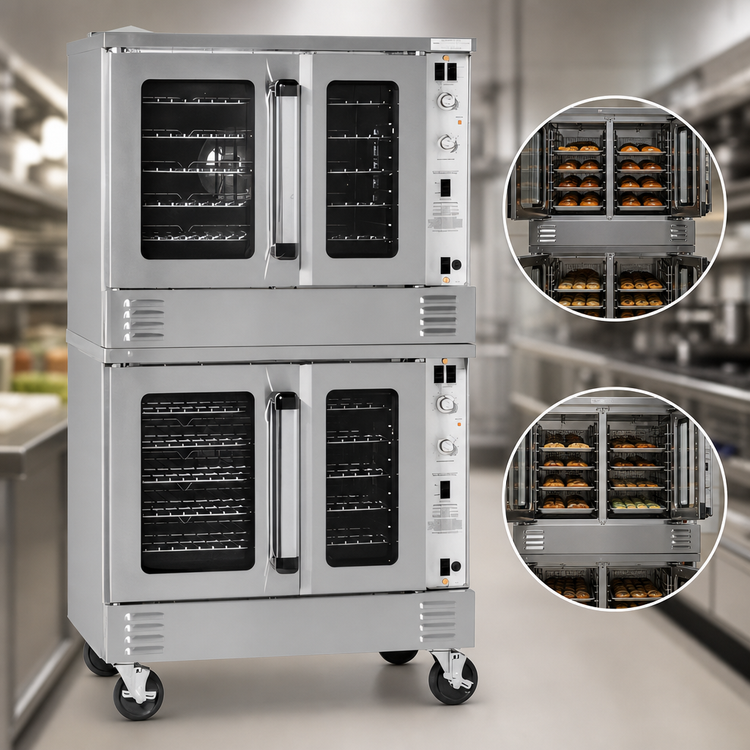

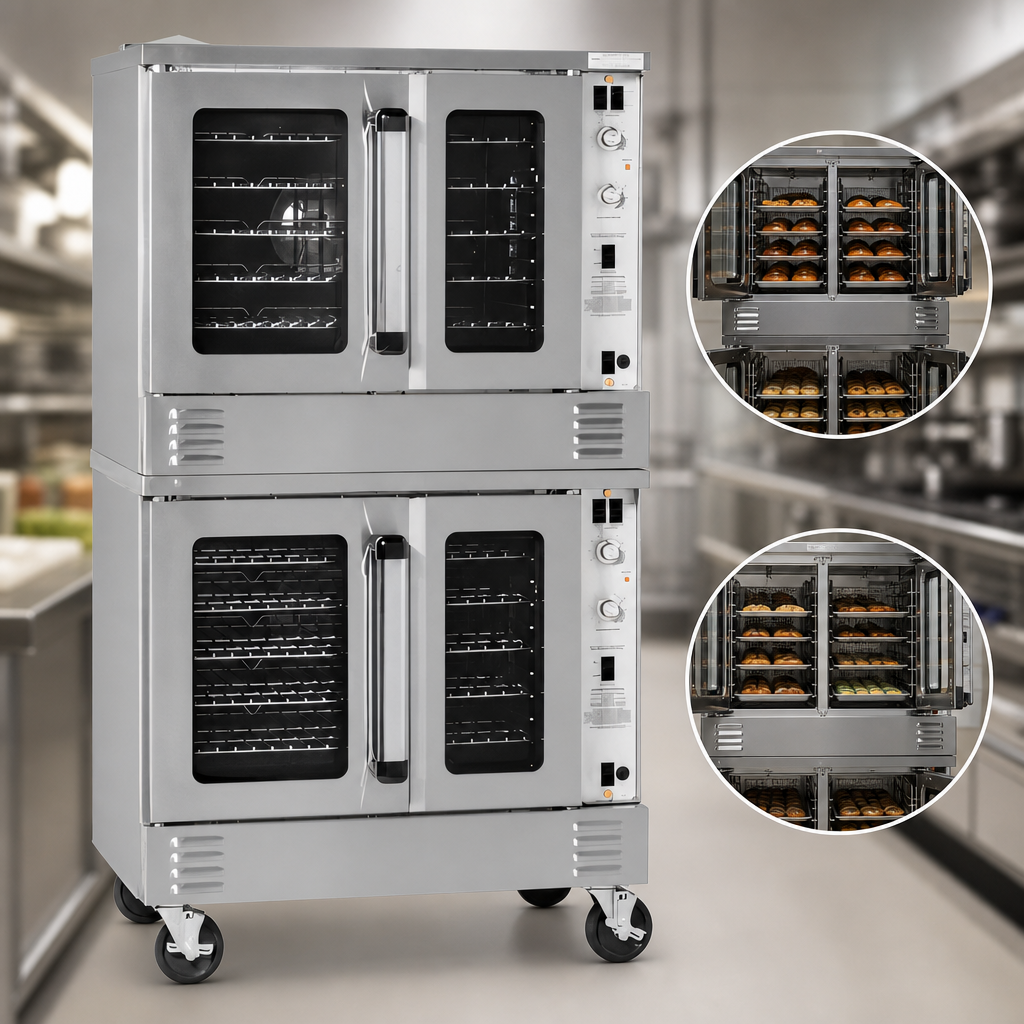

Southbend Platinum™ Ventless Double Electric Convection Oven
Model PCE22S/S • Bakery-Depth • 11 kW per deck • Standard Controls • Independent DoorsTake your bake anywhere—no hood required. Southbend’s Platinum Series ventless double-deck convection oven delivers bakery-depth capacity, powerful 11 kW elements and the rugged construction food-service pros expect from a name that’s been trusted since 1898.
Key features
- UL-certified ventless internal catalyst—operate without an exhaust hood*
- High-efficiency 11 kW sheathed heating elements in each deck (22 kW total)

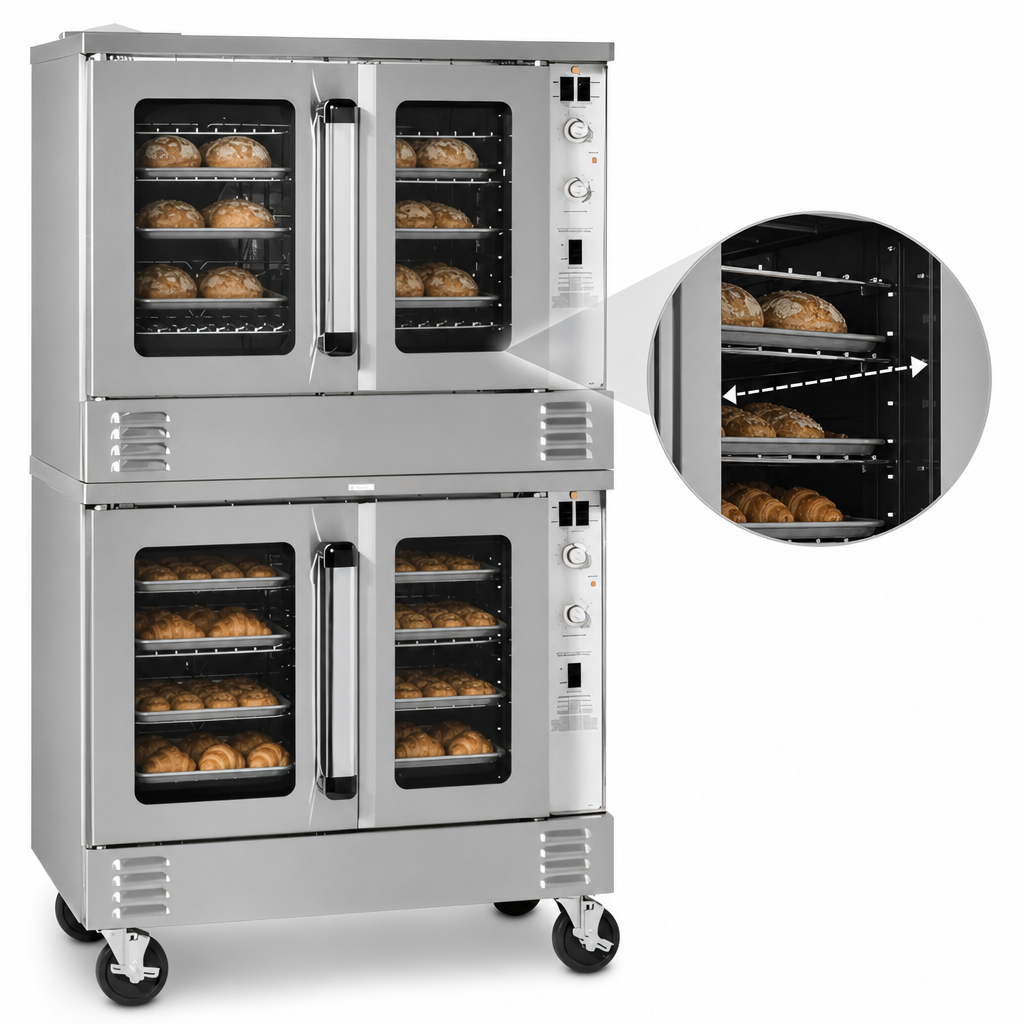

- Bakery-depth 22" cavity fits full-size sheet pans front-to-back or side-to-side
- Independent, low-emission glass doors with 180° opening for full access
- Standard solid-state controls: 140 °F – 500 °F thermostat & 60-minute mechanical timer
- ½ hp two-speed fan motor with forced cool-down mode
- 11-position rack guides & 5 plated wire racks supplied per deck
- Slide-out, “plug-in / plug-out” control panel for fast front-service access
- Seamless porcelain-enameled interior—coved corners, no fasteners to trap debris
- All-stainless exterior (front, sides, top & rear jacket) with stay-cool door handles
- Bright halogen interior lighting for at-a-glance product checks
- 1-year parts & labor warranty backed by Southbend’s nationwide service network
Specifications
| Model | PCE22S/S (double deck) |
|---|---|
| Heat source | Electric – 11 kW per deck |
| Controls | Solid-state thermostat 140 °F–500 °F & 60-min timer |
| Capacity | Full-size sheet pans – 11 rack positions / 5 racks included per cavity |
| Interior (per deck) | 29" W × 21.5" D × 20" H (736 mm × 546 mm × 508 mm) |
| Overall | 39.25" W × 37.25" D × 64.8" H (997 mm × 946 mm × 1645 mm) |
| Shipping weight | Approx. 1,040 lb (472 kg) |
| Motor | ½ hp, 2-speed, 1,710/1,120 RPM |
| Clearances | 0" front/right, 2" back/left from combustibles |
| Warranty | 1-year parts & labor (commercial use) |
Amp draw (per oven – 11 kW elements)
| Voltage | 1-Phase | 3-Phase (per line) |
|---|---|---|
| 208 V / 60 Hz | 52.9 A | 30.6 A |
| 240 V / 60 Hz | 45.9 A | 26.5 A |
| 380 V / 50 Hz | 29 A | 16.8 A |
| 415 V / 50 Hz | 25.9 A | 15.4 A |
| 480 V / 60 Hz | 23 A | 13.3 A |
Perfect for
- Bakeries & pastry shops
- Supermarket in-store bakeries
- Hotel & resort banquet kitchens
- Convenience stores & ghost kitchens where hood space is limited
- School, healthcare & institutional food service
*Always verify local code requirements. Hood exemption applies only when the ventless catalyst system is properly maintained.
