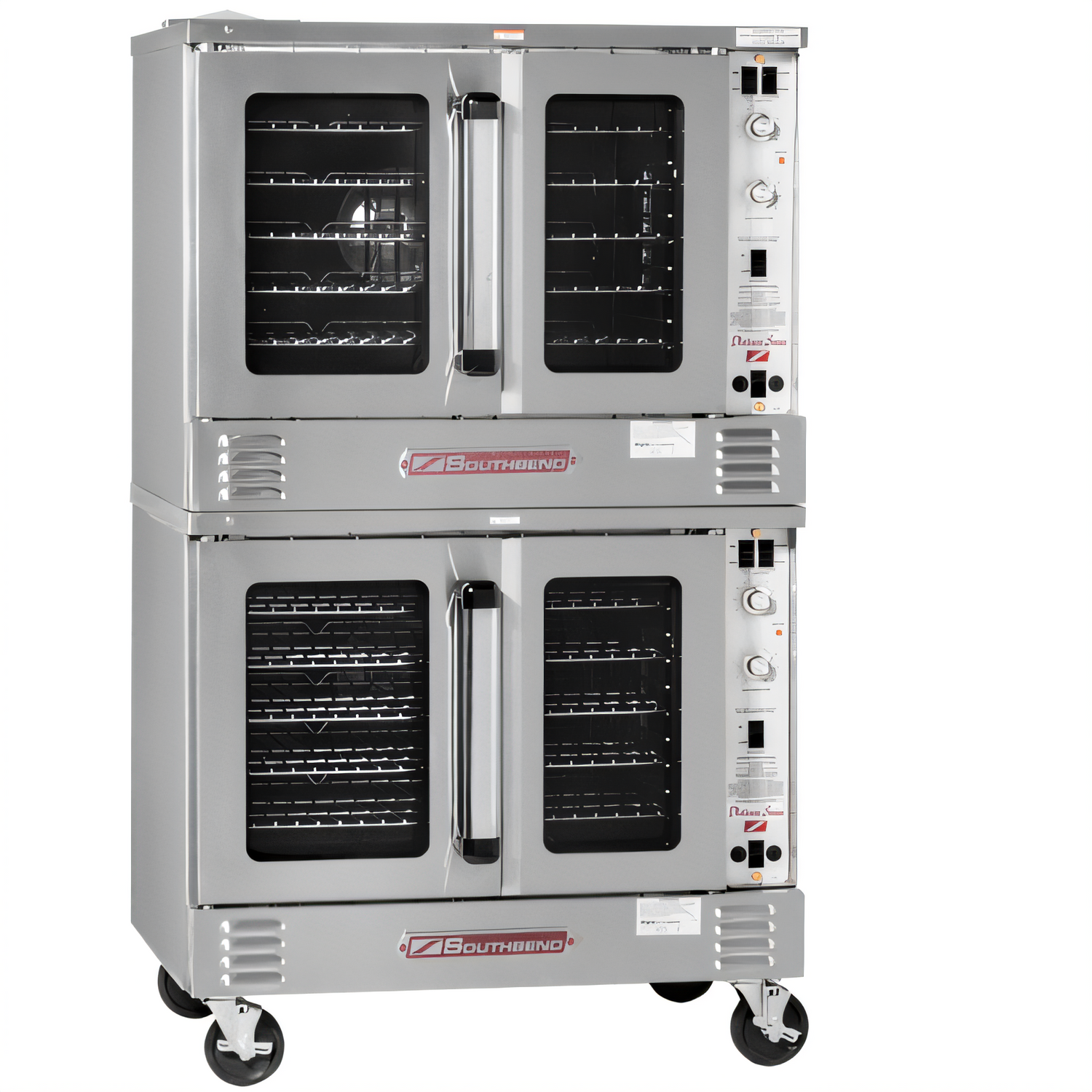

Southbend (Middleby) PCE22B/SD Platinum Convection Ovens

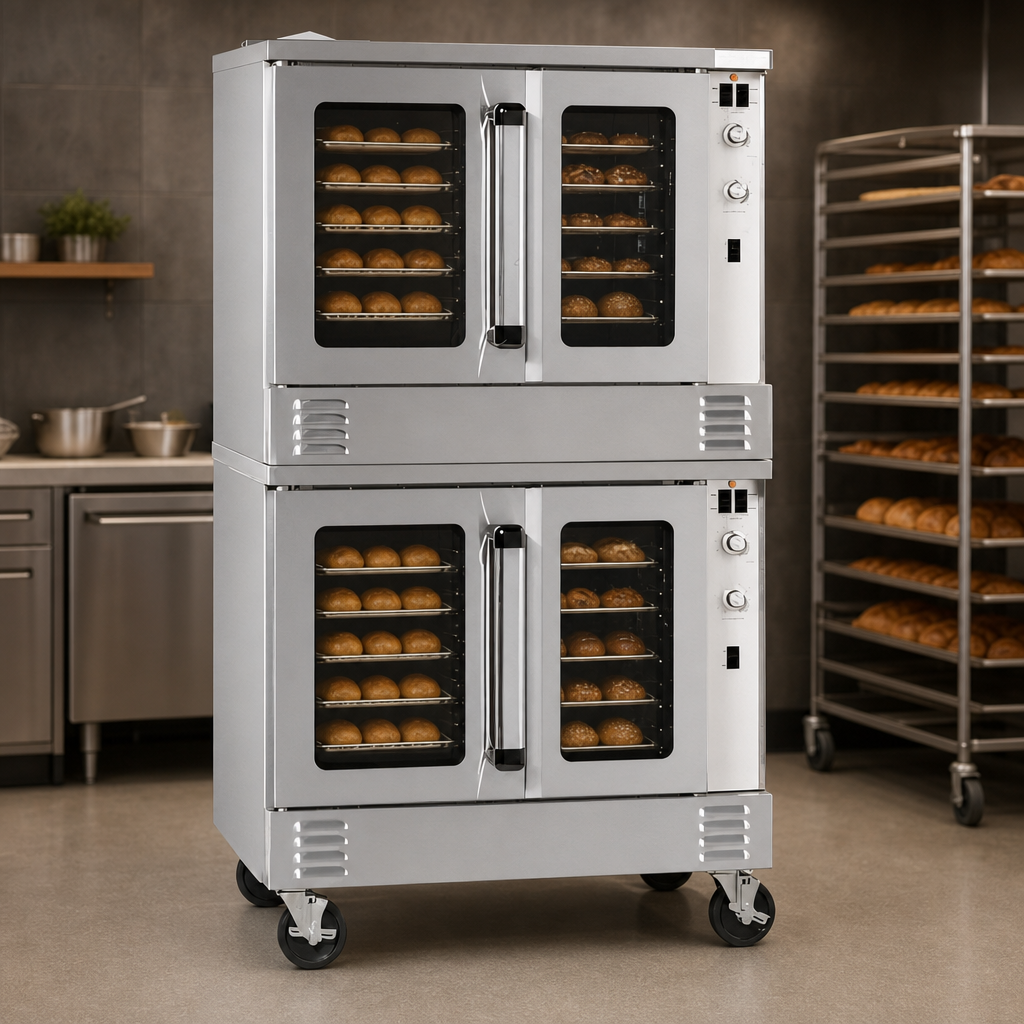

Southbend Platinum Series Double Convection Oven – Bakery Depth

Engineered for high-volume, high-precision baking, the Southbend Platinum PCE22S/S double-deck convection oven delivers consistent, even heat across two full bakery-depth cavities. Powerful 11 kW elements and a 2-speed fan blanket every rack in uniform air flow, ensuring perfectly browned breads, pastries and entrées—batch after batch.

Key benefits

• Bakery-depth cavities accept full-size sheet pans front-to-back or side-to-side.
• 11 kW high-efficiency rear-mounted elements per deck (22 kW total).

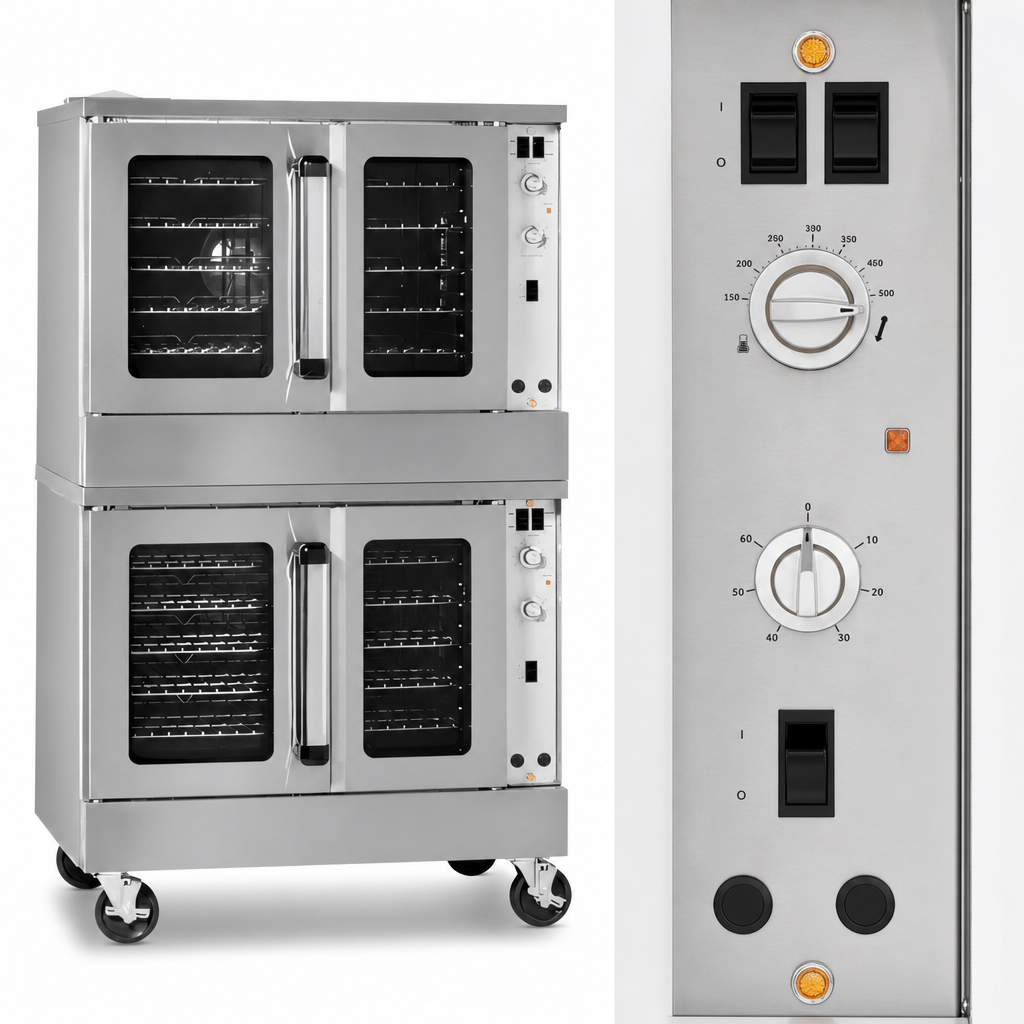

• Simple solid-state controls: 140 °F–500 °F thermostat & 60-minute timer.
• Patented “plug-in, plug-out” slide-out control panel for fast, front-service access.
• Dependent glass doors open 180° and feature dual heat-locking seals.
• Coved, fastener-free porcelain interior cleans easily and resists corrosion.
• 11 rack positions; 5 heavy-duty chrome racks included per deck.
• ½ hp 2-speed fan with forced cool-down mode for rapid cavity cooldown.
• Stainless-steel front, sides, top and rear jacket built for demanding kitchens.
• Interior lighting lets you monitor product without opening the doors.

Popular factory options

• UL-certified ventless internal catalyst—no hood required*
• Touchscreen controls with recipe & rack cooking modes
• 4 in. or 6 in. locking casters, marine-edge top & export crating
• Independent or solid stainless doors, rear jacket, downdraft flue diverter

*Always verify local code requirements before ordering ventless equipment.

Specifications

Warranty & support

Every Platinum Series oven is backed by Southbend’s 1-year parts and labor warranty and a nationwide network of factory-authorized service agencies.

Southbend reserves the right to modify specifications or designs without notice. For the most current information, consult the factory.
