Southbend (Middleby) PCE15S/TI Platinum Convection Ovens
Description
Platinum Series Double Convection Oven – Electric, 7.5 kW per Deck
Southbend • Model PCE15S/T • ENERGY STAR®, CSA & NSF CertifiedEngineered for high-volume bakeries, restaurants and institutional kitchens, the Southbend Platinum Double Convection Oven delivers the speed, consistency and energy savings modern operations demand. Two standard-depth cavities—each powered by a 7.5 kW heating package and a two-speed ½ HP fan—move air efficiently across every rack for perfectly even results, batch after batch.

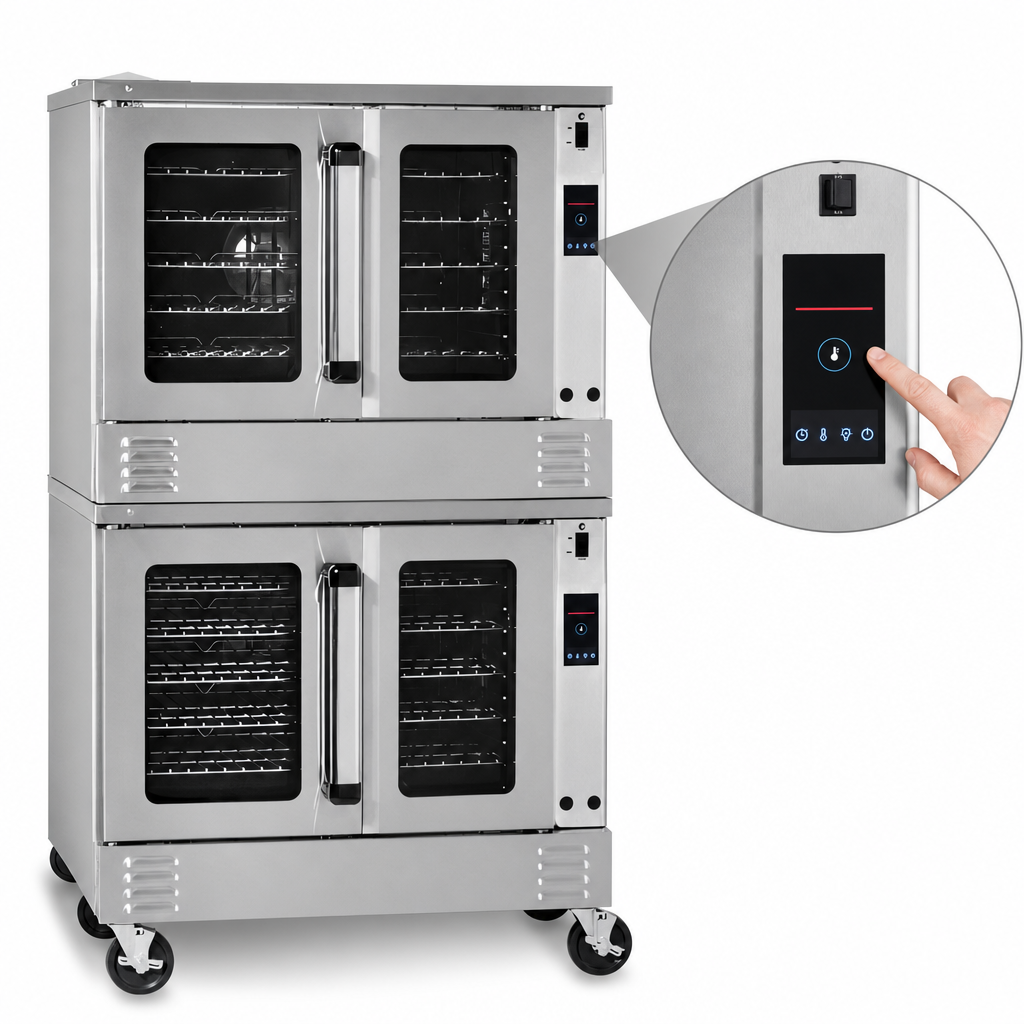

A full-color touchscreen puts precise control at your fingertips, while the patented “plug-in, plug-out” control panel slides out 17 inches for unmatched service access. Independent, full-180° glass doors minimize heat loss and give staff a panoramic view of every product inside.
Key performance & operator benefits
- 15 kW total output – 7.5 kW high-efficiency elements in each deck
- Touchscreen interface with manual, recipe or rack timer modes (150 – 550 °F cook / 140 – 200 °F hold)
- Independent, full-180° low-emission glass doors improve access and reduce energy loss
- ½ HP, two-speed fan motor for superior bake uniformity and rapid recovery
- 11 rack positions & 5 heavy-duty racks supplied per cavity
- Coved, fastener-free porcelain interior cleans in seconds
- Stay-cool door handles plus forced cool-down fan mode enhance safety between batches
- Stainless steel front, sides, top & rear jacket built for demanding commercial environments
- Patented slide-out control panel for full-view servicing
- Optional UL-certified ventless catalyst allows hood-free installation*
- ENERGY STAR®, CSA & NSF listed for maximum rebate and code compliance
Technical specifications
| Configuration | Double deck, standard depth |
|---|---|
| Model | PCE15S/T (Touchscreen, Independent Doors) |
| External dimensions | Approx. 40.6" W × 37.25" D × 64.8" H (1032 × 946 × 1646 mm) |
| Interior (each deck) | 29" W × 21.5" D × 20" H (737 × 546 × 508 mm) |
| Rack capacity | 11 positions / 5 racks included per deck |
| Heating elements | 7.5 kW per deck (15 kW total) |
| Electrical options | 208, 240, 380, 415 or 480 VAC, 50/60 Hz, 1- or 3-phase Draw per deck: 15.7 – 36.1 A* |
| Fan motor | ½ HP, two-speed (1710/1120 RPM) |
| Clearances | Front & right: 0" • Back & left: 2" |
| Net weight | Approx. 1,040 lb (472 kg) |
| Certifications | ENERGY STAR®, CSA, NSF |
*Electrical amperage and ventless catalyst availability vary with voltage and local codes. Confirm specification prior to ordering.
Factory options & accessories
- UL-certified internal ventless catalyst system
- 4" or 6" locking casters
- Marine edge top
- Stainless steel solid or insulated doors
- Stainless steel exterior bottom, rear jacket or dirt tray
- Export crating
Warranty
Backed by Southbend’s nationwide service network: 1-year parts & labor warranty.
