Southbend (Middleby) PCE15S/SI-V Platinum Convection Ovens
Description

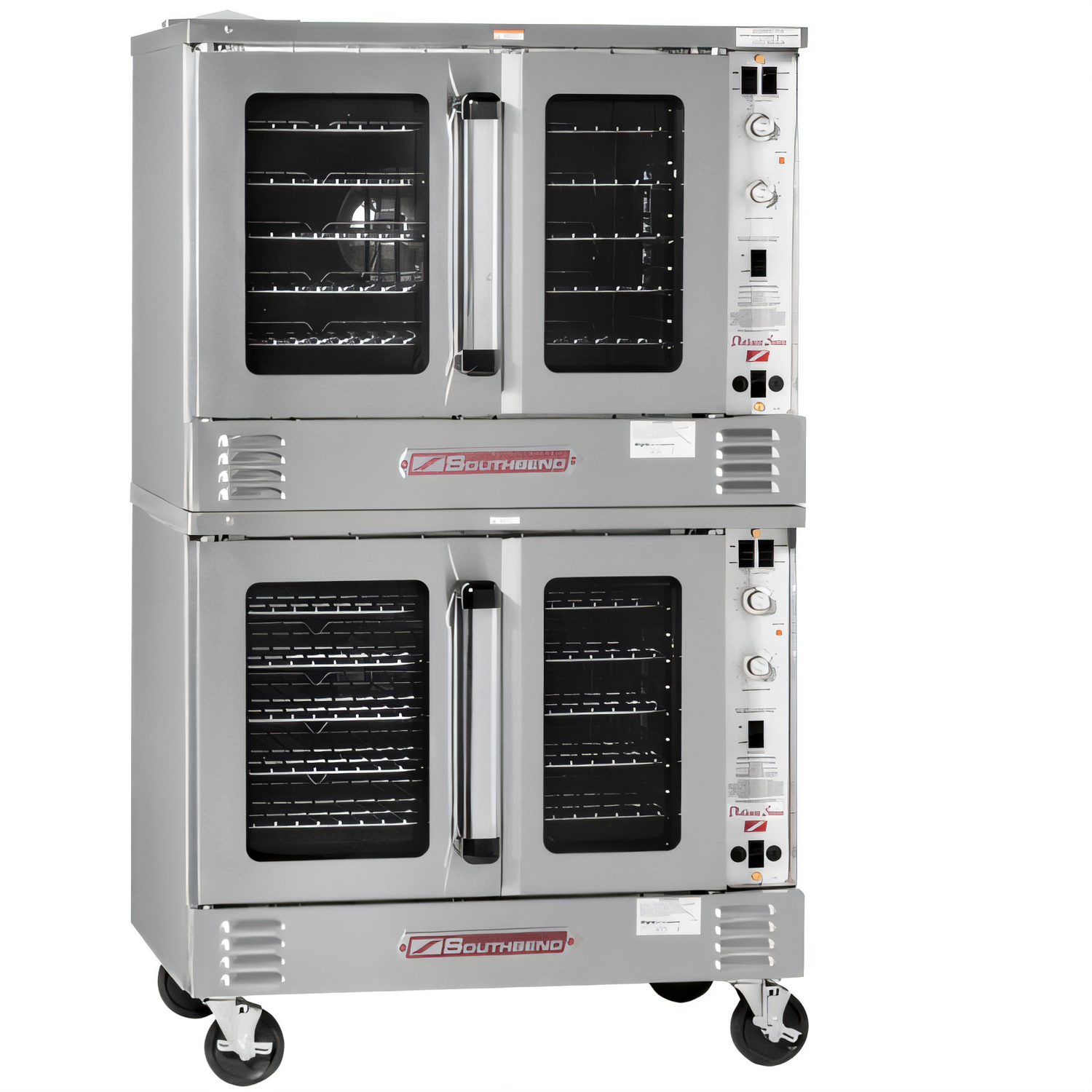

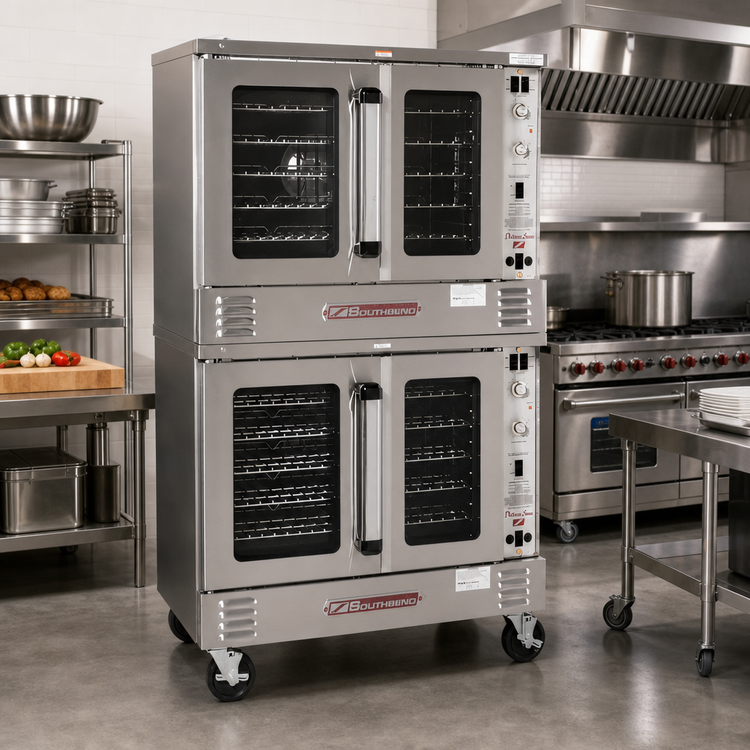

Southbend Platinum Series Ventless Double Convection Oven
Model PCE15S/S – Standard Depth • 7.5 kW per deck • Independent Doors • ENERGY STAR®Take your bake anywhere—no hood required. The Southbend Platinum Ventless Double Convection Oven delivers heavy-duty performance, outstanding energy efficiency and the freedom to install in locations where traditional ventilation simply isn’t possible.
Key Advantages

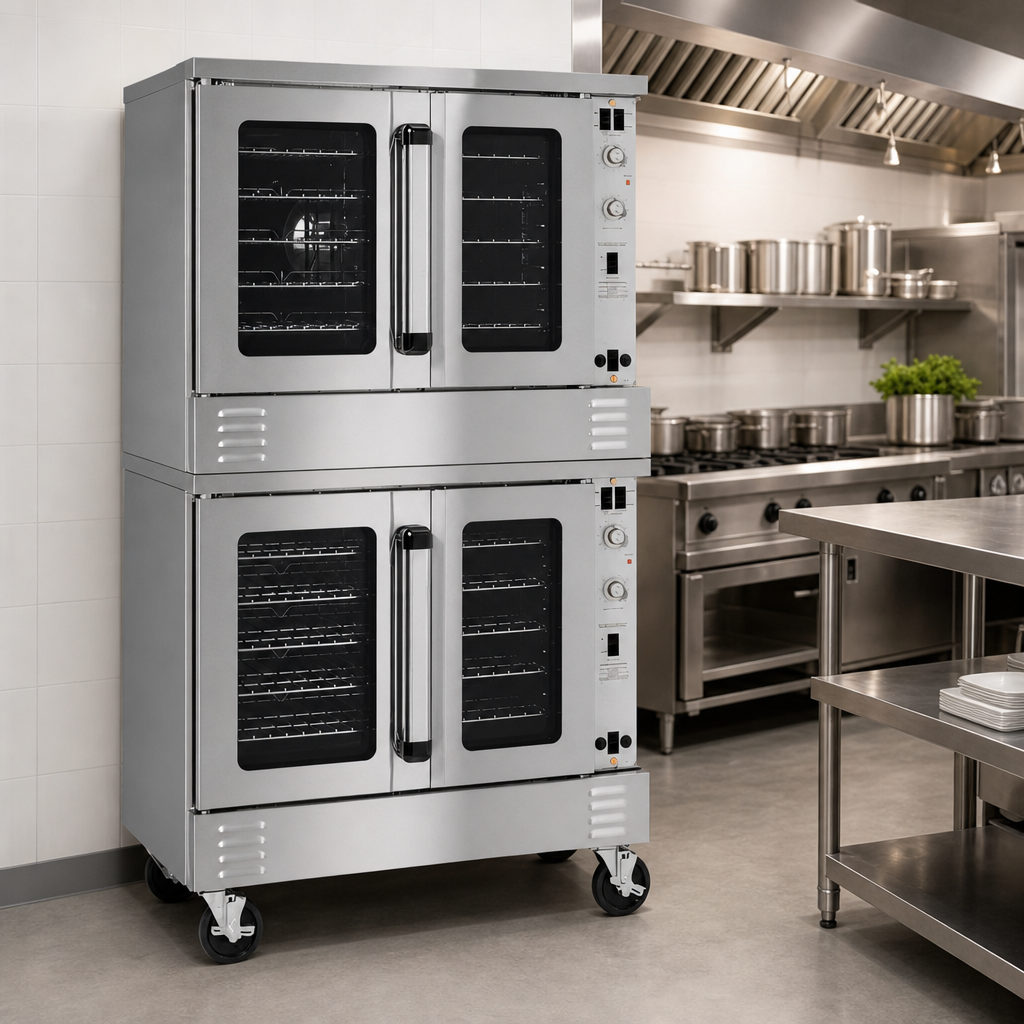

- Integrated UL-certified ventless catalyst removes grease vapors & smoke for hood-free installation*
- High-efficiency 7.5 kW sheath heaters in each deck for rapid preheat and recovery
- Standard solid-state controls (140 °F – 500 °F) with 60-minute cook timer
- Independent, full-view glass doors swing 180° and feature a dual-seal system to lock in heat
- Two-speed, ½ hp fan guarantees even air circulation and consistent results
- 11-position rack guides & 5 heavy-duty racks included—perfect for high-volume production
- Slide-out “plug-in, plug-out” control panel for fast, front-access servicing
- Coved, fastener-free porcelain enamel interior wipes clean in seconds
- Stainless-steel front, sides & top built to withstand the busiest kitchens
- ENERGY STAR®, CSA & NSF certified for efficiency, safety and sanitation
Performance & Efficiency
- Total output: 15 kW (7.5 kW per deck)
- Forced cool-down mode speeds turnaround between batches
- Low-E glass windows and high-density insulation reduce energy loss
- Catalyst meets EPA 202 emissions requirements for a cleaner kitchen environment
Specifications

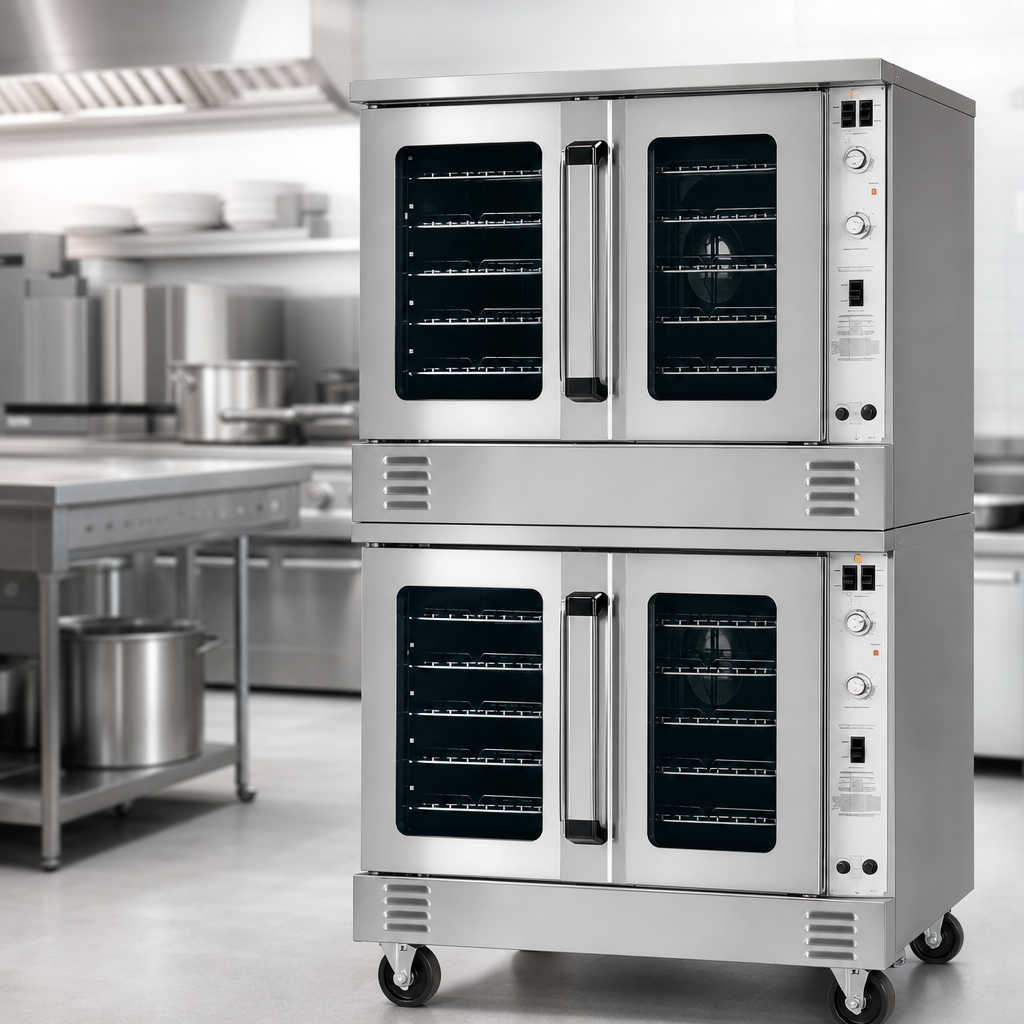

| Configuration | Double-deck, electric, ventless |
|---|---|
| Series / Model | Platinum Series PCE15S/S (Standard Depth) |
| Heating Elements | 7.5 kW per deck (15 kW total) |
| Controls | Solid-state thermostat 140 °F – 500 °F & 60-minute timer |
| Fan Motor | ½ hp, 2-speed (1710 / 1120 RPM) |
| Rack Capacity | 11 positions • 5 racks supplied |
| Interior (W × D × H) | 29" × 21.5" × 20" (737 × 546 × 508 mm) |
| Overall (W × D × H) | 40.6" × 37.3" × 64.8" (1032 × 947 × 1646 mm) |
| Shipping Weight | Approx. 1,040 lb (472 kg) |
| Electrical | 208, 220/240, 380, 415 or 480 V • 1 or 3 ph • 50/60 Hz (specify) |
| Certifications | ENERGY STAR®, CSA, NSF, Ventless (UL) |
| Warranty | 1-year parts & labor |
*Ventless operation is suitable for most menu items under normal loads. High-fat products may require additional ventilation—always consult your local authority.
