Description

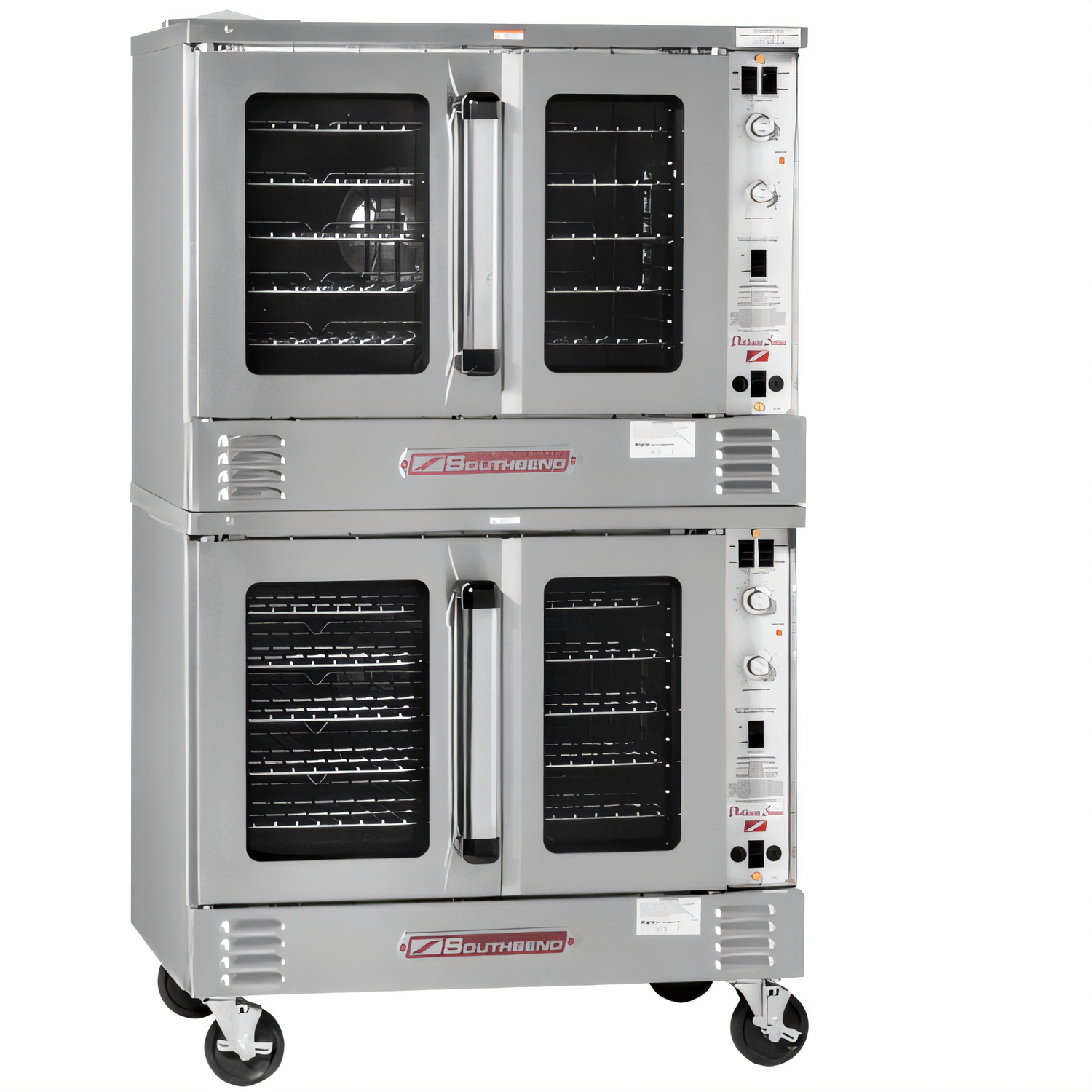

Platinum Series Double Convection Oven – Electric, 7.5 kW/Deck
Model PCE15S/S • Standard Controls • Independent Doors • ENERGY STAR®, CSA & NSFBuilt for high-volume kitchens that refuse to compromise on consistency, the Southbend Platinum Double Convection Oven delivers even bake results, rock-solid reliability and best-in-class serviceability – all while earning ENERGY STAR® status for lower operating costs.
Why You’ll Love It
- 7.5 kW high-efficiency heating elements in each oven cavity (15 kW total).

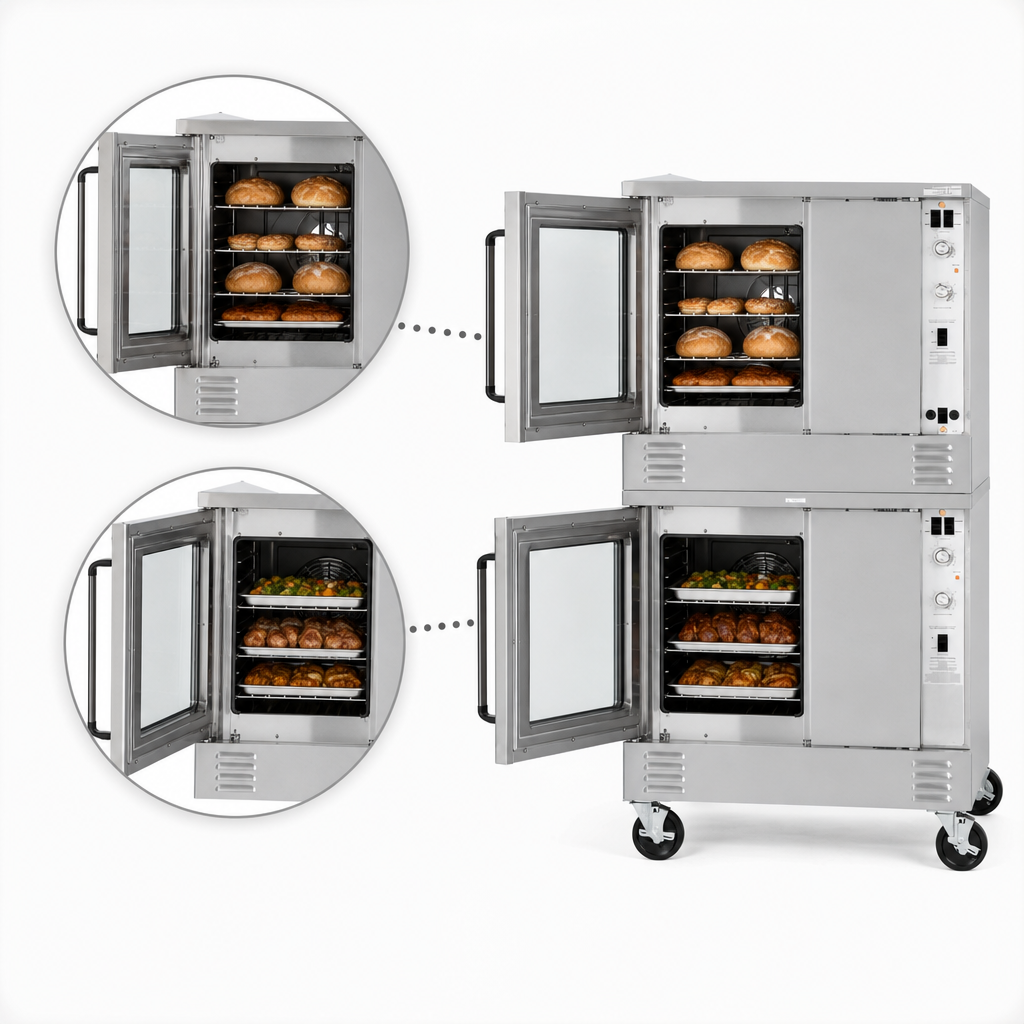

- Independent glass doors with low-E panoramic windows open a full 180° for unobstructed loading.
- SC Standard Controls: 140 °F–500 °F solid-state thermostat & 60-min mechanical timer.
- Patented “plug-in / plug-out” slide-out control panel – swap or service in minutes.
- 11-position rack guides & 5 oven racks per deck (10 total) for unrivaled versatility.
- Two-speed ½ hp fan motor plus forced cool-down mode for rapid turn-arounds.
- Stainless steel front, sides & top with coved, fastener-free porcelain interior for effortless cleaning.
- Stay-cool, heavy-duty door handles and dual door-seal system lock heat in, keep staff safe.
- Bright recessed cavity lamps for clear visibility at a glance.
Engineered for Demanding Kitchens
- Overall height only 64.8" – slides under low hoods or mezzanines.
- Zero-clearance on front & right; just 2" on back & left for flexible lineups.
- ENERGY STAR® qualified high-efficiency glass and insulation slash utility costs.
- 1-year parts & labor warranty backed by a nationwide Southbend service network.
At-a-Glance Specifications

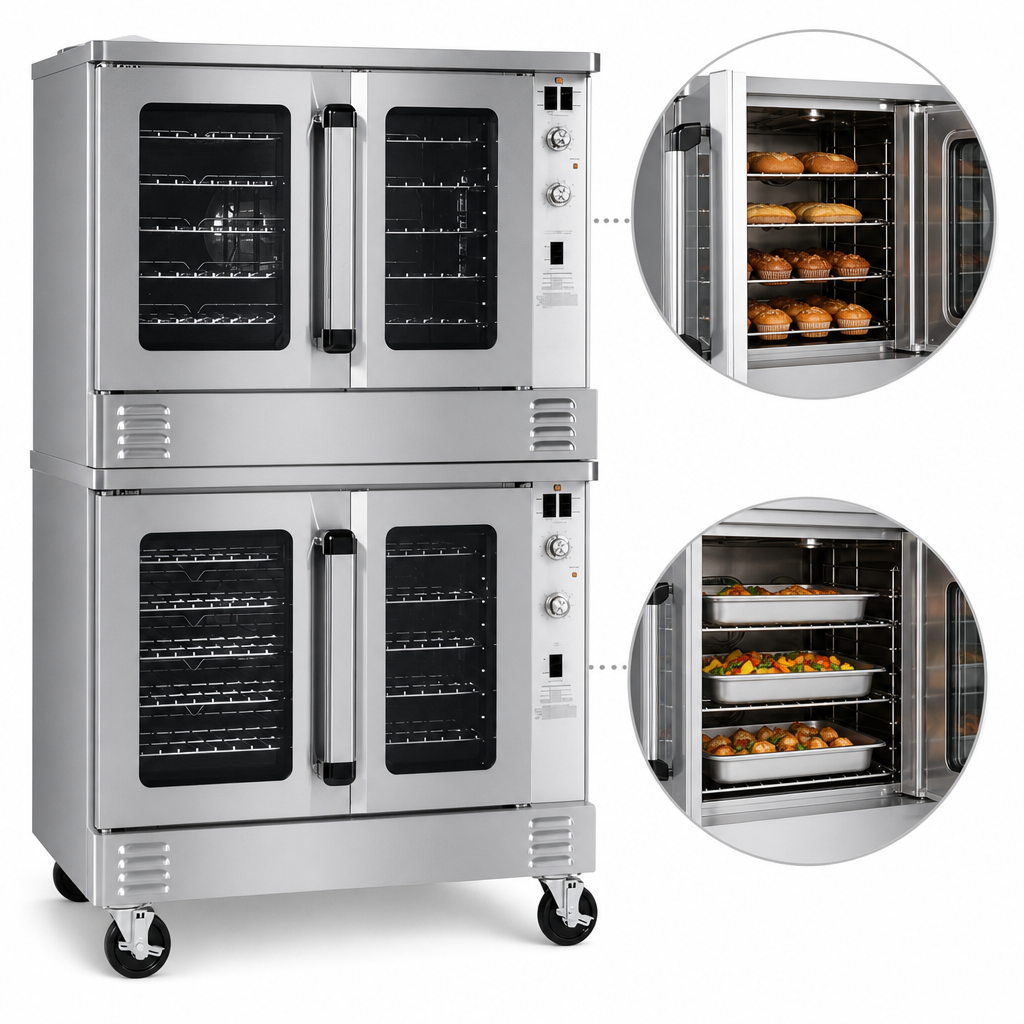

Configuration | Double deck, standard depth |
---|---|
Heat Source | Electric, 7.5 kW per deck (15 kW total) |
Exterior (W × D × H) | 38" × 37-1/4" × 64.8" (≈ 965 × 946 × 1645 mm) |
Oven Interior (per deck) | 29" W × 21.5" D × 20" H (737 × 546 × 508 mm) |
Rack Positions / Racks Supplied | 11 / 5 per deck |
Fan Motor | ½ hp, 2-speed (1710 / 1120 RPM) |
Electrical (7.5 kW elements) | 208 V / 36.1 A 1-ph • 240 V / 31.3 A 1-ph (3-ph amps listed on spec sheet) |
Shipping Weight | Approx. 1,040 lb (472 kg) |
Certifications & Warranty
- ENERGY STAR® Qualified
- CSA & NSF Listed for safety and sanitation
- 1-Year limited parts & labor warranty
Popular Factory Options *
- Ventless internal catalyst (UL certified) – no hood required in many jurisdictions.
- TC Touchscreen controls with recipe & rack modes.
- 11 kW heating elements for accelerated recovery.
- 4" or 6" locking casters, marine-edge top, stainless rear jacket & doors, drip tray and more.
*Options ship at additional cost – ask your rep for details & lead times.
