Southbend (Middleby) PCE15S/SD Platinum Convection Ovens
Southbend (Middleby) PCE15S/SD Platinum Convection Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) PCE15S/SD Platinum Convection Ovens
Description

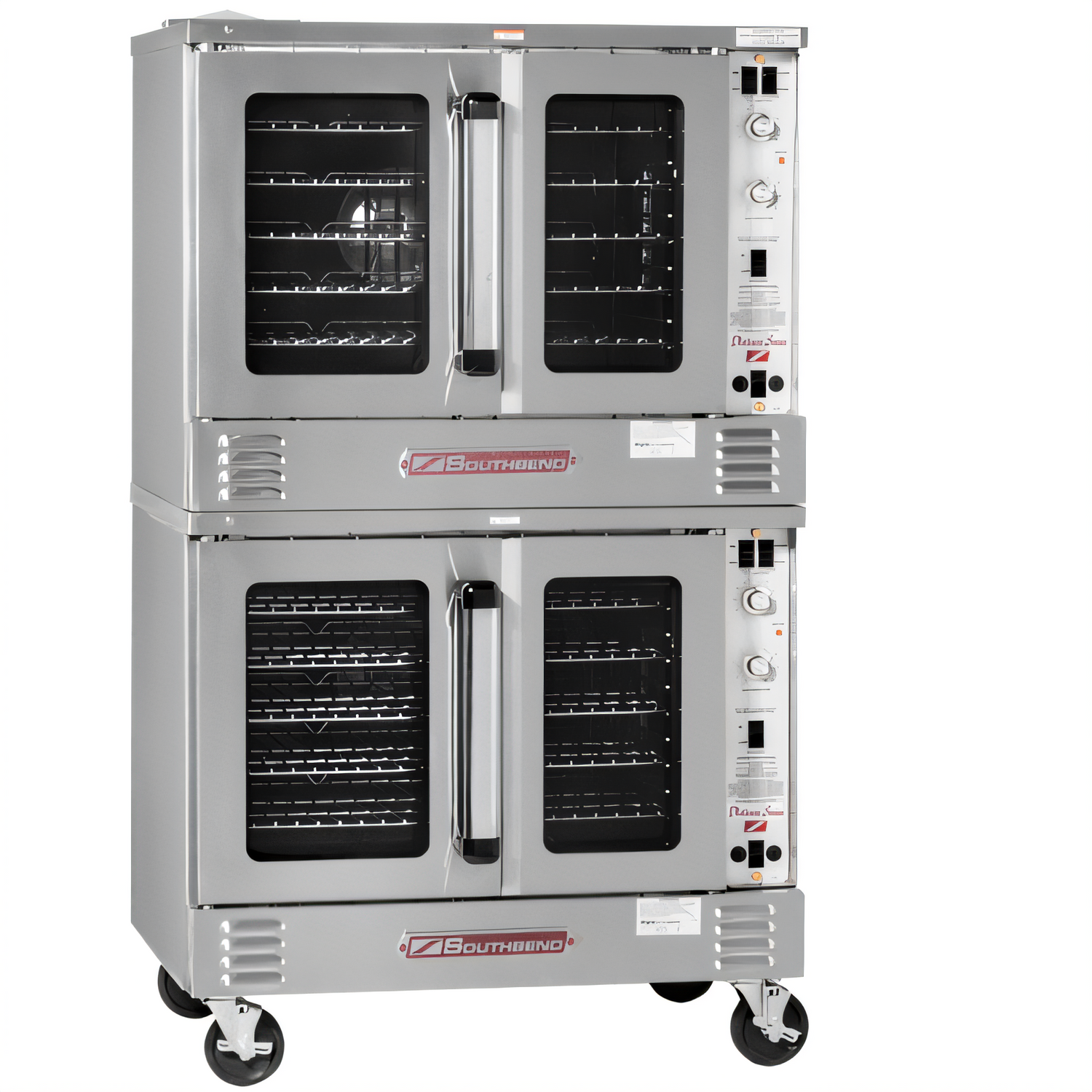

Southbend Platinum Double Convection Oven – Electric, 7.5 kW/Deck
Quick-Ship | Middleby Essentials | ENERGY STAR®, CSA, NSFEngineered for demanding commercial kitchens, the Platinum Series double-deck convection oven delivers high-volume baking, roasting, and finishing while keeping energy use – and operating costs – in check. Each cavity features a 7.5 kW high-efficiency element and Southbend’s legendary airflow design for fast, even results on every rack.
Why You’ll Love It

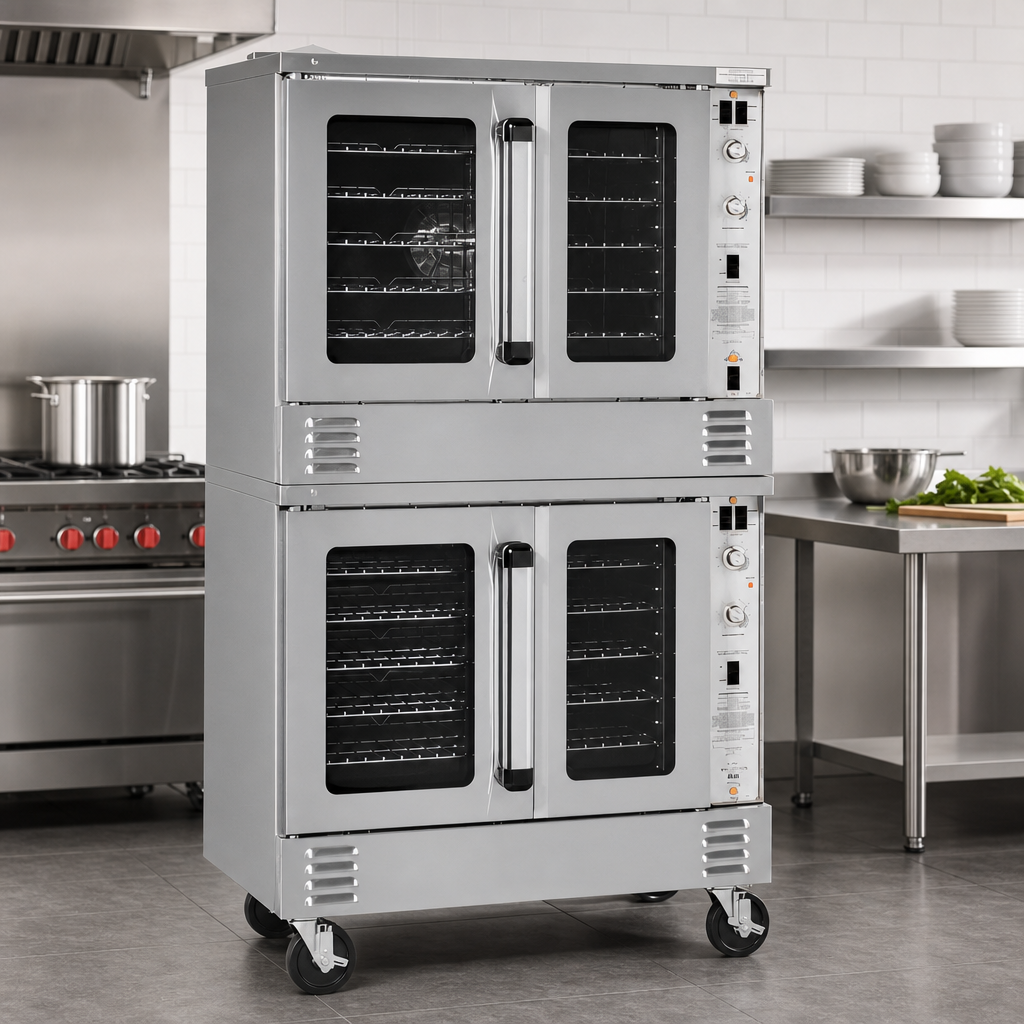

- Two full-size cavities stacked in a single 64.8" tall footprint – perfect for tight lines.
- ENERGY STAR® qualified 7.5 kW incoloy elements per deck for maximum efficiency.
- SC Standard controls: 140 °F – 500 °F solid-state thermostat & 60-minute timer.
- Full 180° dependent glass doors with dual seals to lock in heat and cut utility costs.
- Two-speed ½ HP fan motor plus forced cool-down mode for rapid turnarounds.

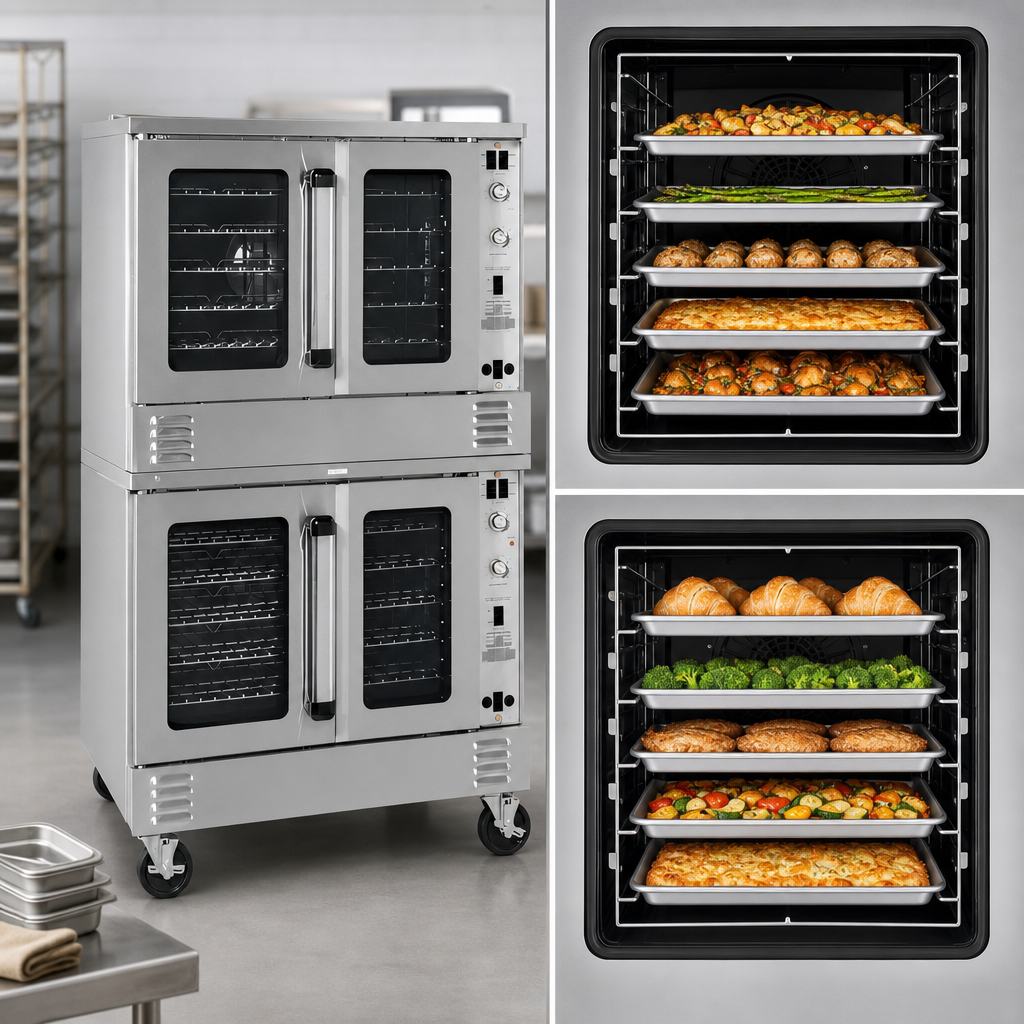

- 11-position rack guides | 5 wire racks included per cavity.
- Stainless steel front, sides, top & rear jacket; coved porcelain enamel interior for easy wipe-down cleaning.
- Slide-out, “plug-in / plug-out” control panel – service without pulling the oven.
- Bright halogen interior lights for effortless product monitoring.
- 6" adjustable stainless legs standard; 4" or 6" locking casters optional.
Need It Fast?
This model is part of the Middleby Essentials Quick-Ship program – most units leave the factory in days, not weeks. Flexible equipment financing is also available to keep cash flow steady while you upgrade your cooking line.
Technical Specifications
| Manufacturer / Series | Southbend Platinum PCES |
|---|---|
| Configuration | Double-deck, standard depth |
| Heating Elements | 7.5 kW per deck (15 kW total) |
| Control Type | SC Standard – solid-state thermostat, 60-min timer |
| Temperature Range | 140 °F – 500 °F (60 °C – 260 °C) |
| Exterior (W × D × H) | 40.6" × 45.5" × 64.8" (1032 × 1156 × 1645 mm) |
| Oven Interior (per deck) | 29" W × 21.5" D × 20" H |
| Rack Positions / Racks Included | 11 / 5 per deck |
| Fan Motor | ½ HP, two-speed (1710 / 1120 RPM) |
| Electrical* (per deck) |
208 V 1φ 36.1 A | 208 V 3φ 20.9 A 240 V 1φ 31.3 A | 240 V 3φ 18.1 A 480 V 1φ 15.7 A | 480 V 3φ 9.1 A |
| Certifications | ENERGY STAR®, CSA, NSF |
| Shipping Weight | Approx. 1,040 lb / 472 kg |
*Add up to 4.3 A for the control circuit. Specify voltage and phase when ordering.
Popular Factory Options
- Ventless catalytic hood (UL-certified)
- 4" or 6" locking casters
- Independent doors
- Stainless steel solid doors or bottom enclosure
- Marine-edge top, down-draft flue diverter & more
Warranty & Service
Covered by a 1-year limited parts & labor warranty and backed nationwide by Southbend’s authorized service network.
