Southbend (Middleby) PCE15B/TI-V Platinum Convection Ovens
Description

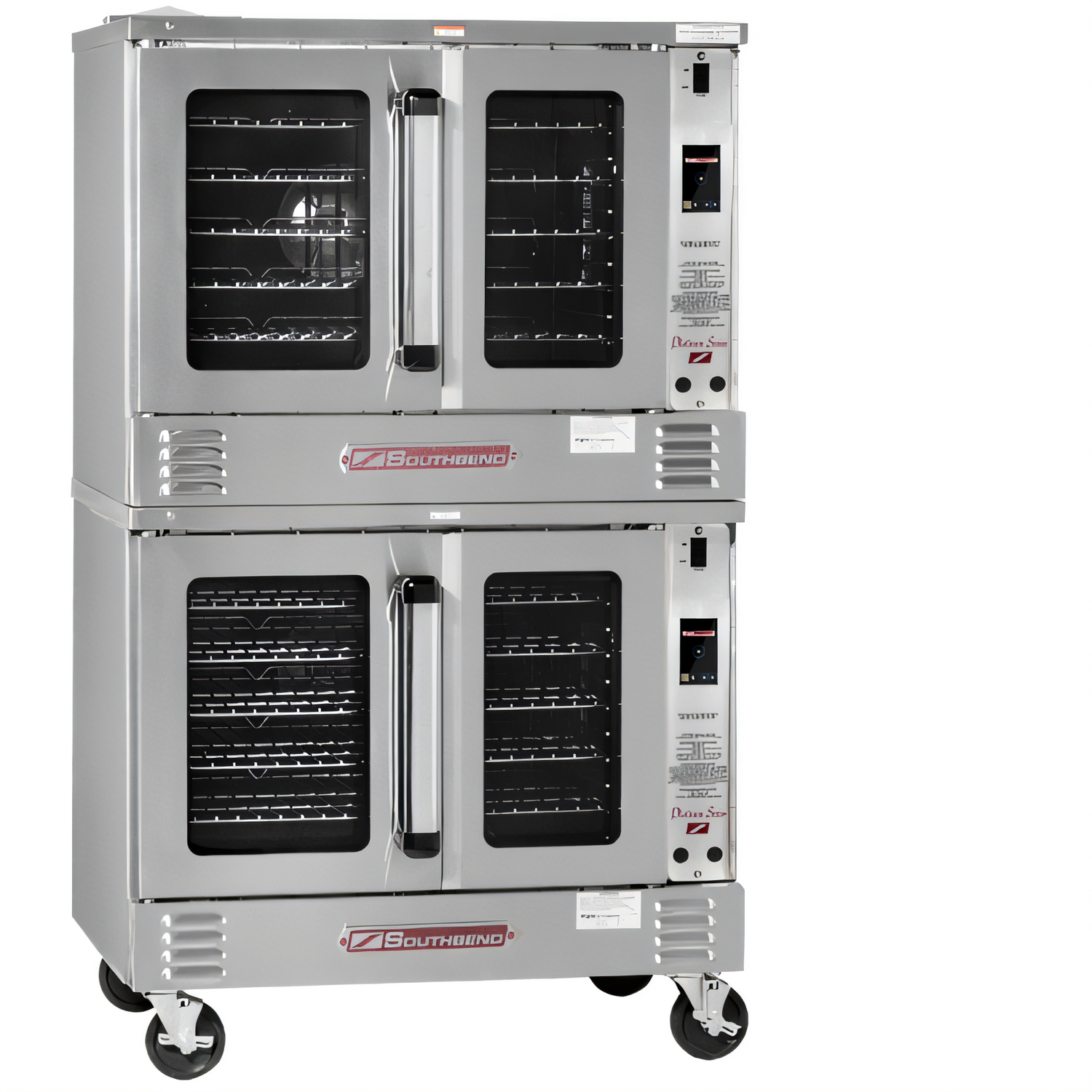

Platinum Series Ventless Double Electric Convection Oven
Model PCE15B/T • Bakery-Depth • 7.5 kW per deck • Touchscreen Controls • Independent Glass DoorsTake your bake anywhere! Southbend’s ventless catalyst technology lets this Platinum Series oven operate without a traditional hood* while delivering the even, high-volume results professional bakers count on. Touchscreen intelligence, bakery-depth cavities, and stainless-steel durability make it the perfect fit for cafés, commissaries, and test kitchens that demand flexibility and performance.
Key Advantages
- Ventless internal catalyst removes grease-laden vapors—no dedicated hood required in most jurisdictions.
- 7.5 kW heating elements per deck heat quickly and efficiently, reaching 150–550 °F.
- Full-color touchscreen with Manual, Recipe, and Rack modes; store programs and run individual pan timers.
- Independent, low-E glass doors open separately to minimize heat loss and improve workflow.

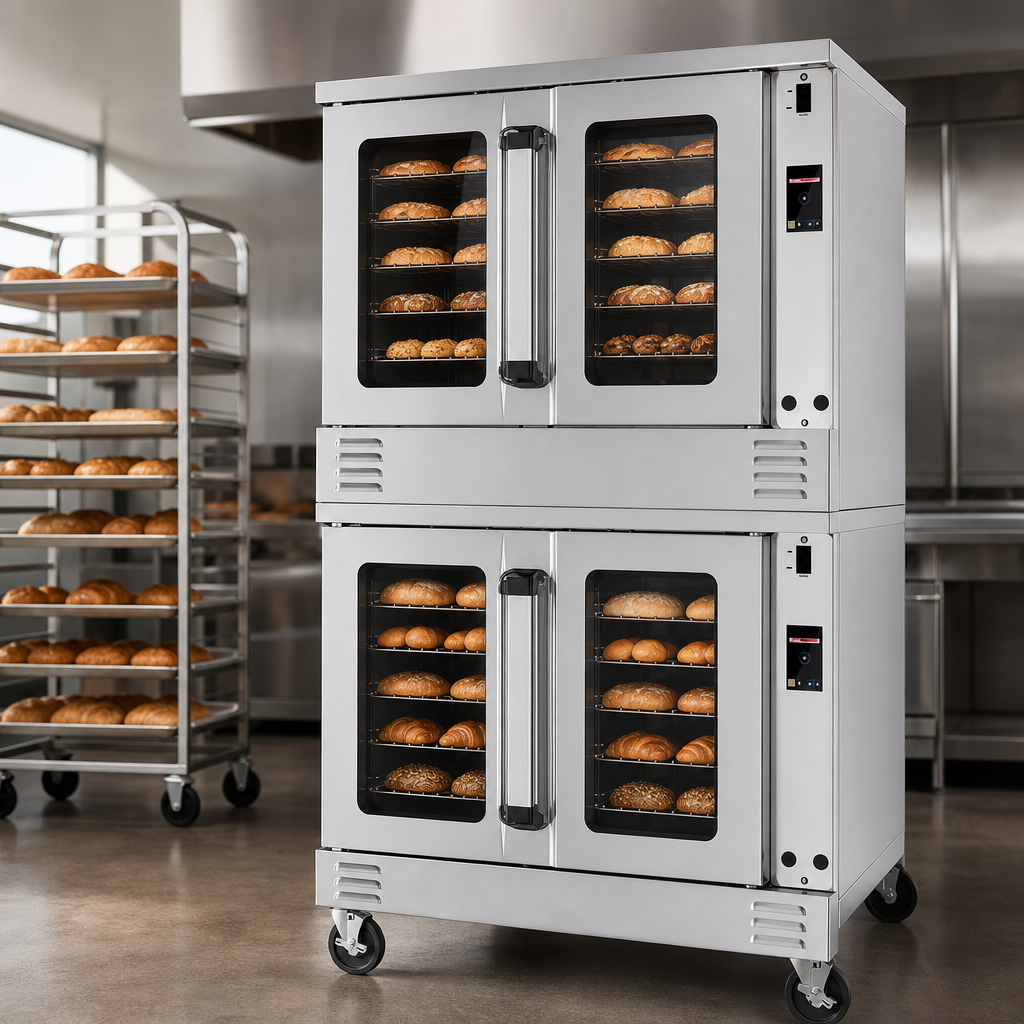

- Bakery depth fits 18 × 26 in. sheet pans front-to-back or side-to-side.
- Two-speed ½ HP fan and fan-pulse timer ensure even browning on every rack.
- Plug-in / plug-out control panel slides out 17 in. for fast, full-view servicing.
- All-stainless exterior, coved porcelain interior, and stay-cool heavy-duty door handles built for daily commercial use.
- Forced cool-down, interior lights, and dual silicone door gaskets for safety and efficiency.
- 1-year limited parts & labor warranty backed by Southbend’s nationwide service network.

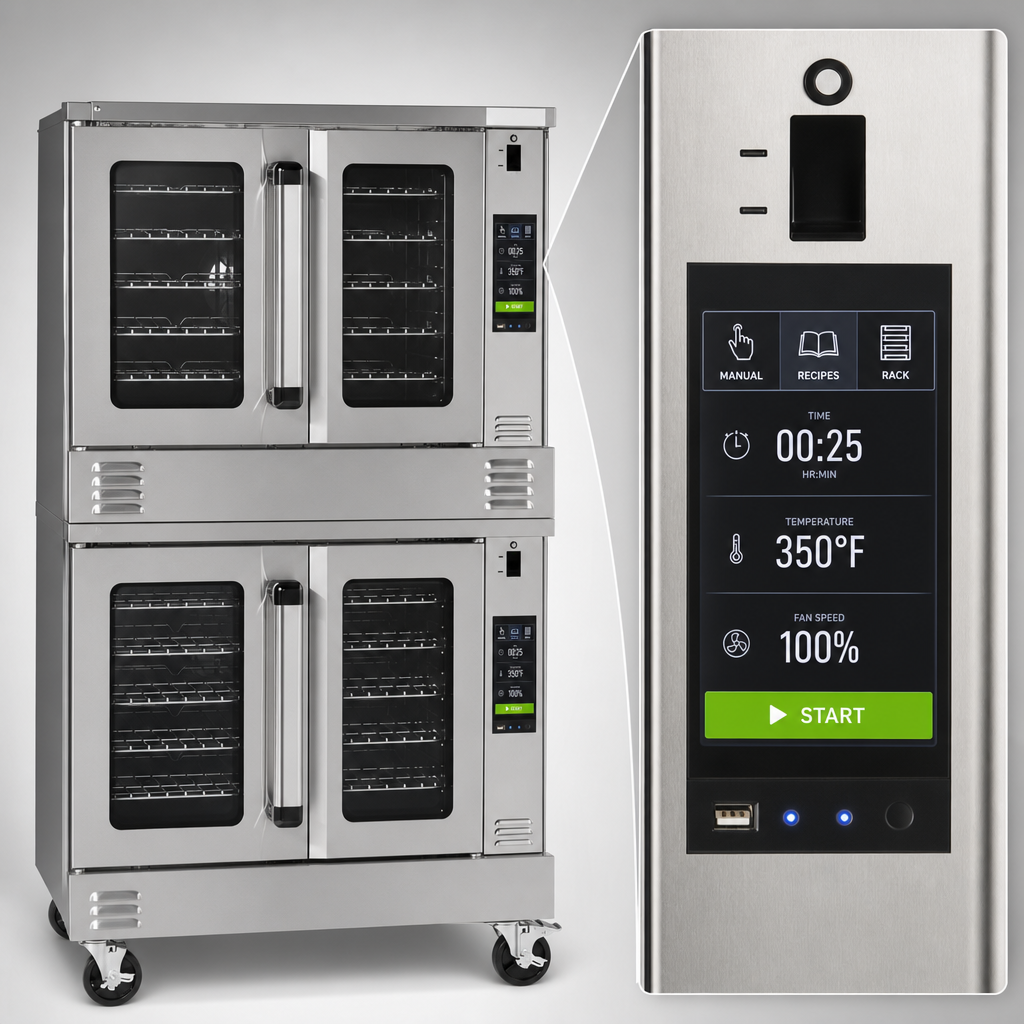

Touchscreen Control Features
- 150–550 °F bake plus 140–200 °F hold thermostat.
- Recipe storage with multi-step cooking.
- Rack Mode—assign individual timers to each oven rack.
- Pulsed-fan & auto cool-down programs.
- Easy-view time/temperature display with audible alerts.
Built for Heavy-Duty Service
- 11-position rack guides & five heavy-duty wire racks per cavity.
- Energy-saving, high-efficiency low-emission glass windows.
- Stainless-steel front, sides, and top; 6 in. adjustable stainless legs standard.
- Coved, fastener-free porcelain enamel interior wipes clean in seconds.
- Clearances: 0 in. front/right, 2 in. back/left.
Technical Specifications
| Capacity | 10 full-size (18 × 26 in.) sheet pans – 5 per deck |
|---|---|
| Heating Elements | 7.5 kW per deck (15 kW total) |
| Temperature Range | 150–550 °F bake | 140–200 °F hold |
| Fan Motor | ½ HP, 2-speed (1710/1120 RPM) |
| Interior (per deck) | 29 in. W × 29 in. D × 20 in. H (737 × 737 × 508 mm) |
| Exterior (W × D × H) | 43.5 × 36.5 × 64.8 in. (1105 × 927 × 1645 mm) |
| Shipping Weight | Approx. 1180 lb (535 kg) |
| Electrical | 208/240/380/415/480 V, single or 3-phase (see amperage chart) |
| Ventilation | UL-certified ventless catalyst |
| Warranty | 1-year limited parts & labor |
Electrical Load – 7.5 kW / Deck
| Voltage | Phase | Amps / Line |
|---|---|---|
| 208 V 60 Hz | Single | 36.1 A |
| 208 V 60 Hz | 3-Phase (X/Y/Z) | 20.9 A per line |
| 240 V 60 Hz | Single | 31.3 A |
| 240 V 60 Hz | 3-Phase (X/Y/Z) | 18.1 A per line |
| 380 V 50 Hz | 3-Phase | 11.4 A per line |
| 415 V 50 Hz | 3-Phase | 10.5 A (X–N) |
| 480 V 60 Hz | 3-Phase | 9.1 A per line |
*Local code approval for ventless operation is required; always confirm with your authority having jurisdiction before installation.
