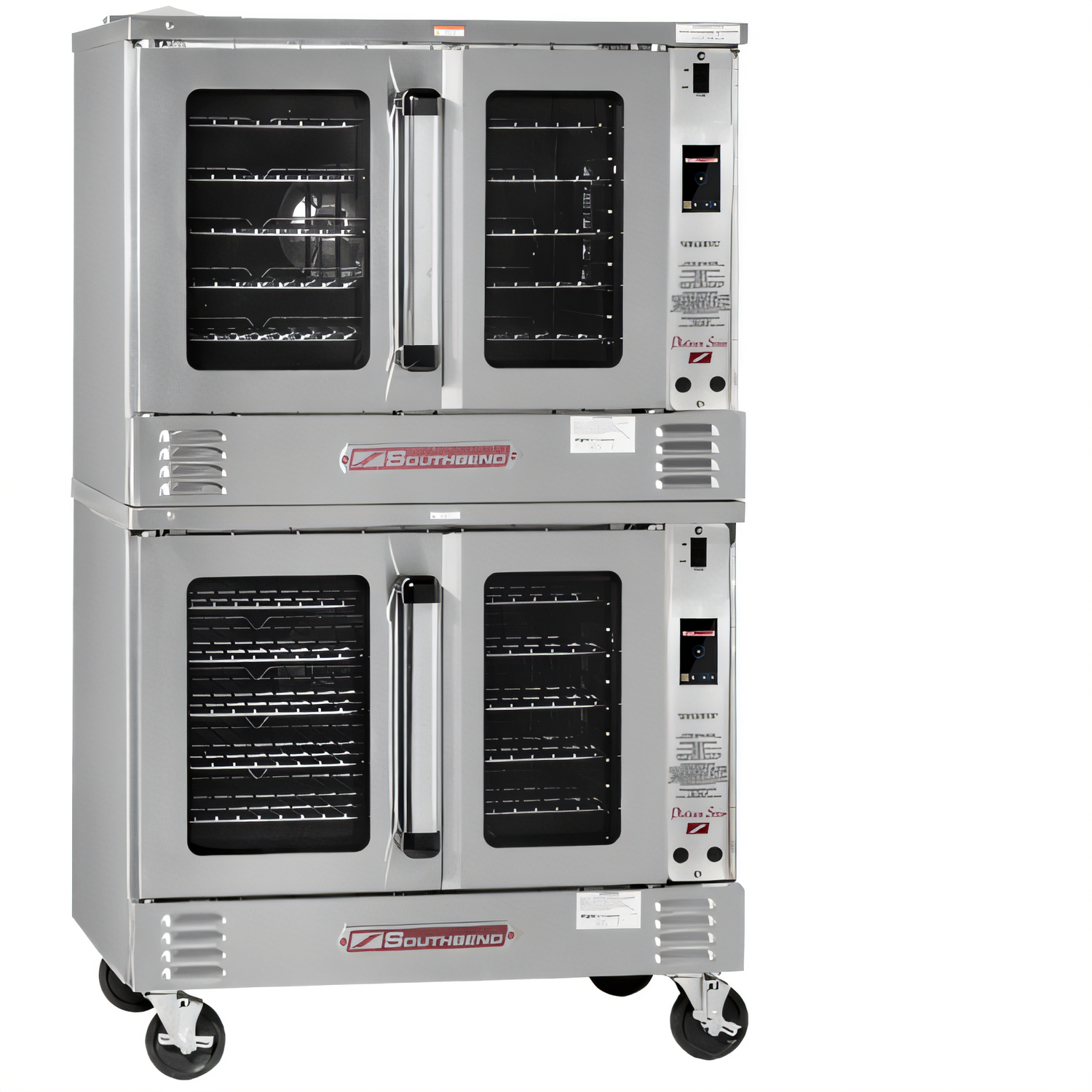

Southbend (Middleby) PCE15B/TI Platinum Convection Ovens
Southbend (Middleby) PCE15B/TI Platinum Convection Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

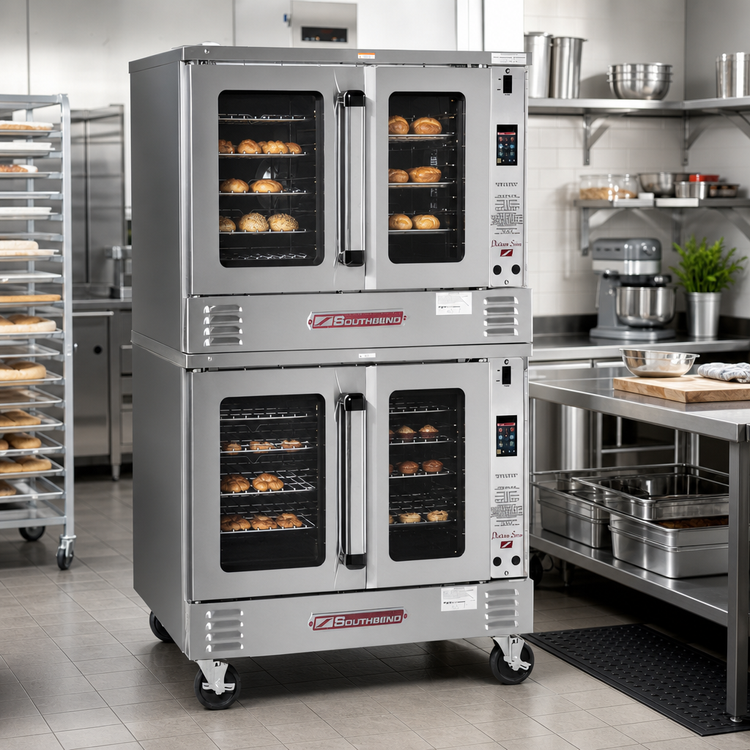

Platinum Series Double Convection Oven – Bakery Depth, 7.5 kW/Deck, Touchscreen, Independent Doors
Southbend | Model PCE15B/T-IDEngineered for demanding, high-volume kitchens, the Southbend Platinum double-deck electric convection oven pairs rapid, even heating with a chef-friendly touchscreen and space-saving bakery depth. Independent, full-view doors let you access either cavity without dropping the temperature in the other—keeping every batch on point and on time.
Why You’ll Love It

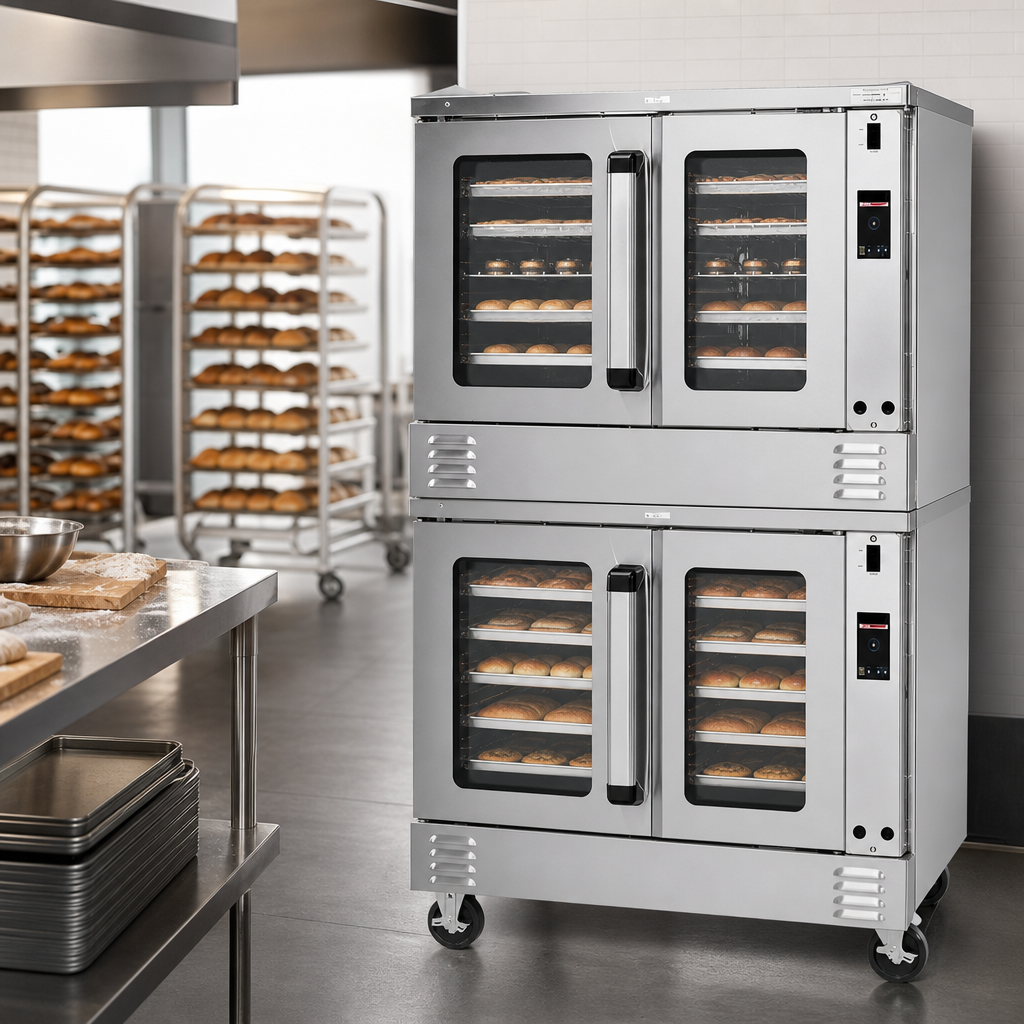

- Two full-size bakery cavities (29″ W × 29″ D × 20″ H each); holds five 18″ × 26″ pans per deck.
- High-efficiency 7.5 kW sheath elements per deck (15 kW total) for quick recovery and crisp, even browning.

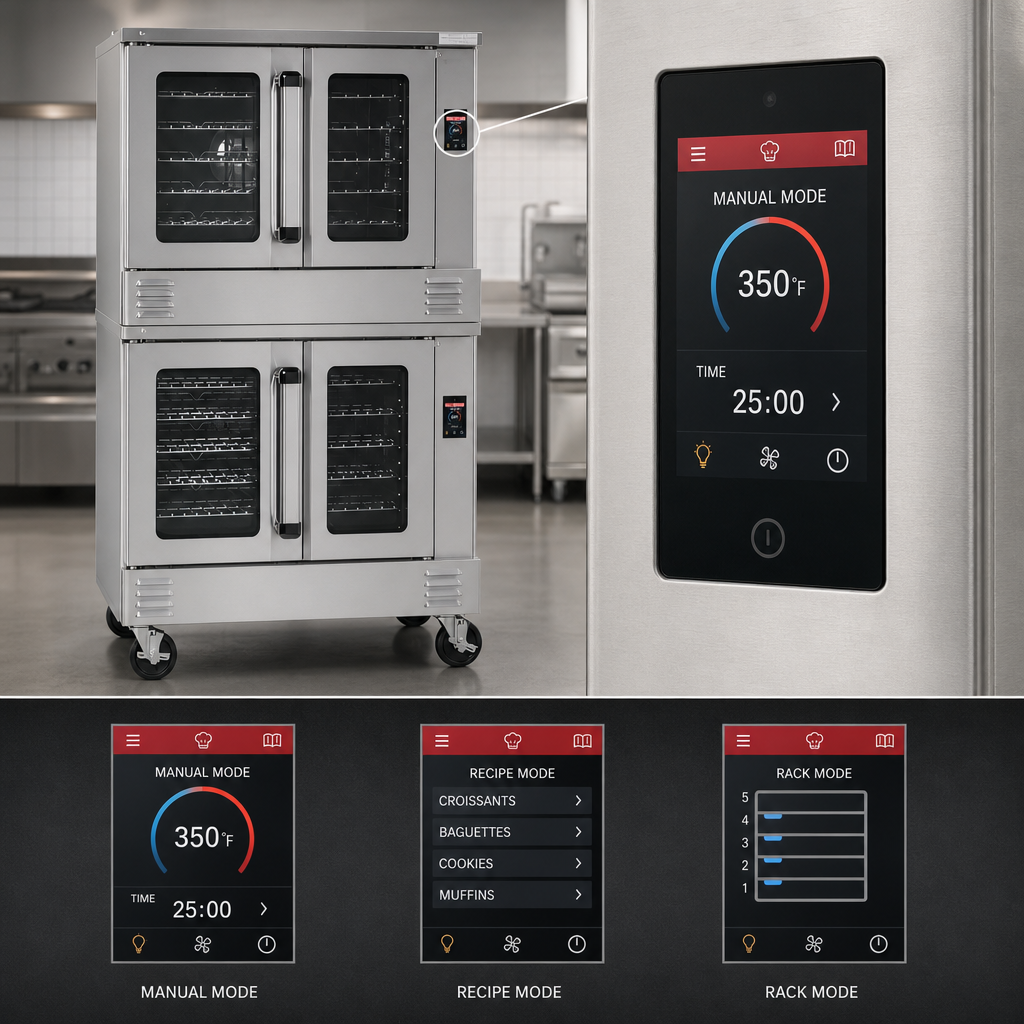

- TC touchscreen: 150 °F–550 °F bake, 140 °F–200 °F hold, programmable recipes, fan-pulse and multi-rack timer modes.
- Independent, dual-pane glass doors open a full 180° with a tight dual-seal system to slash heat loss.
- Patented “plug-in, plug-out” slide-out control module—front-serviceable in seconds.
- Two-speed ½ hp fan motor (1710 / 1120 RPM) plus forced cool-down option for fast turnarounds.
- All-stainless front, sides & top; coved, fastener-free porcelain interiors wipe clean without tools.
- Stay-cool door handles, interior halogen lighting and energy-saving low-E windows.
- Ships on 6″ stainless legs with five nickel-plated racks per cavity (4″/6″ casters & marine edge tops optional).
- Optional factory-installed ventless catalytic filtration lets you bake virtually anywhere—hood-free.*
Technical Snapshot
Configuration | Double-deck, electric |
---|---|
Heating Elements | 7.5 kW per deck • 15 kW total |
Control System | TC Touchscreen, programmable |
Interior (each deck) | 29″ W × 29″ D × 20″ H |
Exterior (overall) | 43.5″ W × 36.5″ D × 64.8″ H |
Racks / Positions | 5 racks included • 11 positions |
Fan Motor | ½ hp, 2-speed |
Electrical | 208–240 V, single or 3-phase, 50/60 Hz (31.3 A @ 240 V 1-phase) |
Ship Weight | ≈ 1,180 lb |
Clearances | Front/right 0″ • Back/left 2″ |
Warranty | 1-year parts & labor (commercial use) |
Perfect For
Artisan bakeries, hotel banquet kitchens, school cafeterias, commissaries and any operation that needs rock-solid performance, programming flexibility and low-maintenance service access.
*Ventless catalytic filtration is an optional upgrade that may affect lead time and certification requirements.
