Southbend (Middleby)  |  Platinum  |  SKU: PCE15B/TD

Southbend (Middleby) PCE15B/TD Platinum Convection Ovens

$12,797.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
Convection Ovens Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

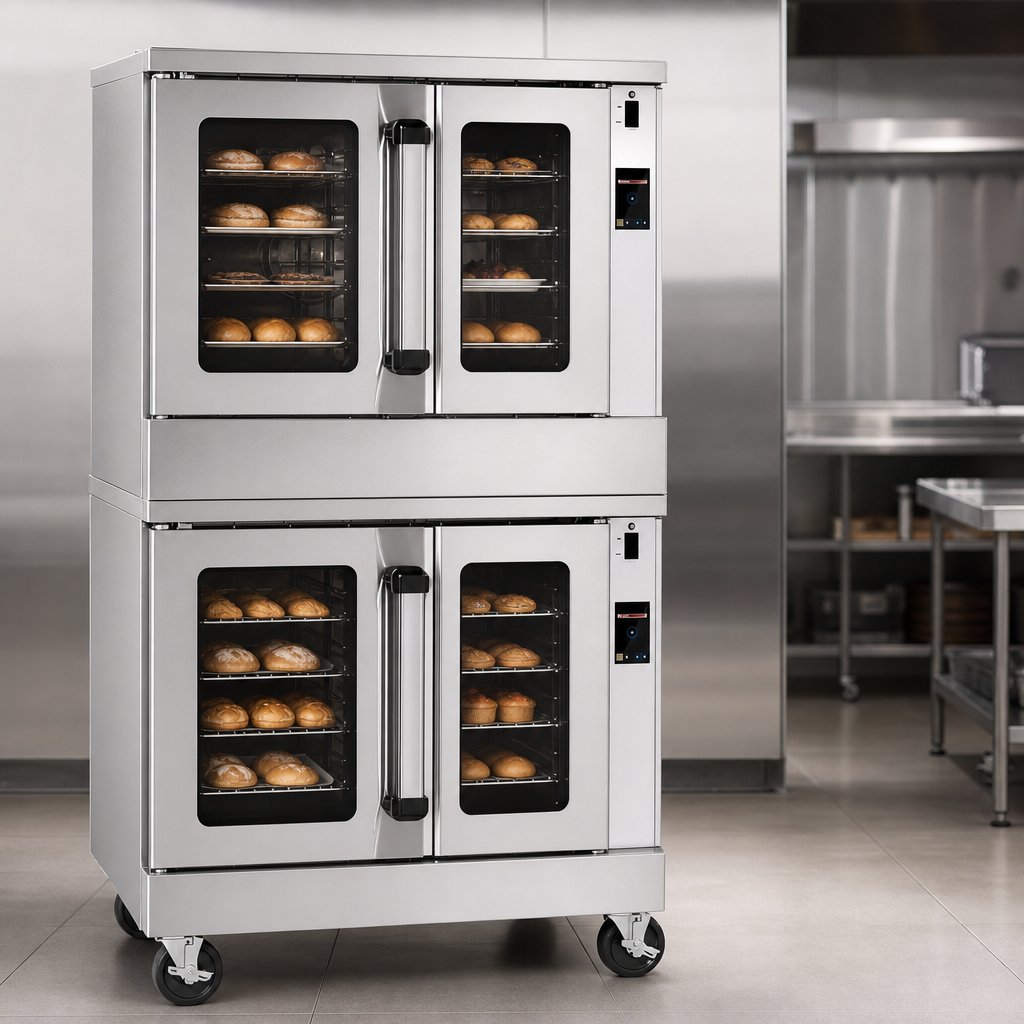

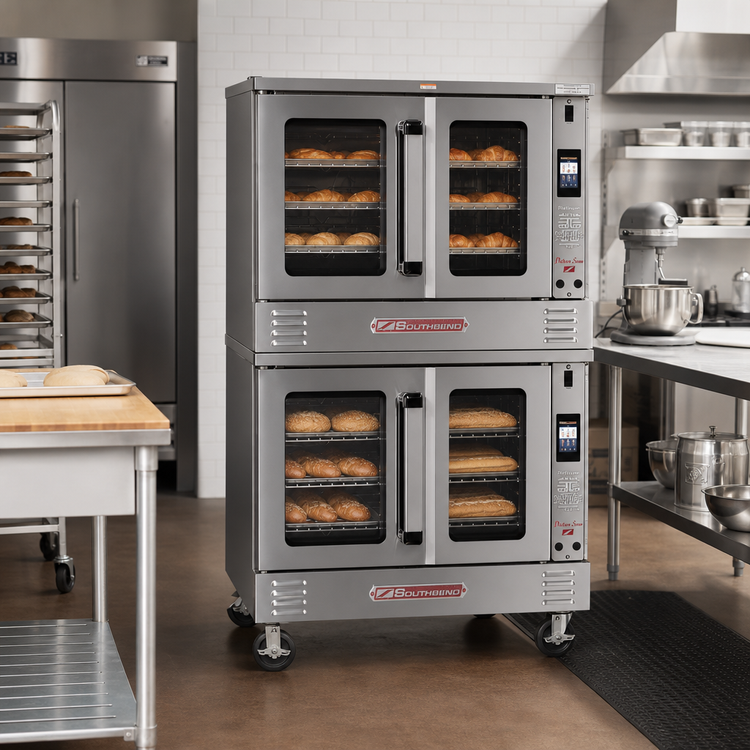

Southbend Platinum Double Electric Convection Oven

Model PCE15B/T  |  Bakery Depth  |  7.5 kW Each Deck  |  Touchscreen Controls

Engineered for high-volume bakeries, restaurants and institutions, the Southbend Platinum Series double-deck convection oven pairs powerful, even heat with intuitive touchscreen programmability. Perform everything from delicate pastries to high-yield roasts in a single, service-friendly footprint.

Key Features
  • Dual 7.5 kW high-efficiency elements (15 kW total) for rapid recovery and consistent baking.

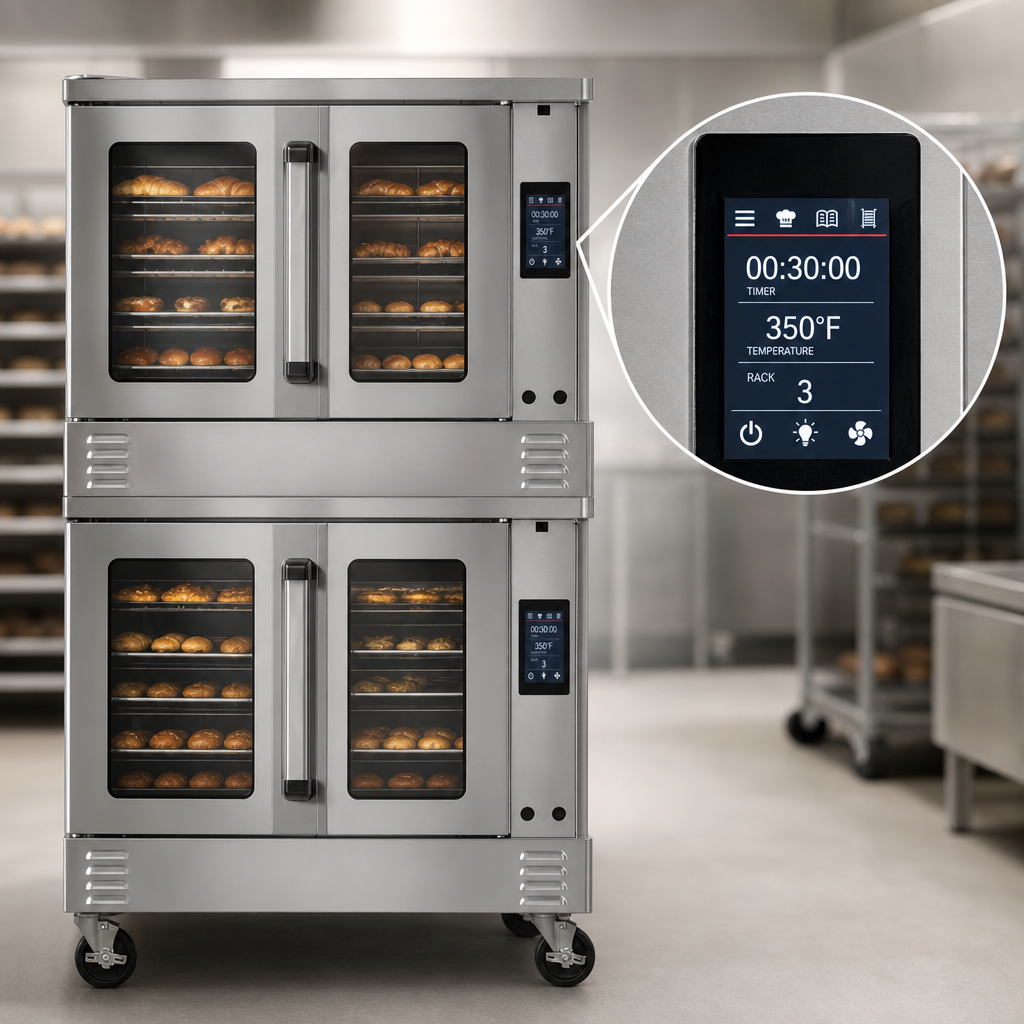

  • TC Touchscreen with manual, recipe and “Rack” modes plus 150 °F–550 °F bake and 140 °F–200 °F hold settings.
  • Patented plug-in, plug-out control panel slides out 17" for full-view servicing—no tools needed.
  • Bakery-depth 29" interior fits full-size sheet pans front-to-back on 11 positions; 5 racks included.
  • Two-speed ½ HP fan motor with pulse timer delivers uniform airflow for perfect browning.
  • Energy-saving dependent glass doors open 180°, feature dual seals and stay-cool handles.
  • Rugged stainless-steel front, sides & top with coved, fastener-free porcelain enamel interior for quick cleanup.
  • Forced cool-down mode speeds between-batch changeovers.
  • Bright interior lights and low-emission glass windows keep every tray visible.
  • Optional UL-certified ventless catalytic system enables installation where hoods are impractical (extra cost).
Technical Specifications
Series / Model Platinum Series • PCE15B/T
Decks 2 (independent cavities)
Heat Output 7.5 kW per deck  |  15 kW total
Temperature Range 150 °F–550 °F bake  |  140 °F–200 °F hold
Interior (each deck) 29" W × 29" D × 20" H (737 × 737 × 508 mm)
Exterior (overall) 43.5" W × 36.5" D × 64.8" H (1105 × 924 × 1645 mm) with 6" legs
Racks / Guides 5 plated racks included • 11 positions on 1-5/8" centers
Fan Motor ½ HP, two-speed (1710 / 1120 RPM)
Electrical 208 / 240 / 380 / 415 / 480 V, 1- or 3-phase, 50/60 Hz (see amp chart below)
Shipping Weight Approx. 1,180 lb (535 kg)
Warranty 1-year limited parts & labor

Amperage example for 7.5 kW elements: 208 V, 3-phase = 20.9 A per line; 240 V, 3-phase = 18.1 A per line. Add 4.3 A for control panel. Specify voltage and phase when ordering.

Popular Factory Options
  • Ventless catalytic hood (UL certified)
  • 4" or 6" heavy-duty casters
  • Stainless-steel solid or independent doors
  • Marine-edge top or stainless rear jacket
  • Export crating & stainless dirt tray
Installation Note: Unit is intended for commercial use only. Provide 0" clearance front/right and 2" clearance back/left. Install under a commercial vent hood unless the ventless option is selected. Always verify local codes.

Need a different configuration or quantity? Our product specialists are ready to help. Full spec & warranty details ›

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Height

64.0in

Width

38.0in

Depth

43.5in

Shipping Weight

1180.0lbs

Specifications

Platinum Double Convection Oven, Electric 7.5kW each, Bakery Depth, Touch Controls, Dependent Doors
