Southbend (Middleby)  |  Platinum  |  SKU: PCE15B/SI-V

Southbend (Middleby) PCE15B/SI-V Platinum Convection Ovens

$17,718.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
Convection Ovens Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

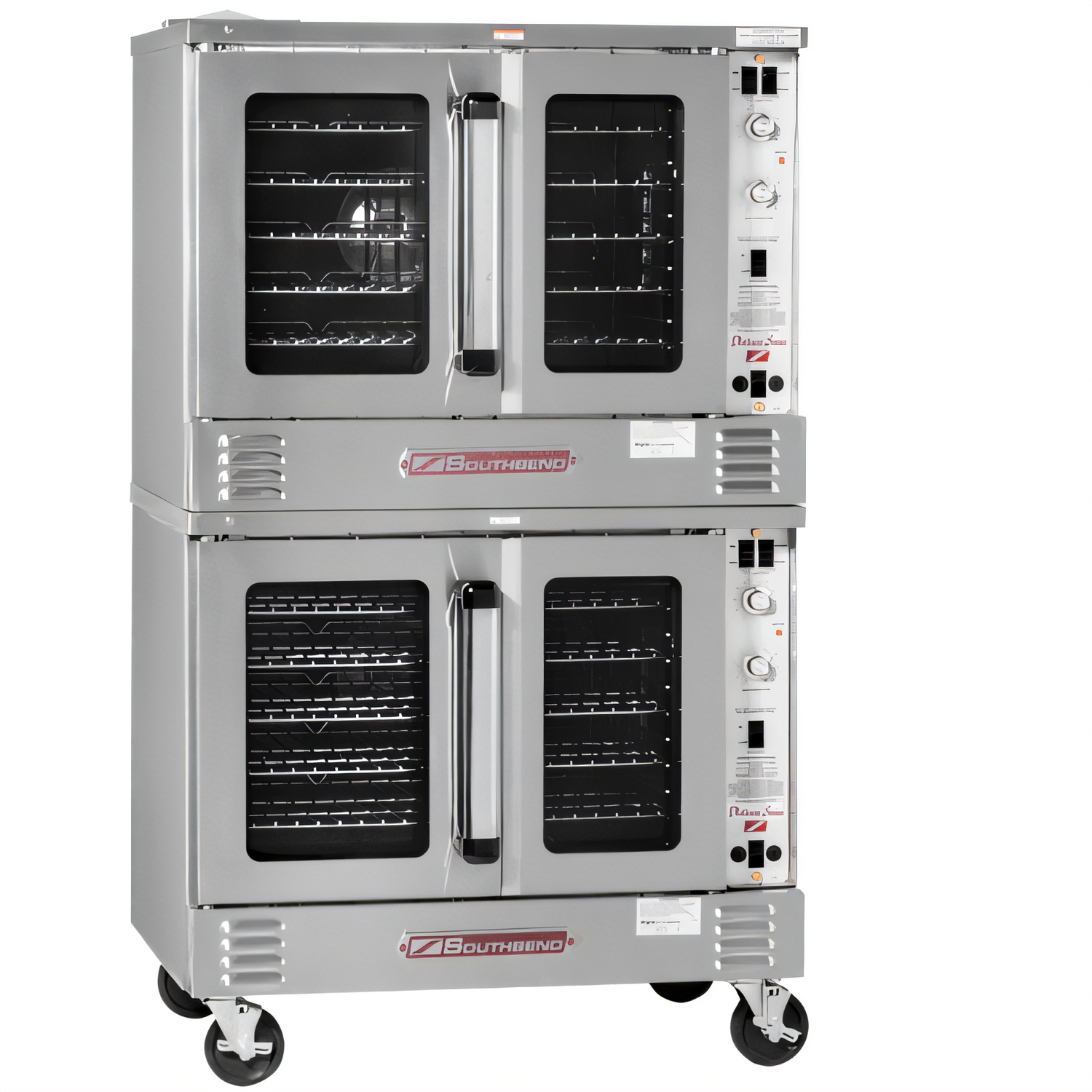

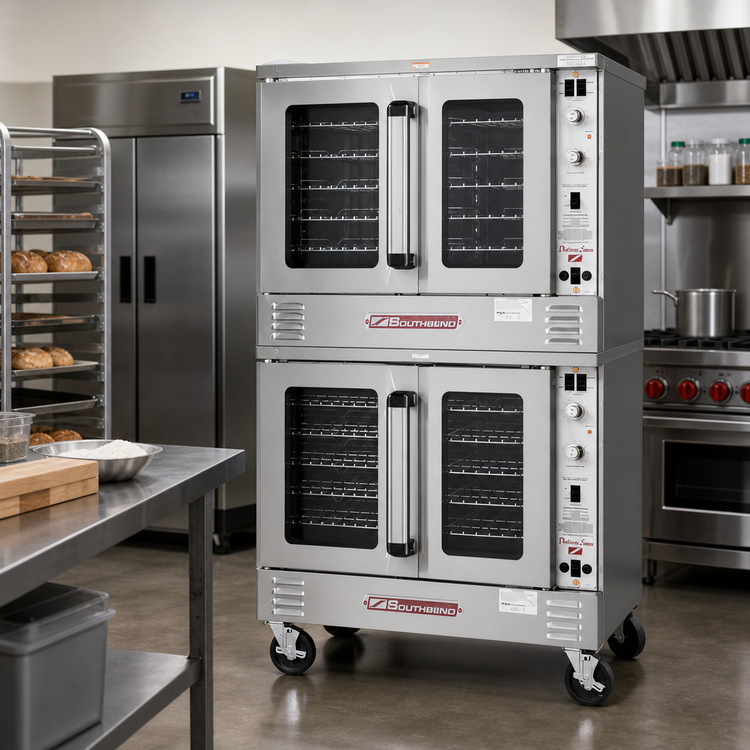

Southbend Platinum Series Double Convection Oven

Electric • 7.5 kW per deck • Bakery-depth • Ventless • Independent doors

Take your bake anywhere—no hood required! Southbend’s ventless Platinum Series double convection oven delivers full bakery-depth capacity, energy-efficient performance and service-friendly design in a compact 64.8″-tall footprint. Whether you’re finishing pastries, roasting proteins or holding sides, the Platinum makes consistent, even results effortless.

Built for busy kitchens

  • Powerful 7.5 kW (15 kW total) sheath elements per deck—rapid recovery and even heat.
  • True bakery depth (29″) fits full-size 18 × 26″ pans front-to-back.
  • Ventless internal catalyst design is UL-certified—ideal for operations without a dedicated hood.*

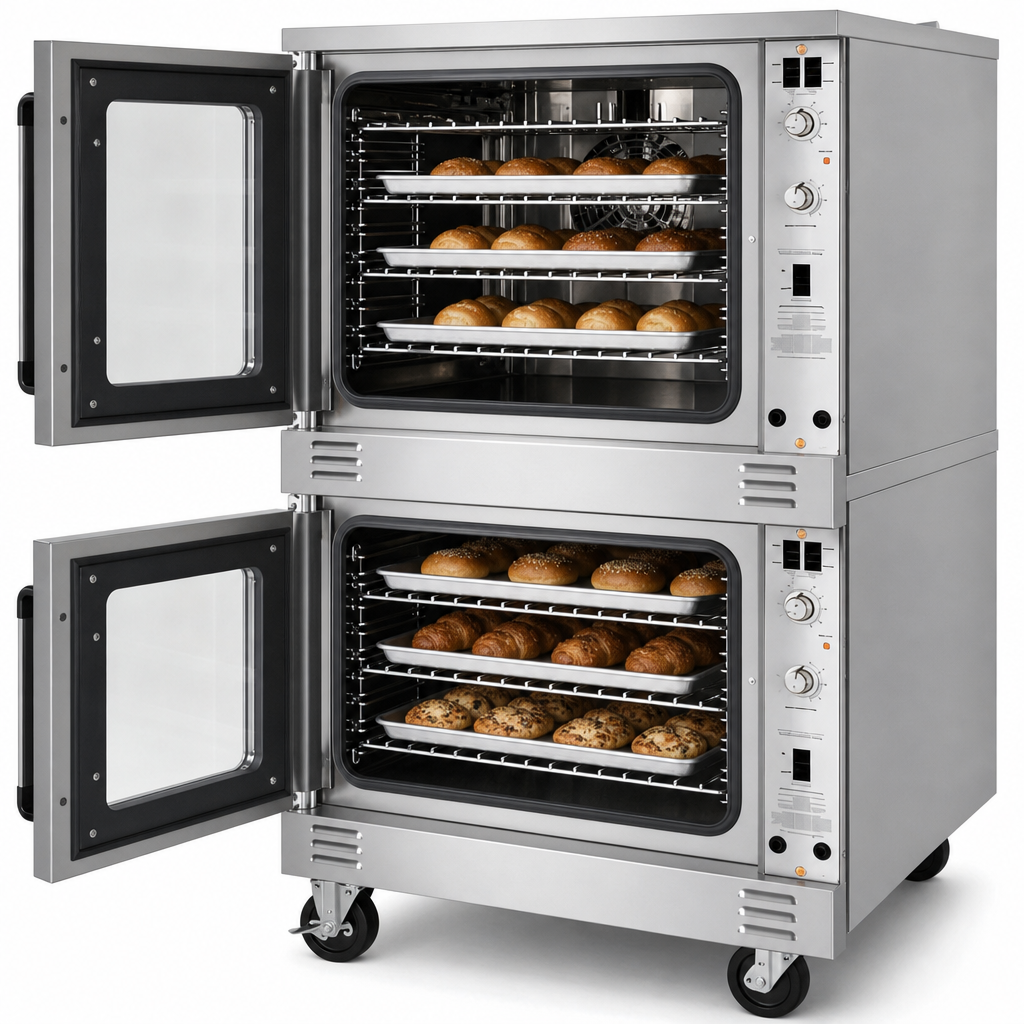

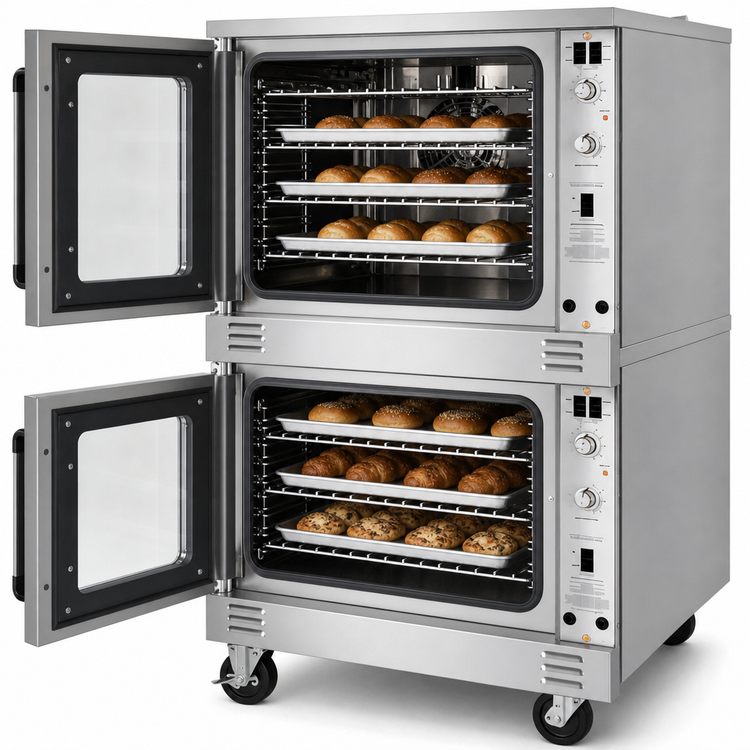

  • Independent, low-emission glass doors with dual seals lock in heat and save energy.
  • 11-position rack guides & 5 heavy-duty racks per deck maximize production flexibility.
  • Two-speed ½ hp fan “scrubs” heat across product for unmatched evenness; forced cool-down mode speeds turns.
  • Slide-out, “plug-in/plug-out” control panel and front-mounted components simplify service.
  • Coved, fastener-free porcelain enamel interior wipes clean in seconds.
  • Full stainless steel front, sides, top & legs stand up to commercial abuse.

Standard controls (SC)

  • Solid-state thermostat: 140 °F – 500 °F
  • 60-minute mechanical timer with continuous-cook override
  • Indicator lights for heat & fan

Specifications

Model Platinum PCEB-DOUBLE (ventless, bakery-depth, independent doors)
Decks / Capacity 2 decks • 5 full-size pans per deck
Heat source Electric, 7.5 kW per deck (15 kW total)
Voltage options 208 V, 240 V, 380 V, 415 V or 480 V • 1- or 3-phase
(add 4.3 A for control circuit)
Amps @ 208 V 36.1 A (1-ph) • 20.9 A/leg (3-ph)
Exterior (W × D × H) 43.5″ × 36.5″ × 64.8″ (1105 × 927 × 1646 mm)
Interior (per deck) 29″ W × 29″ D × 20″ H (737 × 737 × 508 mm)
Shipping weight ≈ 1,180 lb (535 kg)
Clearances 0″ front & right • 2″ back & left (combustible)
Certifications UL, cUL, NSF; ventless catalyst UL-listed
Warranty 1-year parts & labor (commercial use)

Popular factory options

  • 4″ or 6″ locking swivel casters
  • Touchscreen controls with recipe & rack modes
  • Stainless steel solid doors
  • Marine edge top or rear flue diverter
  • Export crating
Ventless installation: Always verify local code compliance before ordering. No external hood is required when the unit is operated with the factory-installed catalyst and within specification.

*Performance data is based on factory-approved testing. Specifications subject to change without notice. For complete installation guidelines, electrical requirements and service information, refer to the official Southbend manual or contact our team.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Height

64.0in

Width

38.0in

Depth

43.5in

Shipping Weight

1180.0lbs

Specifications

Platinum Double Convection Oven, Electric 7.5kW each, Bakery Depth, Standard Controls, Independent Doors, Ventless
