Southbend (Middleby) PCE15B/SI Platinum Convection Ovens
Description

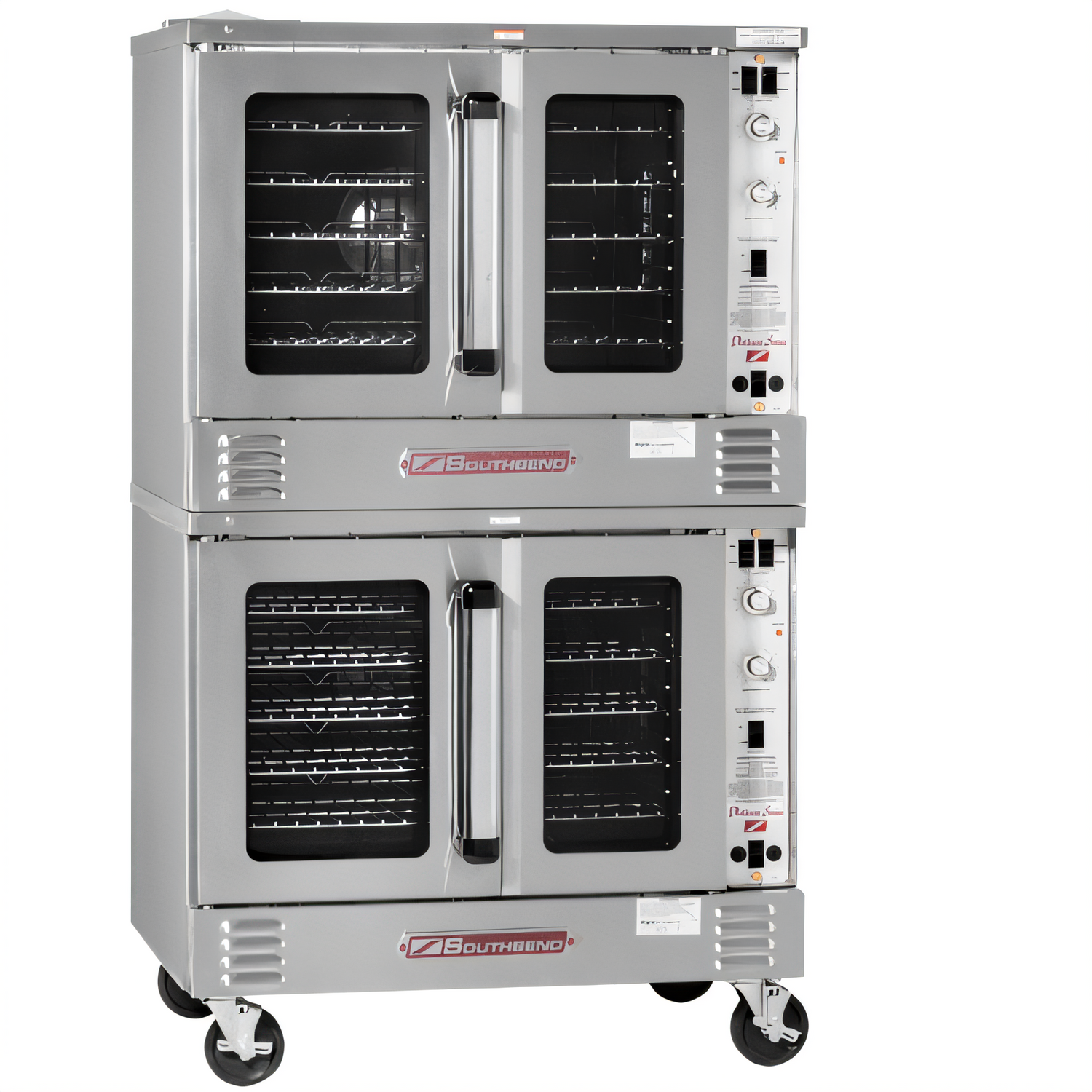

Platinum Series Double Bakery-Depth Electric Convection Oven
7.5 kW per deck | Standard Controls | Independent DoorsBuilt for high-volume bakeries, restaurants and institutions, the Southbend Platinum PCE15B/S-ID packs two full-size, bakery-depth cavities into a single, service-friendly footprint. 7.5 kW heating elements, a powerful two-speed fan and precision solid-state controls give you the consistency you need batch after batch—while rugged stainless construction and a patented slide-out control panel keep downtime to a minimum.
Key Features

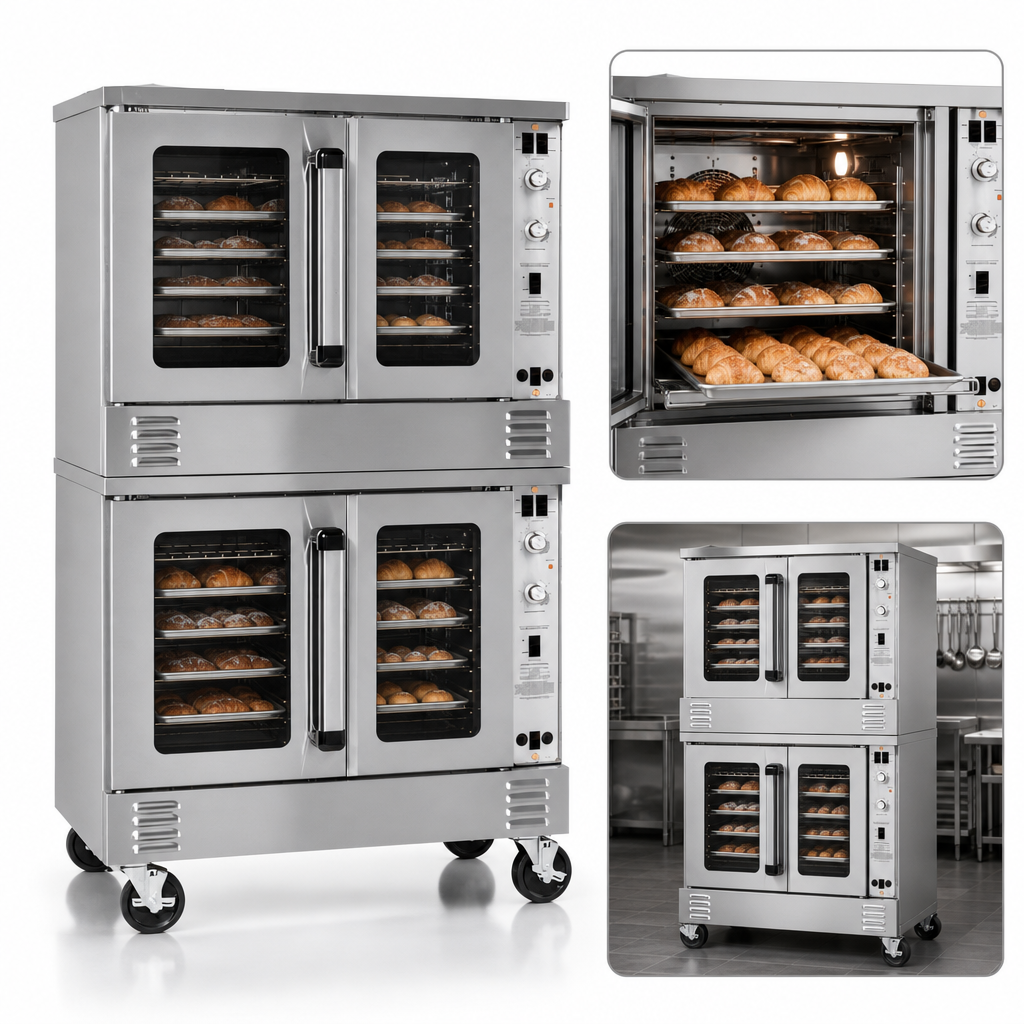

- Double-deck, bakery-depth design accepts full-size sheet pans front-to-back.

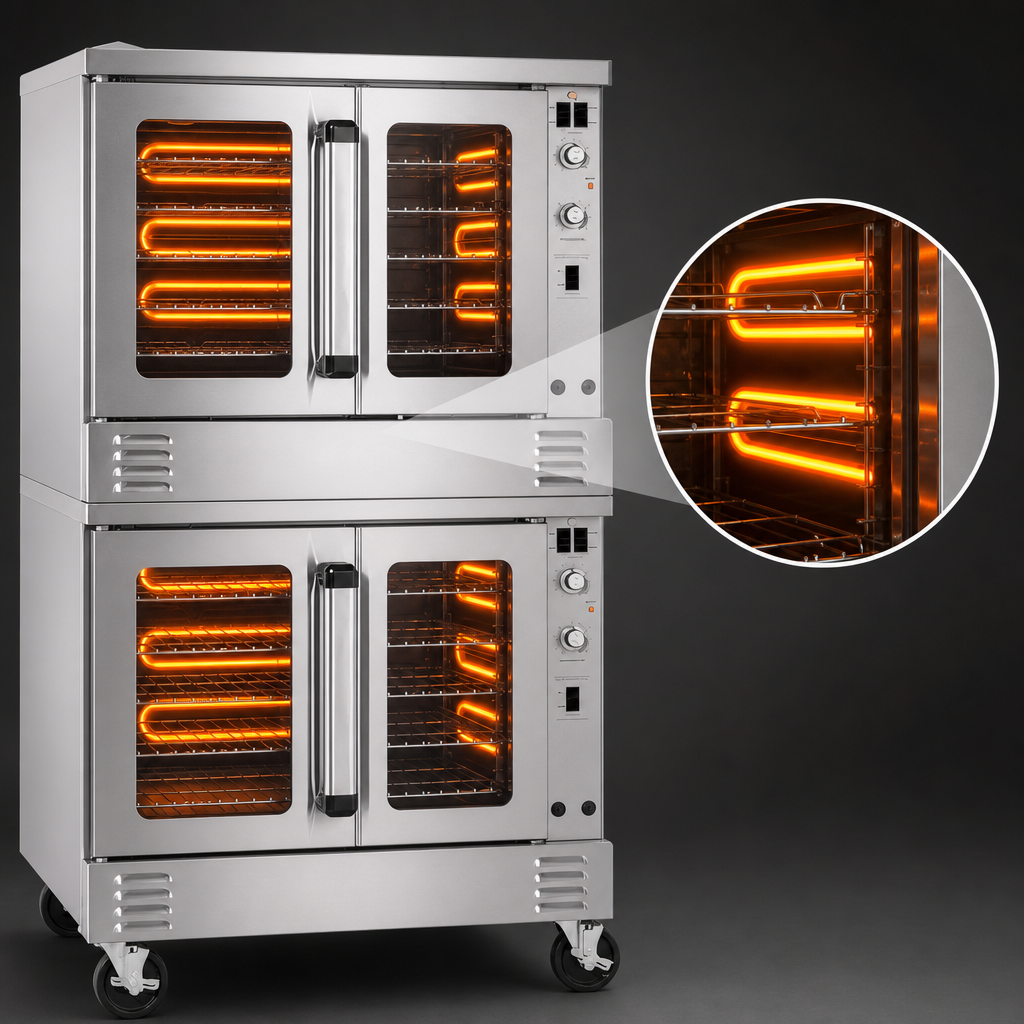

- High-efficiency 7.5 kW heating elements per deck for quick recovery and even baking.
- Independent, low-emissivity glass doors open a full 180°; stay-cool handles ensure operator safety.
- SC Standard Controls: 140 – 500 °F solid-state thermostat with 60-minute mechanical timer.
- ½ hp, two-speed fan motor with forced cool-down mode to speed turn-around.
- 11 rack positions & 5 plated racks per cavity—perfect for varied production schedules.
- Porcelain-enamel, coved interiors are fastener-free for effortless clean-up.
- Patented “plug-in, plug-out” slide-out control panel allows full-view servicing in seconds.
- All-stainless front, sides, top and 6" legs stand up to the rigors of daily commercial use.
- Optional ventless catalyst system available when a traditional hood isn’t.
At-a-Glance Specifications
| Series / Model | Platinum – PCE15B/S-ID |
|---|---|
| Configuration | Double deck, bakery-depth |
| Heat Source | Electric, 7.5 kW tubular element per deck |
| Controls | SC Standard: 140 – 500 °F thermostat & 60-min timer |
| Oven Interior (each deck) | 29" W × 29" D × 20" H (737 × 737 × 508 mm) |
| Overall Dimensions | 43.5" W × 36.5" D × 64.8" H (1105 × 927 × 1646 mm) |
| Rack Capacity | 11 positions – 5 racks supplied per deck |
| Electrical (7.5 kW) | 208/240 V, 1 or 3 ph, 50/60 Hz (field-specify) |
| Amp Draw @ 240 V | 1-ph 31.3 A | 3-ph 18.1 A/leg |
| Shipping Weight | ≈ 1,180 lb (535 kg) |
| Warranty | 1-year parts & labor, limited |
Why Bakers Choose Platinum
- Even Bake Promise: Two-speed fan and coved corners eliminate hot spots.
- Energy Smart: Dual door seals and insulated cabinet cut utility costs.
- Service-Ready: 17" slide-out control panel keeps technicians out of the heat zone.
- Scalable: Touchscreen, 11 kW and ventless versions available in the same footprint.
Southbend equipment is intended for commercial use only.
