Southbend (Middleby)  |  Platinum  |  SKU: PCE15B/SD-V

Southbend (Middleby) PCE15B/SD-V Platinum Convection Ovens

$16,734.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
Convection Ovens Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

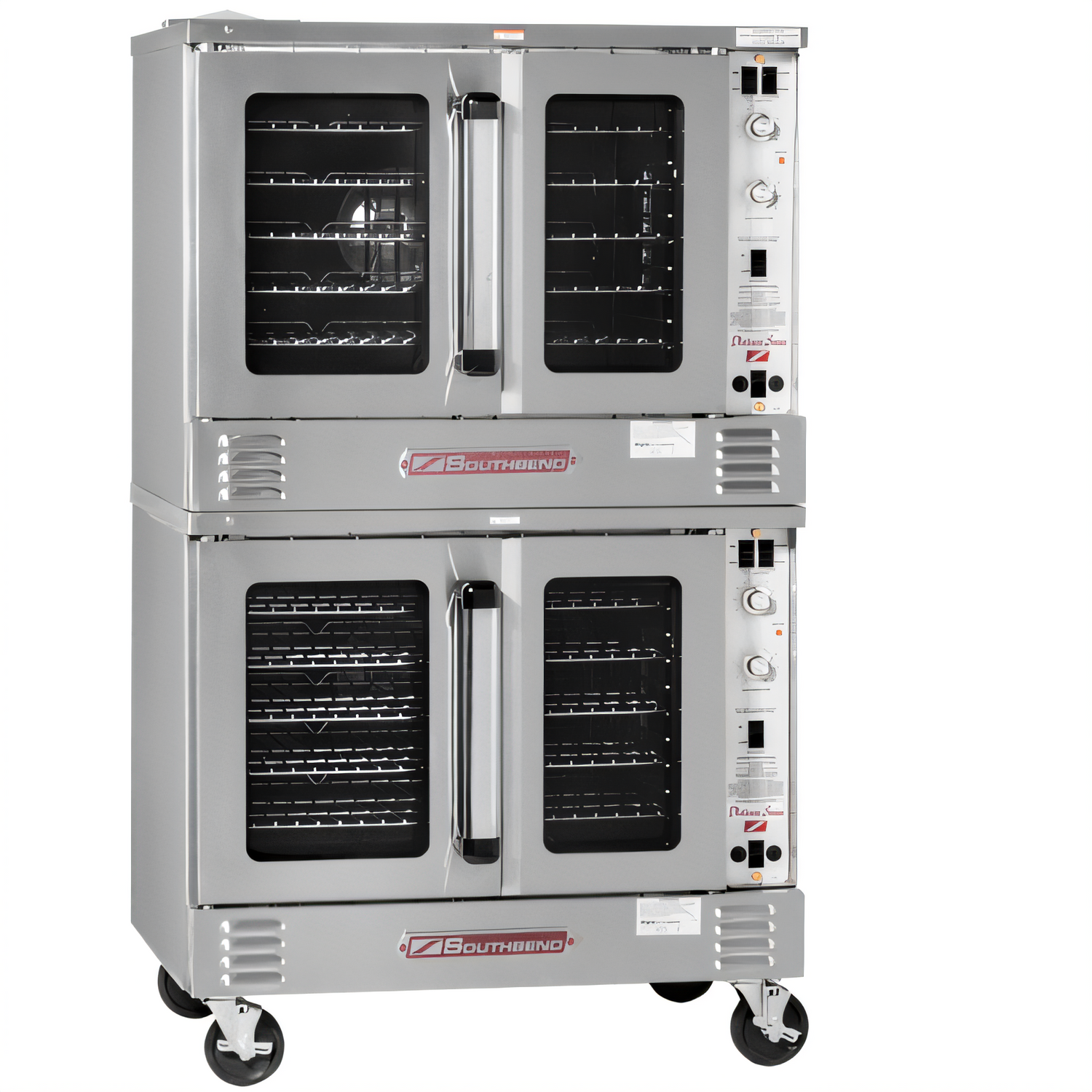

Southbend Platinum Series Ventless Double Convection Oven – Bakery Depth, Electric, 7.5 kW/Deck

Model PCE15B/S • Standard Controls

Take your bake anywhere—even where a traditional hood can’t go. The Southbend Platinum Series ventless double-deck convection oven packs bakery-depth capacity, Platinum-grade durability, and service-friendly engineering into a single powerhouse that’s ready for cafés, restaurants, schools, and ghost kitchens alike.

Key features

  • UL-certified ventless catalytic system eliminates the need for a Type I hood*
  • 7.5 kW high-efficiency elements per deck for rapid recovery and even heat
  • Bakery-depth cavity (29 × 29 in) fits full-size sheet pans in either direction
  • Standard (SC) controls: 140–500 °F solid-state thermostat & 60-minute timer
  • Two-speed ½ HP fan with forced cool-down mode for quick turn-arounds
  • Dependent, low-E glass doors open a full 180° with stay-cool handles
  • Coved, fastener-free porcelain interior for effortless wipe-down cleaning
  • Patented slide-out, plug-in/plug-out control panel for front-access service
  • 11 rack positions & 5 nickel-plated racks included per oven
  • Stainless-steel front, sides & top mounted on 6 in adjustable legs
  • Bright interior lighting and dual door-seal system to lock in heat
  • 1-year parts & labor warranty backed by Southbend’s nationwide network

Specifications

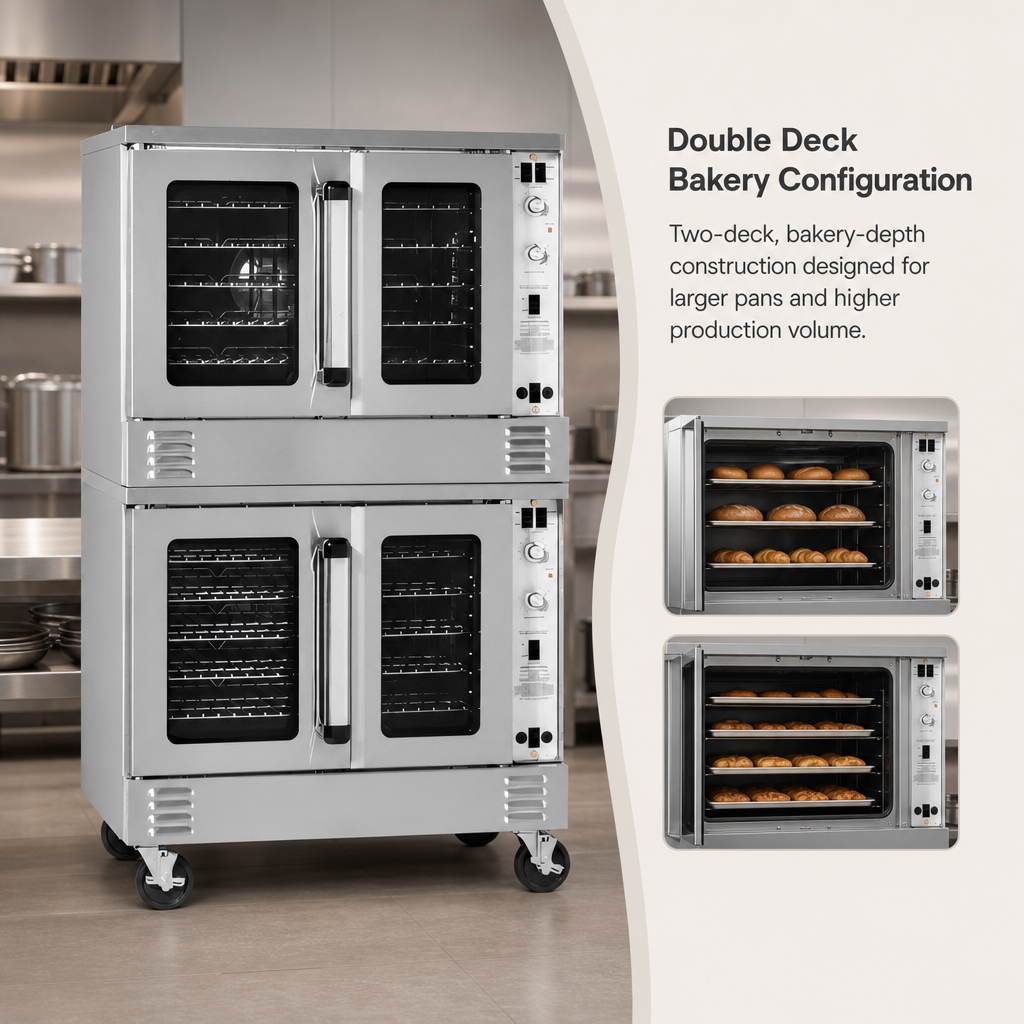

Oven configuration Double deck, bakery depth
Heating elements 7.5 kW per deck (15 kW total)

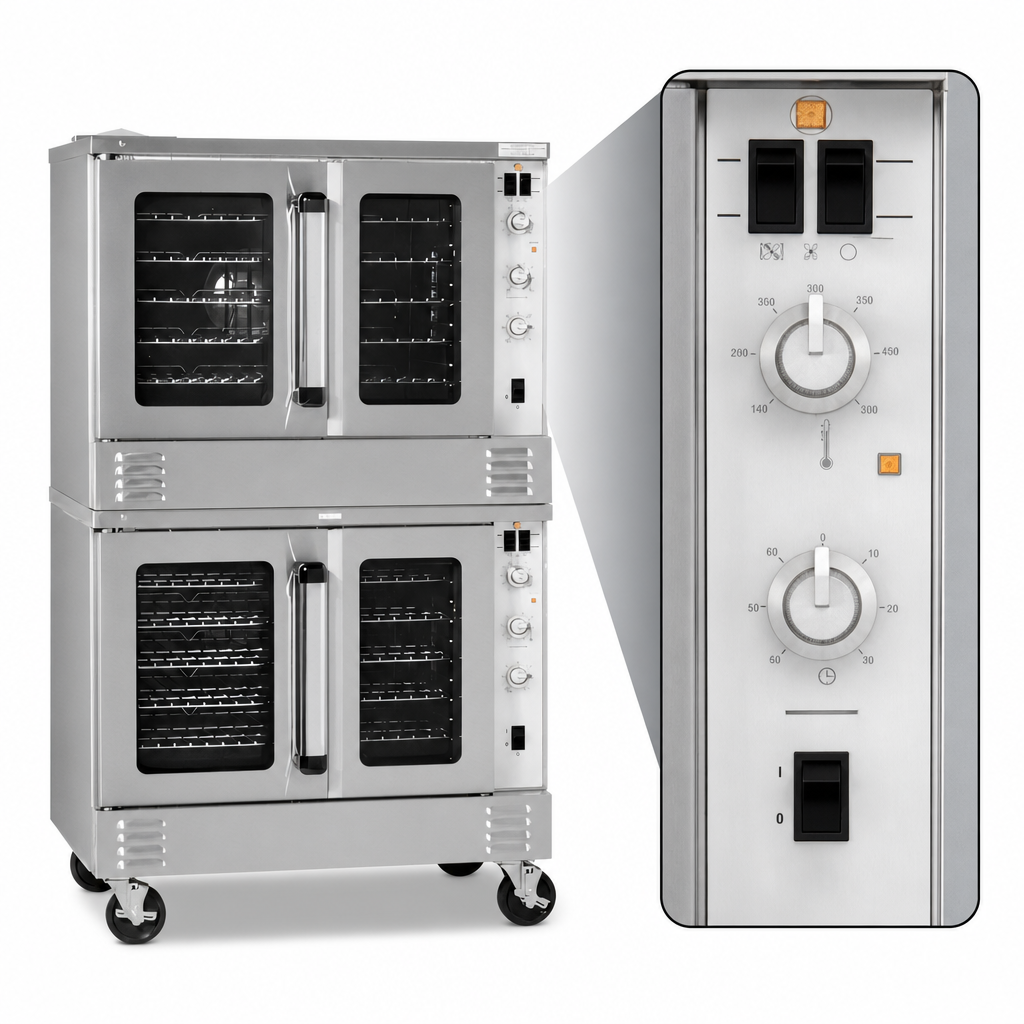

Controls Standard solid-state thermostat 140–500 °F with 60-min timer
Fan motor ½ HP, two speed 1,710 / 1,120 RPM
Interior (each cavity) 29 in W × 29 in D × 20 in H • Coved porcelain enamel
Rack guides / racks 11 positions • 5 racks included
Exterior dimensions 43.5 in W × 36.5 in D × 64.8 in H
Shipping weight 1,180 lb / 535 kg
Electrical (select one) 208 V / 60 Hz: 36.1 A 1-phase | 20.9 A per line 3-phase
240 V / 60 Hz: 31.3 A 1-phase | 18.1 A per line 3-phase
480 V / 60 Hz: 15.7 A 1-phase | 9.1 A per line 3-phase
Clearances 0 in front/right • 2 in rear/left from combustibles
Ventilation Ventless—hood not required*

Popular options & accessories

  • 4 in or 6 in locking casters
  • Stainless-steel solid doors or rear jacket
  • Marine-edge top or 2-in insulated end panels
  • Export crating

*Always verify local code requirements before selecting the ventless option.

Important: This equipment is intended for commercial use only and must be installed by a qualified electrician. Specify voltage, phase, and any optional accessories at the time of order.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Height

64.0in

Width

38.0in

Depth

43.5in

Shipping Weight

1180.0lbs

Specifications

Platinum Double Convection Oven, Electric 7.5kW each, Bakery Depth, Standard Controls, Dependent Doors, Ventless
