Southbend (Middleby) PCE15B/SD Platinum Convection Ovens
Description

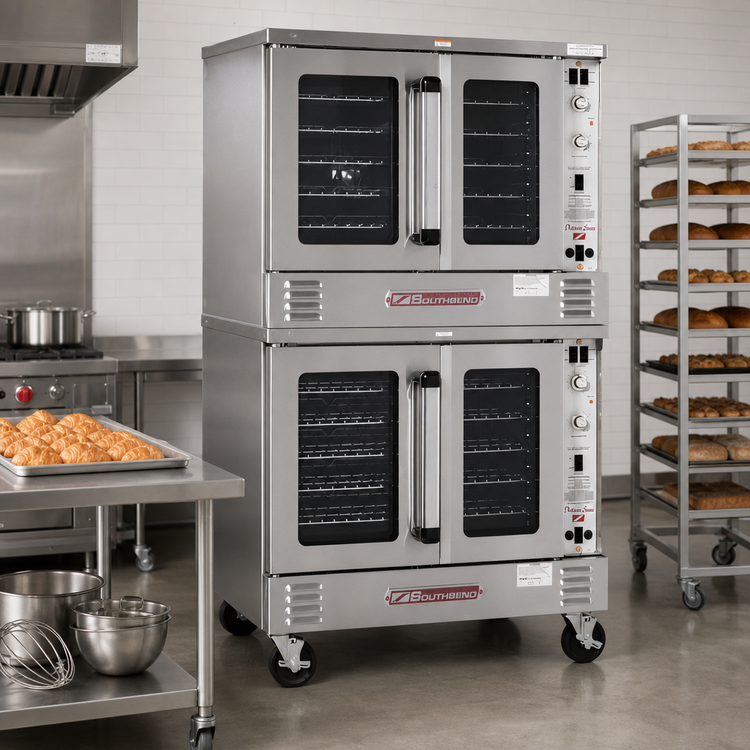

Southbend Platinum Series Double Convection Oven
Bakery-Depth • 7.5 kW/Deck • Electric • Standard Controls • Dependent DoorsEngineered for demanding bakeries, cafés and commissaries, the Platinum Series PCEB-DOUBLE (models PCE15B/S & PCE22B/S) couples Southbend’s legendary build quality with energy-efficient 7.5 kW heating elements on each deck. A space-saving 64.8 in. profile, rugged stainless exterior and fast-service “plug-in, plug-out” control module keep you baking around the clock—and off the downtime clock.
Why You’ll Love It

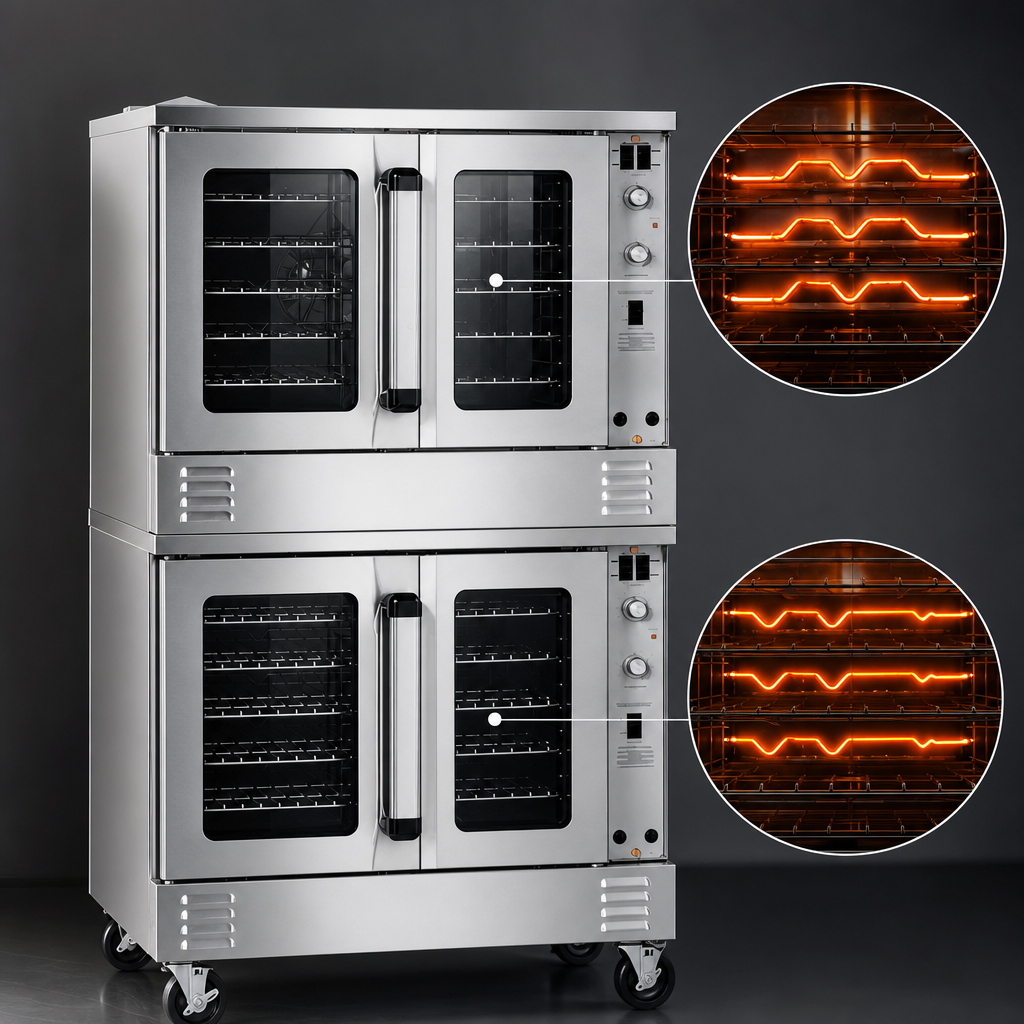

- 7.5 kW high-efficiency sheath heating elements per deck for rapid preheat & recovery.

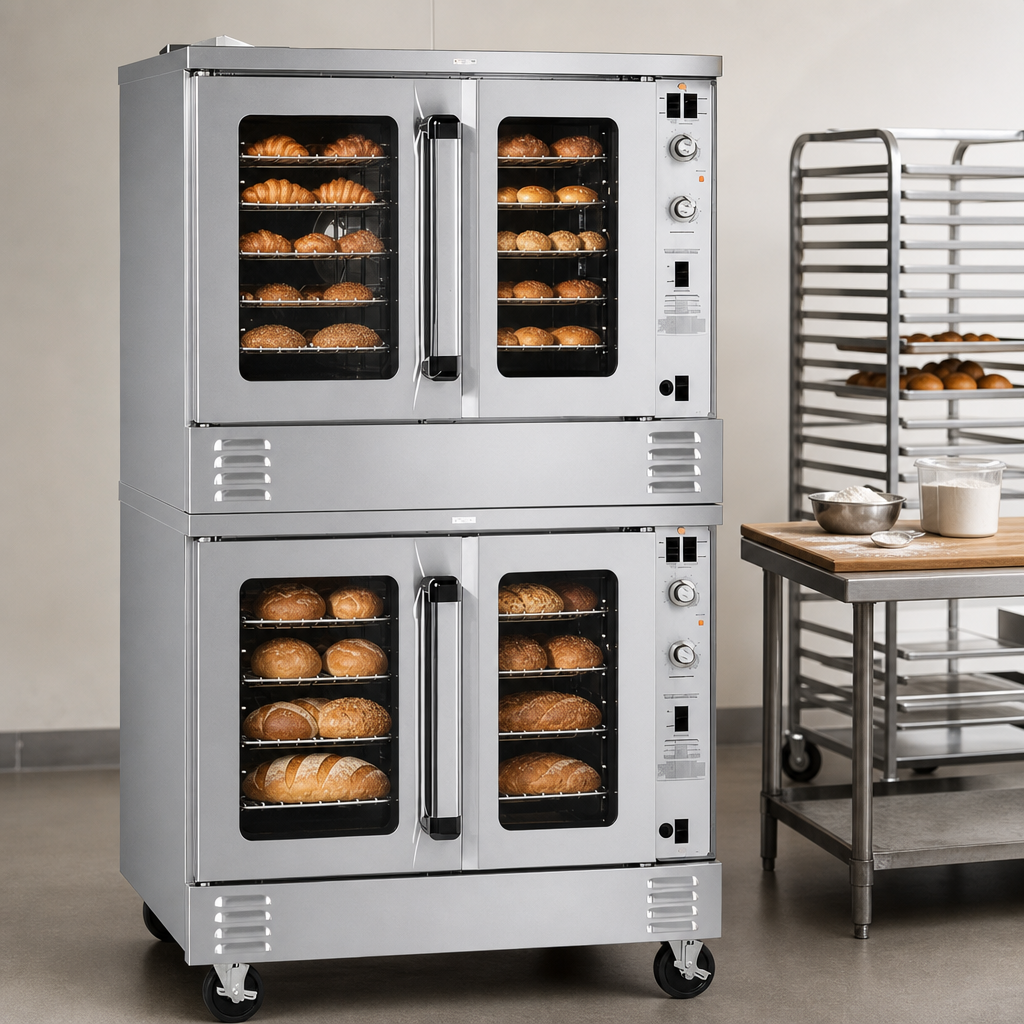

- Bakery-depth (29 in.) cavity fits full-size sheet pans either way.
- Standard (SC) controls: 140 °F–500 °F solid-state thermostat + 60-min. timer.
- 11-position rack guides & 5 heavy-duty plated racks supplied per oven.
- Two-speed, ½ HP fan motor “scrubs” heat for remarkably even bakes.
- Full 180° dependent glass doors with dual door-seal system retain heat & energy.
- Service-first design: patented slide-out, plug-out control panel extends 17 in. for full access.
- Stay-cool door handles, forced fan cool-down mode & interior lighting for safe operation.
- All-stainless front, sides & top plus coved, fastener-free porcelain interior for easy cleaning.
- Field-upgradeable to UL-certified ventless catalyst (additional cost).
At-a-Glance Specs
| Decks / Doors | Double deck • Dependent glass doors (full 180° swing) |
|---|---|
| Exterior (W × D × H) | 43.5 in. × 36.5 in. × 64.8 in. (1105 × 925 × 1645 mm) |
| Interior (each deck) | 29 in. W × 29 in. D × 20 in. H (737 × 737 × 508 mm) |
| Rack Capacity | 5 supplied • 11 possible positions |
| Heating Elements | 7.5 kW per deck (15 kW total) |
| Electrical |
208 / 240 V, 1- or 3-phase, 50/60 Hz 208 V 1 Ø: 36.1 A | 240 V 1 Ø: 31.3 A (Other voltages: 220, 380, 415, 480 V—see chart) |
| Fan Motor | ½ HP, 2-speed (1710 / 1120 RPM) |
| Shipping Weight | ≈ 1,180 lb (535 kg) |
| Warranty | 1-year parts & labor (commercial use) |
Factory Options & Accessories
- Ventless internal catalyst system (UL certified)
- 4 in. or 6 in. locking casters (replace standard 6 in. legs)
- Independent (split) doors
- Marine-edge top or stainless rear jacket
- 2 in. stainless air-insulation panel
- Solid stainless doors, export crating & more
Options must be specified at time of order and may affect lead-time and electrical ratings.
Installation Notes
- No clearance required at front or right side; maintain 2 in. at rear & left.
- Vent-hood recommended unless ventless catalyst option is chosen.
- Configured for commercial use only—check local codes for fire & sanitary compliance.
