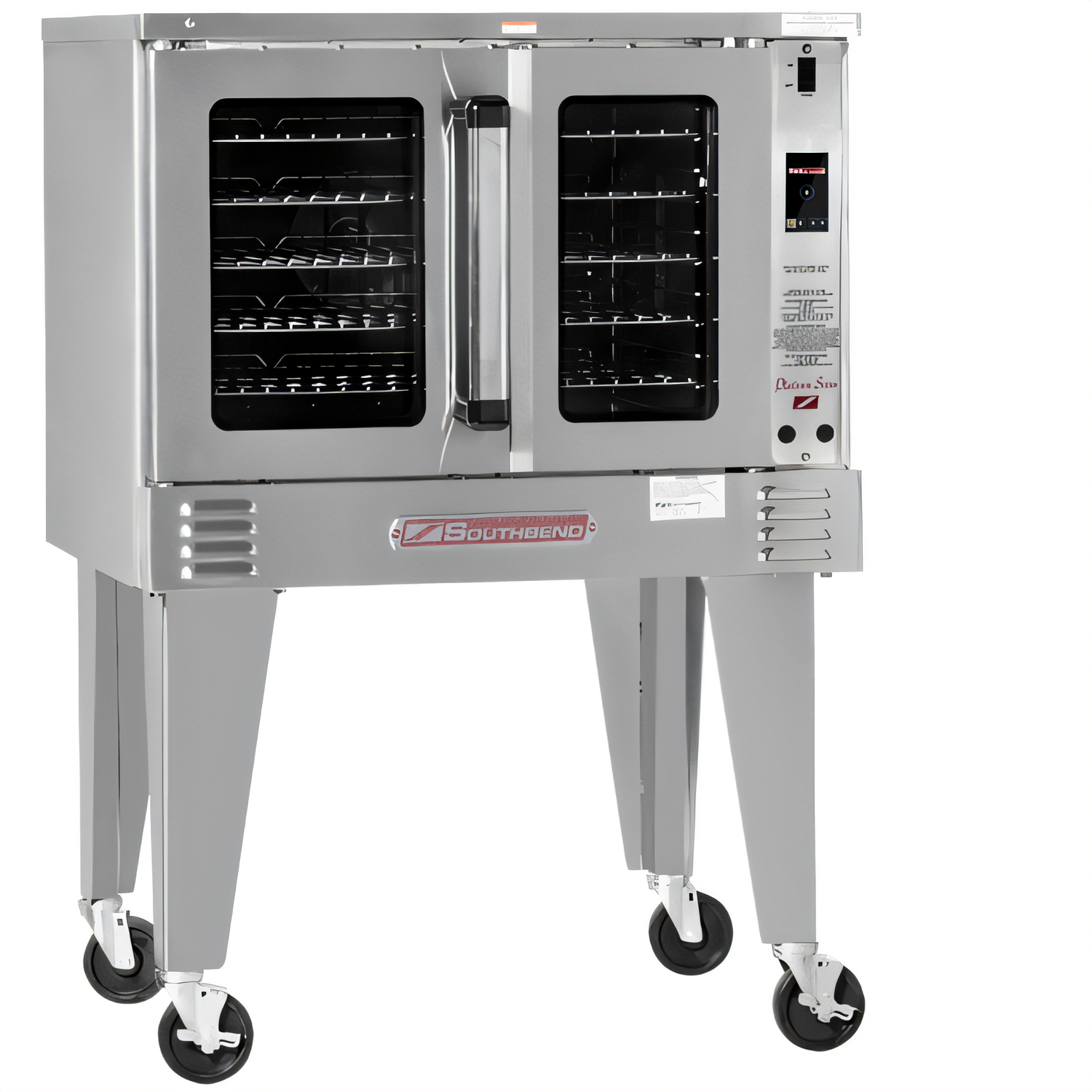

Southbend (Middleby) PCE11S/TI-V Platinum Convection Ovens
Description
Platinum Series PCE11B/T Ventless Single Convection Oven, 11 kW Electric

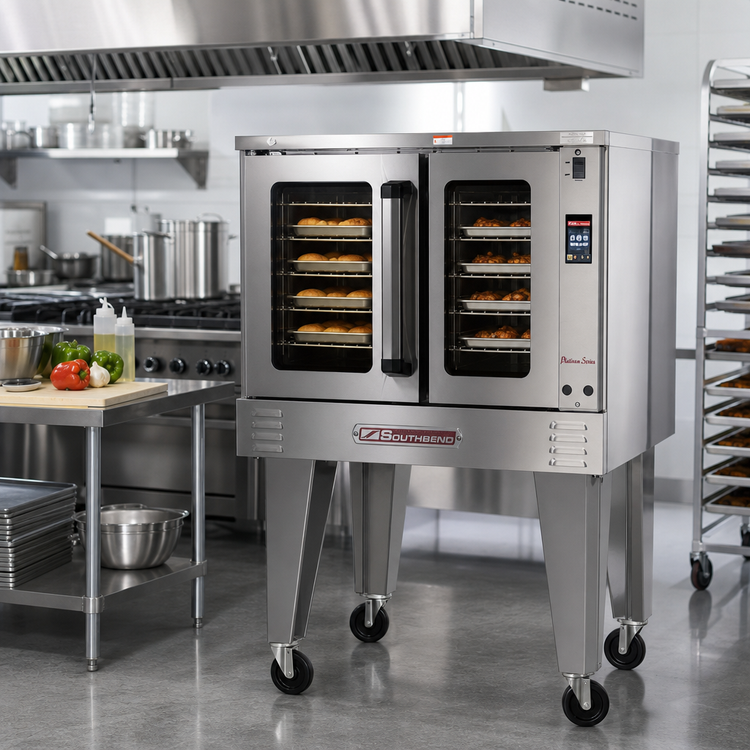

Touchscreen controls • Independent doors • Hood-free installationTake your bake anywhere. Southbend’s Platinum Series ventless oven delivers full-size performance without the need for a dedicated exhaust hood, giving bakeries, restaurants, hotels and stadiums the freedom to put fresh-baked flavor exactly where it’s needed.
Why You’ll Love It

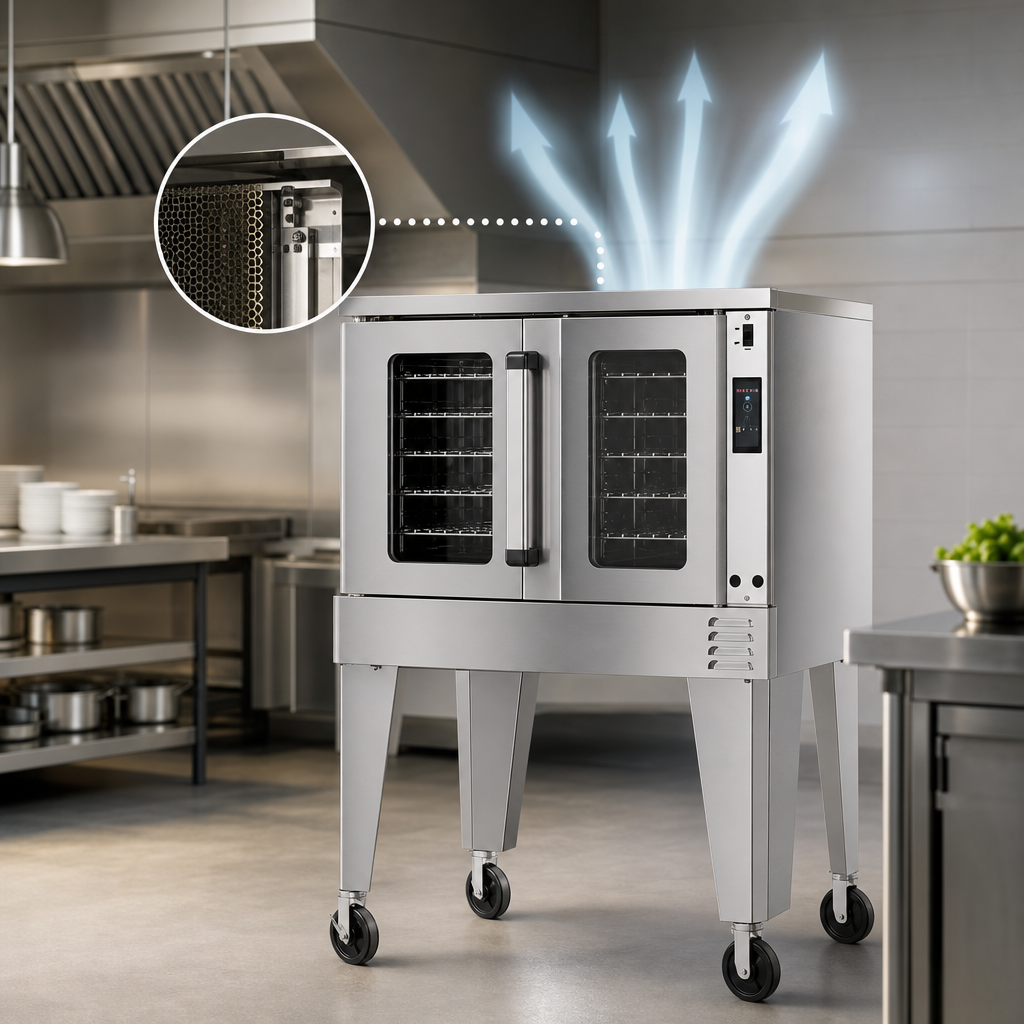

- Hood-free flexibility – UL-certified catalyst system scrubs grease & smoke so the oven can be placed virtually anywhere local codes allow.
- Powerful 11 kW heating package – high-efficiency elements and a two-speed ½ HP blower provide rapid, even heat.

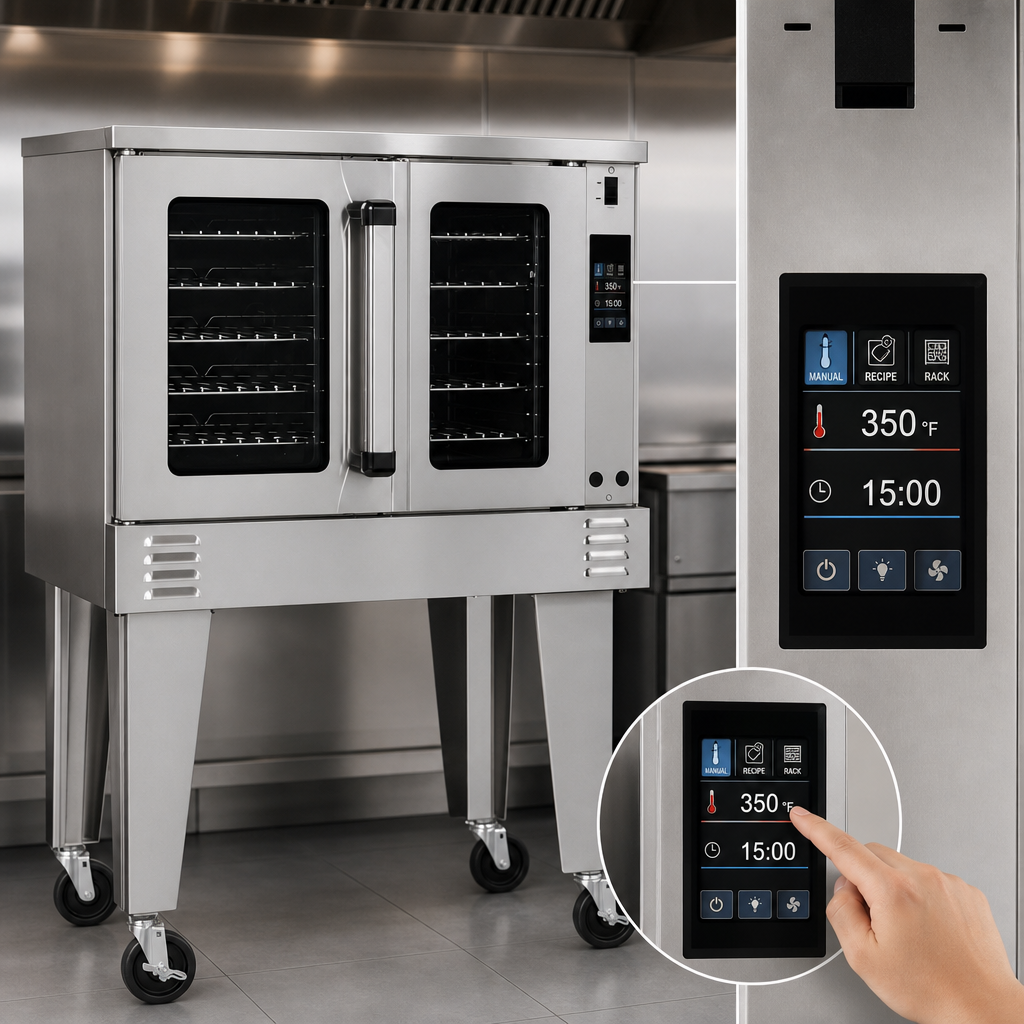

- Intuitive 7" touchscreen – set manual temps or create multi-timer recipes in Rack mode; hold food safely at 140-200 °F.
- Independent, 180 ° glass doors – open one side without dropping cavity temperature; dual seals lock heat in.
- Service made simple – patented “plug-in, plug-out” control panel slides out 17" for full-view access.
- Rugged stainless construction – front, sides & top resist dents and daily cleaning chemicals.
- 11-position guides & 5 plated racks handle sheet pans, hotel pans or GN pans with 1-5/8" spacing.
- Forced cool-down mode speeds turnover between batches.
- One-year parts & labor warranty backed by Southbend’s nationwide service network.
Specifications
| Model | PCE11B/T (Single deck) |
|---|---|
| Capacity | 5 full-size sheet pans / 11 rack positions |
| Heat Source | Electric, 11 kW total (rear-mounted elements) |
| Voltage Options | 208, 240, 380, 415 or 480 VAC • 1- or 3-phase (see electrical chart) |
| Temperature Range | 150-550 °F bake • 140-200 °F hold |
| Fan Motor | ½ HP, 2-speed (1710 / 1120 RPM) with fan pulse timer |
| Interior Dimensions | 29" W × 29" D × 20" H (737 × 737 × 508 mm) |
| Overall Dimensions* | 43.5" W × 36.5" D × 55" H on 26" legs *Height shown with legs; optional 4" or 6" casters available |
| Construction | Stainless steel exterior, coved porcelain enamel interior |
| Shipping Weight | ≈ 680 lb (308 kg) |
| Certifications | UL (ventless), UL-EPH, NSF |
Popular Factory Options
- 4" or 6" heavy-duty casters
- Stainless steel solid doors
- Marine-edge stainless top
- Stainless rear jacket or dirt tray
Includes Southbend’s limited one-year parts & labor warranty. For complete terms visit the Southbend Service & Parts portal.
