Southbend (Middleby) PCE11S/TI Platinum Convection Ovens
Description
Platinum Series Single-Deck Electric Convection Oven
11 kW • Touchscreen Controls • Independent Glass Doors | Model PCE11B/TBuilt to keep pace with the busiest bakeshops, the Southbend Platinum PCE11B/T delivers powerful, even heat, intuitive touchscreen control, and the rugged reliability demanded in a true commercial kitchen.
Top Features

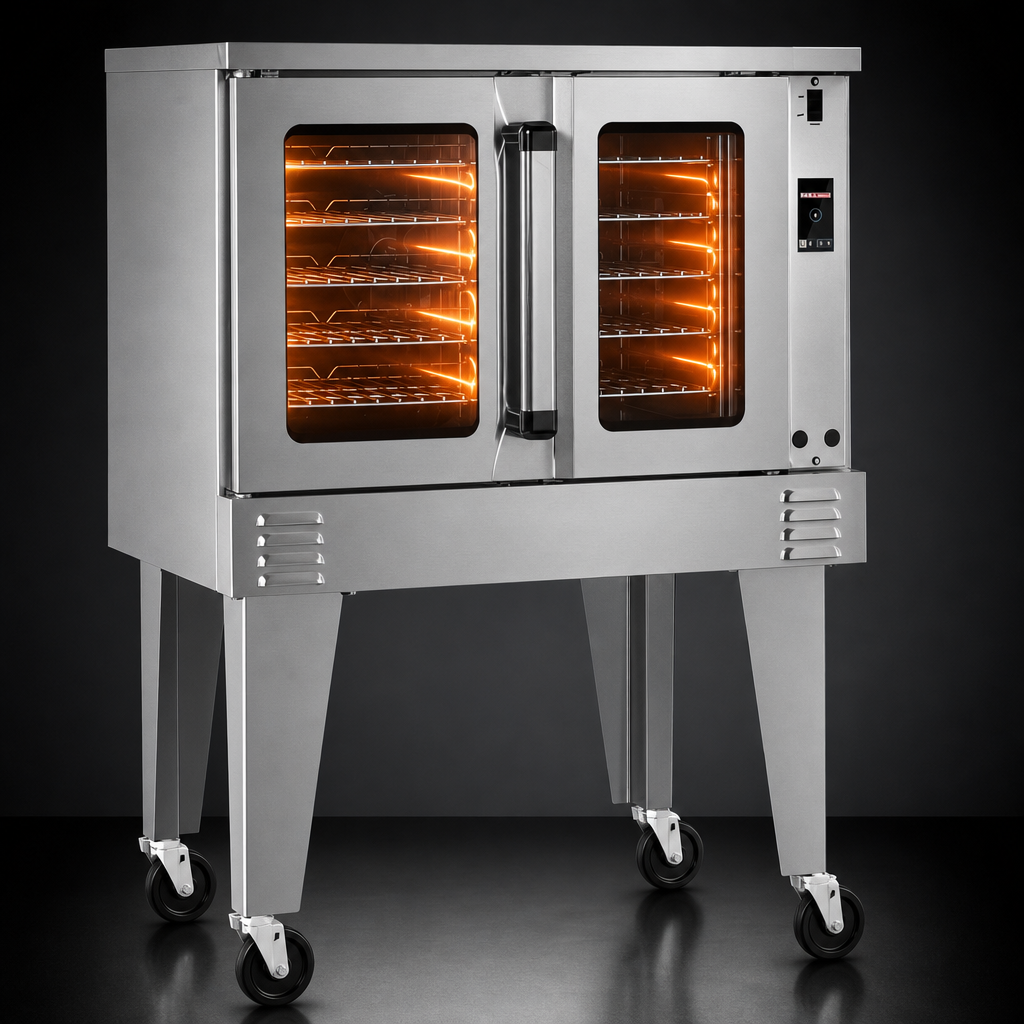

- 11 kW high-efficiency elements reach set temps fast and recover instantly between batches.

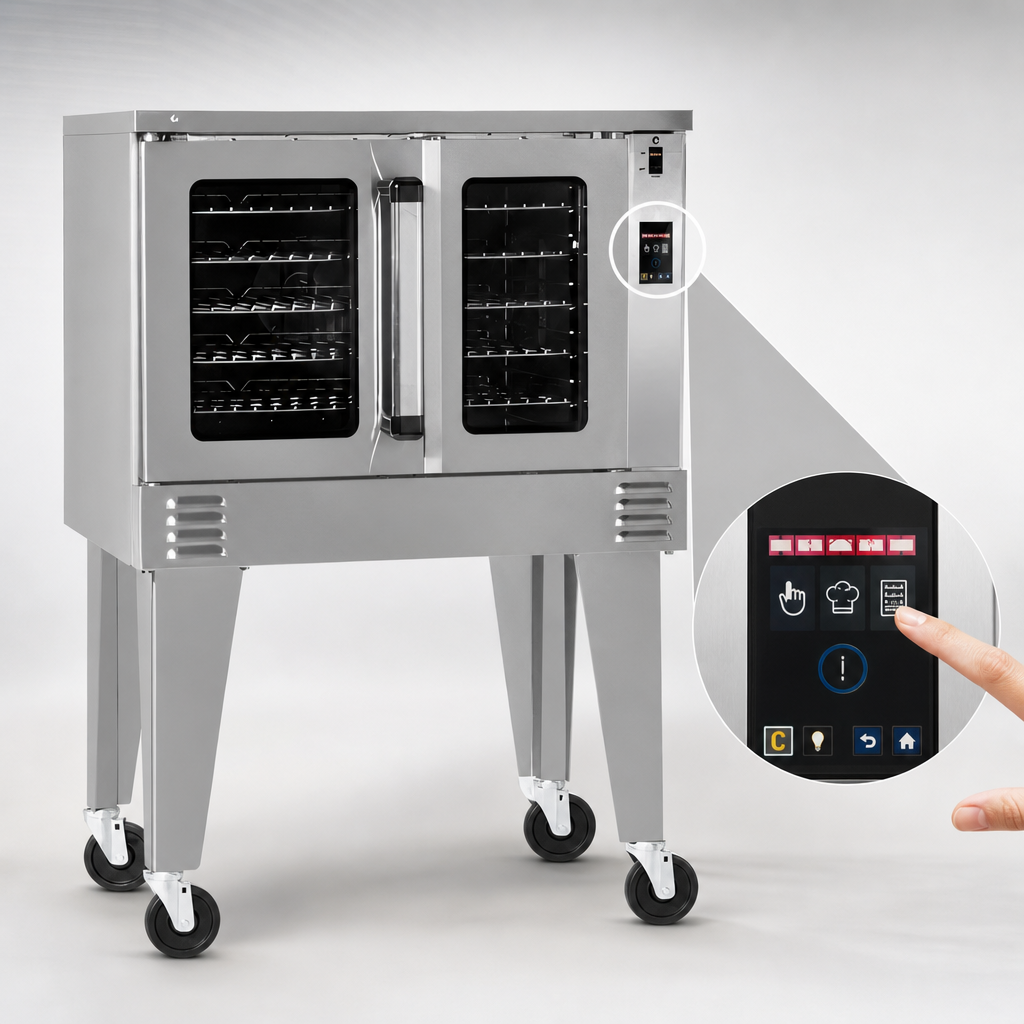

- Full-color touchscreen offers Manual, Recipe, and Rack modes, 150 °F-550 °F cooking range, plus 140 °F-200 °F “Hold.”
- Independent, low-emission glass doors open 180° and seal tight for maximum heat retention.
- Patented plug-in / plug-out control panel slides out 17″ for quick, front-side service access.
- 1/2 HP two-speed fan (1710 / 1120 RPM) with programmable pulse for gentle or high-velocity airflow.
- Coved, fastener-free porcelain interior wipes clean with no hidden debris traps.
- 11-position rack guides & 5 chrome-plated racks accommodate full-size sheet pans.
- Forced cool-down mode, dual interior lights, stay-cool door handles, and manual high-limit safety.
- Stainless steel front, sides & top, plus 26″ triangular legs for rock-solid stability.
- cULus & NSF listed; vent-less catalytic hood option available for sites without traditional ventilation.
Specifications
| Capacity | Single deck, 5 full-size (18″ × 26″) sheet pans on included racks |
|---|---|
| Heat Source | Sheath-type electric elements, 11 kW total |
| Control Type | TC Touchscreen – manual, recipe & rack modes, fan pulse, cook & hold |
| Temperature Range | 150 °F – 550 °F (hold 140 °F – 200 °F) |
| Fan | ½ HP, 2-speed (1710 / 1120 RPM) |
| Oven Interior (W × D × H) | 29″ × 29″ × 20″ (737 × 737 × 508 mm) |
| Exterior Dimensions (W × D × H) | 43.5″ × 36.5″ × 55″* (1105 × 927 × 1397 mm) *height on 26″ legs |
| Electrical | 208, 240, 380, 415 or 480 VAC, 1- or 3-phase (see amp draw chart) |
| Shipping Weight | Approx. 680 lb (313 kg) |
| Clearances | 0″ front & right, 2″ left & rear (from combustibles) |
| Warranty | 1 year limited parts & labor |
Popular Options & Accessories
- Ventless internal catalyst system (UL certified)
- 4″ or 6″ locking casters in lieu of legs
- Marine-edge top or stainless bottom
- Stainless solid doors, rear jacket, or dirt tray
- Export crating & 2″ insulation panels
Intended for commercial use only. Always verify available voltage & phase before ordering. Install under a vented hood unless the ventless option is selected and permitted by local code.
