Southbend (Middleby) PCE11S/TD-V Platinum Convection Ovens
Description

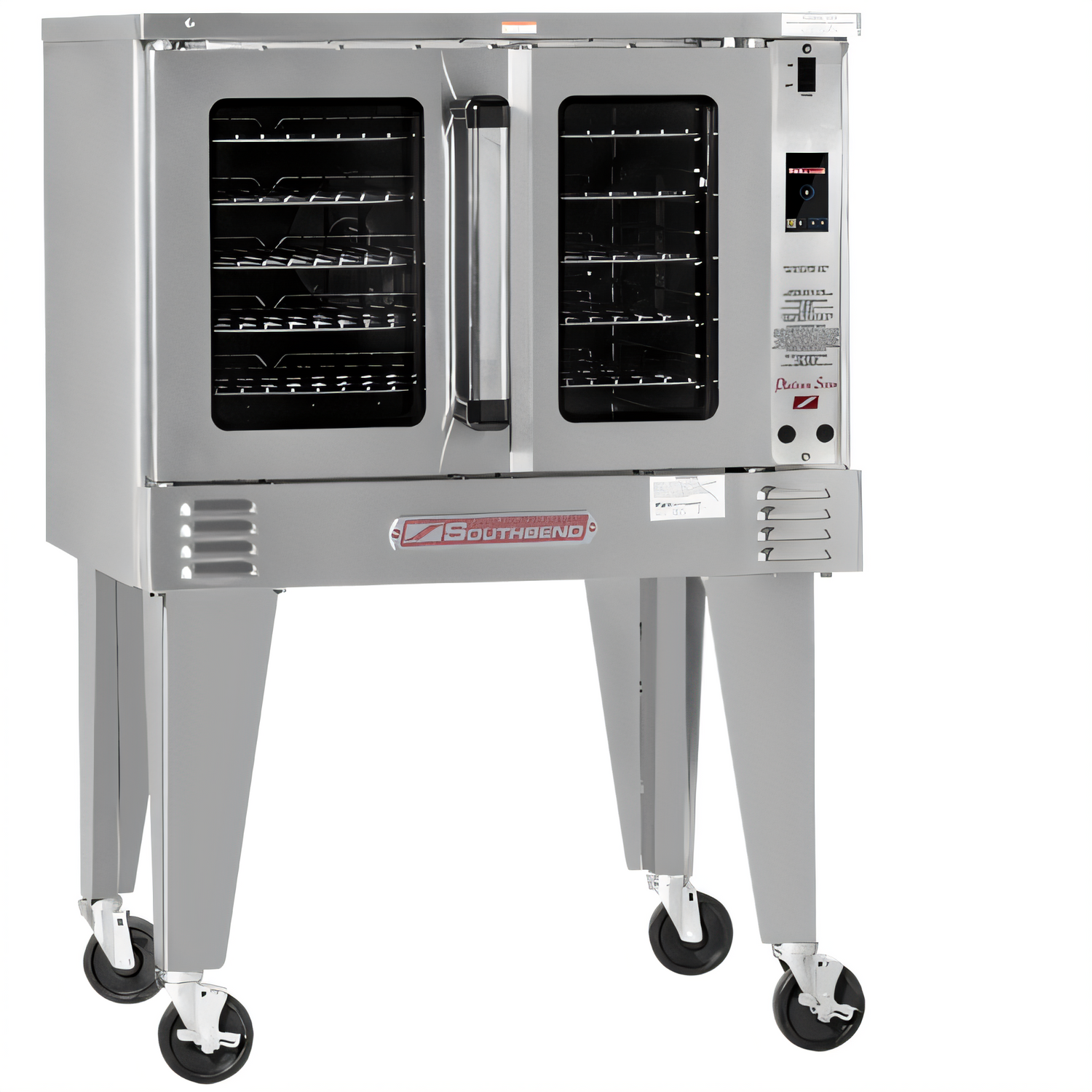

Southbend Platinum Series Single-Deck Convection Oven – Ventless, 11 kW, Touchscreen
Model PCE11B/T-V | Standard-Depth Electric Oven with Dependent Glass DoorsTake your bake anywhere—no hood required! The Southbend Platinum ventless convection oven couples a catalytic-converter exhaust system with a powerful 11 kW heat package and intuitive touchscreen controls, giving you production-level performance in a compact 55″-tall footprint.
Key Features
- Ventless internal catalyst (UL certified) eliminates the need for a Type I hood in most locations*

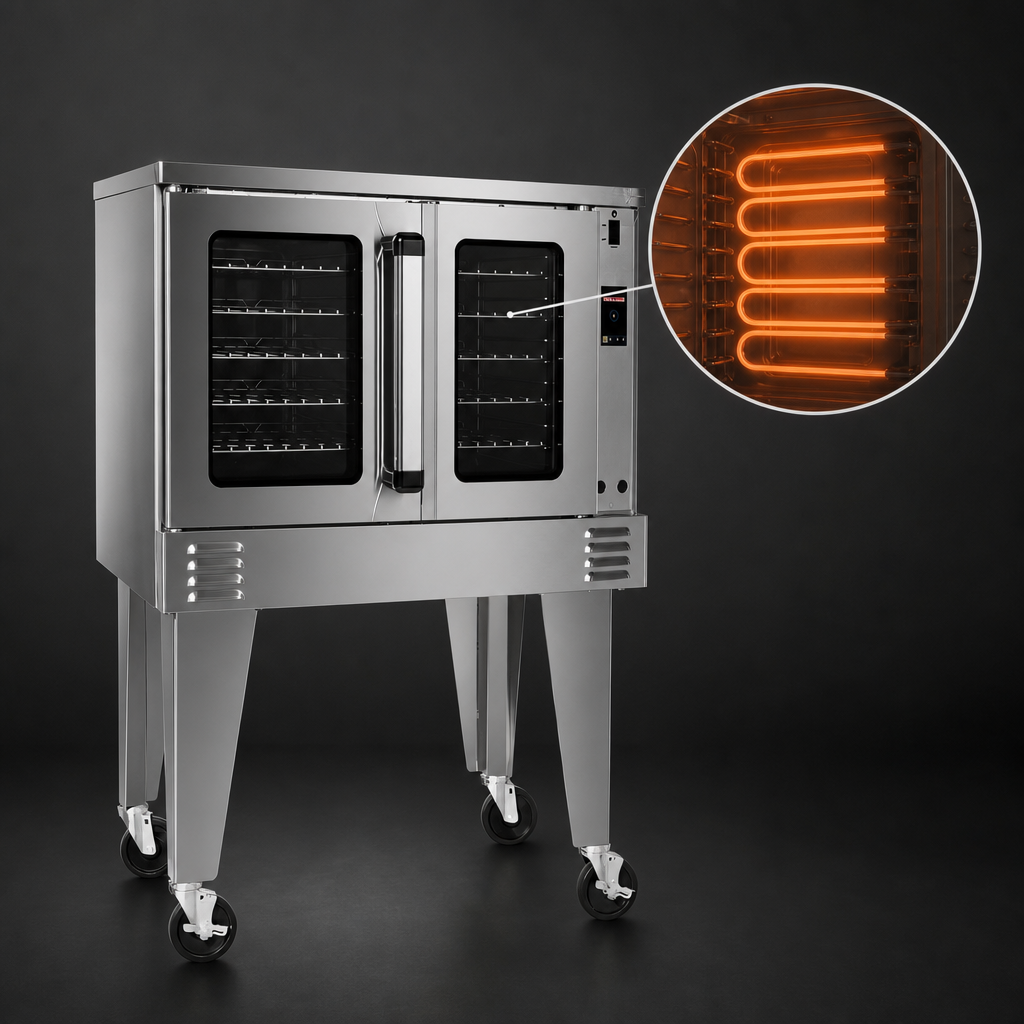

- High-efficiency 11 kW rear-mounted heating elements for rapid preheat & recovery

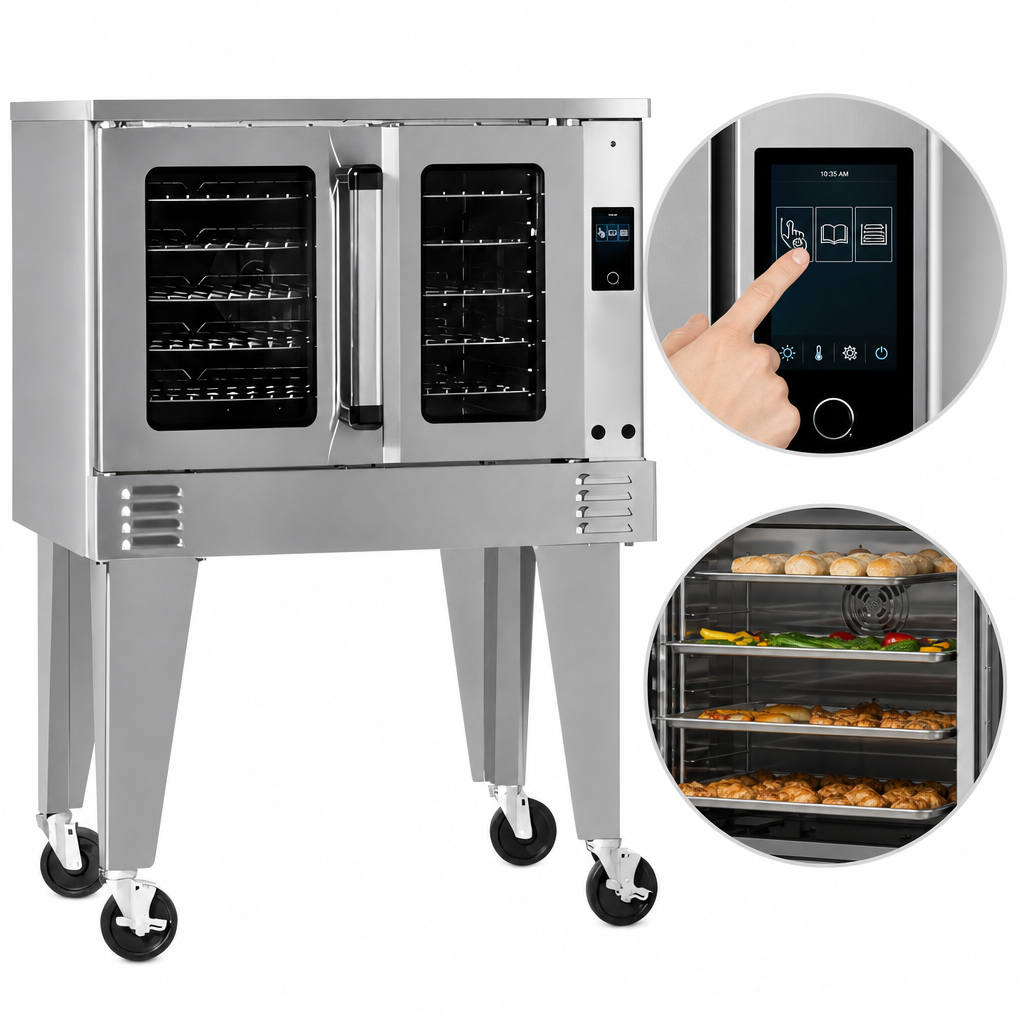

- TC Touchscreen controller: 150 °F–550 °F bake, 140 °F–200 °F hold, manual/recipe/rack modes, fan-pulse & forced cool-down
- Patented “plug-in, plug-out” slide-out control panel for 17″ full-access servicing
- Dependent double-pane glass doors with 180° swing, dual door seals & stay-cool handle
- Coved, fastener-free porcelain-enamel cavity—wipes clean in seconds
- Two-speed ½ HP blower (1,710 / 1,120 RPM) for even, corner-to-corner baking
- 11 rack positions on 1 ⅝″ centers; includes 5 heavy-duty nickel-plated racks
- Bright recessed halogen lighting for full-cavity visibility during service
- Rugged stainless-steel front, sides, top & 26″ triangular legs (casters optional)
- NSF, UL & cULus listed; built in Fuquay-Varina, NC, USA
What’s Included
- Ventless catalytic converter package (factory-installed)
- TC Touchscreen control module
- Five (5) oven racks & eleven (11) removable rack guides
- 26″ stainless-steel legs
Specifications
| Exterior dimensions (W × D × H) | 43.5″ × 36.5″ × 55″ (1,105 × 927 × 1,397 mm) |
|---|---|
| Interior dimensions (W × D × H) | 29″ × 29″ × 20″ (737 × 737 × 508 mm) |
| Rack positions / racks supplied | 11 / 5 |
| Heating elements | 11 kW sheath-type, rear-mounted |
| Fan motor | ½ HP, two-speed (1,710 / 1,120 RPM) |
| Electrical (select at checkout) | 208, 240, 380, 415 or 480 VAC, 1- or 3-phase |
| Clearances* | Front & right: 0″ | Back & left: 2″ |
| Certifications | UL, cULus, NSF |
| Warranty | 1-year parts & labor on-site service |
| Amp Draw – 11 kW Heater Package (add ≤4.3 A for controls) | |||
|---|---|---|---|
| Voltage | 1-Phase | 3-Phase (per line) | Frequency |
| 208 VAC | 52.9 A | 30.6 A | 60 Hz |
| 240 VAC | 45.9 A | 26.5 A | 60 Hz |
| 380 VAC | 29 A | 16.8 A | 50 Hz |
| 415 VAC | 26 A | 15.4 A | 50 Hz |
| 480 VAC | 23 A | 13.3 A | 60 Hz |
* Always verify local code requirements. Although the catalyst system is UL-listed for ventless operation, some jurisdictions may still require a hood.
Why Choose Platinum?
- Made in the USA and backed by on-site factory-authorized service
- Modular design—swap the entire control panel in minutes to minimize downtime
- Industry-leading airflow delivers faster, more even bakes vs. standard convection ovens
- Part of the Middleby family—nationwide dealer network & service support
Ready to level up your kitchen? Download the full installation & service manual or chat with a product specialist about casters, export voltages and other custom options.
