Southbend (Middleby) PCE11S/TD Platinum Convection Ovens
Description

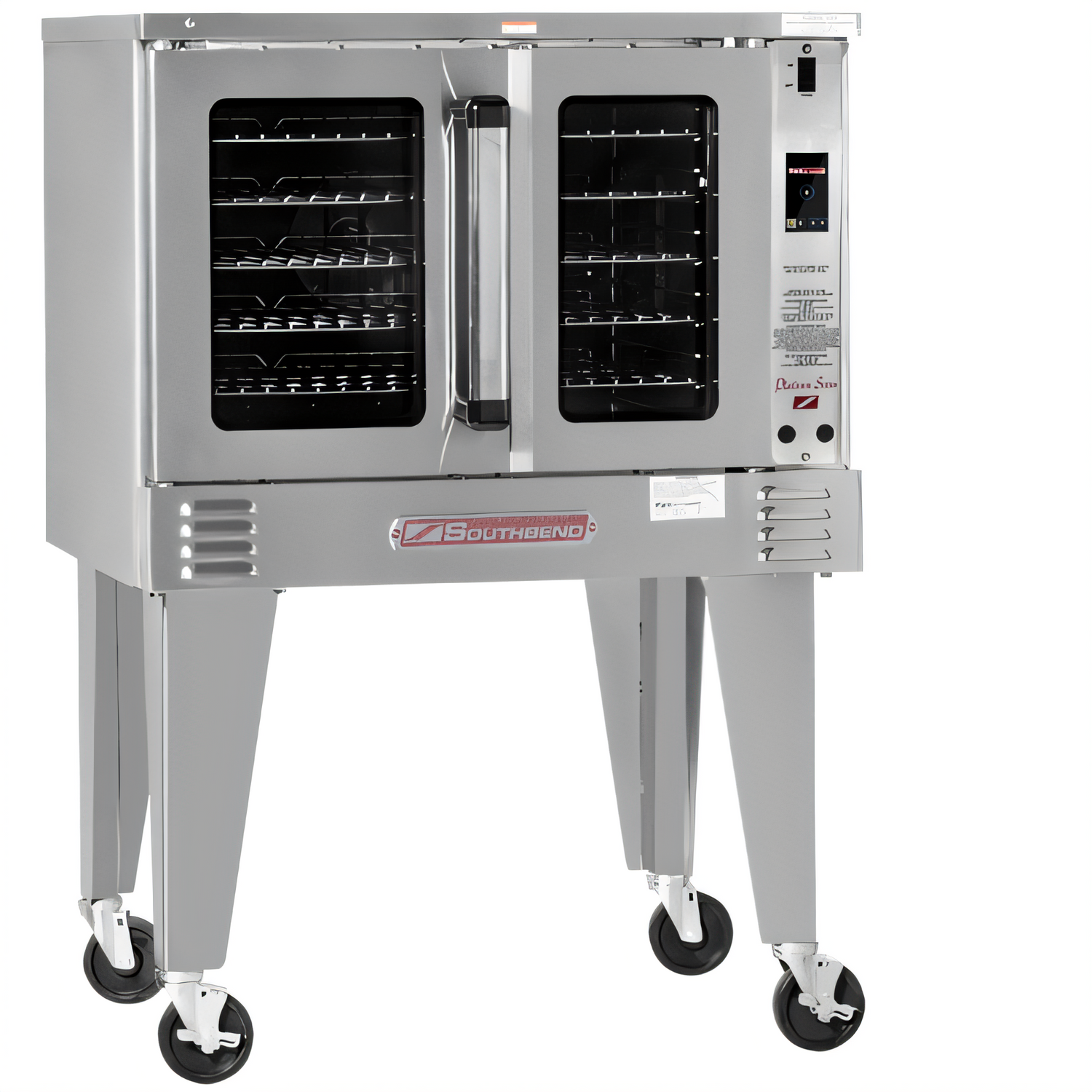

Southbend Platinum Series – Single Convection Oven (PCE11B/T)
Electric • 11 kW • Touchscreen Controls • Standard Depth • Dependent DoorsBuilt for serious production but sized for any cookline, the Platinum Series PCE11B/T delivers rapid, even baking with the durability only Southbend can offer. An 11 kW heat package, precision touchscreen controls and a rugged stainless-steel cabinet keep you cooking shift after shift—no matter what’s on the menu.
Key Performance Features

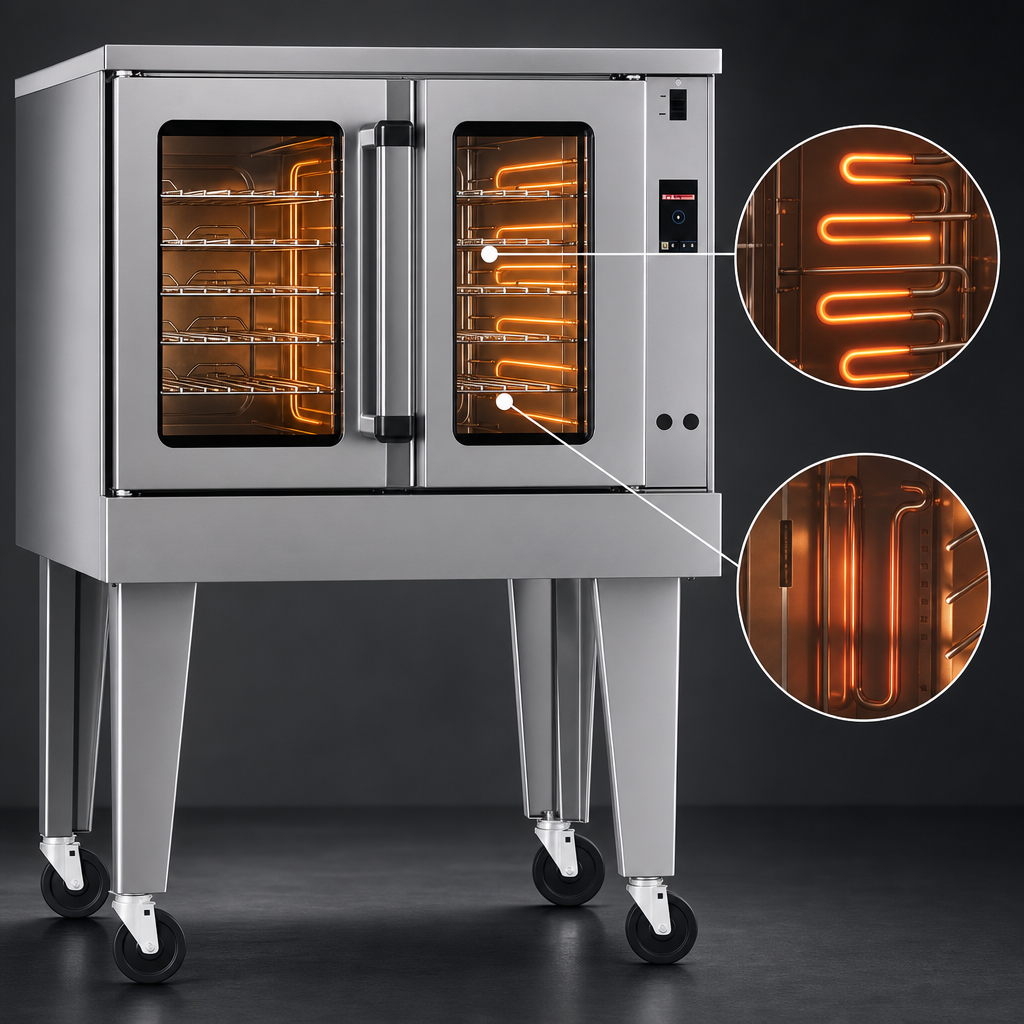

- High-efficiency 11 kW electric elements reach set temps fast and recover quickly.

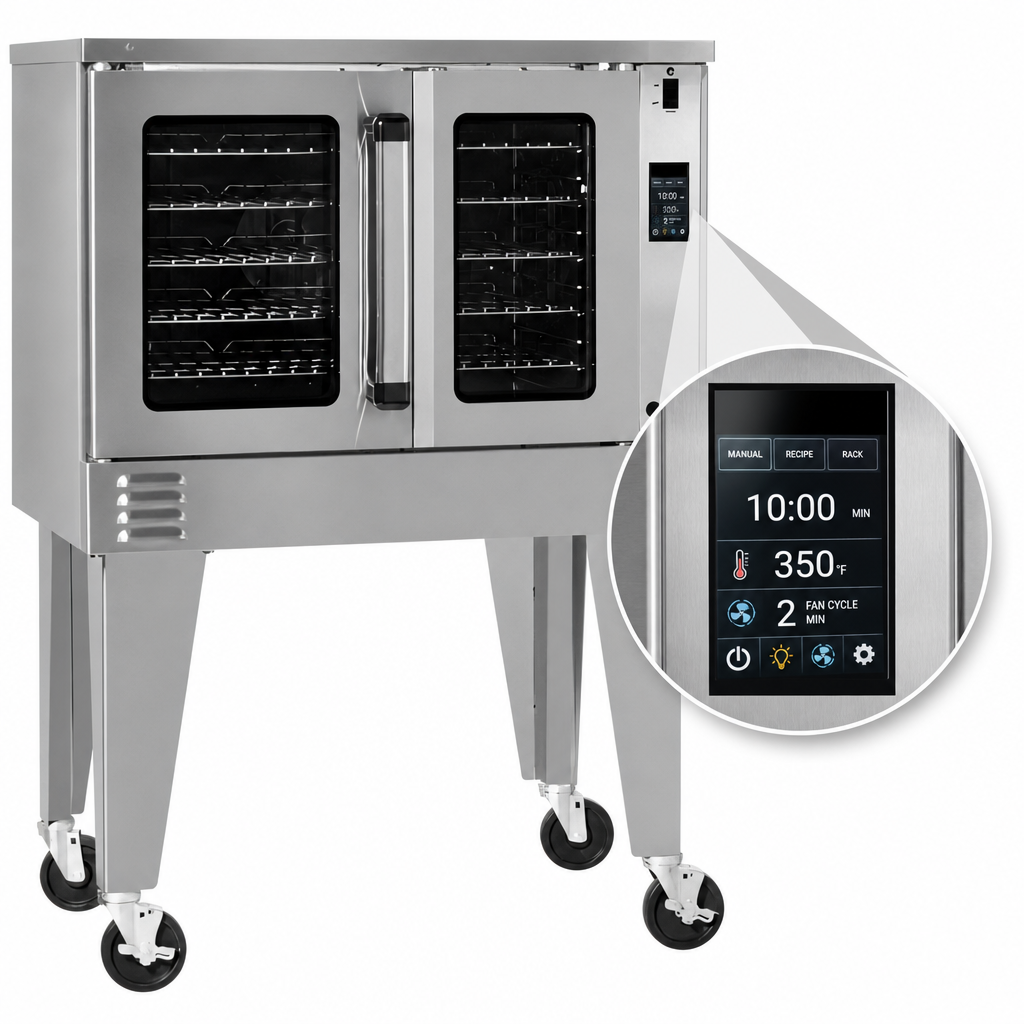

- 7" full-color touchscreen offers Manual, Recipe and Rack modes—program up to 99 menus with individual rack timers.
- Patented slide-out “plug-in/plug-out” control panel simplifies service and reduces downtime.
- Dual-pane low-E glass doors swing a full 180° and feature a dual seal to lock in heat while the handle stays cool.
- Two-speed ½ hp fan with pulse timer provides gentle airflow for delicate bakes or full power for hearty roasts.
- 11-position rack guides and five chrome racks handle full-size sheet or hotel pans.
- Coved, fastener-free porcelain interior cleans in seconds.
- Forced cool-down mode plus interior lighting for faster, safer turnarounds.
- Optional UL-certified ventless catalytic package lets you “take your bake anywhere” without a dedicated hood (check local code).
At-a-Glance Specifications
| Model | PCE11B/T (Single-deck, Touchscreen) |
|---|---|
| Heat Source | Electric, 11 kW total |
| Temperature Range | 150 °F – 550 °F • Hold 140 °F – 200 °F |
| Interior Capacity | 29" W × 29" D × 20" H (11 ft³) • 11 rack positions |
| Included Racks | 5 chrome-plated wire racks |
| Fan Motor | ½ hp, 2-speed, 1710/1120 RPM |
| Overall Dimensions | 43.5" W × 36.5" D × 55" H (with legs) |
| Clearances | 0" front/right • 2" back/left from combustibles |
| Electrical | 208, 240, 380, 415 or 480 VAC • Single or 3-phase (specify) • add ≤ 4.3 A for controls |
| Shipping Weight | ≈ 680 lb (crated) |
| Certifications | cULus, NSF |
| Warranty | 1-year parts & labor |
Factory Options & Accessories
- Ventless catalytic converter kit
- 4" or 6" locking casters
- Marine-edge top or stainless bottom panel
- Independent door set
- Stainless solid doors, rear jacket or dirt tray
- Export crating & 2" insulation panel
Built-In Reliability
A fully welded stainless cabinet, stay-cool door handle and low-maintenance porcelain cavity mean years of service with minimal upkeep. Should maintenance be required, the slide-out control panel allows technicians to diagnose and repair without removing the oven from your cookline.
Need help choosing the correct voltage or configuring a stacked package? Contact our team—we’re here to help you get baking.
