Southbend (Middleby) PCE11S/SI-V Platinum Convection Ovens
Southbend (Middleby) PCE11S/SI-V Platinum Convection Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) PCE11S/SI-V Platinum Convection Ovens
Description

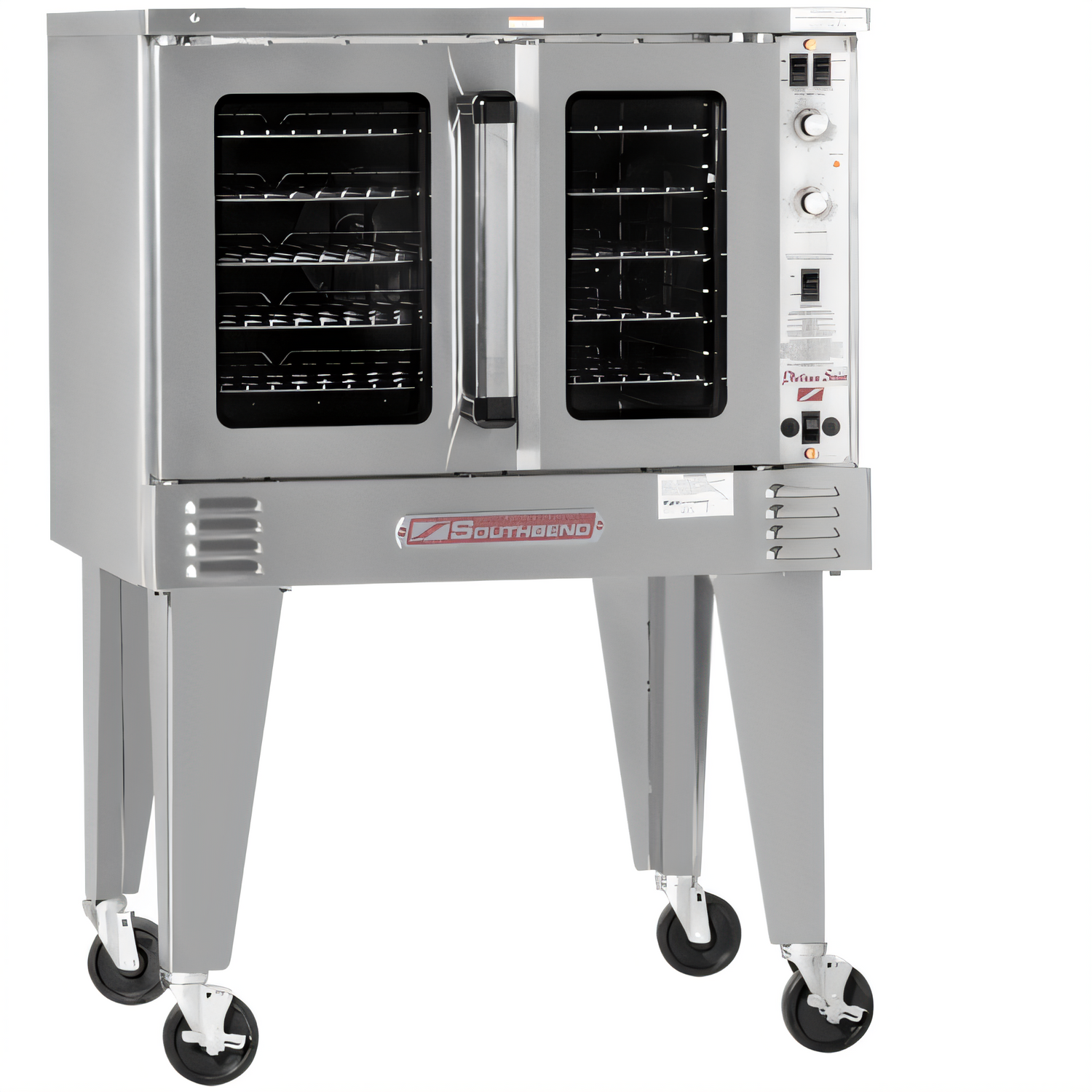

Platinum Series Ventless Electric Convection Oven – Single Deck, 11 kW
Southbend model PCE11B/S • Independent doors • Standard controlsEngineered for kitchens that need maximum baking power without a Type-1 hood, the Platinum Series ventless single-deck oven combines Southbend’s legendary build quality with an internal catalytic filtration system. The result: bakery-quality convection, plug-and-play installation, and serviceability that keeps you cooking—not waiting for repairs.
Why you’ll love it
- Ventless UL-certified catalyst removes grease & smoke—install almost anywhere*

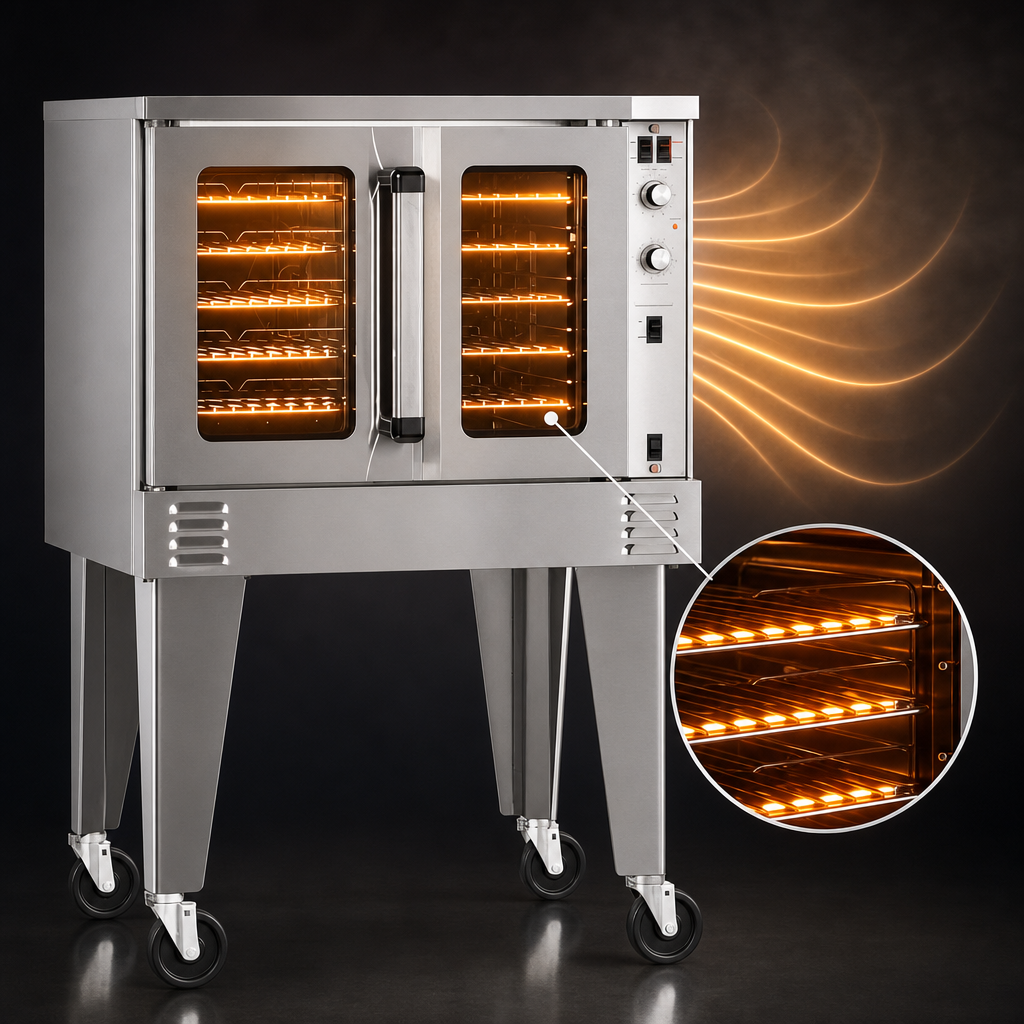

- 11 kW high-efficiency rear-mounted heating elements for fast recovery

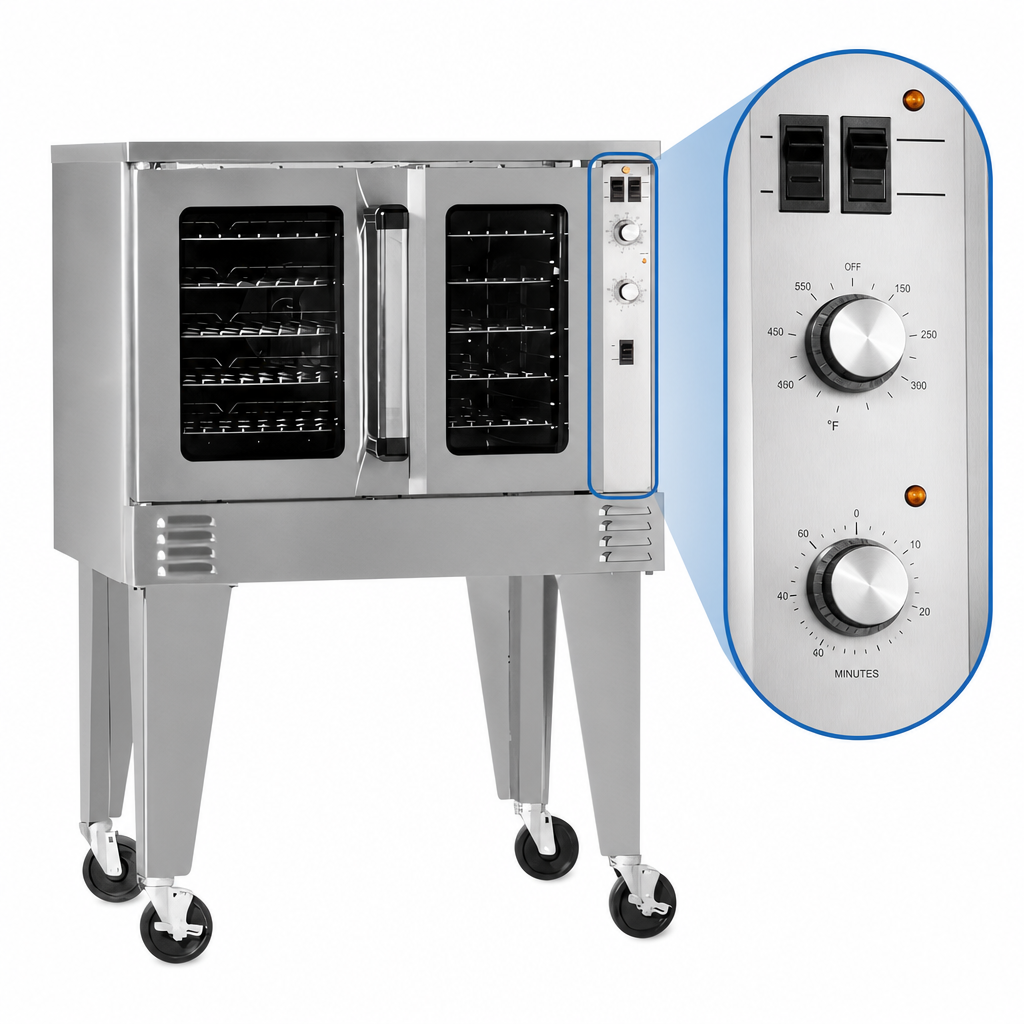

- Standard (SC) controls: 140 °F–500 °F solid-state thermostat + 60-min mechanical timer
- Independent twin glass doors (full 180 ° opening) with dual door seals for superior heat retention
- Two-speed ½ hp fan with “forced cool-down” mode for quicker turnarounds
- Plug-in/plug-out, front-mounted control panel slides out 17" for full-view servicing
- Coved, fastener-free porcelain-enamel interior—easy to wipe clean
- 11 rack positions on 1-5/8" centers; 5 plated wire racks included
- Bright dual interior lights and stay-cool door handle keep productivity high
- Stainless-steel front, sides & top on rugged 26" triangular legs (casters optional)
- 1-year parts & labor warranty backed by Southbend’s nationwide service network
Specifications
| Model | PCE11B/S (Platinum Series, Single Deck) |
|---|---|
| Energy type | Electric, 11 kW heating elements |
| Controls | Standard solid-state thermostat 140–500 °F + 60-min timer |
| Cooking capacity | Five full-size sheet pans (front-to-back) |
| Interior (W × D × H) | 29" × 29" × 20" (737 × 737 × 508 mm) |
| Exterior (W × D × H) | 43.5" × 36.5" × 55" † (1105 × 927 × 1397 mm) |
| Racks / Guides | 5 racks / 11 positions |
| Fan motor | ½ hp, 2-speed, 1710/1120 RPM |
| Electrical (select when ordering) |
208 V, 1-ph 52.9 A • 208 V, 3-ph 30.6 A/leg 240 V, 1-ph 45.9 A • 240 V, 3-ph 26.5 A/leg 480 V, 1-ph 23 A • 480 V, 3-ph 13.3 A/leg (50/60 Hz; other voltages 380/415 V available) |
| Clearances | Front/right 0", back/left 2" |
| Certifications | cULus, NSF, UL Ventless Catalyst |
| Shipping weight | ≈ 680 lb (309 kg) |
Electrical & voltage options
- Single- or three-phase field-wired connection
- Factory-configured 208, 240, 380, 415, or 480 V (50/60 Hz)
- Add 4.3 A for control circuit where applicable
Peace-of-mind warranty
Southbend includes a 1-year limited parts & labor warranty on this oven. Extended service programs are available—ask your sales representative for details.
† Height shown on standard legs; add 4 "–6 " for optional casters.
