Southbend (Middleby) PCE11S/SI Platinum Convection Ovens
Southbend (Middleby) PCE11S/SI Platinum Convection Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Description

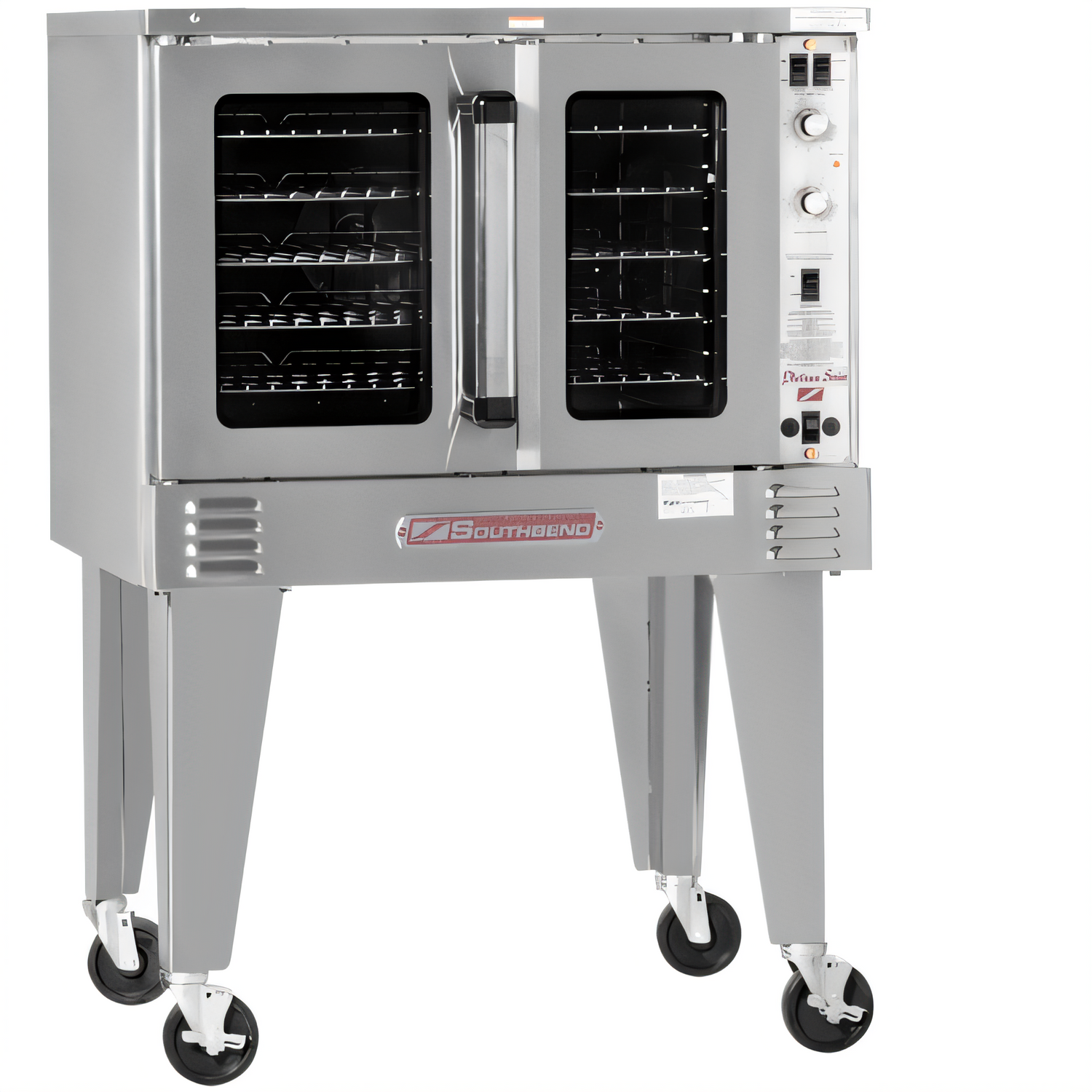

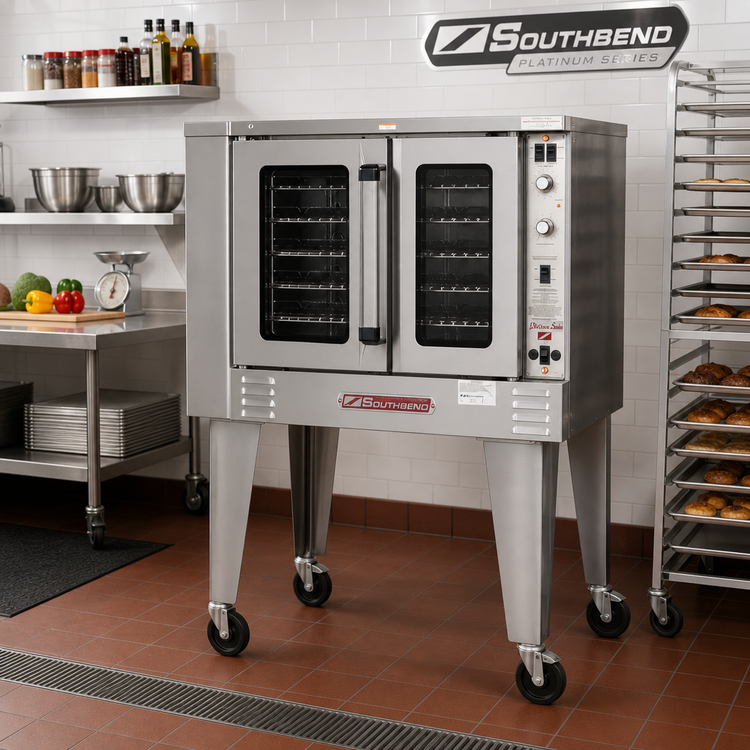

Southbend Platinum Series Electric Convection Oven – 11 kW
Single Deck • Standard Controls • Independent Doors • Model PCE11B/SEngineered for volume bakeries, restaurants, and institutional kitchens, the Southbend Platinum PCE11B/S delivers powerful, even heat and rock-solid reliability in a compact single-deck footprint. Independent, dual-pane glass doors help keep heat in the cavity and energy costs in check, while a patented slide-out control panel simplifies service and maintenance.
Why You’ll Love It

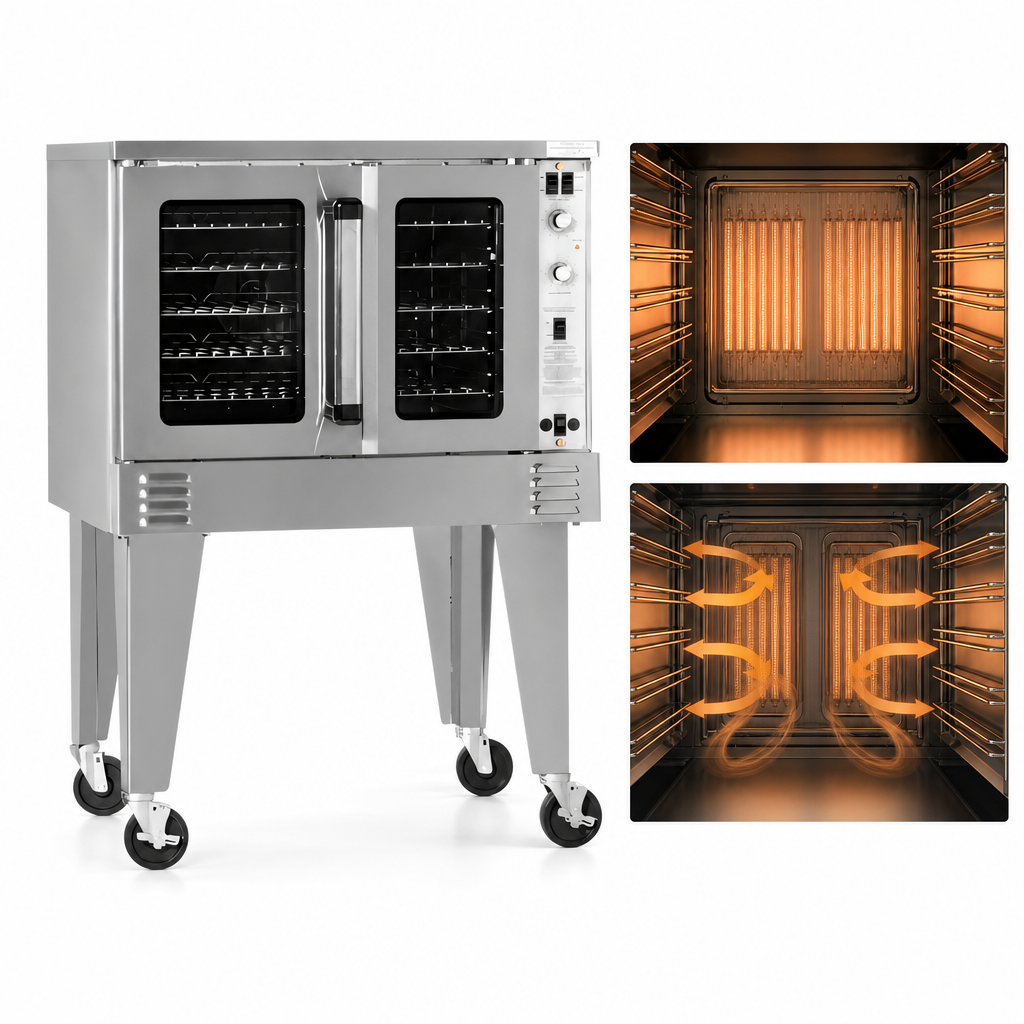

- 11 kW high-efficiency sheath heating elements for rapid recovery and consistent results.
- Two-speed ½ HP fan motor (1,710 / 1,120 RPM) evenly “scrubs” heat across every rack.
- 140 – 500 °F solid-state thermostat with a 60-minute mechanical cook timer.
- Independent dual doors open separately to minimize heat loss between batches.
- “Plug-in, plug-out” control panel slides out 17" for quick, full-view servicing.
- 11 rack positions & 5 heavy-duty wire racks included (fits full-size 18" × 26" sheet pans).
- Coved, fastener-free porcelain enamel cavity wipes clean in seconds.
- Stay-cool handle, low-E glass windows, and dual door seals for operator comfort & efficiency.
- Forced cool-down fan mode plus twin interior lights for easy loading and monitoring.
- Rugged stainless steel front, sides, and top with 26" stainless triangular legs (casters optional).
Built for the Rush
- Clearances: 0" front/right, 2" rear/left.
- Optional ventless catalytic system eliminates the need for a hood in many jurisdictions.
- NSF, UL & cUL certified for commercial applications.
- Backed by Southbend’s 1-year parts & labor warranty and nationwide service network.
Technical Specifications
Manufacturer | Southbend (Middleby) |
---|---|
Series / Model | Platinum Series / PCE11B/S |
Construction | Stainless steel exterior; porcelain enamel interior |
Decks | 1 |

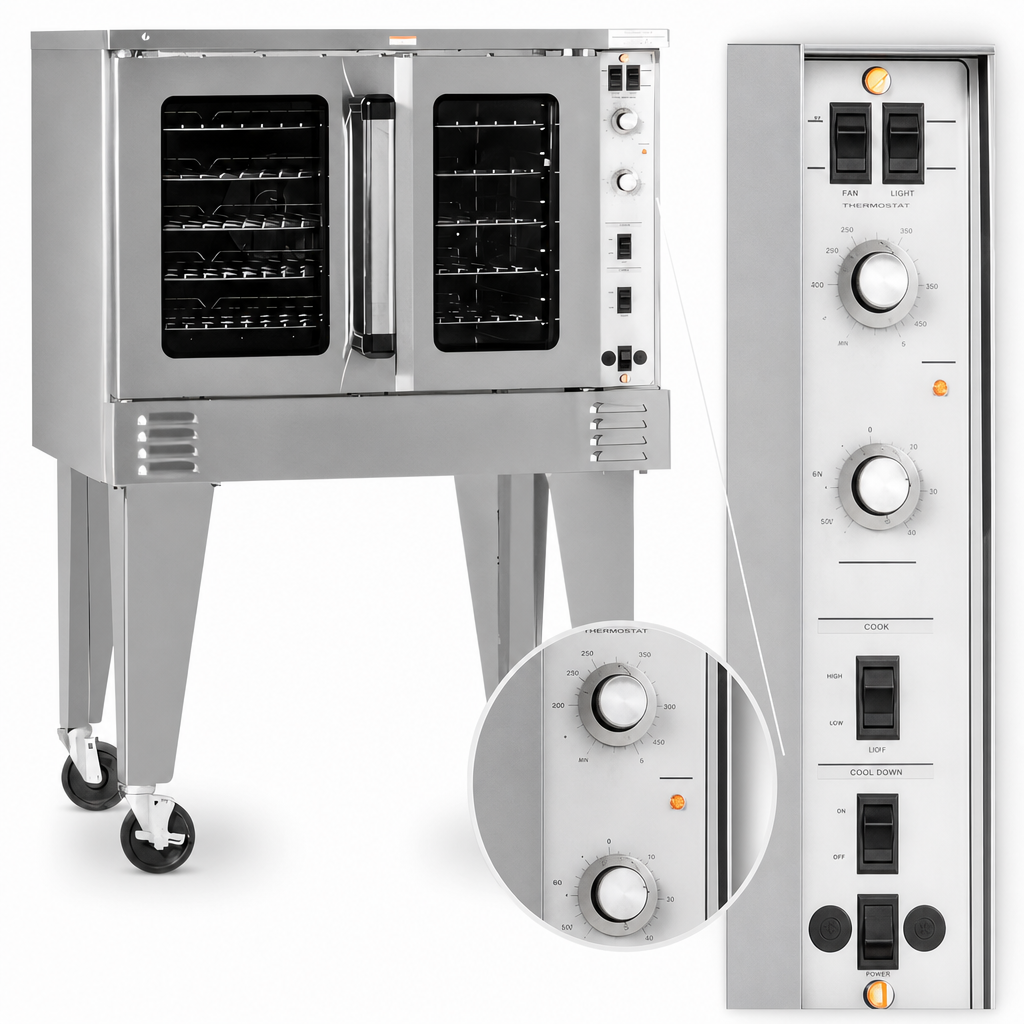

Controls | Standard solid-state thermostat & 60-min timer |
Heating Capacity | 11 kW electric |
Fan Motor | ½ HP, 2-speed |
Racks Included | 5 (11 positions) |
Interior (W×D×H) | 29" × 29" × 20" (737 × 737 × 508 mm) |
Exterior (W×D×H) | 43.5" × 36.5" × 55" (1 105 × 927 × 1 397 mm) with legs |
Ship Weight | Approx. 680 lb (308 kg) |
Electrical | 208, 240, 380, 415, or 480 V; 1 Φ or 3 Φ (see amp chart) |
Certifications | NSF, UL, UL EPH |
Warranty | 1-year parts & labor |
Need casters, marine-edge top, ventless catalyst, or other custom options? Contact our equipment specialists for a tailored quote.
