Southbend (Middleby) PCE11S/SD-V Platinum Convection Ovens
Description
Southbend Platinum Series Ventless Single-Deck Electric Convection Oven
Model PCE11B/S · 11 kW · Standard Controls · Dependent Glass DoorsBring full-size, professional baking power to virtually any location—no traditional hood required. The Platinum Series ventless catalytic system partners with a rugged stainless-steel cabinet, rapid-response 11 kW heating elements and Southbend’s proven airflow design to deliver fast, even, repeatable results every single shift.
Performance & operator benefits

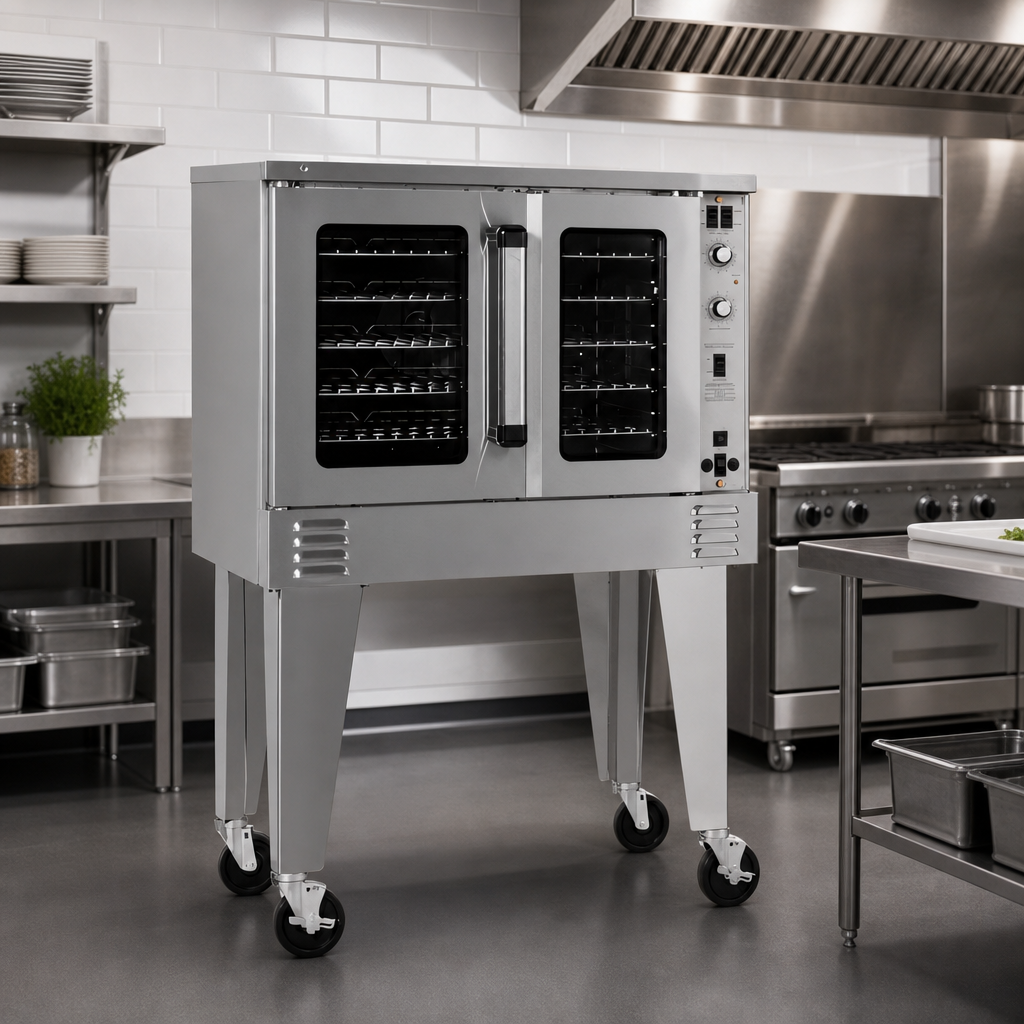

- Ventless internal catalyst (UL certified) lets you “take your bake anywhere.”

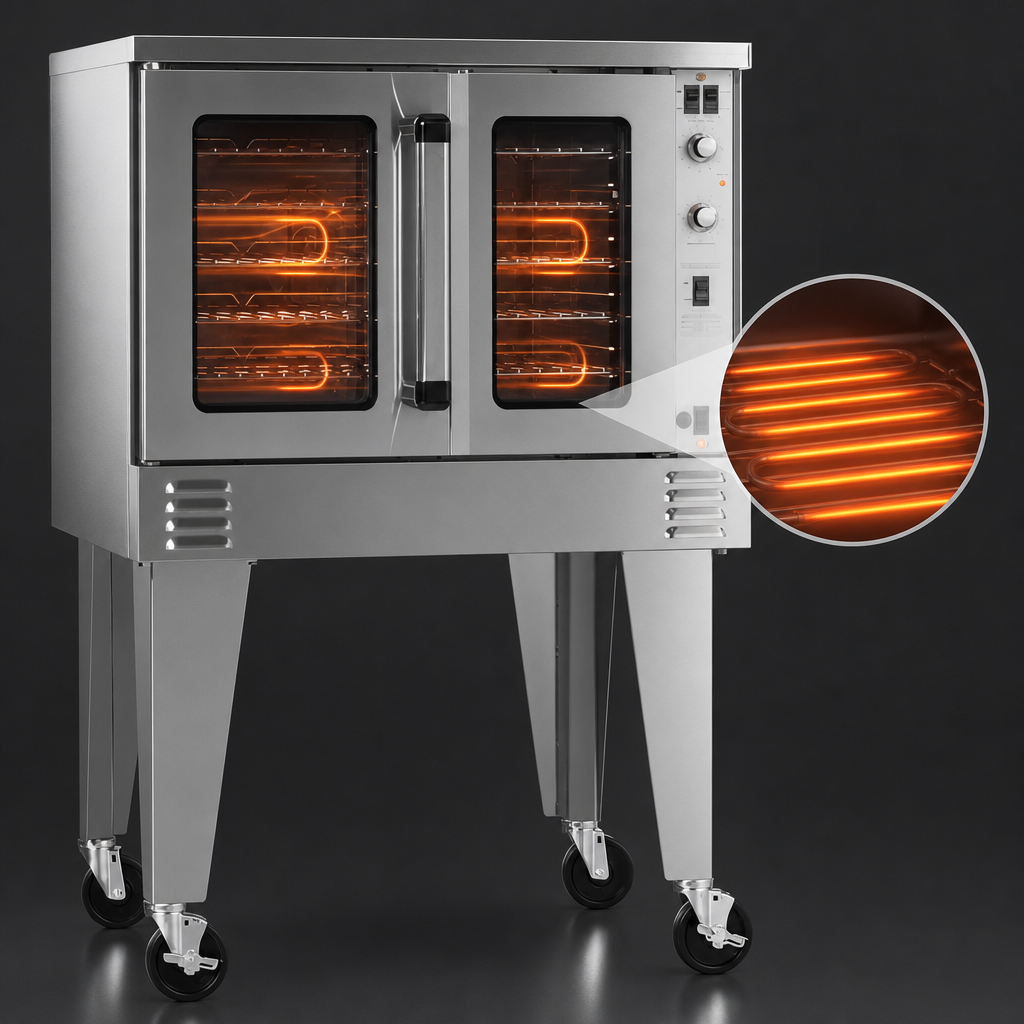

- High-efficiency 11 kW electric elements heat quickly and recover fast between loads.
- Two-speed ½ HP fan blankets food with uniform heat for picture-perfect browning.
- Standard solid-state controls: 140 °F–500 °F thermostat with 60-minute mechanical timer.
- Patented plug-in / plug-out slide-out control panel for front-of-unit service access.
- Full 180° opening dependent glass doors with dual seal conserve energy and stay cool to the touch.
- Coved, fastener-free porcelain interior wipes clean in seconds.
- 11-position rack guides; 5 plated racks included fit full-size sheet pans in either direction.
- Forced cool-down mode speeds turn-around and end-of-day shutdown.
- Bright interior lighting and a heavy-duty stay-cool door handle improve visibility and safety.
Install-anywhere convenience
- Zero clearance front/right; only 2″ clearance required at rear & left side.
- Standard 26″ stainless triangular legs or optional 4″/6″ casters for mobile kitchens.
- No separate control wiring on 480 V units—240 V controls & motors are factory integrated.
Specifications
| Series / Model | Platinum Series PCE11B/S (Ventless, Single Deck) |
|---|---|
| Heat source | Electric, 11 kW sheath elements |
| Controls | Standard solid-state thermostat (140 °F–500 °F) & 60-min timer |
| Door style | Dependent, double-pane glass, 180° opening |
| Pan capacity | 5 full-size sheet pans on 11 rack positions |
| Interior (W × D × H) | 29″ × 29″ × 20″ (737 × 737 × 508 mm) |
| Exterior (W × D × H) | 36.5″ × 43.5″ × 55″* (927 × 1105 × 1397 mm) *Height with standard 26″ legs; casters optional. |
| Shipping weight | ≈ 680 lb (308 kg) |
| Electrical options | 208, 220/240, 380, 415 or 480 V; single- or three-phase (add 4.3 A for control circuit) |
| Amperage @ 208 V | 1-phase 52.9 A · 3-phase 30.6 A/line |
| Fan motor | ½ HP, two speed (1,710 / 1,120 RPM) |
| Clearances | Front/Right 0″ · Rear/Left 2″ |
| Warranty | 1-year parts & labor |
Need a different voltage, marine-edge top, or caster kit? Contact us for factory-configured options and lead times.
