Southbend (Middleby)  |  Platinum  |  SKU: PCE11S/SD

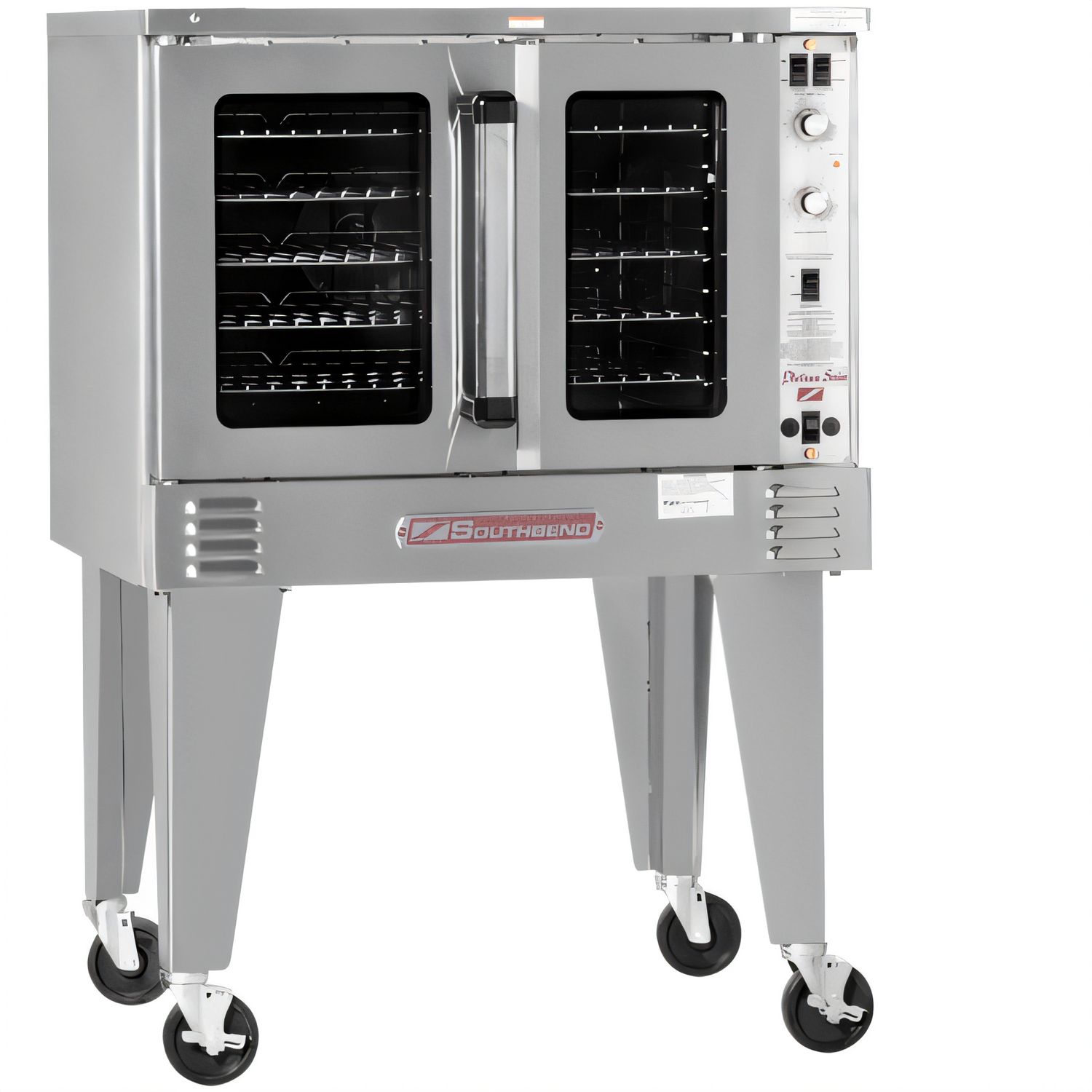

Southbend (Middleby) PCE11S/SD Platinum Convection Ovens

$6,152.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Convection Ovens Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Platinum Series Single-Deck Electric Convection Oven – 11 kW

Southbend | Quick-Ship 208 V / 3-Phase | Model PCE11B/S

Engineered for high-volume bakeries, restaurants, and institutional kitchens, the Southbend Platinum Series single-deck oven delivers rapid, even bakes in a compact footprint that ships fast in the most-requested electrical configuration.

Highlights

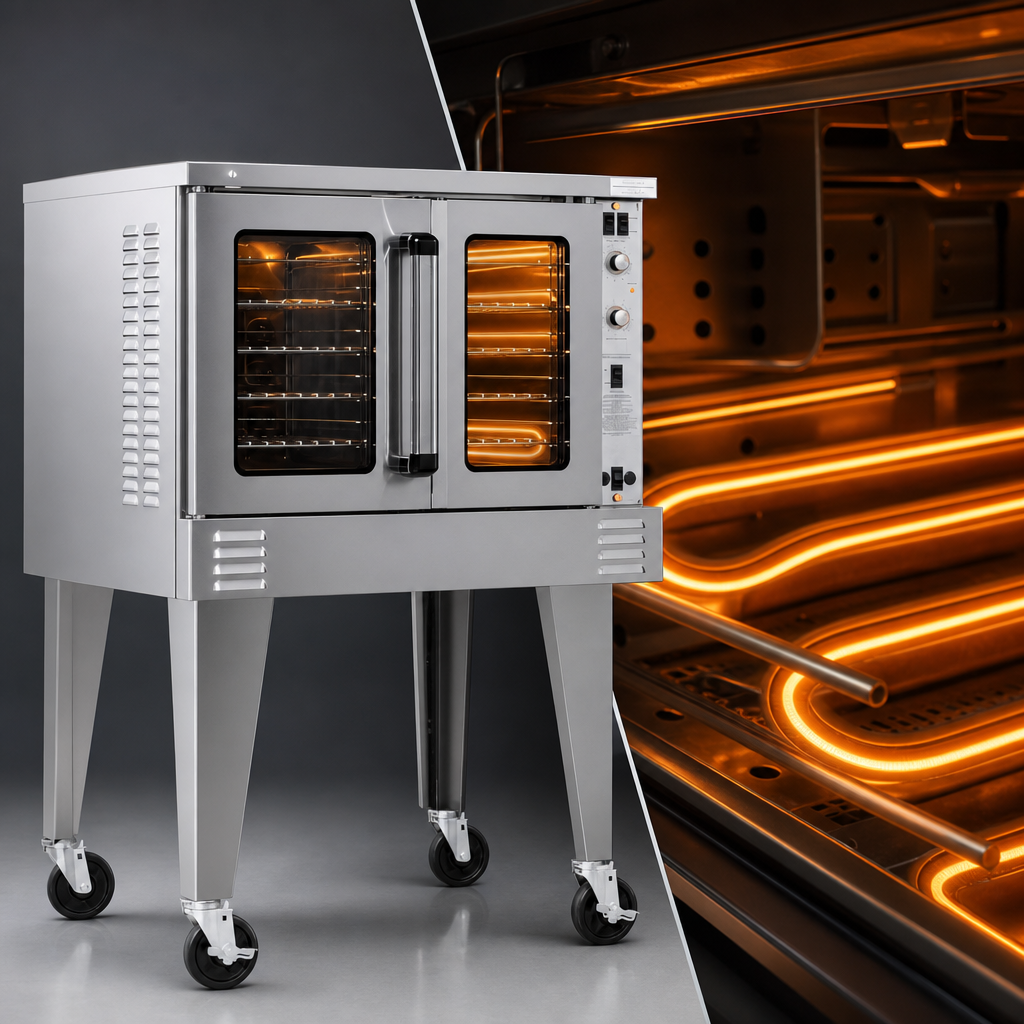

  • 11 kW high-efficiency heating elements for fast recovery & consistent results

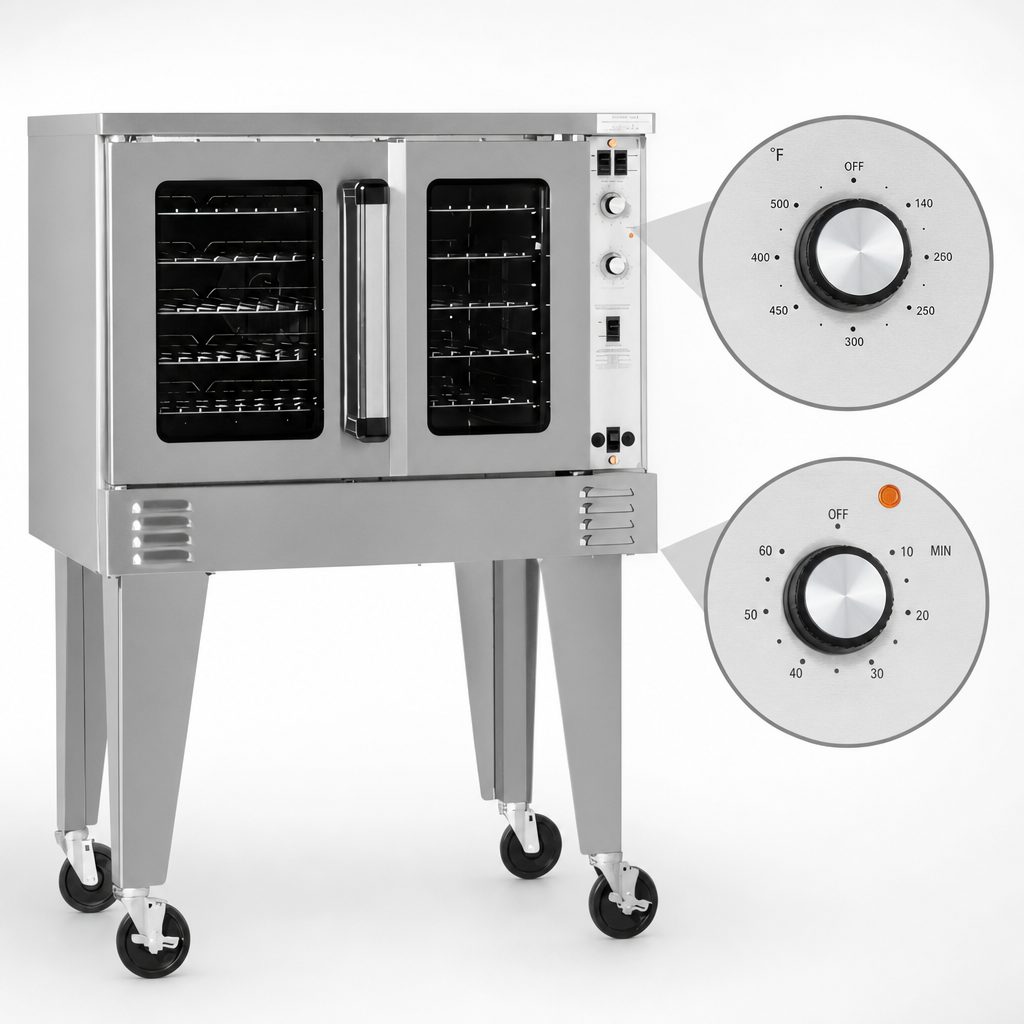

  • Standard solid-state controls: 140 °F–500 °F thermostat & 60-minute mechanical timer
  • Patented plug-in, plug-out slide-out control panel for simple service access
  • Dual-pane dependent glass doors open a full 180° and seal in heat
  • 1/2 HP, 2-speed fan motor (1,710 / 1,120 RPM) for superior air circulation
  • Coved, fastener-free porcelain enamel interior—easy to clean, resists corrosion
  • 11 rack positions with 5 chrome-plated racks included
  • Stainless steel front, sides & top built to withstand daily commercial abuse
  • Interior halogen lighting & forced cool-down fan mode
  • Field-installable ventless catalyst kit available (optional)

Performance You Can Count On

The powerful 11 kW element package teams up with a high-velocity two-speed blower, “scrubbing” heat across every rack so pastries, proteins, and sheet-pan meals finish at the same time—no hot spots, no guesswork.

Built for the Long Haul

  • Stay-cool, heavy-duty door handle
  • Heat-keeping dual door-seal system
  • 26" stainless steel triangular legs (casters optional)
  • Zero clearance front/right; 2" clearance left/rear for flexible installation

Specifications

Exterior dimensions (W × D × H) 43.5" × 36.5" × 55" (1,105 × 927 × 1,397 mm) with optional casters
Interior cavity (W × D × H) 29" × 29" × 20" (737 × 737 × 508 mm)
Rack clearance 28.25" W × 27.25" D (718 × 692 mm)
Heating elements 11 kW total, rear-mounted sheath elements
Electrical (quick-ship) 208 V • 3-Phase • 60 Hz • 30.6 A/line • 4.3 A controls
Shipping weight ≈ 680 lb (313 kg)
Certifications cULus, NSF

What’s Included

  • Five (5) chrome-plated wire racks
  • 26" stainless steel legs
  • User & service manuals
  • 1-year parts & labor warranty
Quick-Ship Notice: This model ships configured for 208 V, 3-phase power only. Confirm compatibility with your facility’s electrical service before ordering.

Commercial use only. See Southbend’s published limited warranty for complete terms and conditions.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, UL

Height

55.0in

Width

38.0in

Depth

38.5in

Shipping Weight

600.0lbs

Size

full/standard size

Exterior Finish

stainless steel front & sides

Type

standard

Interior Finish

porcelain interior

Deck Qty

1 deck

Capacity per Compartment

5 pan capacity, per compartment

kW (per deck)

11.0 - 15.99 kW

Control Type

solid state controls

Specifications

(QUICK-SHIP) Platinum Single Convection Oven, Electric 11kW, Standard Depth, Standard Controls, Dependent Doors (only shipped with 208v 3ph standard voltage option)
