Southbend (Middleby) PCE11B/TI-V Platinum Convection Ovens
Description
Platinum Series Ventless Single Convection Oven – 11 kW
Model PCE11B/T-V • Bakery Depth • Touchscreen • Independent DoorsGive every bake absolute consistency—anywhere in the kitchen. Southbend’s Platinum Series 11 kW electric convection oven couples a space-saving bakery-depth cavity with a UL-certified ventless internal catalyst, advanced touchscreen control, and rugged all-stainless construction. No dedicated hood, no complicated programming—just reliable, repeatable results shift after shift.
Why You’ll Love It

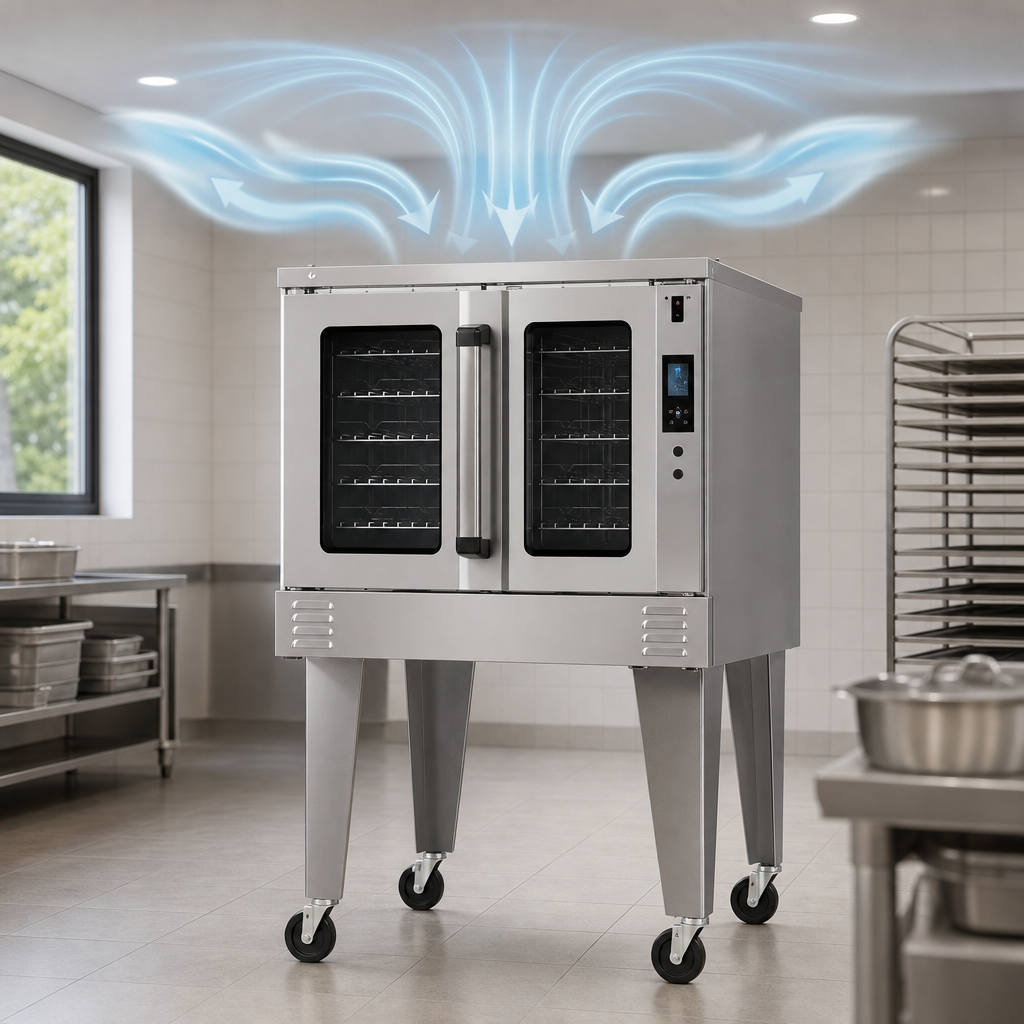

- Ventless design – built-in catalyst removes grease vapors, letting you install the oven where a traditional hood isn’t available*.

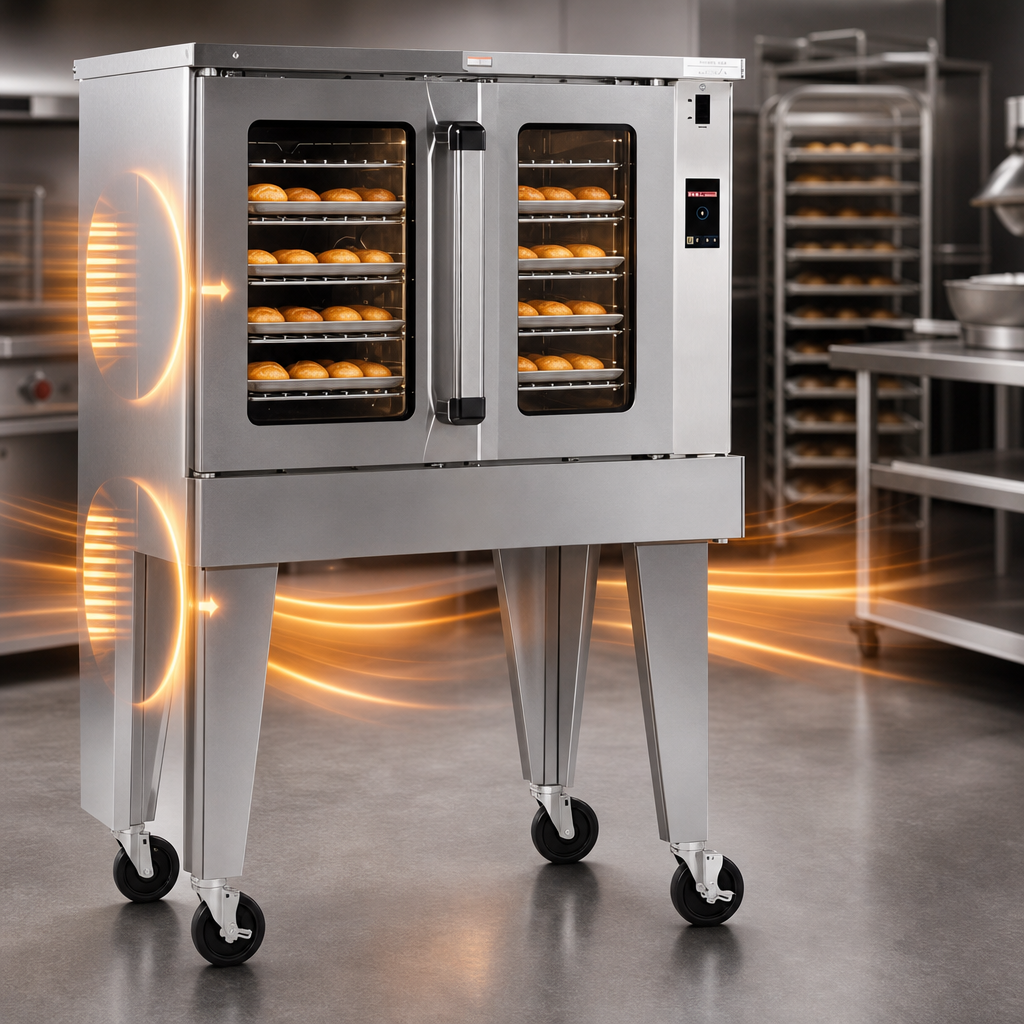

- 11 kW high-efficiency elements heat rapidly and recover fast for maximum throughput.
- Full-color touchscreen with manual, recipe, and rack modes plus 150 °F–550 °F operation & 140 °F–200 °F hold.
- Independent, full-glass doors seal in heat while allowing one-hand access to just the section you need.
- Patented plug-in/plug-out slide-out control panel for quick front-service access.
- Porcelain-enameled, coved interior—no exposed fasteners—for effortless wipe-downs.
- Two-speed ½ hp fan and fan-cycle timer ensure even bakes from corner to corner.
- Five heavy-duty racks on 11 positions handle full-size sheet pans front-to-back.
- Forced cool-down mode, stay-cool door handle, and dual interior lights add daily convenience.
Touchscreen Intelligence
- Create, store, and lock recipes for fool-proof repeatability.
- Rack mode lets multiple items cook simultaneously—each shelf gets its own timer.
- Easy-read temperature & time at a glance; large icons for gloved hands.
Built to Work as Hard as You Do
- All-stainless front, sides, top, and rear jacket withstand daily abuse.
- Heat-saving low-E glass windows plus dual door seals keep utilities in check.
- 26 in. stainless triangle legs standard; 4 in. or 6 in. casters available.
Technical Specs
| Heat Source | Electric, 11 kW total (rear-mounted sheath elements) |
|---|---|
| Controls | Full-color touchscreen; recipe, manual & rack modes; fan-pulse timer |
| Interior (W × D × H) | 29 in × 29 in × 20 in (737 × 737 × 508 mm) |
| Rack Positions / Racks Supplied | 11 / 5 |
| Overall (W × D × H) | 43.5 in × 36.5 in × 55 in (1105 × 927 × 1397 mm) on standard legs |
| Fan Motor | ½ hp, 2-speed (1710 / 1120 RPM) |
| Electrical | 208, 240, 380, 415 or 480 VAC; single or 3-phase (consult chart) |
| Shipping Weight | Approx. 680 lb (309 kg) |
| Warranty | 1-year parts & labor |
Popular Options & Accessories
- 4 in. or 6 in. locking casters
- Marine-edge top
- Stainless solid doors
- Stainless exterior bottom or rear jacket
- Export crating
*Ventless installation is UL-certified; always verify local code compliance.

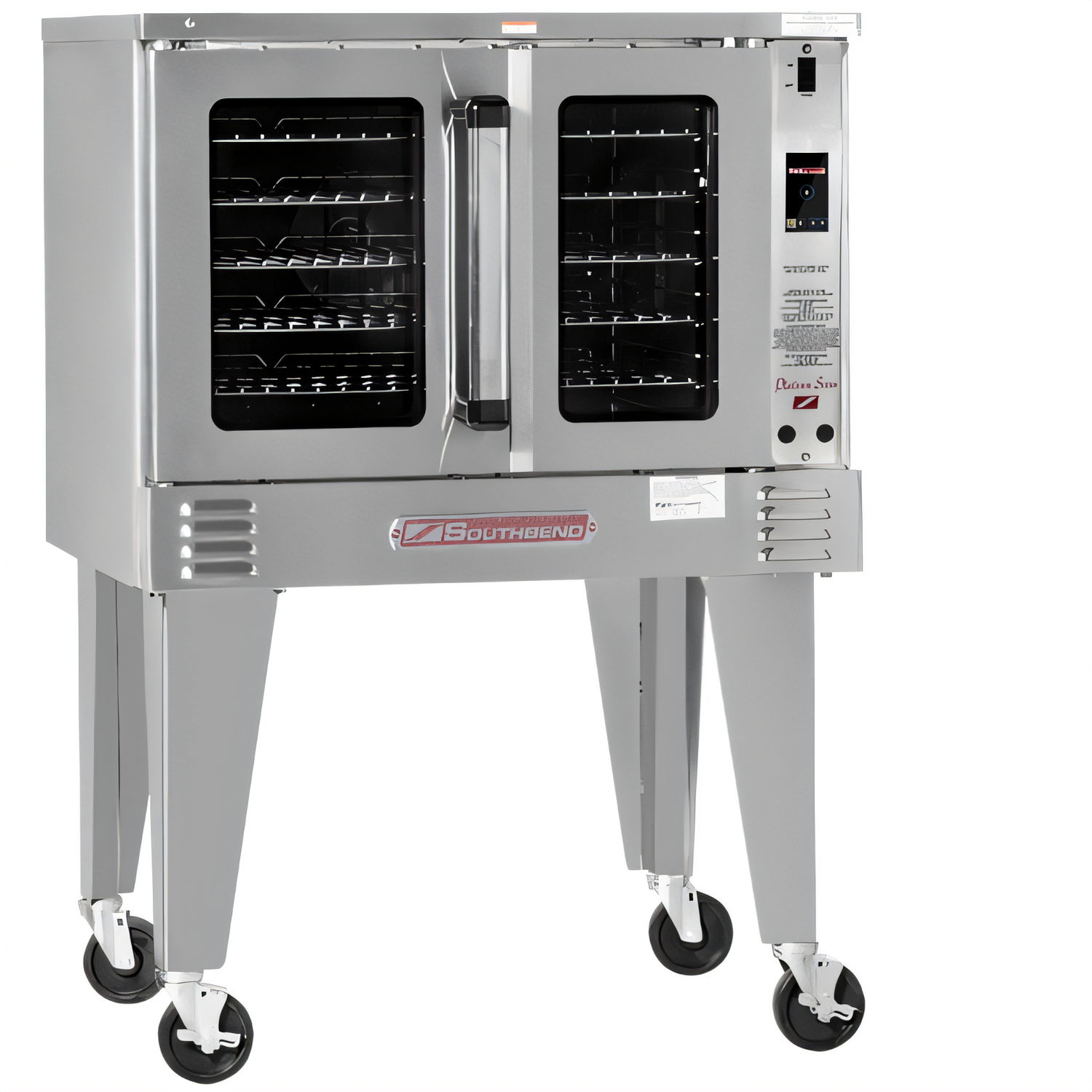

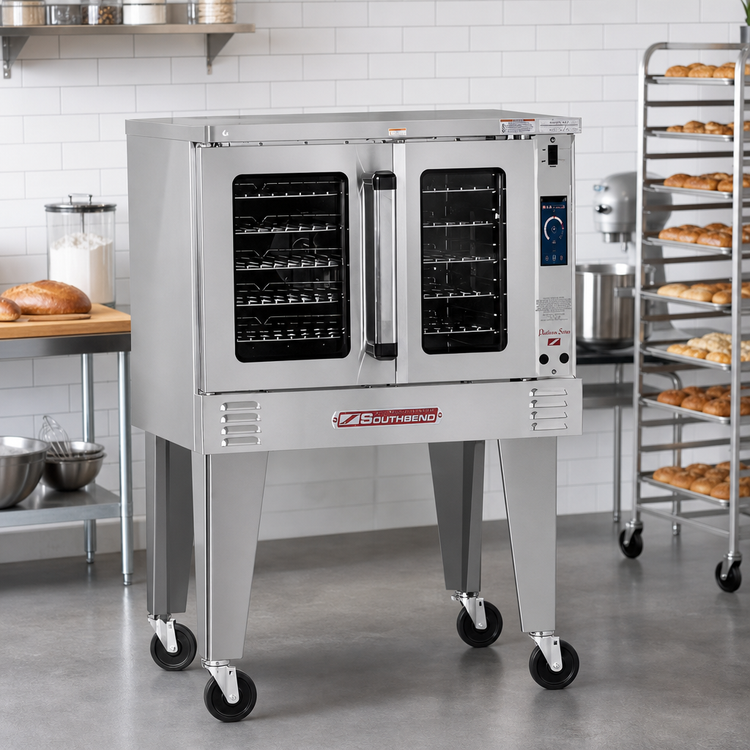

Images may show equipment with optional casters and accessories.
