Southbend (Middleby) PCE11B/TD-V Platinum Convection Ovens
Description

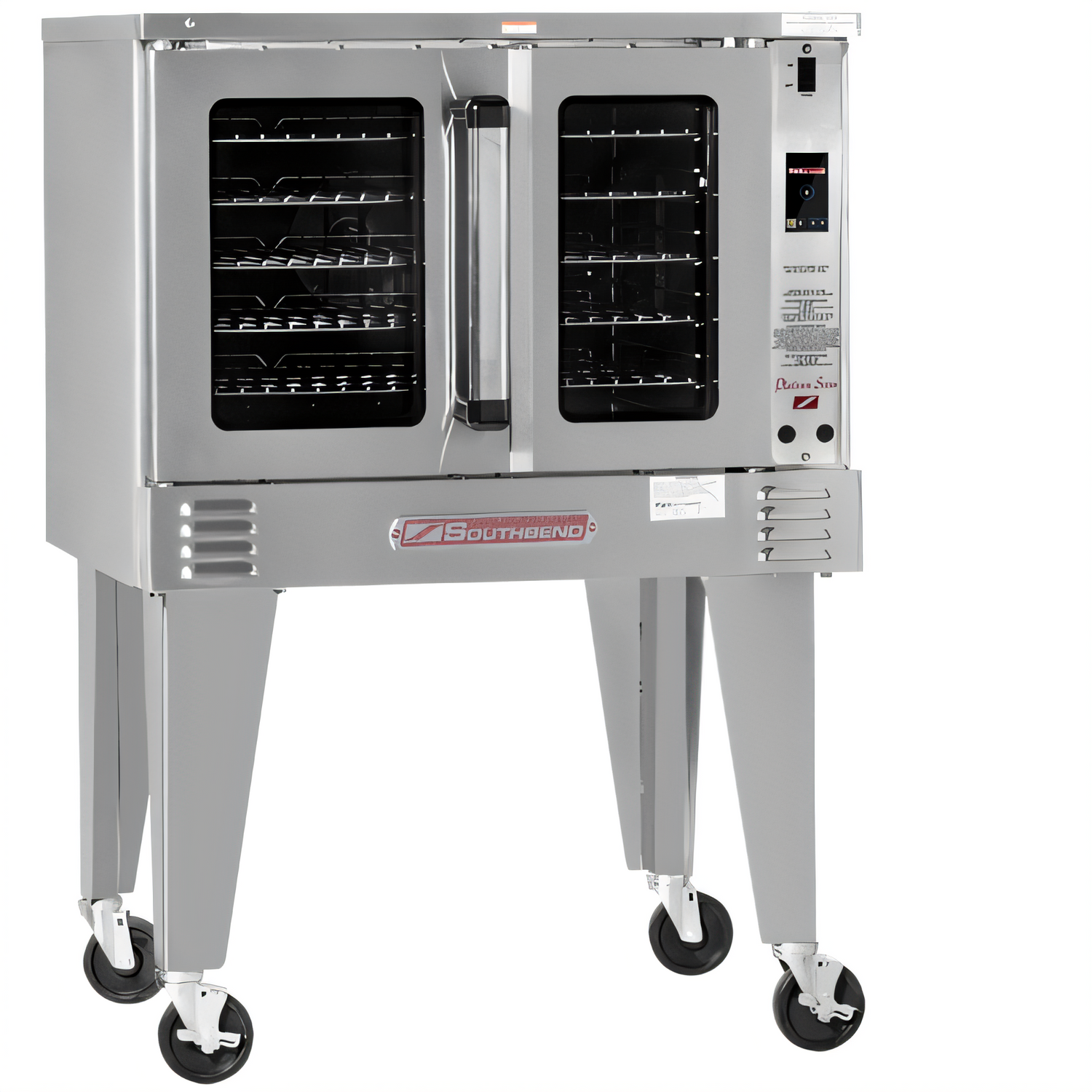

Southbend Platinum Series Ventless Single Convection Oven
Model PCE11B/T — Electric 11 kW • Bakery Depth • Touchscreen Controls • Dependent DoorsGive your kitchen full-size bakery performance without the need for a traditional hood. The Platinum PCE11B/T combines Southbend’s proven bakery-depth cavity with an optional UL-listed catalytic system, letting you “take your bake anywhere” while delivering perfectly even results batch after batch.
Key Advantages
- Ventless internal catalyst — install where a hood isn’t practical*

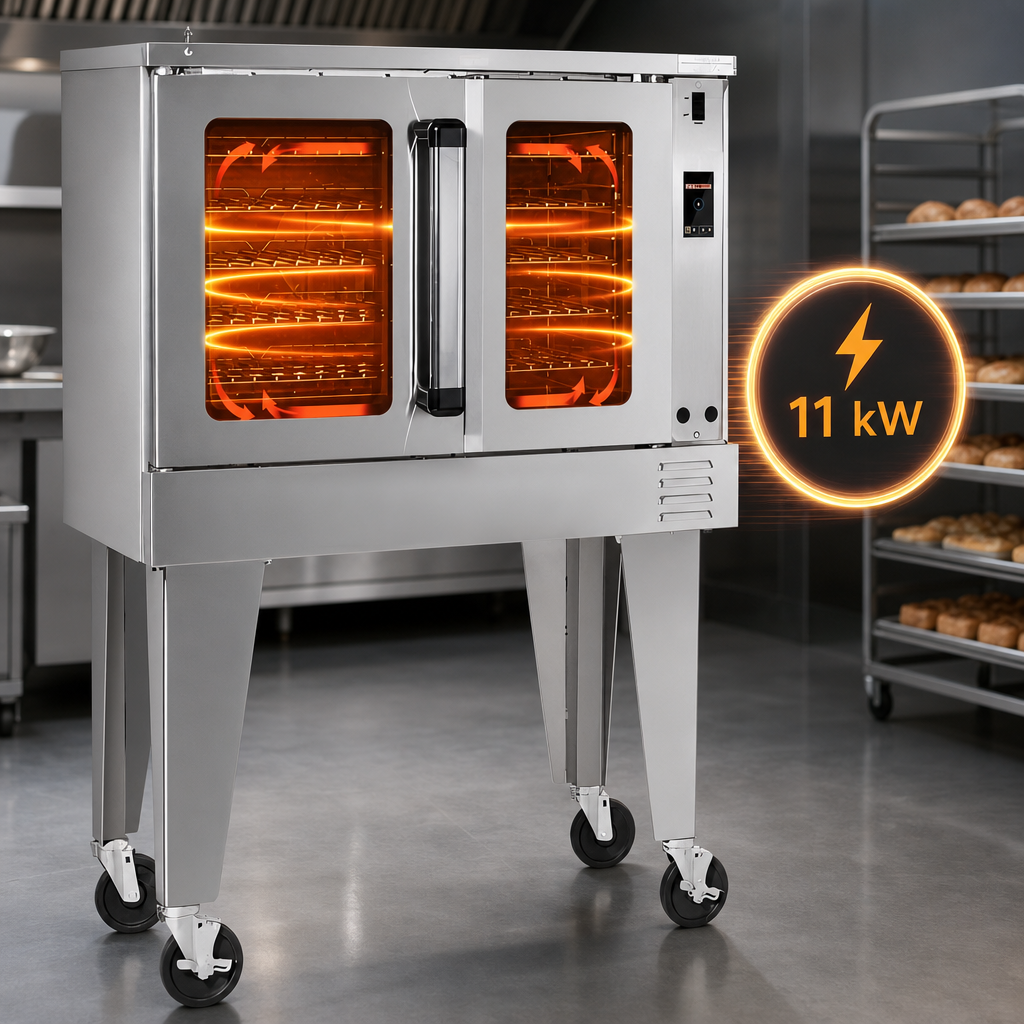

- 11 kW high-efficiency rear elements for fast recovery & consistent heat
- 7" full-color touchscreen with manual, recipe, and multi-rack timers
- Patented “plug-in / plug-out” control panel slides out 17" for tool-free service

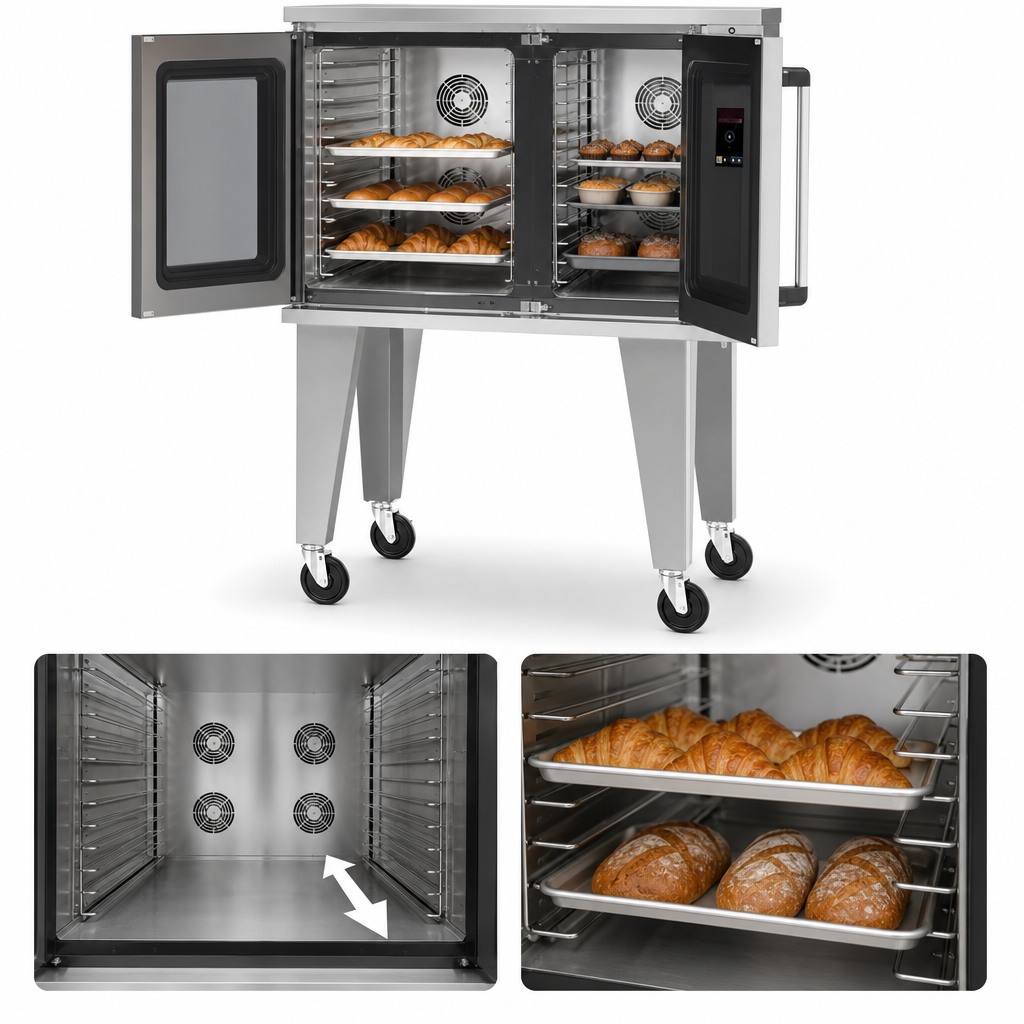

- Bakery depth: 29" interior handles full-size sheet pans front-to-back
- Two-speed ½ hp fan with pulse & forced cool-down modes
- Dual-pane low-emissivity glass doors open a full 180° and stay cool to the touch
- Coved porcelain enamel interior — fastener free for easier cleaning
- 11-position rack guides with 5 plated racks included
- Stainless steel front, sides, top, and rear jacket for long service life
- Interior halogen lighting for clear product visibility
- 1-year parts & labor warranty backed by Southbend’s nationwide network
Smart Touch Control
Store custom programs, run independent shelf timers, or hold finished product between 140 °F – 200 °F. An automatic fan cycle option protects delicate bakes, while USB recipe transfer keeps multiple ovens perfectly in sync.
Technical Specifications
| Model | PCE11B/T (Single Deck, Bakery Depth) |
|---|---|
| Ventilation | Integrated catalytic system – ventless, UL certified |
| Capacity | 5 full-size sheet pans (includes 5 racks) |
| Interior (W × D × H) | 29" × 29" × 20" (737 × 737 × 508 mm) |
| Overall (W × D × H) | 29" × 43.5" × 55" (737 × 1105 × 1397 mm) |
| Shipping Weight | ≈ 680 lb (309 kg) |
| Heating Elements | 11 kW rear-mounted sheath type |
| Motor | ½ hp, 2-speed (1710/1120 RPM) |
| Controls | Touchscreen, 150 °F – 550 °F plus 140 °F – 200 °F hold |
| Door Style | Dependent, dual-pane glass with dual seal |
| Construction | Stainless steel exterior; porcelain enamel interior |
| Warranty | 1-year parts & labor (commercial use) |
Electrical Load – 11 kW Elements
| Voltage | Phase | Amps / Line |
|---|---|---|
| 208 V / 60 Hz | 1 φ | 52.9 A |
| 208 V / 60 Hz | 3 φ | 30.6 A |
| 240 V / 60 Hz | 1 φ | 45.9 A |
| 240 V / 60 Hz | 3 φ | 26.5 A |
| 480 V / 60 Hz | 3 φ | 13.3 A |
Add up to 4.3 A for the control panel. Single-phase availability must be specified at time of order.
What’s in the Box
- Five nickel-plated oven racks
- 11 removable rack guides
- 26" stainless steel triangular legs
- User & installation manuals
