Southbend (Middleby) PCE11B/TD Platinum Convection Ovens
Southbend (Middleby) PCE11B/TD Platinum Convection Ovens is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) PCE11B/TD Platinum Convection Ovens
Description

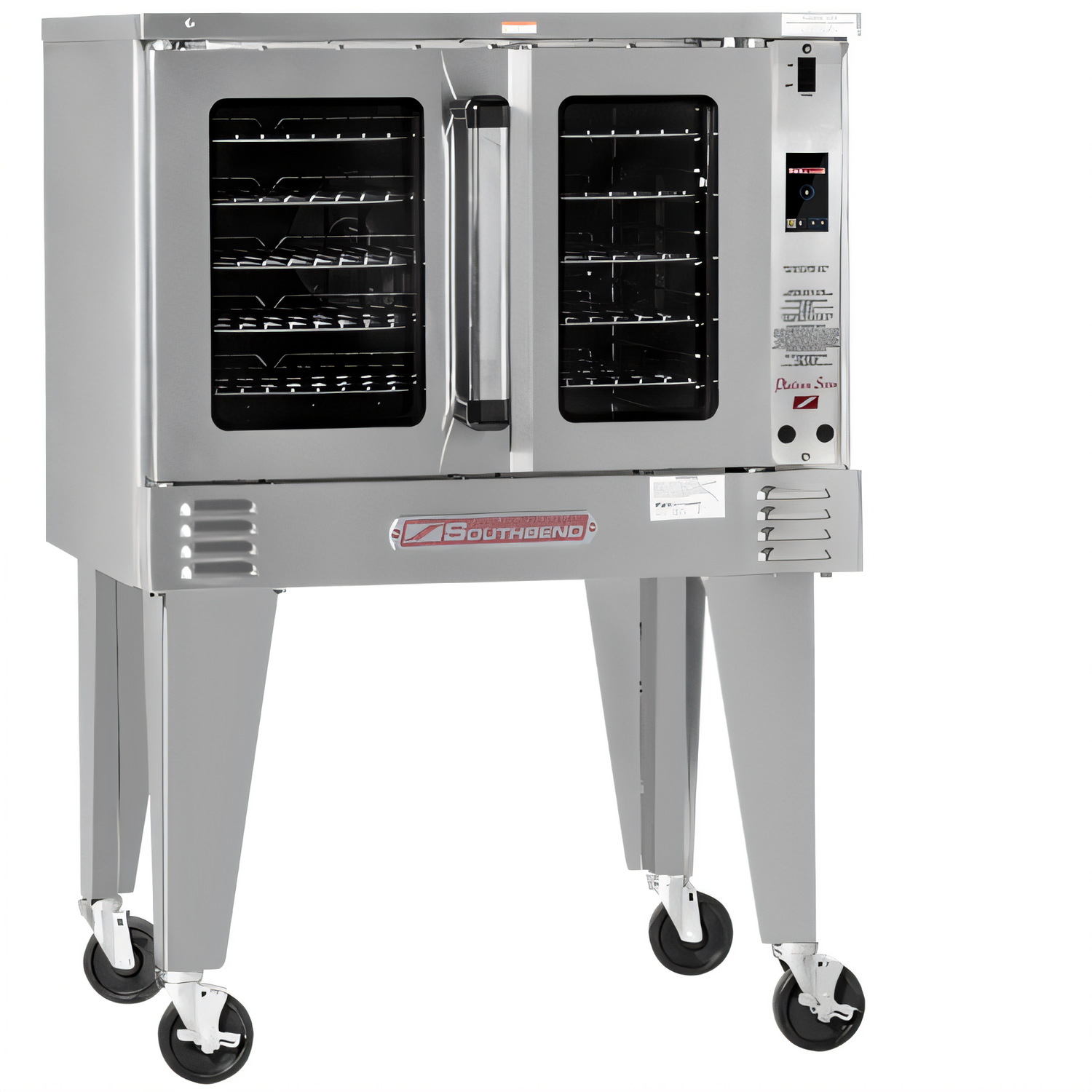

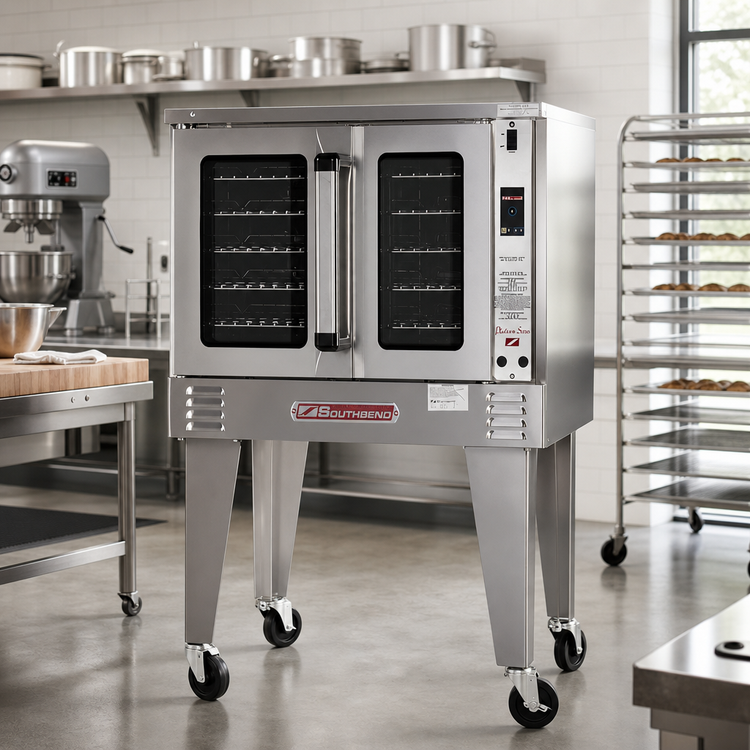

Southbend Platinum Series PCE11B/T Convection Oven
Bakery-Depth • Electric 11 kW • Touchscreen Controls • Dependent Glass DoorsEngineered for high-volume bakeries, restaurants, and institutions, the Southbend Platinum PCE11B/T delivers fast, even, and repeatable results in a service-friendly footprint. A powerful 11 kW rear heating bank and two-speed ½ HP blower “scrub” heat across every rack position, ensuring perfectly browned breads, pastries, and proteins—batch after batch.
Stand-out advantages

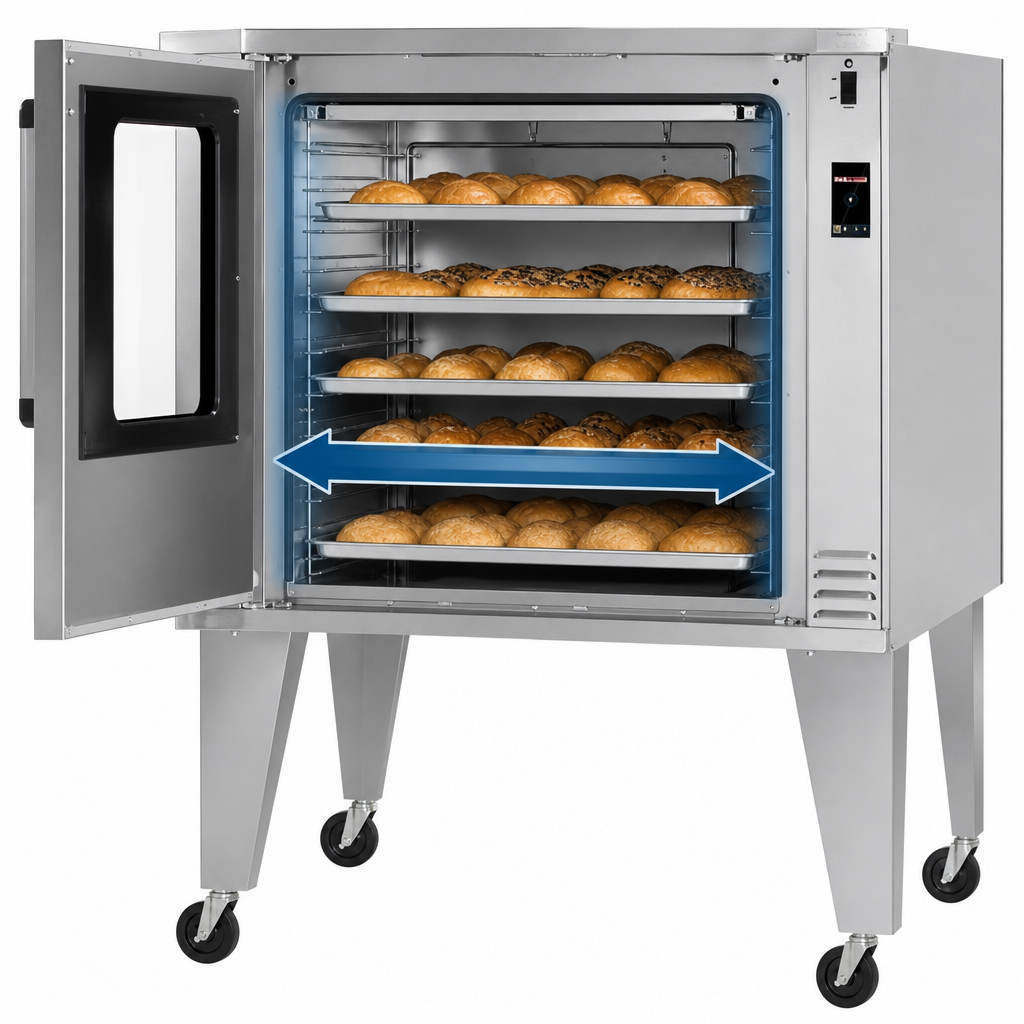

- Bakery-depth cavity accepts full-size sheet pans in either direction.
- 7" touchscreen with manual, recipe, and multi-rack modes; stores your signature cook programs.
- 150 °F–550 °F bake range plus 140 °F–200 °F programmable “Hold.”
- Plug-in / plug-out control panel slides out 17" for front-of-unit servicing.
- Dual-pane dependent doors open 180° and stay cool to the touch.
- Stainless steel exterior with coved, fastener-free porcelain interior for effortless cleaning.
- 11 rack positions; (5) heavy-duty nickel-plated racks included.
- Forced cool-down mode speeds production turn-around.
- Optional UL-certified ventless catalytic system—no hood required.
Technical specifications
| Item | Details |
|---|---|
| Model | PCE11B/T (single deck, bakery depth) |
| Heat output | 11 kW sheath elements (rear mounted) |
| Controls | Digital touchscreen, fan pulse, recipe storage |
| Temperature | 150 °F–550 °F bake • 140 °F–200 °F hold |
| Cavity (W × D × H) | 29" × 29" × 20" (737 × 737 × 508 mm) |
| Overall (W × D × H) | 43.5" × 36.5" × 55" on 26" legs (1105 × 927 × 1397 mm) |
| Motor | ½ HP, 2-speed, 1710/1120 RPM |
| Racks / Guides | 5 racks included • 11 positions on 1 ⅝" centers |
| Electrical * | 208, 240, 380, 415, 480 VAC • 1 Ø or 3 Ø • add 4.3 A for controls |
| Amps @ 208 V 3 Ø | 30.6 A per line |
| Shipping weight | ≈ 680 lb (313 kg) – 68.1 cu ft crated |
| Warranty | 1-year parts & labor, commercial use |
* Specify voltage and phase at time of order.
Included with your oven
- PCE11B/T convection oven on 26" stainless legs
- (5) Nickel-plated wire racks
- Slide-out touchscreen control module
- Owner’s manual & warranty registration
