Southbend (Middleby) PCE11B/SD-V Platinum Convection Ovens
Description

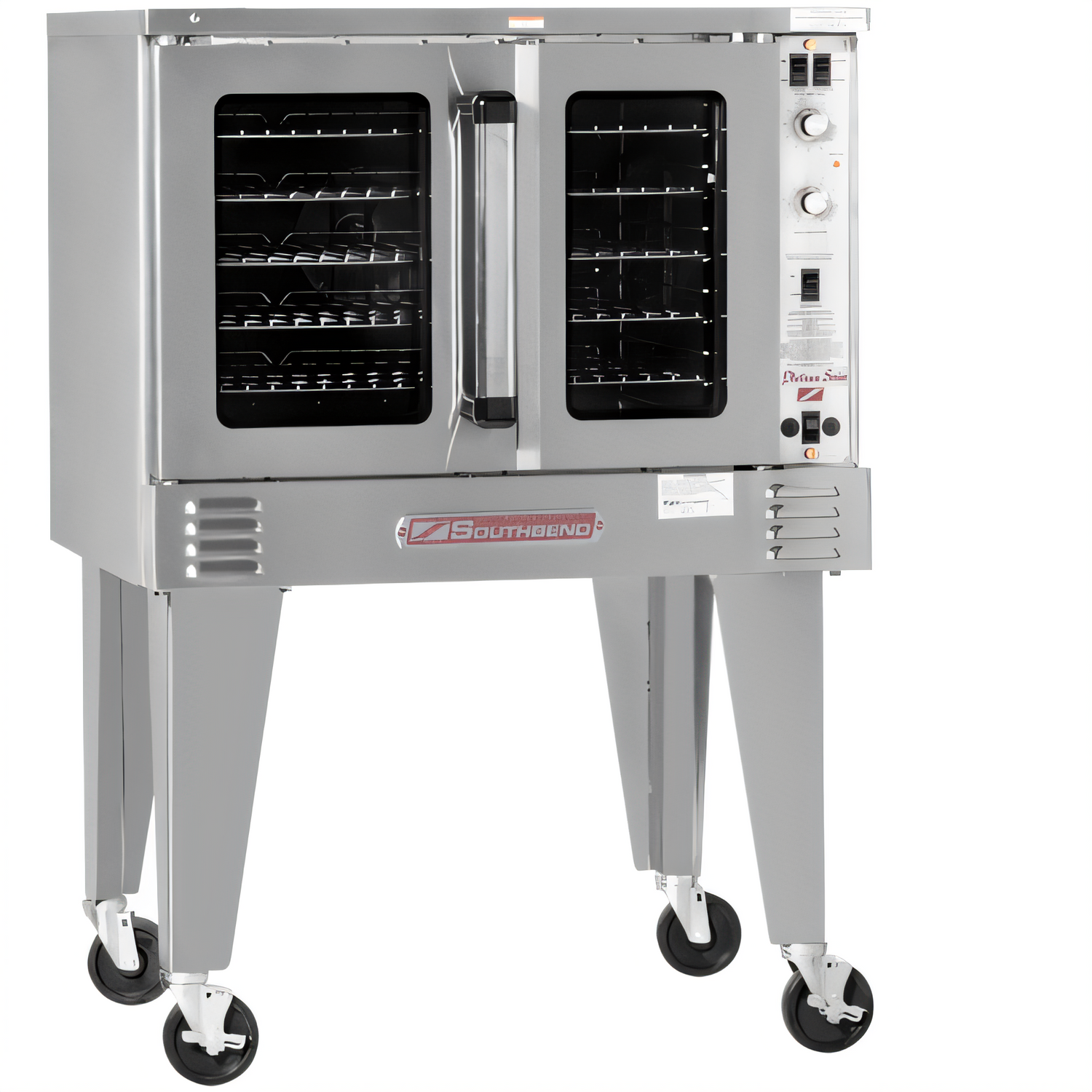

Southbend Platinum Series Ventless Electric Convection Oven
Single Deck • Bakery Depth • 11 kW • Standard Controls • Dependent DoorsBake, roast, and finish with confidence—anywhere in the kitchen—thanks to Southbend’s new UL-certified ventless catalytic system. The Platinum Series PCE11B/S-V moves the power of a full-size bakery-depth convection oven into a footprint that requires no dedicated hood*, yet still delivers the high-volume performance Southbend has been trusted for since 1898.
Performance & Construction Highlights
- 11 kW high-efficiency sheath elements with rapid recovery for continuous baking.
- Bakery-depth (29 in.) cavity fits full-size sheet pans either way.
- Two-speed ½ HP fan motor (1,710 / 1,120 RPM) for even air circulation and gentle bakes.
- Patented plug-in / plug-out slide-out control panel—service the oven without removing it from the line.
- Standard solid-state controls: 140–500 °F thermostat + 60-minute audible timer.
- Energy-saving dual-pane Low-E glass in dependent doors that open a full 180°.
- Coved, fastener-free porcelain-enameled interior for quick wipe-downs.
- 11 rack positions on 1 ⅝ in. centers with 5 nickel-plated racks included.
- Forced cool-down mode speeds turnover between bakes.
- Bright, recessed cavity lighting and “stay-cool” heavy-duty door handle.
- Stainless steel front, sides, top, and rear jacket built for years of commercial abuse.
- One-year parts & labor warranty backed by Southbend’s nationwide service network.
Why Go Ventless?
- No expensive hood installation or additional make-up air required*
- Cook where it’s most convenient—banquet rooms, kiosks, or tight kitchens
- Self-contained catalyst scrubs grease, smoke, and odors before they leave the oven
- UL certified for compliance and peace of mind
Technical Specifications
| Model | PCE11B/S-V (Ventless, Standard Controls) |
|---|---|
| Configuration | Single deck, bakery depth |
| Heat Source | Electric – 11 kW total input |
| Temperature Range | 140 °F – 500 °F (60 °C – 260 °C) |
| Exterior Dimensions (W × D × H) | 55 in. × 43.5 in. × 55 in. Height shown on 26 in. legs; casters optional. |
| Interior Cavity (W × D × H) | 29 in. × 29 in. × 20 in. |
| Racks / Guides | 5 included / 11 positions |
| Fan Motor | ½ HP, two-speed |
| Electrical | 208, 240, 380, 415, or 480 VAC • 1 or 3 Phase Example draw @ 240 V 3-Ph: 26.5 A/phase (+4.3 A controls). |
| Shipping Weight | ≈ 680 lb (308 kg) |
| Certifications | UL, NSF, cULus |
| Warranty | 1-year parts & labor |
What’s in the Box
- Five nickel-plated oven racks
- Stainless 26 in. triangular legs (field-install)
- Integrated ventless catalyst assembly
- Owner’s manual & warranty registration card
