Southbend (Middleby) PCE11B/SD Platinum Convection Ovens
Description

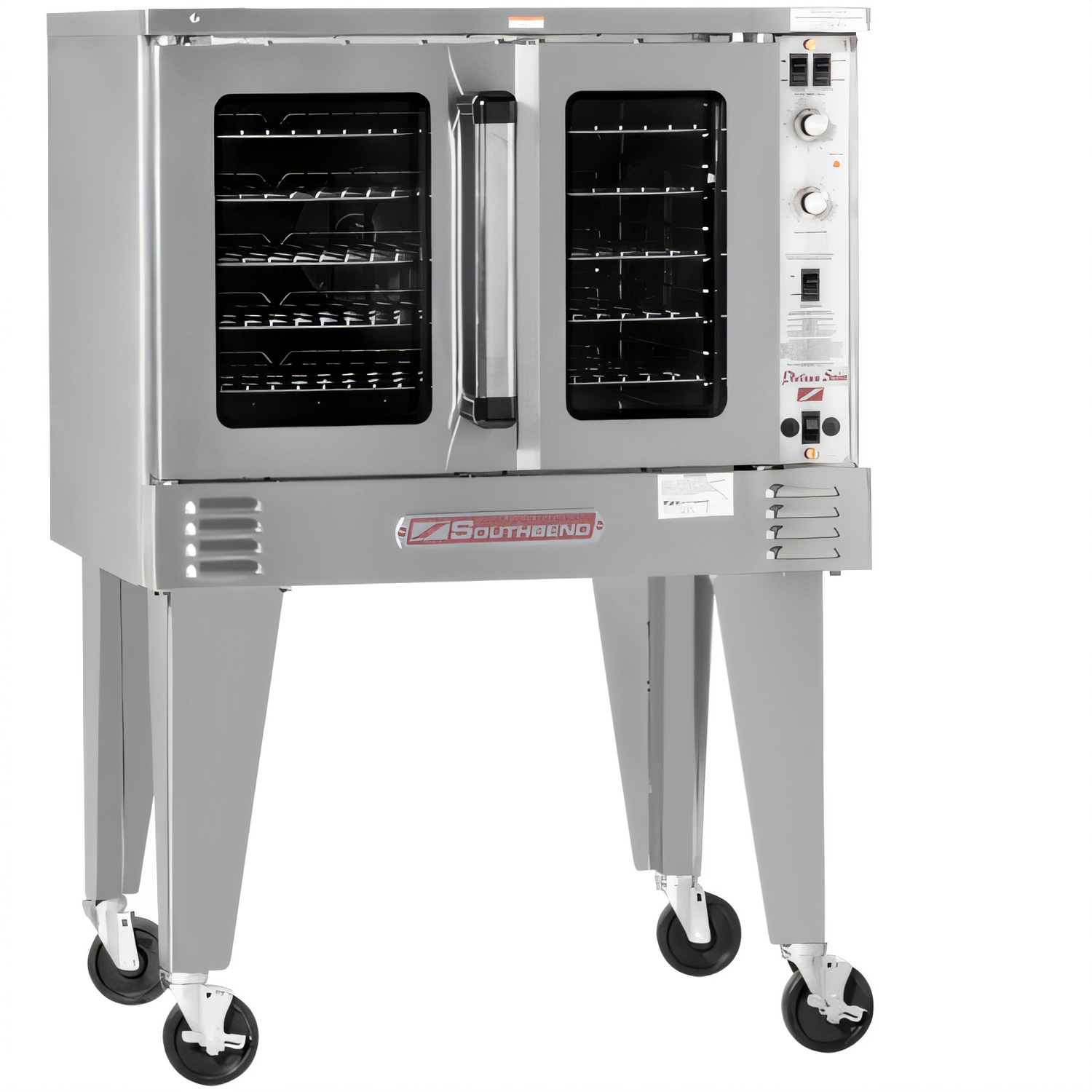

Southbend Platinum Series Single Bakery-Depth Convection Oven – 11 kW
Model PCE11B/S | Electric | Standard Controls | Dependent Glass DoorsBuilt for high-volume bakeries, cafés, and ghost kitchens, the Southbend Platinum 11 kW convection oven brings rock-solid construction together with bakery-depth capacity and the industry’s easiest front-service control panel. Even, consistent bakes—batch after batch—start here.
Why You’ll Love It

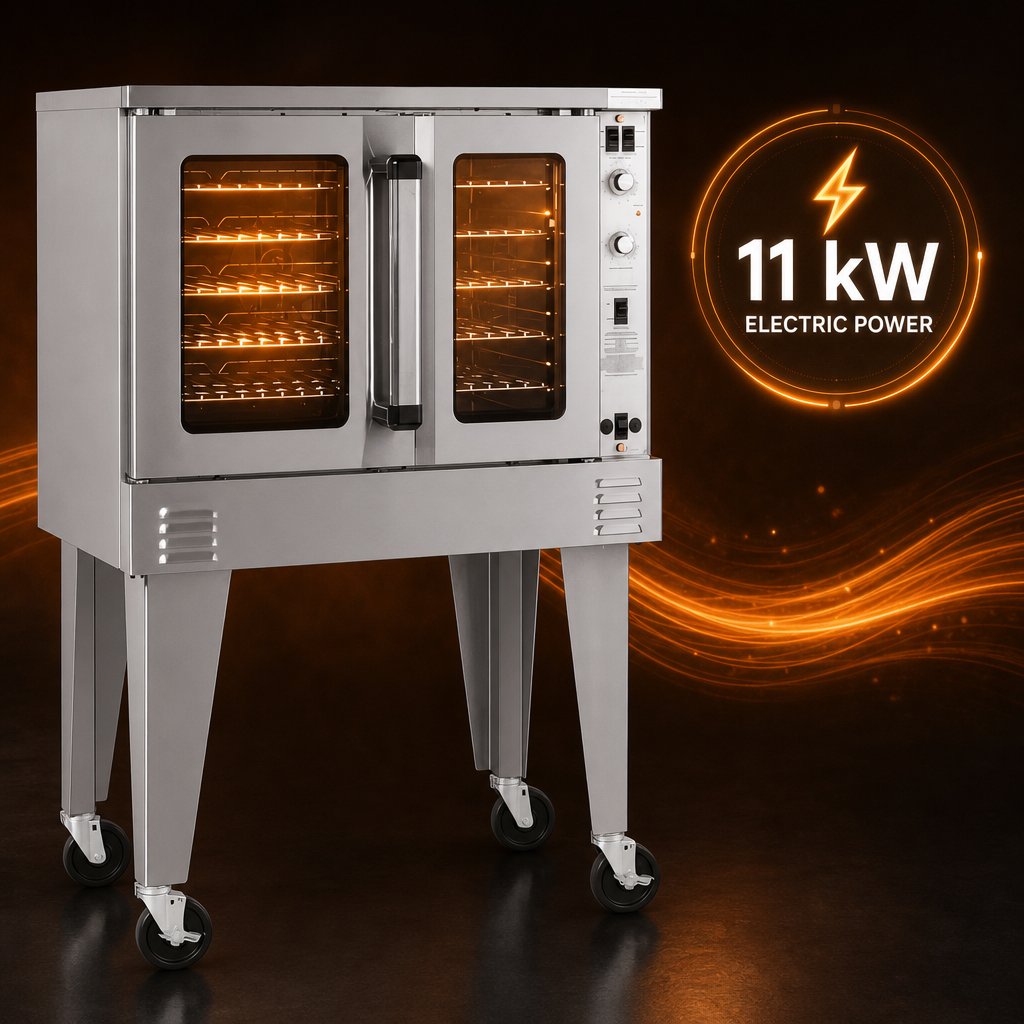

- 11 kW high-efficiency rear heating elements for rapid heat-up and fast recovery.
- 140 °F–500 °F solid-state thermostat plus 60-minute mechanical timer.
- Patented “plug-in / plug-out” control module slides out 17" for full front-side servicing.

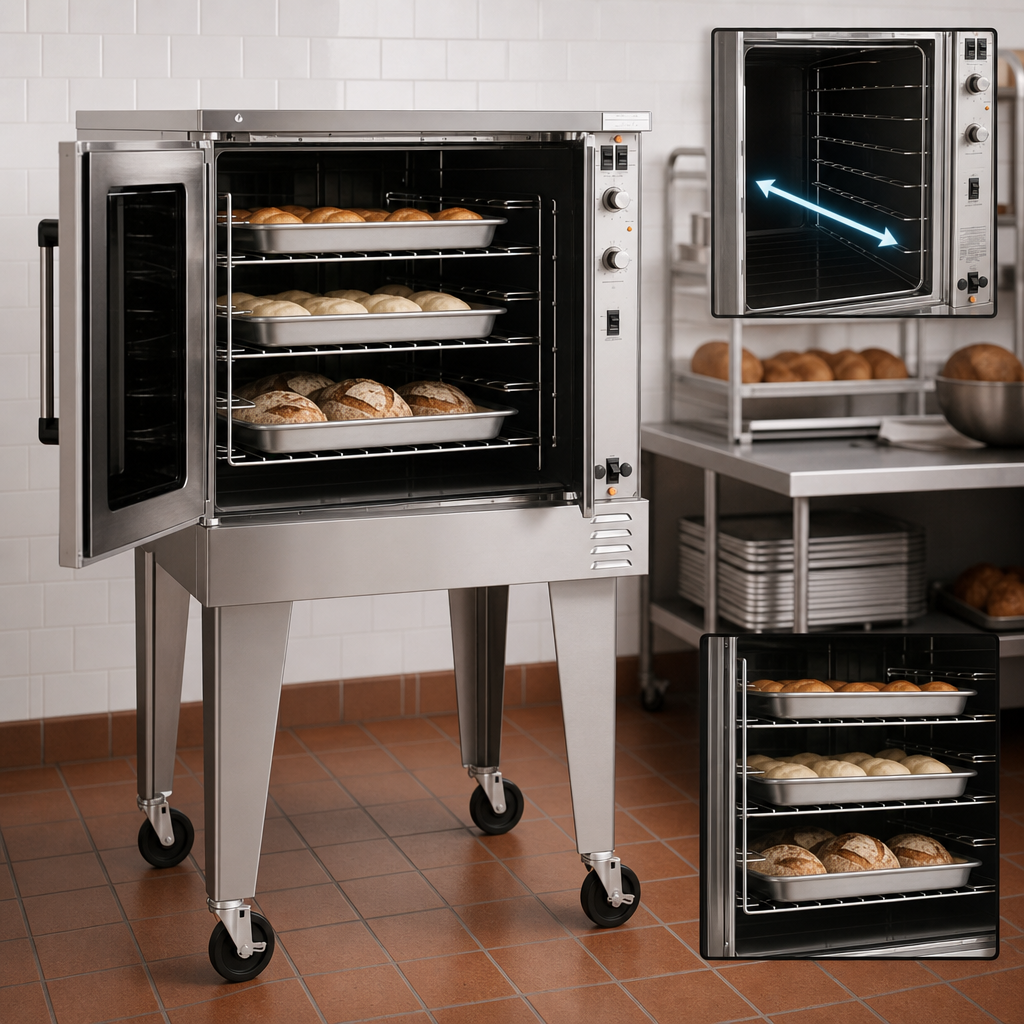

- Bakery-depth cavity (29") accepts full-size sheet pans in either direction.
- 11 rack positions; 5 heavy-duty wire racks included.
- Dependent low-emission glass doors open 180° and seal tight with dual gaskets.
- ½ hp, 2-speed fan motor with forced cool-down mode for quick turn-around.
- All stainless steel exterior; coved, fastener-free porcelain interior
→ wipes clean in seconds. - Stay-cool handle, interior lighting, and energy-saving windows keep crews safe & productive.
- Backed by a 1-year parts & labor warranty and Southbend’s nationwide service network.
Factory Options & Accessories
- Ventless catalyst system (UL Certified) – install where hoods aren’t feasible*
- 4" or 6" locking swivel casters
- Marine-edge top, stainless rear jacket or dirt tray
- Independent doors, solid stainless doors, export crating & voltage packages
*Always confirm local code requirements before selecting a ventless model.
Technical Specs
| Oven Type | Electric, bakery depth, single deck |
|---|---|
| Model | PCE11B/S (Standard Controls) |
| Heating Power | 11 kW |
| Temperature Range | 140 °F – 500 °F |
| Exterior (W × D × H) | 29" × 43.5" × 55" (737 × 1105 × 1397 mm) on 26" legs |
| Interior (W × D × H) | 29" × 29" × 20" (737 × 737 × 508 mm) |
| Rack Positions / Supplied | 11 / 5 |
| Fan Motor | ½ hp, 2-speed (1710 / 1120 RPM) |
| Electrical (select) |
208 V 1 Φ – 52.9 A 208 V 3 Φ – 30.6 A/line 240 V 1 Φ – 45.9 A 240 V 3 Φ – 26.5 A/line 480 V 3 Φ – 13.3 A/line |
| Shipping Weight | ≈ 680 lb (313 kg) |
| Clearances | Front & right 0" • Left & rear 2" |
| Certifications | UL, NSF |
| Warranty | 1-year parts & labor |
Boost throughput, slash service downtime, and serve perfectly even bakes every time— add the Southbend Platinum 11 kW convection oven to your cookline today.
