Southbend (Middleby) P60-CM Platinum Cheese Melters
Description
Southbend Platinum 60" Heavy-Duty Gas Cheesemelter
Model P60-CM | 60,000 BTU Infrared | Riser-MountDeliver picture-perfect cheese melts, golden-brown gratins, and sizzling finishes in just 90 seconds. Powered by six high-intensity infrared burners, the Southbend Platinum 60" Cheesemelter drops directly onto the flue riser of your range to create a dedicated finishing station without giving up valuable line space.
Key Advantages

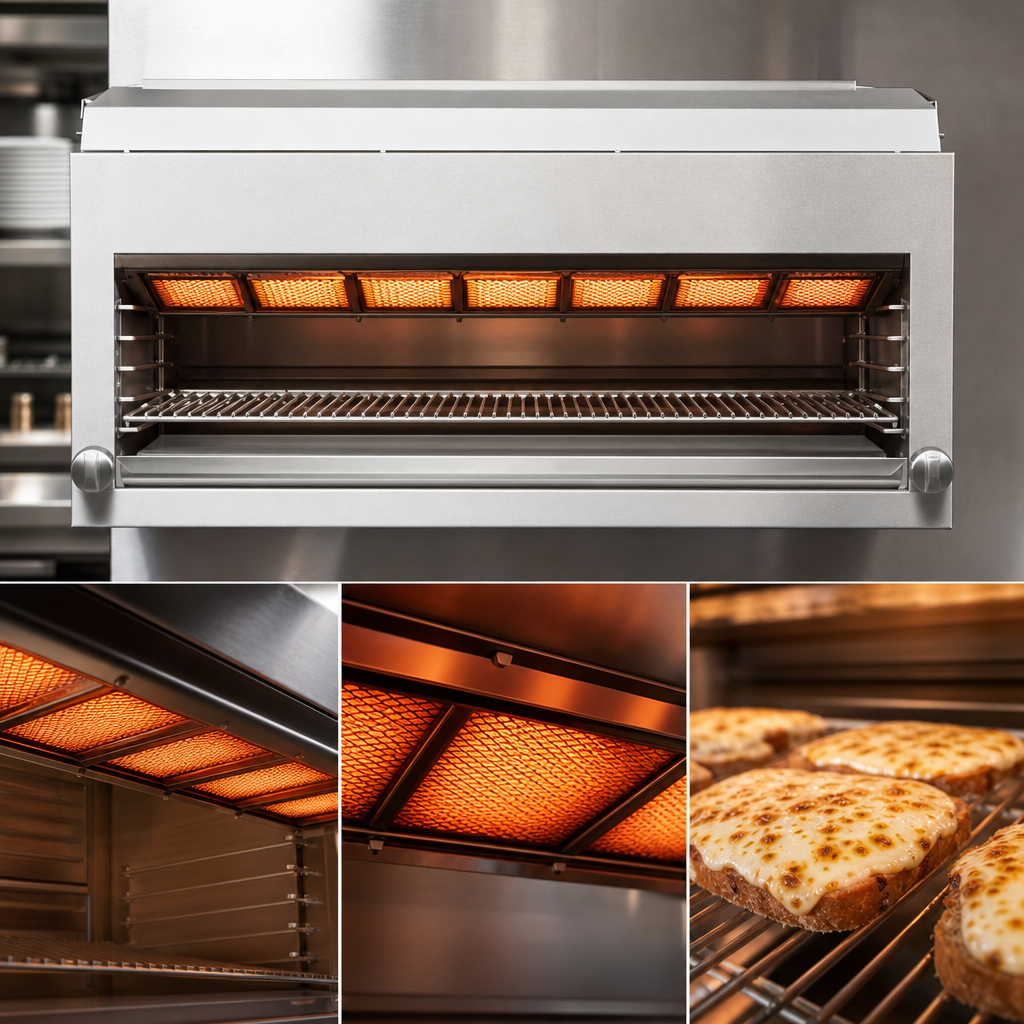

- Six 10,000 BTU infrared burners blanket foods with even, intense heat (total 60,000 BTU).
- Dual independent gas valves let you fire left or right zones only—save fuel during slower periods.
- Lightning-fast 90 second preheat and no recovery time between loads.

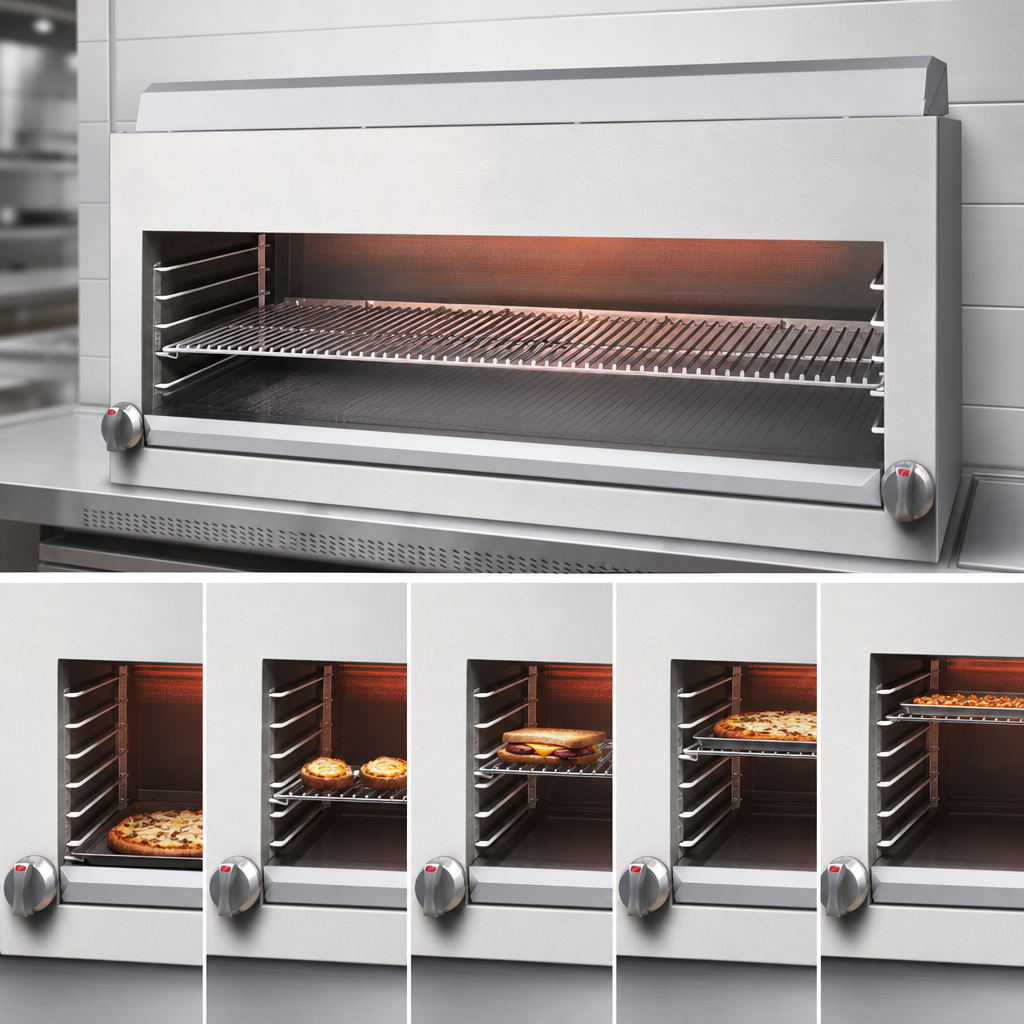

- Five rack positions plus a full-width chrome rack for precise distance control.
- Bright-annealed removable crumb tray simplifies end-of-shift cleanup.
- All-stainless interior & exterior built for the punishing demands of high-volume kitchens.
Sized for High-Volume Finishing
A spacious 55" W × 13" D cavity delivers 715 in² of usable cooking surface—perfect for full-size sheet pans, platters, or multiple steaks at once.
Technical Specifications
| Fuel | Natural gas or propane (field convertible) |
|---|---|
| Total Input | 60,000 BTU/hr |
| Burners | (6) × 10,000 BTU ceramic infrared |
| Controls | Dual manual gas valves (left / right) |
| Preheat Time | Approx. 90 seconds |
| Cooking Surface | 55" W × 13" D (715 in²) |
| Rack Guides | 5 positions | 1 chrome rack included |
| Exterior Dimensions | 60" W × 15.5" D × 21.5" H |
| Gas Connection | 3/8" NPT rear; 4" W.C. Nat / 10" W.C. LP |
| Weight | Approx. 220 lb (100 kg) |
| Certifications | CSA | NSF |
| Warranty | 1-year parts & labor |
Mounting & Clearance
- Standard flue-riser mount for Southbend Platinum & sectional ranges.
- Optional wall-mount bracket or 4" stainless legs for countertop use (sold separately).
- Minimum clearance: 1" sides from combustibles, 0" rear.
Popular Accessories
- Additional chrome cooking racks
- Wall-mount bracket kit
- 4" stainless steel countertop legs
- Sloped stainless enclosure
Intended for commercial use only.
